EverFocus POLESTAR EHN7260 Manual de usuario

Star Light Outdoor Dome IR Network Camera

EHN7221/7260/7360

Ultra Low Light Network Camera

Quick Installation Guide

Release Date: March, 2016

EHN7221/7260/7360

1. Physical Description

Camera Module

No Item Name

1 Cable Gland Equipped with three plugs inserted in the cable conduits for

waterproofing.

2 Terminal Block A 16-pin terminal block. See 2. Terminal Block in the Quick

Installation Guide.

3 LAN / PoE Connect to a 10/100 Ethernet or PoE.

4 Micro SD / SDHC Slot Insert a micro SD / SDHC card (see Appendix A in the User’s

Manual for tested card brands).

5 Reset Button Press and hold the Reset Button for 10 seconds to reset all

configurations to the factory default settings.

6 IR LEDs 33 IR LEDs for infrared illumination in night vision applications.

7 Lens Vari-focal lens, Auto Focus, 3.3-10mm, F1.3, P-IRIS.

8 Light Sensor Detects lights.

Dimensions

EHN7221/7260/7360

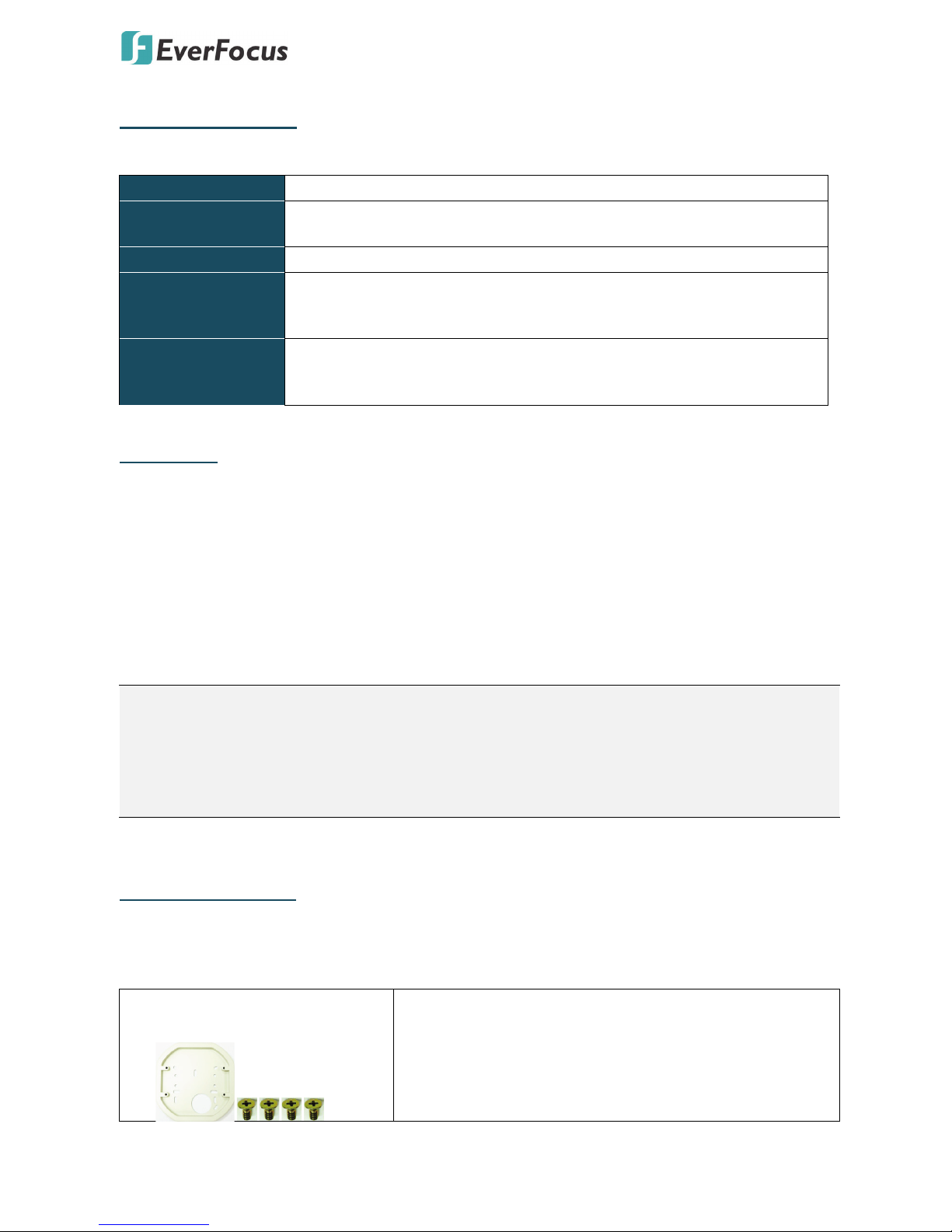

System Requirement

Before installing, please check that your computer meets the following system requirements.

Operating System Windows 7 (32 and 64-bit) or above

CPU Intel Core i5 CPU @ 2.0GHz (or equivalent AMD) or higher

(Intel Core i7 CPU @ 3.4GHz recommended)

Graphic Card 512MB RAM graphic cards (or equivalent on-board graphic cards)

RAM

•

2GB or more (8GB recommended)

•Additional HD space depends on required local storage of video files,

100 Mbps network card.

Software

•DirectX 9.0c

•Internet Explorer 9 and later, Firefox 4.0-9.0, Chrome (Windows

version 44 and earlier)

Packing List

•EHN Series Camera x 1 •Desiccant Bag x 2

•MAC Address Sticker x 2 •Power Pigtail Cable x 1

•Plastic Bag x 1 (which contains the below items) •Torx Screwdriver x 1

- Hexagon Screw x 4 •RJ-45 Connector x 1

- Phillips Screw x 4 •Base Plate x 1

- Screw Anchor x 4 •Inner Paper x 1

- Rubber Ring x 1 (replace the old rubber ring around •Software CD x 1

the lens only when it is damaged) •Quick Installation Guide x 1

Note:

1. Equipment configurations and supplied accessories vary by country. Please consult your local

EverFocus office or agents for more information. Please also keep the shipping carton for

possible future use.

2. Contact the shipper if any items appear to have been damaged in the shipping process.

Optional Accessories

You can use the optional accessories to expand the capabilities and versatility of the camera. Please

contact your dealer for more information.

•One Adapter Plate with 4

Screws

The Adapter Plate is designed for wiring the cables through

the bottom of the camera case. For details on how to wire

the cables through the bottom of the camera, please refer

to the User’s Manual in the CD.

EHN7221/7260/7360

•EPTZ-PLM

Pole Mount Bracket

Dimensions:

Ф155mm / 6.1” (max)

Ф90mm / 3.54” (min)

Stainless Steel

•L-Shaped Mounting Bracket

To prevent the camera from being damaged by direct

sunlight, it is strongly recommended to use the L-Shaped

Mounting Bracket to mount the camera to the wall. For

details on mounting the camera to the wall using the

L-Shaped Mounting Bracket, please refer to the User’s

Manual in the CD.

•IP Sidekick - ESK1000

Using it for installation, you do not need to pre-configure

the IP address or to use an additional monitor to check and

adjust all the IP cameras. The product can assign an IP

address to the camera through its Wi-Fi network, then you

can connect and check the camera live view using our

mobile app. For details about IP Sidekick, please refer to the

IP Sidekick – ESK1000 User’s Manual.

•EverFocus 5 / 8 / 16 / 24 Ports

PoE Switch

5 Ports: ES0501-40

8 Ports: ES0812-31 / ES0802-41

16 Ports: ES1625-31 / ES1645-51

24 Ports: ES2426-31 / ES2446-51 / ES2448-62

EHN7221/7260/7360

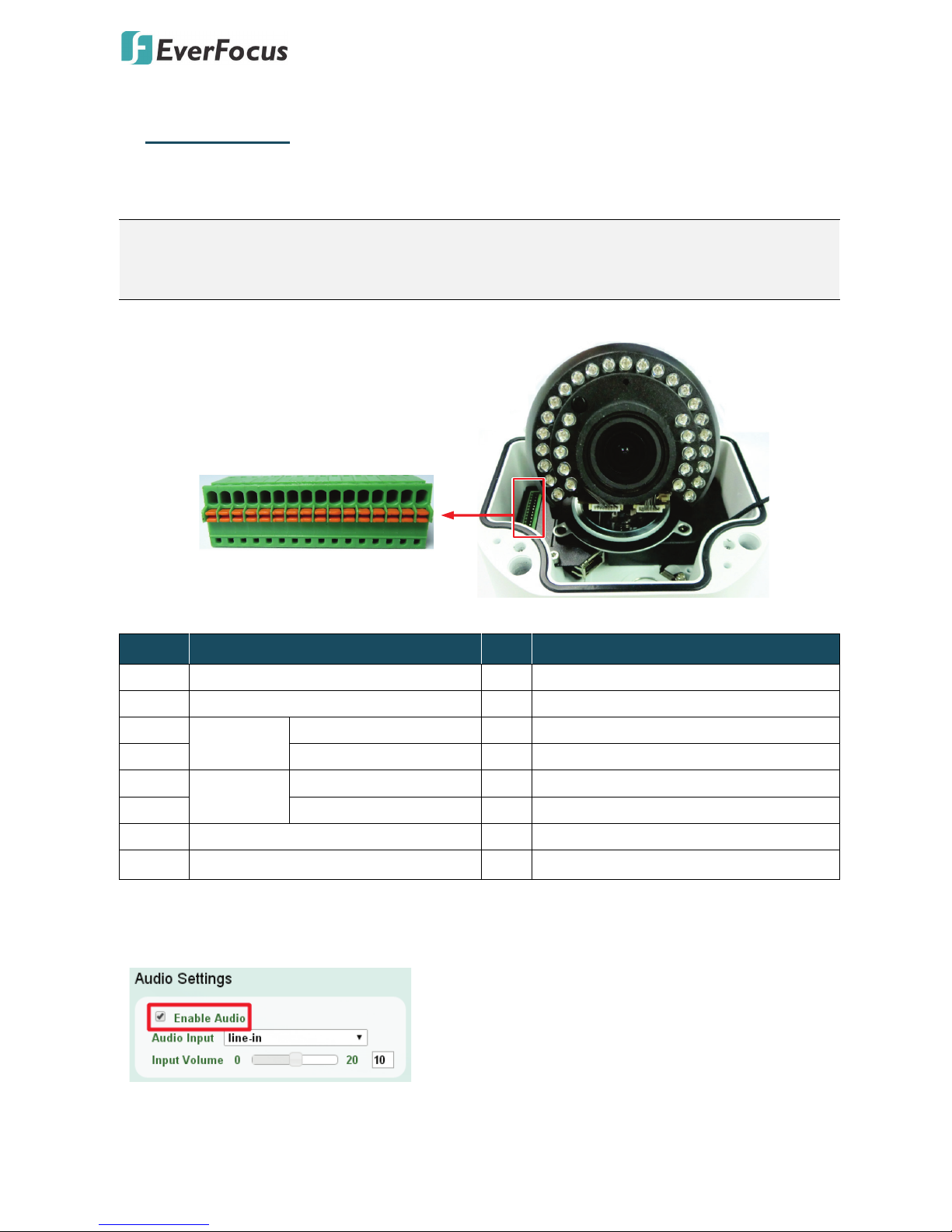

2. Terminal Block

The I/O terminal block, located on the camera module, can be used to develop applications for

alarm input and output, two-way audio, TV-output or a variety of other functions.

Note:

1. You can unplug the terminal block from the camera module for easier wiring.

2. Speakers / microphones with a (built-in) amplifier and external power supply are required.

3 2 16 5 49 8 712 11 1016 15 14 13

Camera Module

No. Functions No. Functions

1 12 VDC Input 9 Audio Output (Line-out)

2 Digital GND 10 Audio GND

3 Alarm Out Alarm Output (+) 11 CVBS Output

4 Alarm COM (-) 12 Digital GND

5 Alarm In Alarm Input (+) 13 AC24V+

6 Digital GND (-) 14 AC24V-

7 Audio Input (Line-in) 15 RS485_A

8 Audio GND 16 RS485_B

To activate the Audio function, the Enable Audio must be checked. See 7.5 Audio in the User’s

Manual.

EHN7221/7260/7360

3. Installation

Important Notice for the Installation

If you want to mount the camera on the wall where direct sunlight may occur, it is strongly

recommended to mount the camera using the L-Shaped Mounting Bracket to prevent the camera

from being damaged by direct sunlight. Please refer to the Quick Installation Guide of L-Shaped

Mounting Bracket for more details.

Basic Installation

This installation guide provides the basic instructions on installing an EHN IP camera to the wall. For

details, please refer to the User’s Manual in the software CD.

To mount the camera to the wall and connect the cables to the camera:

1. Unscrew the four screws and remove the cover from the camera.

EHN7221/7260/7360

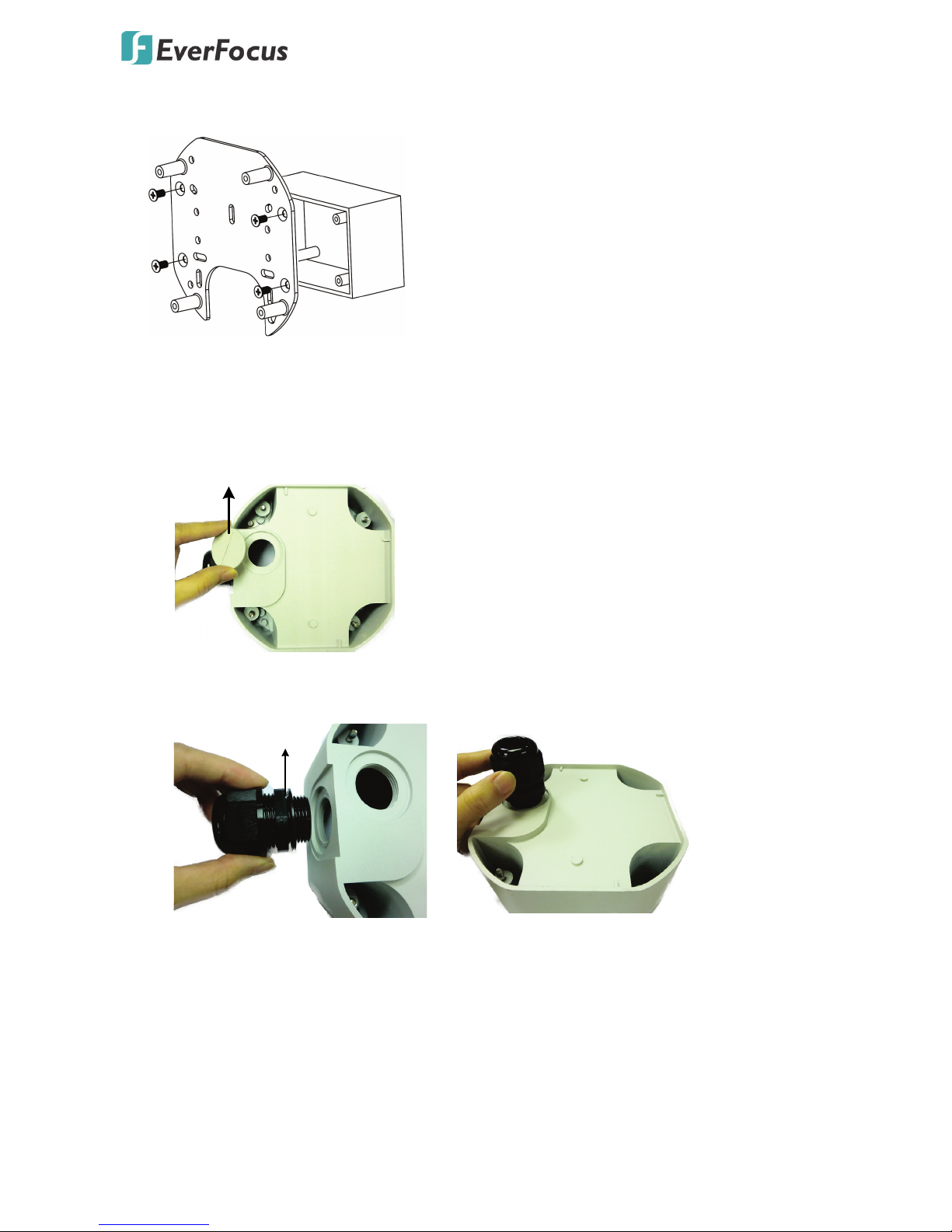

2. Screw the Base Plate to the Wiring Box using the supplied four Phillips Screw.

Base Plate

Wiring Box

If you want to wire the cables through the bottom of the Camera Case, follow the steps below:

a. Remove the Circle Plate on the bottom of the Camera Case. You can simply loosen the Circle

Plate using a coin.

Circle Plate

Camera Case

b. Loosen and remove the Cable Gland from the Camera Case. Screw the Cable Gland to the

hole on the bottom of the Camera Case.

Cable Gland

Camera Case

EHN7221/7260/7360

c. Screw the Circle Plate to the side hole on the Camera Case.

d. Screw the Adapter Plate between the Base Plate and Wiring Box.

Base Plate

Wiring Box

Adapter Plate

3. Screw the Camera Case back to the Base Plate using the supplied four Hexagon Screws.

Base Plate

Camera Case

EHN7221/7260/7360

4. Insert the network / PoE cable or the additional cables through the Cable Gland. Up to three

cables can be inserted. Note that except the network / PoE cable, additional wires have to be

bundled into a cable with diameter ranging from 5.3mm to 6.4mm (see Step d below).

Screw BodyScrew Cap

Stopper Claw

Plug

Stopper

Adjustment Ring(s)

Cable Gland Cable Gland

Screw Cap

a. Keep the supplied 6 Adjustment Rings for waterproofing.

•Transparent x 5 (1 mm thickness)

•Black x 1 (0.5 mm thickness)

b. Remove the Plug(s) from the Stopper (depends on the number of cables inserted). One

Cable Conduit can only be inserted with one cable.

Plug Stopper

Cable Conduit

c. Insert the network / PoE cable through the Cable Conduit, if your network / PoE cable

already has a RJ-45 connector, then you can use the Slitted Cable Conduit.

Slitted Cable Conduit

EHN7221/7260/7360

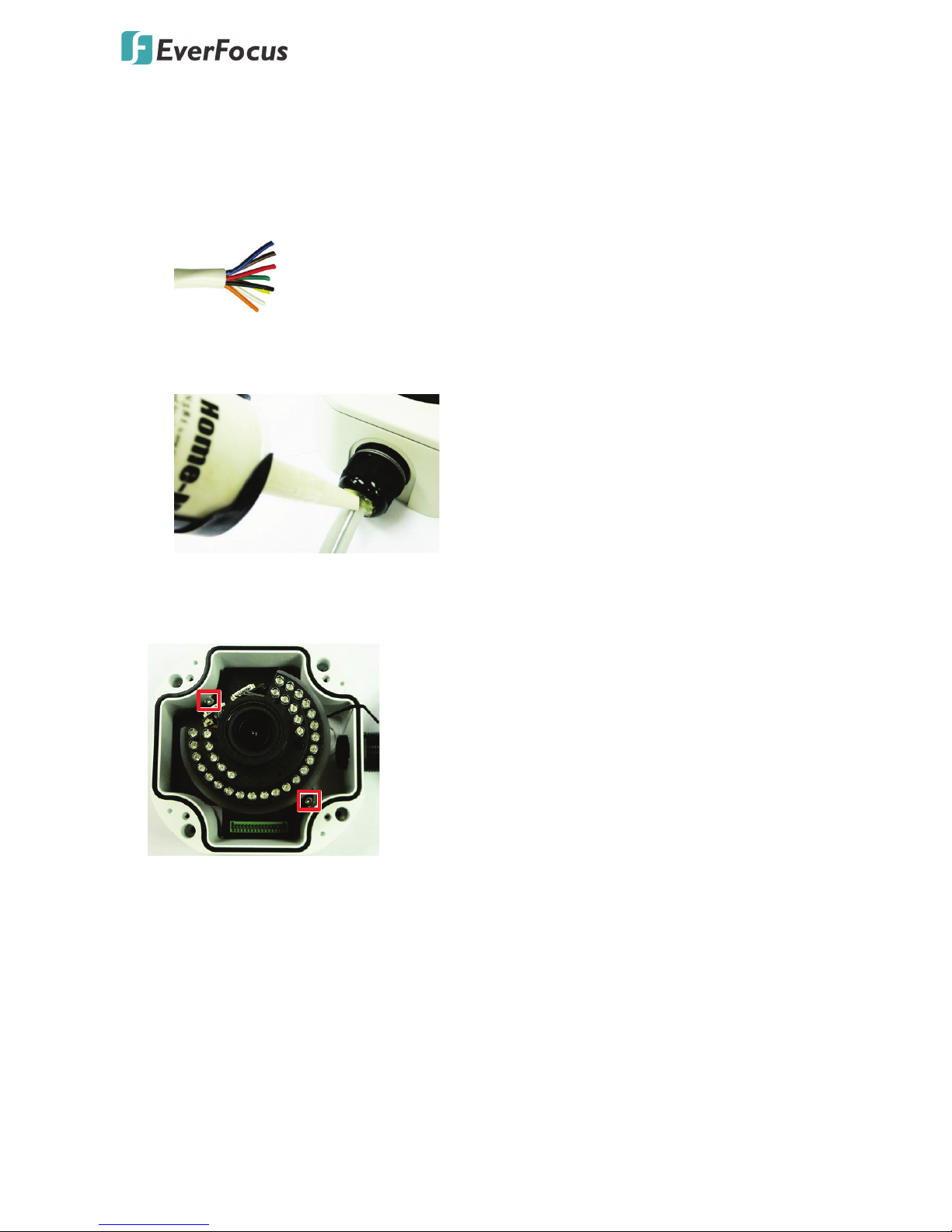

d. Optionally insert the additional wires, such as power (if you want to power the camera

through a 12 VDC power source), alarm and audio cables, through the other Cable Conduit.

Note that one Cable Conduit can only be inserted with one cable. The Cable Conduit has

been tested to support cable diameter between 5.3mm and 6.4mm. Please refer to the

image below to bundle the lose wires before inserting to the Cable Conduit.

e. Tighten the Screw Cap all the way to the Adjustment Ring(s).

f. Due to the variable cable diameters, for better waterproofing, it is strongly recommended

that you apply silicon sealants to the inner Screw Cap.

5. Connect the network / PoE cable to the LAN / PoE port on the camera module.

If you have difficulty connecting the network cable to the LAN / PoE port on the camera module,

you can unscrew these two screws and take out the camera module.

6. If you have inserted additional wires, connect the wires to the terminal block. Please refer to

2. Terminal Block for pin assignment.
