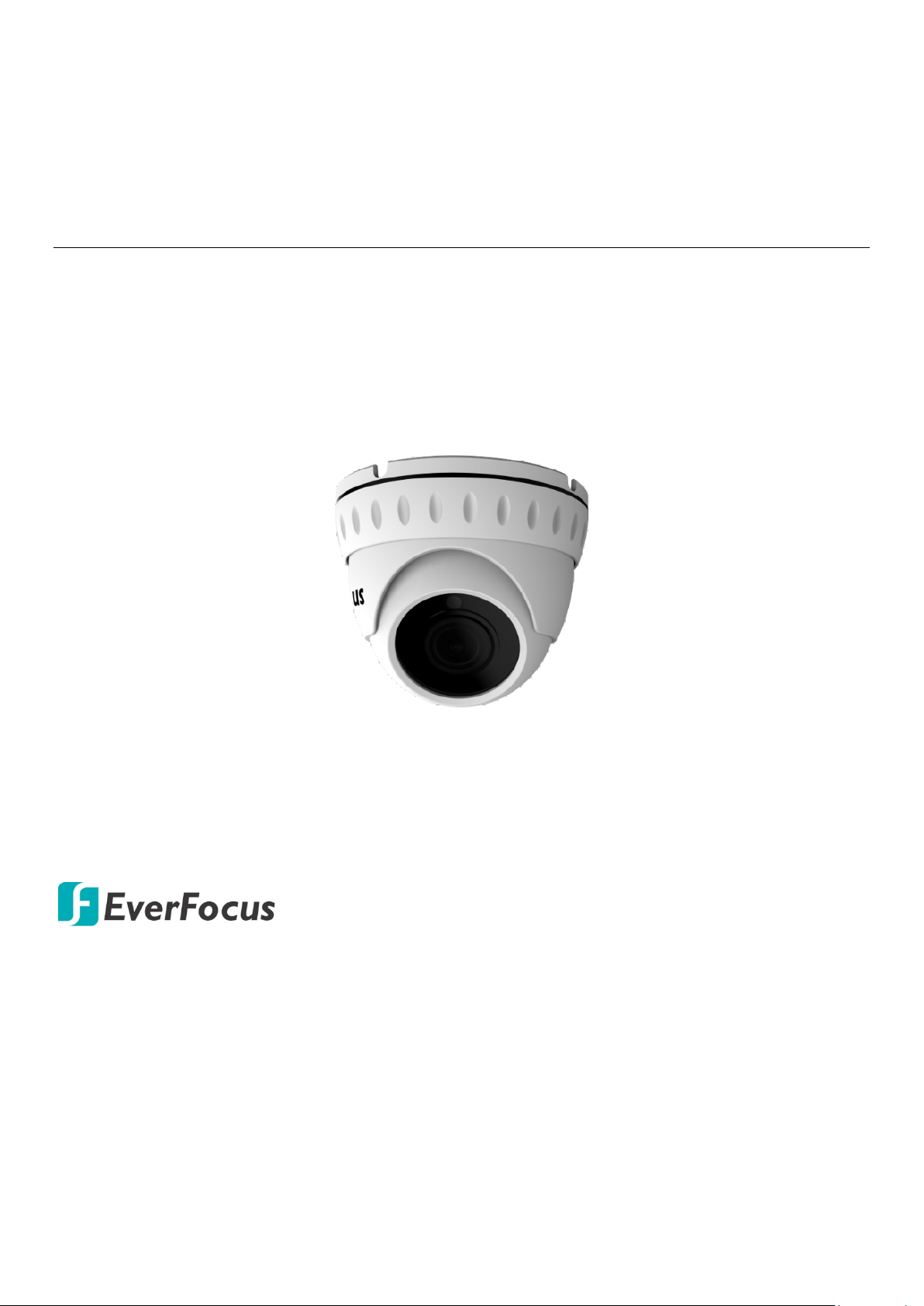

EverFocus EBA1840 eZ.HD Series Manual de usuario

EBA1840 eZ.HD Series

8MP, IP66 IR Dome Camera

User’s Manual

Release Date: September, 2019

All the images including product pictures or screen shots in this document are for example

only. The images may vary depending on the product and software version. Information

contained in this document is subject to change without notice.

EverFocus Taiwan:

2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan

TEL: +886 2 2662 2338 FAX: +886 2 2662 3632 www.everfocus.com.tw

1. Introduction

EverFocus eZ.HD series cameras – EBA1840 deliver 8MP image quality. The

model is equipped with 8MP CMOS sensor and provides 4mm fixed lens with

ICR. Featured with True Wide Dynamic Range (T-WDR), the camera can

provide clear images even under backlight circumstances where intensity of

illumination can vary excessively. The EBA1840 supports both NTSC and PAL

scanning systems (auto detection) and is IP66 certified.

1.1 Packing List



Camera x 1

Mounting Sticker x 1



L-Type Wrench x 1



Screw & Screw Anchor x 4

User Manual x 1

1.2 Features

Equipped with 8MP CMOS sensor

4mm fixed lens with ICR to capture the desired field of view

Extended IR range of up to 20m / 66ft. with 18 LEDs (depends on scene

IR reflectivity)

T-WDR to improve the visibility under high contrast scene

The flexible angle viewing with its 3-Axis rotation design allows wall or

ceiling mounting

IP66-rated with metal housing

Supports UTC function: Control camera OSD settings from DVR end

1.3 Dimensions

76mm / 3"

94.5mm / 3.72"

1.4 Optional Accessory

BA-E310

Color / Material: White / Metal

Size (Φx H): 101 x 52mm / 3.98” x 2”

Weight: 540g / 1.2lb

BA-E173

Color / Material: White / Metal

Size (W x D x H): 173 x 111 x 114mm / 6.81”x 4.37”x 4.49”

Weight: 700g / 1.5lb

1.5 Cable Description

12VDC Power Cable

Video Output Cable (BNC, 75Ohm)

2. Installation

1. Stick the supplied Mounting Sticker to the surface to mark the 4 screw

positions. Drill four holes on the surface and insert the supplied 4 Screw

Anchors into the screw holes. If you want to run the cable through the

surface, drill a hole within the 4 screw area.

2. Unscrew the Outer Housing by twisting it counterclockwise and then

remove it from the Camera Base.

Outer Housing

Camera Base

Camera Body

3. Screw the Camera Base to the surface with the supplied four Screws.

a. If you want to wire the cables from the Side Cut on the Camera Base:

Attach the Camera Body to the Camera Base and run the cables through

the Camera Base, and then place the cable under the Side Cut. Finally,

screw the Camera Base to the surface with the supplied 4 Screws.

Side Cut

Wall

Camera Base

Camera Body

b. If you want to wire the cables through the surface:

Attach and screw the Camera Base to the surface with the supplied 4

Screws, and then attach the Camera Body to the Camera Base.

Wall

Camera Base

Camera Body

4. Screw back the Outer Housing and adjust the camera angle

simultaneously.

360

180

5. Connect the Power Cable to a 12VDC power source. Connect the Video

Output Cable to a monitor or DVR.

6. You can use the Joystick on the cable to configure camera OSD settings.

Remove the Protection Cap from the Joystick before using it.

Configuring OSD Settings:

•Push the Joystick up / down to select

among menu items.

•Push the Joystick left / right to adjust the

level of the selected item.

•Press the Joystick to enter the submenu or

exit the OSD Setup Menu.

3. Configuration in the OSD Menu

Main

Sub Menu

Sub Menu / Function

1 Edge Det On

Level

0-10

Color

YEL, CYN, GRN, MAG, RED, BLU, BLK,

WHT

Off

2 Exposure

Brightness

0-20

Shutter

Auto

Mode

Normal / Deblur

Manual Speed

1/30, 1/60, 1/120, 1/250,

1/500, 1/1000, 1/2000,

1/4000, 1/8000, 1/15000,

1/30000

Flicker

Sens-Up

Not supported

AGC

0-10

3 Backlight

HLC

Level

0-20

Color

YEL, CYN, GRN, MAG, RED, BLU, BLK,

WHT

BLC

H-POS

0-38

V-POS

0-35

H-SIZE

0-38

V-SIZE

0-35

WDR

WDR Mode

Line

ROI Mode

Box

Window Zone

0-3

Window Use

On, Off

H-POS

0-3856

V-POS

0-2176

H-SIZE

0-3856

V-SIZE

0-2176

Polygon

Window Zone

0-3

Window Use

On, Off

POS0-X

0-935

POS0-Y

0-360

POS1-X

0-935

POS1-Y

0-360

POS2-X

0-935

POS2-Y

0-360

POS3-X

0-935

POS3-Y

0-360

Off

Weight

High, Middle, Low

Off

4 Day/Night Mode

Auto

IR LED

Adaptive, Off

Anti-Sat.

0-20

D>N Thres

0-20

N>D Thres

0-20

Delay

High, Middle, Low

Color

B/W

IR LED

Adaptive, Off

Anti-Sat.

0-20

D>N Thres

0-20

N>D Thres

0-20

Delay

High, Middle, Low

Extern

IR LED

Adaptive, Off

Anti-Sat.

0-20

Extern SW

High, Low

D>N Thres

0-20

N>D Thres

0-20

Delay

High, Middle, Low

5 Color AWB

Auto

Autoext

Preset

Manual

C-Temp

3000K, 5000K, 8000K

R-Gain

0-20

B-Gain

0-20

Color Gain

0-20

DNR

High, Middle, Low, Off

7 Image

Sharpness

0-10

Gamma

0.45, 0.55, 0.65, 0.75

Mirror

On, Off

Flip

On, Off

D-Zoom

Not supported

ACE

High, Middle, Low, Off

Defog On

Mode

Auto, Manual

Level

High, Middle, Low

Off

Shading

Weight

0%-100%

Off

Privacy

Box On

Zone Num

0-15

Zone Disp

On, Off

H-POS

0-120

V-POS

0-68

H-Size

0-120

V-Size

0-68

Y Level

0-120

CB Level

0-68

CR Level

0-120

Trans

0-68

Off

Polygon On

Zone Num

0-7

Zone Disp

On, Off

POS0-X

0-240

POS0-Y

0-136

POS1-X

0-240

POS1-Y

0-136

POS2-X

0-240

POS2-Y

0-136

POS3-X

0-240

POS3-Y

0-136

Y Level

0-20

CB Level

0-20

CR Level

0-20

Trans

0-3

Off

8 Motion On

Det Window

Window Use

0-3

Window Zone

On, Off

Det H-POS

0-96

Det V-POS

0-56

Det H-Size

0-96

Det V-Size

0-56

Sensitivity

0-10

Motion OSD

On, Off

Text Alarm

On, Off

Signal Out

On, Off

Off

9 System

Output

Frame Rate

4K/15fps, 4MP/30fps, 1080p/30fps

Freq

60Hz (auto detection)

Analog Mode

AHD, TVI, CVI, CVBS

Confirm

Yes

Return

Exit

Image Range

Full

Comp

User

Offset

0-32

Color Space

HD-CbCr, SD-CbCr, YUV

Audio Mic

Not supported

Color Bar

On, Off

Language

ENG, CHN, CHN(S), JPN, KOR, POR, ESP

Cam Title

Left-Down

Right-Up

Off

Reset

Exit
