EverFocus ED310e Manual de usuario

ED310e

Indoor Dome Camera

700TVL 3-Axis High Resolution Compact

User’s Manual

Release Date: June, 2012

Cautions

1. Do not install the camera near electric or magnetic fields.

2. Never disassemble the camera beyond the recommendations in this manual nor introduce

materials other than those recommended herein.

3. Try to avoid facing the camera toward the sun.

4. Keep the power cord away from water and other liquids and never touch the power cord

with wet hands.

5. Never install the camera in areas exposed to oil, gas or solvents.

6. Do not operate the camera beyond the specified temperature or humidity. Use the camera

at temperatures within -10°C~50°C (14°F~122°F) and humidity between 20%~ 80%; this

device is not rated as submersible.

7. Determine the polarity of the power adapter pigtail before connecting the camera to the

power source. The input power source is 12V DC.

Contents

1. INTRODUCTION.........................................................................................................................1

1.1 FEATURES ......................................................................................................................1

1.2 PACKAGE CONTENTS ..................................................................................................... 2

1.3 DIMENSIONS .................................................................................................................2

2. SPECIFICATIONS......................................................................................................................... 3

3. INSTALLATION & OPERATION .................................................................................................... 4

4. OSD MENU ................................................................................................................................6

4.1 Main Menu Display .......................................................................................................6

4.2 OSD Main Menu Description ........................................................................................7

ED310e Indoor Dome

1. INTRODUCTION

The ED310e delivers amazing 700 TVL video by using 1/3” Sony Exview HAD CCD II 960H sensor.

Advanced surveillance features like Motion Detection and Privacy Mask benefit from Sony Effio-E

platform. Stylish design and low profile luxury color accompany with the extraordinary video

performance of ED310e. Built-in Vari-Focal DC Iris 2.8~10.5mm lens provide flexibility from wide

angle to mid range distance. Incredible view result in very low light environment. ATR(D-WDR)

technology smoothly work with BLC, AGC functions to get clear and better image in challenging

back light environment. This is the camera to bring value to your surveillance business and so

called EverFocus Value Dome.

Model Name Descriptions

ED310e / NB NTSC, Black.

ED310e / NW NTSC, White.

ED310e / PB PAL, Black.

ED310e / PW PAL, White.

Note: The models differ among countries. Please visit EverFocus regional Websites for detailed

ordering information.

1.1 FEATURES

•3-Axis, Day/Night camera with Sony 1/3” Exview HAD CCD II 960H Sensor, 700 TVL resolution

•Sony Effio-E platform to provide advanced camera functions

•Easy to use OSD Setup Menu

•Vari-Focal DC Iris Lens 2.8~10.5mm

•High sensitivity, low smear, high anti-blooming and high S/N ratio for high performance

video

•D-WDR function by Sony ATR technology

•DNR function to improve video quality and recording details

•Built-in Auto Electronic Shutter (AES), Auto Gain Control (AGC) and Auto White Balance

(AWB)

•Built-in Motion Detection, Privacy Mask advanced surveillance functions

ED310e Indoor Dome

1.2 PACKAGE CONTENTS

•ED310e camera x 1 •Mounting template x 1

•User Manual x 1 •Accessory kit x 1 (containing mounting

•Power adapter pigtail x 1 screws and plastic ahchors)

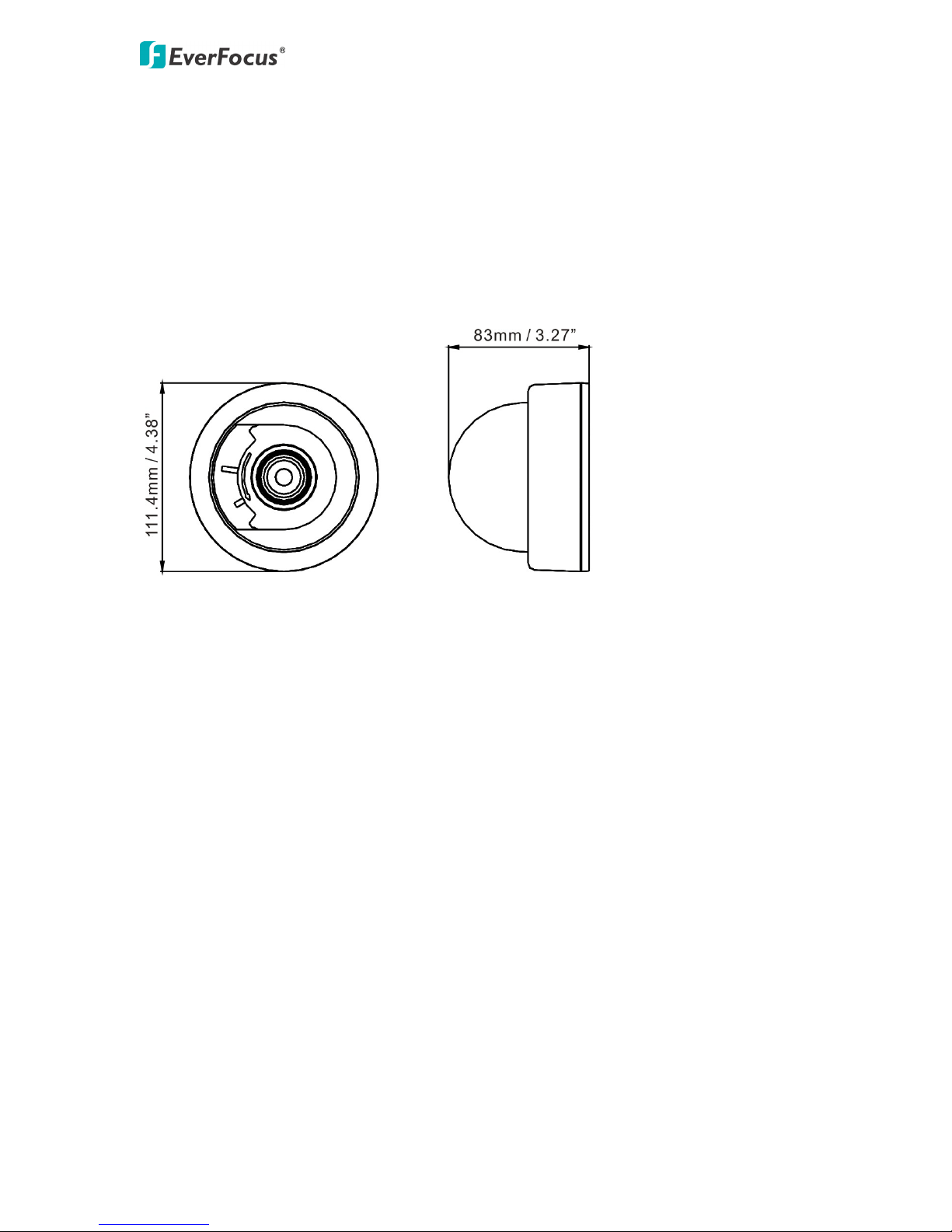

1.3 DIMENSIONS

ED310eIndoorDome



2. SPECIFICATIONS

PickupDevice1/3 " SONYExviewHADCCDII(960H)

VideoFormatNTSCorPAL(dependsonmodelselected)

PictureElements1020x508(NTSC),1020x596(PAL)

HorizontalResolution700TVL

Sensitivity0.03Lux/F=1.2

S/NRatioOver48dB(AGCoff)

ElectronicShutter1/50(1/60)~1/100,000sec.

VideoOutputBNC1.0Vp‐p,75ohm

GammaCorrection0.45

LensTypeVari‐focalDCIrisLens2.8‐10.5mm

BackLightCompensationOn/Off

AutoGainControlYes

WhiteBalanceAuto/Indoor/Outdoor/Manual/PushAuto

Sync.ModeInternalSync.

Day&Night Yes

OSDmenuYes(English/Japanese/German/French/Russian/Portuguese

/Spanish/SimplifiedChinese)

DNROn/Off

D‐WDROn/Off(SonyATR)

MirrorOn/Off

MotionDetectionOn/Offfor24*16DetectionBlocks

PrivacyMaskOn/Offfor8Areas(SizeAdjustable)

PowerSource12VDC

PowerConsumption12VDC:120mA/1.5Wmax.

OperatingTemperature‐10°C~50°C/14°F~122°F

Humidity20%~80%non‐condensing

Dimensions(O.DxH)111.4x83mm/4.38x3.27in

Weight440g/0.9lb

CertificationsCE/FCC



ED310e Indoor Dome

3. INSTALLATION & OPERATION

1. Remove the dome cover from the main body by loosening the screw that securing the

dome cover.

2. Camera Image Adjustment:

•Adjust camera to any direction by using Pan, Tilt, and Rotate mechanism.

• Pan Base covers total 120° angle (60° to each side).

•Tilt Base covers total 120° angle (60° to each side).

• Angle range of Rotate Base is 360°.

3. Vari-Focal Dome Operation Guide

Once the picture appears on the monitor, open the cover and adjust the lens wrench to

“NEAR←→FAR”, get your desired view zoom and adjust the focus wrench of the lens to

obtain the best picture. After adjustment, tighten both wrenches.

ED310e Indoor Dome

4. Adjusting the Function Control Board

1 IR Board WEFER 3 POWER/VIDEO (CAMERA) 5 DAY IN

2 OSD KEY 4 POWER/VIDEO (DC/ BNC)

5. Connect the video output to the monitor or other video device through a 75 Ohms type

coaxial cable and the DC-Jack or AC/ DC-Terminator to the power source.

Note: Power adapter is sold separately.

ED310e Indoor Dome

4. OSD MENU

4.1 Main Menu Display

OSD Setup Menu page 1

LENS

SHUTTER/ AGC

WHITE BAL

BACKLIGHT

ATR

PICT ADJUST

↲

EXIT

↲

SAVE ALL

AUTO

↲

AUTO

↲

ATW

OFF

↲

OSD Setup Menu page 2

DAY/ NIGHT

PRIVACY

MOTION DET

CAMERA ID

LANGUAGE

CAMERA RESET

BACK

↲

EXIT

↲

SAVE ALL

AUTO*

OFF

ENGLISH

Main Menu Setup

•In order to display the setup menu on the screen, set the menu command or press the

button panel.

•Use UP/ DOWN control buttons to select each item.

•Use LEFT/ RIGHT control buttons to change the data.

•Use MENU control button to ENTER/ EXIT the menu display.

•↲=ENTER.

ED310e Indoor Dome

4.2 OSD Main Menu Description

4.2.1 LENS: MANUAL /AUTO selectable.

LENS: MAUNAL

No adjustment

LENS: AUTO

AUTO

TYPE：DC

MODE：AUTO/ OPEN /CLOSE

SPEED：000~255

AUTO: Camera automatically controls the lens.

OPEN: Lens fully opens.

CLOSE: Lens fully closed.

SPEED: Speed of the lens.

4.2.2 SHUTTER/AGC: AUTO / MANUAL selectable.

SHUTTER/AGC: AUTO

AUTO

HIGH LUMINANCE

MODE：SHUT+AUTO IRIS / AUTO IRIS / SHUT

BRIGHTNESS：000~255

LOW LUMINANCE

MODE：AGC / OFF

BRIGHTNESS：x0.25、x0.50、x0.75、x1.00

HIGH LUMINANCE

When LENS is setup to AUTO mode

SHUT+AUTO IRIS: Exposure is controlled by auto electronic shutter combined with

auto iris.

AUTO IRIS: Exposure controlled by auto iris.

When LENS is setup to Manual mode

SHUT: Exposure controlled by electronic shutter.

LOW LUMINANCE

Setup low lux environment, minimum AGC level.

ED310e Indoor Dome

SHUTTER/AGC: MANUAL

MANUAL

MODE：SHUT+AGC

SHUTTER：

NTSC：

1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000

PAL：1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000

AGC：6.00、12.00、18.00、24.00、30.00、36.00、42.00、

44.80

SHUTTER: Fixed electronic shutter speed.

AGC: Fixed AGC gain control.

4.2.3 WHITE BAL

ATW / PUSH / USER1 / USER2 / ANTI CR / MANUAL / PUSH LOCK selectable.

WHITE BAL.: ATW

ATW

SPEED：000~255

DELAY CNT：000~255

ATW FRAME：x0.50、x1.00、x1.50、x2.00

ENVIRONMENT：INDOOR、OUTDOOR

SPEED：ATW Speed

DELAY CNT：ATW Delay Time

ATW FRAME：ATW Frame Range Setup

ENVIRONMENT：ATW Environment Range Setup

WHITE BAL.: PUSH

The function will keep on detecting the Color Temperature, and then keeps saving

up the parameter to the camera.

WHITE BAL.: USER1

USER1 B-GAIN：000~255

R-GAIN：000~255

WHITE BAL.: USER2

USER2 B-GAIN：000~255

R-GAIN：000~255

WHITE BAL.: MANUAL

MANUAL LEVEL：19~54

WHITE BAL.: ANTI CR

The function can reduce the color rolling issue, and it is the same with CRS (Color

Rolling Support) function.
