EHA2580 eZ.HD Series

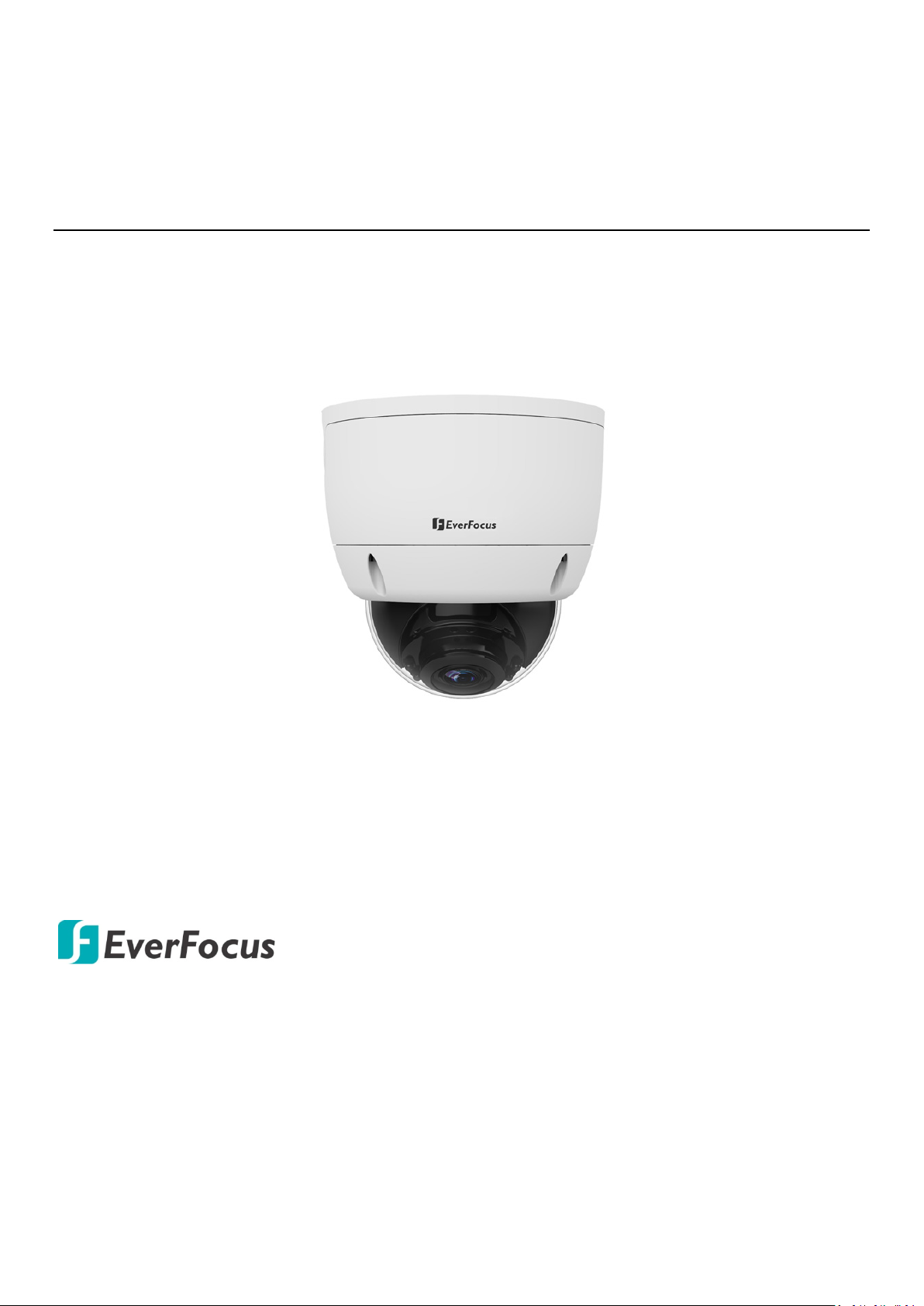

5MP IP66 IR Dome Camera

User’s Manual

Release Date: September, 2019

All the images including product pictures or screen shots in this document are for example

only. The images may vary depending on the product and software version. Information

contained in this document is subject to change without notice.

EverFocus Taiwan:

2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan

TEL: +886 2 2662 2338 FAX: +886 2 2662 3632 www.everfocus.com.tw

1. Introduction

Equipped with a 5MP Sony STARVIS CMOS sensor, the EverFocus eZ.HD series

cameras – EHA2580 deliver 5MP image quality. The model provides 2.8-12mm

lens with ICR. Featured with True Wide Dynamic Range (T-WDR), the camera can

provide clear images even under backlight circumstances where intensity of

illumination can vary excessively. The EHA2580 supports both NTSC and PAL

scanning systems and is IP66 certified.

1.1 Packing List

Camera x 1

Mounting Sticker x 1

L-Type Wrench x 1

Screw & Screw Anchor x 4

Desiccant Bag x 1

User Manual x 1

1.2 Features

5MP Sony STARVIS CMOS sensor, delivering amazing high sensitivity

Varifocal 2.8-12mm with ICR to capture the desired field of view

Extended IR range of up to 30m / 98ft. with 4 LEDs (depends on scene IR

reflectivity)

T-WDR to improve the visibility under high contrast scene

3-Axis rotation design allows wall or ceiling mounting

IP66-rated with metal housing

Supports UTC function: Control camera OSD settings directly from DVR end

1.3 Dimensions

142mm / 5.59"

1.4 Optional Accessory

Type

Wall Mount Bracket


Model

BA-EB45

BA-EB28

BA-EB18

Color

White / Metal

Size

(WxDxH)

245x160x163mm

9.65”x6.3”x6.42”

140x136x233mm

5.51”x5.35”x9.17”

120x207x134mm

4.72”x8.15”x5.28”

Weight

2.1kg / 4.63lb

1.1kg / 2.43lb

Type

Ceiling Mount Bracket


Model

BA-EB3A

BA-EB3B

Color

White / Metal

Size

(WxDxH)

136x136x243mm

5.35”x5.35”x9.57”

136x136x443mm

5.35”x5.35”x17.44”

Weight 2.4kg / 5.29lb 3.6kg / 7.94lb

1.5 Cable Description

12VDC Power Cable

Video Output Cable (BNC, 75Ohm)

2. Installation

1. Stick the supplied Mounting Sticker to the surface to mark the 4 screw

positions. Drill four holes on the surface and insert the supplied 4 Screw

Anchors into the screw holes. If you want to run the cable through the

surface, drill a hole within the 4 screw area.

2. To mount the camera to the surface:

a. Remove the Base Plate from the camera. To do so, 1) Remove the Fix

Screw 2) Slightly push the Base Plate backward from the Fix Screw side

and then pull out the Base Plate. Screw the Base Plate to the surface using

the supplied 4 Screws.

Fix Screw

Base Plate

Push

Pull

Screws

Base Plate

b. Open the Camera Cover to remove the old desiccant bag from the Camera

Body and stick the supplied Desiccant Bag inside the Camera Body. It’s

highly recommended to replace the desiccant bag every time when you

open the Camera Cover.

c. For the first time installation, check whether the camera is properly

focused. If not, you can optionally adjust camera zoom and focus by

adjusting the Zoom Screw or Focus Screw using a slotted screwdriver.

Zoom Focus

Note: Please screw back the Camera

Cover immediately in case of reducing

the absorption capacity of the desiccant

bag inside the camera body.

d. Attach the Camera Body to the Base Plate. Screw back the Fix Screw.

Base Plate

Camera Body

Fix Screw

3. Connect the Power Cable to a 12VDCpower source. Connect the Video

Output Cable to a monitor or DVR.

4. You can use the Joystick on the cable to configure camera OSD settings.

Remove the Protection Cap from the Joystick before using it.

Configuring OSD Settings:

•Push the Joystick up / down to select among

menu items.

•Push the Joystick left / right to adjust the level of

the selected item.

•Press the Joystick to enter the submenu or exit

the OSD Setup Menu.

5. You can optionally adjust the camera angles. To do so, unscrew the 4 cover

screws using the supplied L-Type Wrench and then remove the cover. Adjust

the camera angles (Tilt: 60°, Pan: 350°, Rotate: 350°). After adjusting camera

angles, screw back the camera cover.

350°

60°

3. Configuration in the OSD Menu

Main

Sub Menu

Sub Menu / Function

1 Edge Det On

Level

0-10

Color

YEL, CYN, GRN, MAG, RED, BLU, BLK, WHT

Off

2 Exposure

Brightness

0-20

Shutter

Auto

Mode

Normal / Deblur

Manual Speed

1/30, 1/60, 1/120, 1/250, 1/500,

1/1000, 1/2000, 1/4000, 1/8000,

1/15000, 1/30000

Flicker

Sens-Up

X2, x4, x8, x16, x32, Off

AGC

0-10

3 Backlight

HLC

Level

0-20

Color

YEL, CYN, GRN, MAG, RED, BLU, BLK, WHT

BLC

H-POS

0-26

V-POS

0-32

H-SIZE

0-26

V-SIZE

0-32

WDR

WDR Mode

Frame, Line

ROI Mode

Box

Window Zone

0-3

Window Use

On, Off

H-POS

0-2608

V-POS

0-1960

H-SIZE

0-2608

V-SIZE

0-1960

Polygon

Window Zone

0-3

Window Use

On, Off

POS0-X

0-721

POS0-Y

0-535

POS1-X

0-721

POS1-Y

0-535

POS2-X

0-721

POS2-Y

0-535

POS3-X

0-721

POS3-Y

0-535

Off

Weight

High, Middle, Low

Off

4 Day/Night Mode

Auto

IR LED

Adaptive, Off

Anti-Sat.

0-20

D>N Thres

0-20

N>D Thres

0-20

Delay

High, Middle, Low

Color

B/W

IR LED

Adaptive, Off

Anti-Sat.

0-20

D>N Thres

0-20

N>D Thres

0-20

Delay

High, Middle, Low

Extern

IR LED

Adaptive, Off

Anti-Sat.

0-20

Extern SW

High, Low

D>N Thres

0-20

N>D Thres

0-20

Delay

High, Middle, Low

5 Color AWB

Auto

Autoext

Preset

Manual

C-Temp

3000K, 5000K, 8000K

R-Gain

0-20

B-Gain

0-20

Color Gain

0-20

DNR

High, Middle, Low, Off

7 Image

Sharpness

0-10

Gamma

0.45, 0.55, 0.65, 0.75

Mirror

On, Off

Flip

On, Off

D-Zoom

1.0X-16X

ACE

High, Middle, Low, Off

Defog On

Mode

Auto, Manual

Level

High, Middle, Low

Off

Shading

Weight

0%-100%

Off

Privacy

Box On

Zone Num

0-15

Zone Disp

On, Off

H-POS

0-80

V-POS

0-61

H-Size

0-80

V-Size

0-61

Y Level

0-20

CB Level

0-20

CR Level

0-20

Trans

0-3

Off

Polygon On

Zone Num

0-7

Zone Disp

On, Off

POS0-X

0-162

POS0-Y

0-122

POS1-X

0-162

POS1-Y

0-122

POS2-X

0-162

POS2-Y

0-122

POS3-X

0-162

POS3-Y

0-122

Y Level

0-20

CB Level

0-20

CR Level

0-20

Trans

0-3

Off

8 Motion On

Det Window

Window Use

0-3

Window Zone

On, Off

Det H-POS

0-80

Det V-POS

0-60

Det H-Size

0-80

Det V-Size

0-60

Sensitivity

0-10

Motion OSD

On, Off

Text Alarm

On, Off

Signal Out

On, Off

Off

9 System

Output

Frame Rate

4K/15fps, 4MP/30fps, 1080p/30fps,

5MP/12.5fps, 5MP/20fps, 4MP/15fps

Freq

60Hz, 50Hz

Analog Mode

AHD, TVI, CVI, CVBS

Confirm

Yes

Return

Exit

Image Range

Full

Comp

User

Offset

0-32

Color Space

HD-CbCr, SD-CbCr, YUV

Audio Mic

Not supported

Color Bar

On, Off

Language

ENG, CHN, CHN(S), JPN, KOR, POR, ESP

Cam Title

Left-Down

Right-Up

Off

Reset

Exit
