EverFocus EPTZ3000 Manual de usuario

Speed Dome

EPTZ3000/EPTZ3000I

USER MANUAL

Date: Feb15, 2006

1-1

Table of Contents

1. EPTZ3000/EPTZ3000I OVERVIEW...................................... 1-3

1.1. Introduction .............................................................................................1-3

1.2. Specifications..........................................................................................1-5

1.3. Feature .....................................................................................................1-7

1.3.1. Profile of EPTZ3000/EPTZ3000I........................................................1-7

1.3.2. EPTZ3000/EPTZ3000I Base Board ...................................................1-8

1.3.3. EPTZ3000/EPTZ3000I Control Board................................................1-9

1.4. EPTZ3000/EPTZ3000I Connection .......................................................1-10

1.5. EPTZ3000/EPTZ3000I Quick Operation Guide (Work with EKB500) .1-11

2. EPTZ3000/EPTZ3000I INSTALLATION............................................ 2-12

2.1. Packing List...........................................................................................2-12

2.2. Cable Needed.........................................................................................2-12

2.3. Initial Setup............................................................................................2-13

2.3.1. Address Setting................................................................................2-14

2.3.2. Communication Protocol Setting......................................................2-17

2.3.3. Transmission Speed Setting (Baud Rate Setting) ............................2-17

2.3.4. RS-485 Bus Terminal Resistance.....................................................2-18

2.4. Rack and Speed Dome Installation......................................................2-19

2.4.1. Installation Requirements.................................................................2-19

2.4.2. EPTZ3000 Dome Camera Wall Mount Installation...........................2-19

2.4.3. EPTZ3000I Dome Camera Installation.............................................2-22

2.5. Accessories...........................................................................................2-25

2.5.1. EPTZ-CPMA: Ceiling Pendant Mount Adapter.................................2-25

2.5.2. EPTZ-PMA: Pole Mount Adapter......................................................2-25

1-2

2.5.3. EPTZ- CMA: Corner Mount Adapter.................................................2-26

3. EPTZ3000/EPTZ3000I CAMERA SETUP MENU.............................. 3-27

3.1. Structure of the Setup Menu ................................................................3-27

3.1.1. Camera Setup Menu........................................................................3-28

4. EPTZ3000/3000I FUNCTION SETUP AND OPERATION................. 4-34

4.1. Manual Control Mode............................................................................4-34

4.2. Auto Pan Mode ......................................................................................4-34

4.3. Position Setting.....................................................................................4-34

4.4. Tour Mode ..............................................................................................4-35

4.5. Alarm Link to a Position/Tour...............................................................4-36

4.6. Other operations ...................................................................................4-36

APPENDIX : The Alarm I/O Connection................................................ 4-37

1-3

1. EPTZ3000/EPTZ3000I OVERVIEW

1.1. Introduction

EPTZ3000/EPTZ3000I, an intelligent high-speed dome camera is ready to secure

your property with its omni-directional and exact monitoring.A 30X optical and 8X

digital zoom combining with a high-performance chip makes captured images clear

and vivid. The other powerful camera functions EPTZ3000/EPTZ3000I equips with:

 Wide Dynamic makes objects clear in a high illumination background.

 Vertical double density interline CCD with a slower shutter and true

Day/Night function.

 Electronics flip, no mechanical flip is necessary.

 520 color/570 B&W TVL; PAL/NTSC image formats support.

 Auto and fast focus increases the searching speed and precision.

 Auto Iris adjusts the monitoring image to the best brightness.

 White Balance function makes the shades of color more natural in different

light conditions.

 Color / B&W images auto switching to enhance the sensitivity in a low light

condition or at night.

 Private zone protects your privacy.

1-4

Furthermore, the micro control unit enables camera a nimble and exact movement

from minimal 0.01°/sec to maximal 360°/sec. It can go to every preset position in 1

second. It also has other advantages such as:

 239 preset positions are available.

 16 cruise tours can be set, and each tour contains up to 16 positions.

 Up to 256 speed domes can be supported on a RS-485 bus when all speed

domes are controlled by keyboard EKB500.

 Auto heater and fan to fit all kinds of temperature (outdoor models).

 Built-in 4 alarm inputs and 1 alarm output.

All of the features make the intelligent high-speed dome camera works for a wide

range and demanding application such as banks, airports, stations, casinos, streets

of cities, intelligent buildings, and etc.

1-5

1.2. Specifications

Model EPTZ3000 (outdoor) EPTZ3000I (indoor)

Power Supply AC 24V

Power consumption 70W with heater 18W without heater

Operating temperature ﹣40℃~+60℃ 0℃~+40℃

Image device 1/4”, Vertical double density interline CCD

Zoom ratio 30x Optical (8x Digital zoom, max 240x)

Lens 30x optical zoom, f=3.3 mm (wide) to 99.0 mm (tele), F1.6 to F3.2

Viewing angle H: Approx. 58.0°(wide) to 2.22°(tele end)

V: Approx. 44.8°(wide) to 1.68°(tele end)

Resolution 520 TVL : Color; 570 TVL : B/W

WDR (Wide Dynamic Range) 52dB

Minimum illumination 0.3 lux/F1.6 (50 IRE) Color; 0.05 lux/F1.6 (50 IRE) B/W

Focus Auto/Manual

Iris Control Auto/Manual

Shutter selection ESC; A.FLK; Manual (1/120000~x8) selectable

Operating moisture ≤95%

Communication RS-485

Communication speed 1200/2400/4800/9600bps

Horizontal rotation speed 0.01°/s－360°/s (1-239 grade shift gears)

Horizontal rotation range 360° unlimited rotation

Tilt rotation range 180° pendulum motion

Auto zoom speed control Control speed auto-adjusted according to zoom length changing

Auto Pan, 2 points scanning Can set freely

Auto Pan speed 1－239 grade available

Dwell time (2 points) 1－239 second available

Preset Positions 239 positions

Running to position speed 1－239 grade available,0.01º/s - 360º/s

Dwell time at preset position 1－60s available

Tour 16 group

Tour point per group 16 preset positions

Fan, Heater (outdoor model) Fan and heater auto starts

Position Accuracy ±0.1°

Alarm 4 in 1 out with tour/position auto triggering

Proportional Pan Speed Yes

Built-in menu for functions Yes

Built-in Protocols EVF-1, Pelco-P, Pelco-D, A-Type

1-6

Communication RS-485

Address editable Yes (through DIP switch)

Speed Dome Address 0-255

Manual Pan/tilt speed Pan: 0.01º ~ 360º/s ; Tilt: 0.01º ~ 360º/s

Video Output BNC

Safety CE, FCC

Dimension 220(W) x 310(H)mm

Weight 3.2kg

1-7

1.3. Feature

1.3.1. Profile of EPTZ3000/EPTZ3000I

Wall Mount Bracket

Housing

Inner Housing

M5 Bolt (Hex) x3

M3 Bolt x3

BNC Cable

Power Cable

RS485 Cable

Connection Bus

Bulb

Mechanical Part

Camera Module

Control board

Base PCB board

Housing

Clip

BNC Cable

Power Cable

RS485 Cable

Connection Bus

Bulb

Mechanical Part

Camera Module

Control board

Base PCB board

Ceiling

Button

EPTZ3000I

EPTZ3000

1-8

1.3.2. EPTZ3000/EPTZ3000I Base Board

The base board that is on the bottom of the housing connects to power cable, video

cable, control cable, alarm cable, fan and heater. In order to connect to cables, the board

needs to be taken off, and put back after finishing connecting to all cables. The connectors

of cable names are marked on the board in white text. The details of the alarm connector

(JP5) are shown on the APPENDIX A.

For EPTZ3000 outdoor model, JP1, JP3 and JP6 that are two-pin connectors need to

be taken off during installing. JP1 and JP3 are connectors for heater, and they can be

switched. JP6 is a fan controller connector that turns on/off of the fan. The 3 cables are too

short to be connected to a wrong connector when putting them back.

RELAY

JP6 JP4

JP3 JP1

JP5

Video +

Video -

RS485 +

RS485 -

AC24

EPTZ3000 Baseboard

RELAY JP5

Video +

Video -

RS485 +

RS485 -

AC24

EPTZ3000I Baseboard

1-9

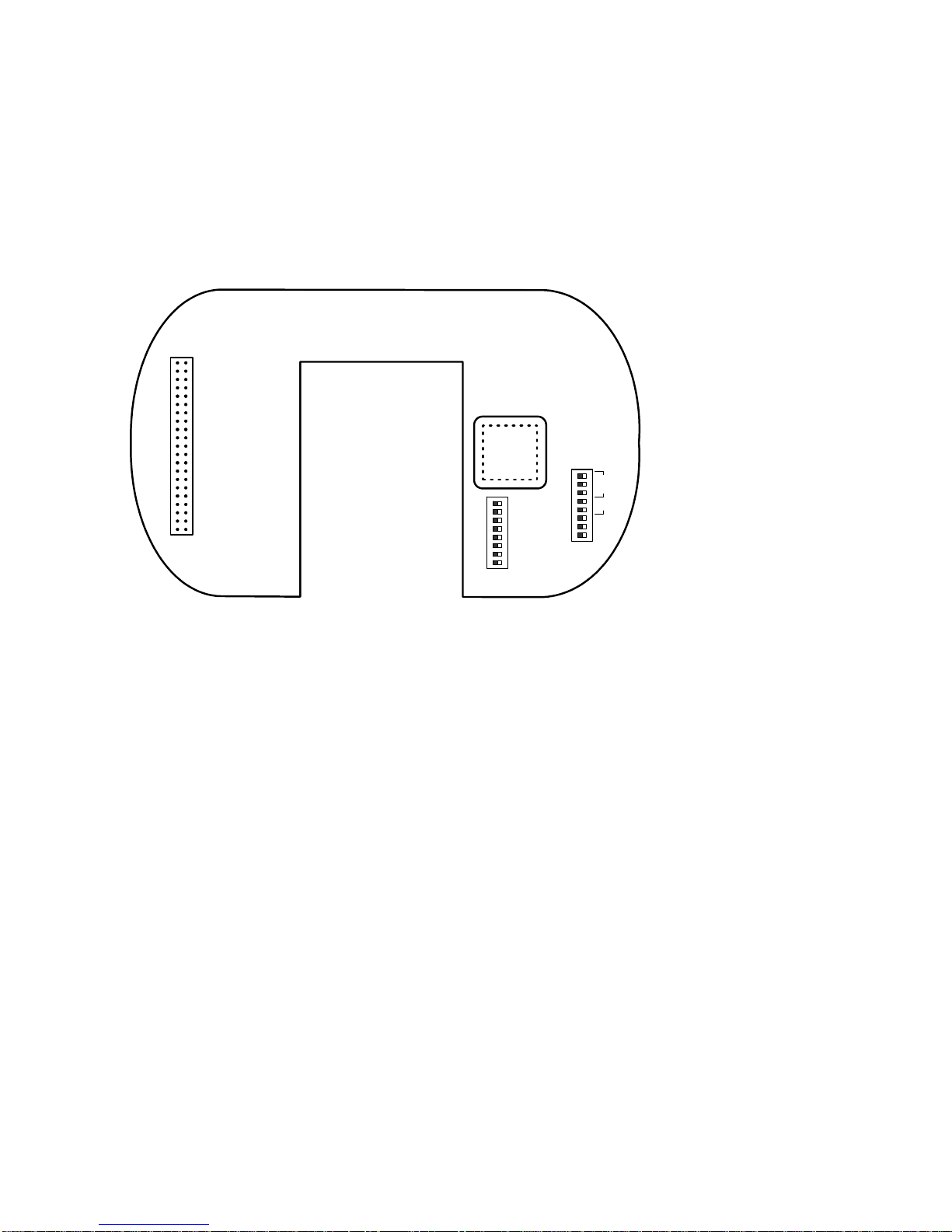

1.3.3. EPTZ3000/EPTZ3000I Control Board

The PCB board with two dipswitches is the control board of EPTZ3000/EPTZ3000I. The

two switches are used to set address, protocol, Baud Rate, video format and terminal

resistance.

SW1

12345678

CPU

12345678

SW2

ID1

ID2

ID3

ID4

ID5

ID6

ID7

ID8

Protocol

BAUD
