EVERFOCUS

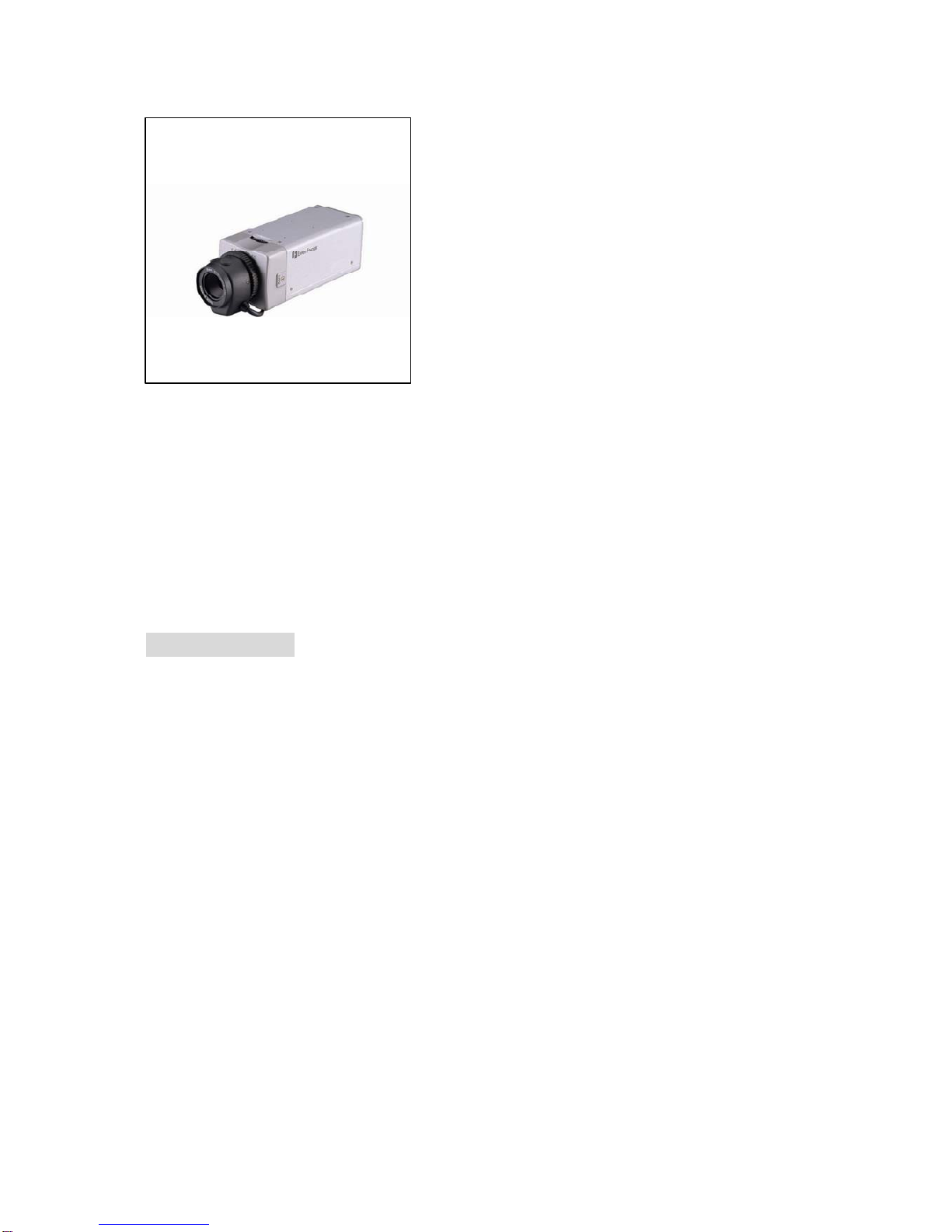

1/3” Sony CCD Aluminum Box Housing

Color Camera

Operation Instructions

Model No. EQ350/EQ250

Please read this manual first for correct installation and operation. This manual should be retained

for future reference. The information in this manual was current when published. The

manufacturer reserves the right to revise and improve its products. All specifications are therefore

subject to change without notice.

PRECAUTIONS

1. Do not install the camera near electric or magnetic fields.

Install the camera away from TV, radio transmitter, magnet, electric motor, transformer,

audio speakers since the magnetic fields generate from above devices will distort the video

images.

2. Never disassemble the camera nor put impurities in it.

Disassembly or impurities may result in trouble or fire.

3. Never face the camera toward the sun.

Direct sunlight or severe ray may cause fatal damage to sensor and internal circuit.

4. Keep the power cord away from water and liquid.

Touching the wet power cord may result in electric shock.

5. Never install the camera in areas exposed to water, oil or gas.

Water, oil or gas may result in failure, electric shock or fire.

6. Cleaning

Do not touch the surface of sensor by hand directly. Use a soft cloth to remove the dirt from

the camera body. Use lens tissue or a cotton swab and ethanol to clean the sensor and the

camera lens.

7. Do not operate the camera beyond the specified temperature, humidity or

power source ratings.

Use the camera at temperatures within 0°C~50°C (32°F~122°F) and humidity between

20%~ 80%. The input power source are 12VDC/24VAC; 100~240VAC.

PREFACE

This new series is a solid-state color video camera specially designed for high quality surveillance

applications. It incorporates break through DSP technology that provides most reliable and

accurate color picture in security industry. The camera is convenient to use with C-mount or

CS-mount lenses and easy back-focus adjustment help to achieve installation efficiency.

FEATURES

Industry leading super high-res. with 560 TVL (EQ350 model)

Revolutionary integrated 10-bit Digital Signal Processor (DSP) delivers sharp color images

and excellent picture quality

Wide range automatic electronic shutter: 1/60 (1/50) ~ 1/100,000

Auto line lock with external phase adjustment

C/mount or CS-mount adjustable with easy back-focus adjustment wheel on the camera

Smart FL mode for fluorescent light or 1/100 sec (NTSC)

Utilizing innovative Pure Vision Technology

STANDARD ACCESSORIES

¾Camera Unit x 1

¾Accessory Pack includes

-Mounting Base for bracket

-M2 Screws x 4 for fixing mounting base

-Lens Connector

¾Manual x 1

SPECIFICATIONS

Type EQ350 EQ250

Pickup Device 1/3'' SONY Super HAD CCD

Picture Elements NTSC: 768(H) x 494(V) NTSC: 510(H) x 492(V)

PAL: 752(H) x 582(V) PAL: 500(H) x 582(V)

Video Format NTSC or PAL

Scanning System NTSC: 525 TV lines, 60 fields/sec

PAL: 625 TV lines, 50 fields/sec

Horizontal Resolution 560TVL 380TVL

Sensitivity 0.5Lux/F=1.2 0.3Lux/F=1.2

S/N Ratio Over 48dB(AGC off)

Electronic Shutter 1/50(1/60)~1/100,000

Lens Type C/CS mount

Video Drive / Direct Drive

Back Light Comp. ON/OFF Switch

Auto Gain Control ON/OFF Switch

Fluorescent Light ON/OFF Switch

Auto White Balance Yes

Gamma Correction 0.45

Video Output BNC 1.0Vp-p , 75ohm

Sync. Mode Line Lock/Internal Sync

Phase Control V-Phase +/- 90°

Power Source

2 types:

100VAC~240VAC

12VDC/24VAC

Power Consumption

100VAC~240VAC: 12VA max.

24VAC: 7VA max.

12VDC: 4.5W max.

Dimensions 57mm(W) x 51mm(H) x 140.2mm(D);

2.25"(W) x 2"(H) x 5.52"(D)

Weight 0.5kg ; 1.1lbs

Operating Temperature 0°C~50°C ; 32°F~122°F (20%~80% Humidity)

Certifications FCC/CE

DIMENSIONS

MAJOR PARTS NAME & THEIR FUNCTIONS

Front

Side

Top

Side

10 11

12 (optional)

Rear (EQ series) Rear(EQseries”A”)

1. Focal Length Adjustment Ring

Use this ring to adjust the appropriate focal length according to the type of lens. Rotate the

ring clockwise for the CS-mount lens, rotate it counterclockwise for the C-mount lens. The

factory setting is CS-mount.

2. Lens Mount

To mount an appropriate C-mount or CS-mount lens.

3. Locking Screw

Use the locking screw to fix the focal length.

4. Lens Connector (4 pin socket)

To connect to the lens plug of the auto iris lens.

5. Control Switches

There are 6 control switches located on the sideboard, which are for the setting of the special

features. The switches in orders are for Flickerless, Back Light Compensation, Electronic

Shutter, Automatic Gain Control, Line-Lock and Auto Iris Lens type.

Fluorescent ON/OFF

This is a compensation function for against the images flicker fiercely during

fluorescent light condition. Shooting the images in fluorescent light by using turn on

the Fluorescent function, the default setting is Off.

BLC (Back Light Compensation) ON/OFF

When BLC is turned on, the AGC, ES and IRIS operating point is determined by

averaging over the center area instead of entire field-of-view, so that a dimly-lit

foreground object at center area can be clearly distinguished from brightly-lit

backgrounds.

BLC should not be used unless it is needed to compensate for back-lit. The default

setting is OFF.

ES (Electronic Shutter) OFF/ON

ES ON: The camera continuously adjusts the shutter speed from 1/60 (NTSC), 1/50

(PAL) second to 1/100,000 second according to the luminance conditions of the scene.

ES OFF: The shutter speed is fixed at 1/60 (NTSC), 1/50 (PAL) second.

Set ES OFF, when auto iris lens is used or flicker is observed under a very bright

fluorescent lamp. Otherwise, turn ES on for optimum performance. The default setting

is ON.

AGC (Automatic Gain Control) OFF/ON

AGC ON: The sensitivity increases automatically when light is low.

AGC OFF: A-low-noise picture is obtained under a low light condition.

The default setting is ON.

LL (Line-Lock) OFF/ON

To select the sync mode between Internal Sync.(LL off) and Line-Lock (LL on).

Set the line-lock off, the camera will synchronize to the internal time base. Set the

line-lock on, the camera’s vertical synchronization can be driven by the AC signal in the

power lines.

Note: The cameras feature AC line lock for external synchronization, using the AC

power frequency (60Hz) is possible but not available in using DC or other operation

power such as NTSC in 50Hz or PAL in 60Hz power system.

VD/DD (Auto Iris lens Type)

For video drive auto iris lens, please set switch to VD. For direct drive iris lens, set

switch to DD. The default setting is DD. Wire the cable of lens to lens connector

according to the following table.

Pin1Pin2 Pin3 Pin4 Lens Connector

Video Drive +12V GND VD-IRIS GND

DirectDrive Cnt- Cnt+ Drv+ Drv-

6. IRIS Level Control

Brightness Level can be adjusted from the IRIS level VR while using the direct drive lens.

Turn counterclockwise to L to get darker picture.

Turn clockwise to H to get brighter picture.

7. V-Phase Adjustment Screw

The vertical phase may require adjustment to synchronize the vertical phase of the camera

with other camera in the system when it is to be used in the line-lock sync mode. Make the

adjustment when the vertical phase of the camera does not match with other cameras.

8. Mounting Base and Fixing Screws

To use when the mounting bracket is required while mounting the camera. The mounting

base can be attached to either the top or the bottom of the camera, fix the mounting base onto

the camera by using the 4 supplied fixing screws.

9. Video Output Connector

BNC VBS 1.0 Vp-p, 75ohm

10. Power Cable (EQ series)

11. 12VDC/24VAC Screw Terminals (EQ series ”A”)

12. Audio Output (optional)

Connect with an audio device, RCA connector

INSTALLATION

1. Remove the cover cap from the top of the lens mount.

2. To attach a C-mount/CS-mount lens, turn the focal length adjustment ring to the appropriate

position.

Note: If a C-mount lens is used, please make sure the focal length adjustment ring is set at C

position before fixing the lens.

3. Screw the lens firmly onto the lens mount. Insert the lens plug in the lens connector if the auto

iris lens is used.

4. Tighten the locking screw.

5. Connect the video output of the camera to a color monitor or other video device through a 75

ohm type coaxial cable with BNC female connector.

6. Plug the power cord to the outlet.

7. Once the image appears on the monitor, adjust the focus and diaphragm of the lens to obtain

the best picture.

8. If the subject is not in focus when adjusting focus of lens, do focal length adjustment as

following:

i. Loosen the locking screw of the focal length adjustment ring.

ii. Take picture of subject at a distance more than 20m away from the camera.

iii. Rotate the focal length adjustment ring to bring the subject in focus.

iv. Tighten the locking screw while the adjustment is completed.

EverFocus Electronics Corp.

Head Office:

12F, No.79 Sec. 1 Shin-Tai Wu Road,

Hsi-Chih, Taipei, Taiwan

TEL: +886-2-26982334

FAX: +886-2-26982380

www.everfocus.com.tw

USA L.A. Office:

1801 Highland Ave. Unit A

Duarte, CA 91010, U.S.A.

TEL: +1-626-844-8888

FAX: +1-626-844-8838

www.everfocus.com

USA N.Y. Office:

415 Oser Avenue Unit S

Hauppauge, NY 11788

TEL: 631-436-5070

FAX: 631-436-5027

www.everfocus.com

Europe Office:

Albert-Einstein-Strasse 1

D-46446 Emmerich, Germany

TEL: 49-2822-9394-0

www.everfocus.de

China Office:

Room B-05D-1, KESHI PLAZA , Shangdi

Information Industry Base,

Haidian District, Beijing China

100085

TEL: +86-10-62973336/37/38/39

FAX: +86-10-62971423

www.everfocus.com.cn

Japan Office:

1809 WBG MARIBU East 18F,

2-6 Nakase.Mihama-ku.

Chiba city 261-7118, Japan

TEL: +81-43-212-8188

FAX: +81-43-297-0081

www.everfocus.com

our EverFocus product is desi

ned and

manufactured with high quality materials and

components which can be recycled and

reused.

This symbol means that electrical and

electronic equipment, at their end-of-life,

should be disposed of separately from your

household waste.

Please, dispose of this equipment at your

local community waste collection/recycling

centre.

In the European Union there are separate

collection systems for used electrical and

electronic product.

Please, help us to conserve the environment

we live in!

Ihr EverFocus Produkt wurde entwickelt und

hergestellt mit qualitativ hochwertigen

Materialien und Komponenten, die recycelt

und wieder verwendet werden können.

Dieses Symbol bedeutet, dass elektrische und

elektronische Geräte am Ende ihrer

Nutzungsdauer vom Hausmüll getrennt

entsorgt werden sollen.

Bitte entsorgen Sie dieses Gerät bei Ihrer

örtlichen kommunalen Sammelstelle oder im

Recycling Centre.

Helfen Sie uns bitte, die Umwelt zu erhalten, in

der wir leben!

P/N: MQ35G02100_Ver.B

Otros manuales para Eq250

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara de seguridad de EverFocus

EverFocus

EverFocus M116-EZ700-001 Manual de usuario

EverFocus

EverFocus 380TVL, 520TVL Manual de usuario

EverFocus

EverFocus PoleStar EQ550 Manual de usuario

EverFocus

EverFocus EZA2580 eZ.HD Series Manual de usuario

EverFocus

EverFocus EBH5102 Manual de usuario

EverFocus

EverFocus ED100 Series Manual de usuario

EverFocus

EverFocus ED610 Manual de usuario

EverFocus

EverFocus ED610 Manual de usuario

EverFocus

EverFocus ED300 Series Manual de usuario

EverFocus

EverFocus EZA1840 eZ.HD Series Manual de usuario

EverFocus

EverFocus EHD320 Manual de usuario

EverFocus

EverFocus PoleStar EQ550 Manual de usuario

EverFocus

EverFocus EZN3160 Manual de usuario

EverFocus

EverFocus M122-EJ230-001 Manual de usuario

EverFocus

EverFocus EAN-1350 Manual de usuario

EverFocus

EverFocus ECD900 eZ.HD Series Manual de usuario

EverFocus

EverFocus EQH5202 Manual de usuario

EverFocus

EverFocus EZ 425W2 Manual del propietario

EverFocus

EverFocus NeVio EZN850 Manual de usuario

EverFocus

EverFocus EQ610 Manual de usuario

EverFocus

EverFocus EZ930 eZ.HD Series Manual de usuario

EverFocus

EverFocus ED200 Series Manual de usuario

EverFocus

EverFocus EPTZ3600 Manual de usuario

EverFocus

EverFocus Speed Dome EPTZ1000 Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
