EverFocus EDR410M Manual de usuario

Volume

Quick Installation Guide

EVERFOCUS ELECTRONICS CORPORATION

EDR810M / EDR410M

Quick Install Guide

1801 Highland Ave

Phone 626.844.8888 • Fax 626.844.8838

any form or by any means without written permission of the Everfocus Electronics

Corporation.

QuickTime is a registered trademark of the Apple Computer, Inc. Windows is a registered

trademark of the Microsoft Corporation in the United States and other countries. Linksys is a

registered trademark of the Linksys Corporation. D-Link is a registered trademark of the D-

Link Corporation. DynDNS is a registered trademark of the DynDNS.org Corporation. Other

product and company names mentioned herein may be the trademarks of their respective

owners.

Safety Warning

WARNING

TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Note:

This equipment has been tested and found to comply with the limits for a Class A digital device,

The changes or modifications not expressly approved by the party responsible for compliance could

void the user's authority to operate the equipment.

Note:

This is a class A product. In a domestic environment this product may cause radio interference

In which case the user may be required to take adequate measures.

Notice:

The information in this manual was current when published. The

manufacturer reserves the right to revise and improve its products. All

specifications are therefore subject to change without notice.

Safety Precautions

Refer all work related to the installation of this product to qualified service personnel or

system installers.

Do not block the ventilation opening or slots on the cover.

Do not drop metallic parts through slots.This could permanently damage the appliance.

Turn the power off immediately and contact qualified service personnel for service.

Do not attempt to disassemble the appliance. To prevent electric shock, do not remove

screws or covers. There are no user-serviceable parts inside. Contact qualified service

personnel for maintenance. Handle the appliance with care. Do not strike or shake, as this

may damage the appliance.

Do not expose the appliance to water or moisture, nor try to operate it in wet areas. Do take

immediate action if the appliance becomes wet. Turn the power off and refer servicing to

qualified service personnel. Moisture may damage the appliance and also cause electric

shock.

Do not use strong or abrasive detergents when cleaning the appliance body. Use a dry

cloth to clean the appliance when it is dirty. When the dirt is hard to remove, use a mild

detergent and wipe gently.

Do not overload outlets and extension cords as this may result in a risk of fire or electric

shock.

Do not operate the appliance beyond its specified temperature, humidity or power source

ratings. Do not use the appliance in an extreme environment where high temperature or

high humidity exists. Use the appliance at temperature within indoor type DVR for 0oC ~

+40oC and a humidity below 90%. The input power source for this appliance is

AC100~240V.

Safety Precautions

Read Instruction — All the safety and operating instructions should be read before the unit is

operated.

Retain Instructions — The safety and operating instructions should be retained for future

reference.

Heed Warnings— All warnings on the unit and in the operating instructions should be adhered to.

Follow Instructions— All operating and use instructions should be followed.

Cleaning— Unplug the unit from the outlet before cleaning. Do not use liquid cleaners or aerosol

cleaners. Use a damp cloth for cleaning

Attachments—Do not use attachment not recommended by the product manufacturer as they may

cause hazards.

Water and Moisture—Do not use this unit near water-for example, near a bath tub, wash bowl,

kitchen sink, or laundry tub, in a wet basement, near a swimming pool, in

an unprotected outdoor installation, or any area which is classified as a wet

location.

Servicing—Do not attempt to service this unit by yourself as opening or removing covers may

expose you to dangerous voltage or other hazards. Refer all servicing to qualified

service personnel.

Power Cord Protection—Power supply cords should be routed so that they are not likely to be

Installation

The installations described below should be made by qualified service personnel

or system installers.

The EDR810M & EDR410M are the full-featured digital video recorders

designed specifically for use in mobile applications. Please refer to the following

Quick Installation Guide for installing EDR810M or EDR410M into mobile

applications such as buses, cars and police cruisers.

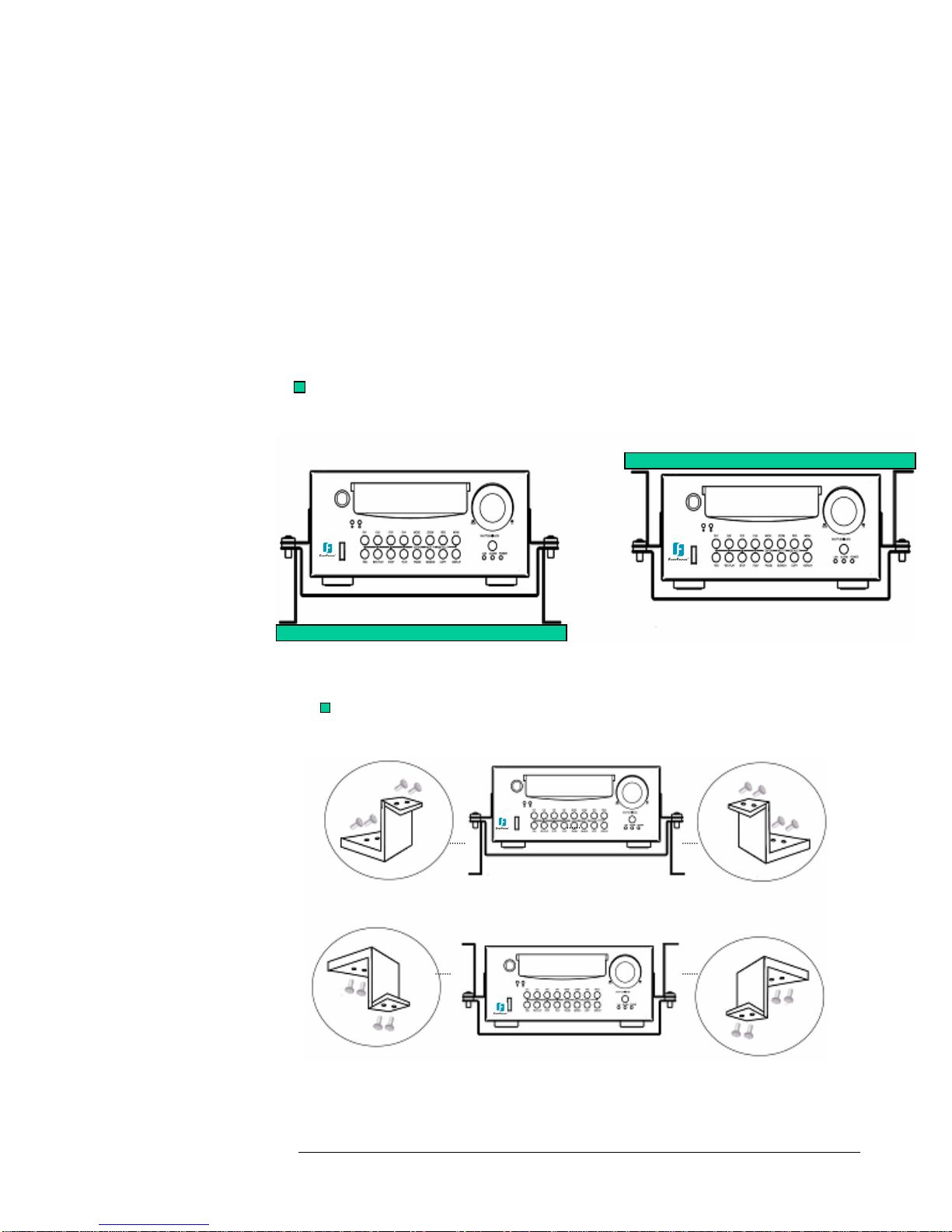

The DVR can be mounted horizontally (suspend or support mounted).

Support

Suspend

Interface

EDR410M

EDR41

Show all the possible ways to mount the DVR.

Use the two Z-brackets supplied to mount it in any ways shown.

Support

Suspend

EDS

Quick Install Guide:

1. Unpack Everything

Make sure you have everything you need before you begin the

installation.

2. Equipment Required

The following tools may help you to complete the installation:

•Drill

•Screwdrivers

•Wire cutters

Avoid any location for installation:

•That is subject to high vibration

•That is subject to high sunlight levels

•That is subject to drenched of the rain

•Where passengers can interfere with unit

•Next to a heater duct

The following table lists the recommended location options.

3. Choosing the Location

Choose a location for installation that:

•Provides convenient access for installing or removing the hard drive

•Allows air to flow around the fan vents. Inadequate or improper air flow can impede

proper operation of the unit

Possible Installation Locations inside the Automobile Vehicle: TOYOTA

CAMRY

Glove box (inside or underneath)

Trunk (Users are suggested to use

“suspend” for mounting option)

Passenger seat (underneath)

Drive seat (between seat and wall)

Show the wiring on the wiring harness that connects to the electrical system

Glove box (inside or underneath)

Possible Installation Locations inside the Automobile Vehicle: Truck

Drive seat (between seat and wall) or Passenger seat (underneath)

(Users are suggested to use “support” for mounting option)

Show the wiring on the wiring harness that connects to the electrical system.

(

24 V

)

(

Installing the Camera(s) and Monitor

The DVR is typically connected to one camera installed inside the car. Other camera(s) can also be

installed in different locations (for example, use the waterproof camera to the outside of vehicle).

For installation procedure, refer to the guide that came with the camera(s) you purchased.

The Monitor power supply connects from the automotive adapter (cigarette plug) Monitor and

cameras must be purchased separately.

LCD Monitor

Connect the Camera(s)

Connect the power connector from the camera(s) harness into the CAMERA POWER OUT jack

on the back panel of the DVR.

Connect the primary camera(s) video connector to the CAMERA INPUT and the audio connector

to the AUDIO INPUT in the back panel.

Adjust the camera(s). After the camera is installed, connect a monitor directly to the camera and

observe the image.

Make any adjustment if necessary.
