EtherWAN EX45900 series Manual de usuario

EX45900 series www.etherwan.com

Quick Start Guide

This quick start guide describes how to install and use the

Hardened PoE Gigabit Ethernet Switch. Capable of operating

at temperature extremes of -40°C to +75°C, this is the switch

of choice for harsh environments constrained by space.

Physical Description

The Port Status LEDs

EX45900 series www.etherwan.com

LED State Indication

Steady Power on.

Power (Green) Off Power off.

Steady Relay starts alarm.

Fault (Red) Off Relay non-alarm.

Gigabit Ports

Steady A valid network connection established.

10/100Mbps: Green, 1000Mbps: Amber.

Blinking Transmitting or receiving data.

Act stands for Activity.

Link/Act

Off No link.

Steady Powered Device is connected.

Off Powered Device is disconnected.

PoE (Amber)

Blinking While Powered Device over 30W.

The Terminal Block and Power Inputs

Power Input Assignment

＋24/48VDC

Power1

－Power Ground

＋24/48VDC

Power2

－Power Ground

Earth Ground

Terminal Block

Relay Output Rating 1A @ 250VAC

DC Terminal Block Power Input: The DC Terminal Block

power input can be used to power up this Switch.

EX45900 series www.etherwan.com

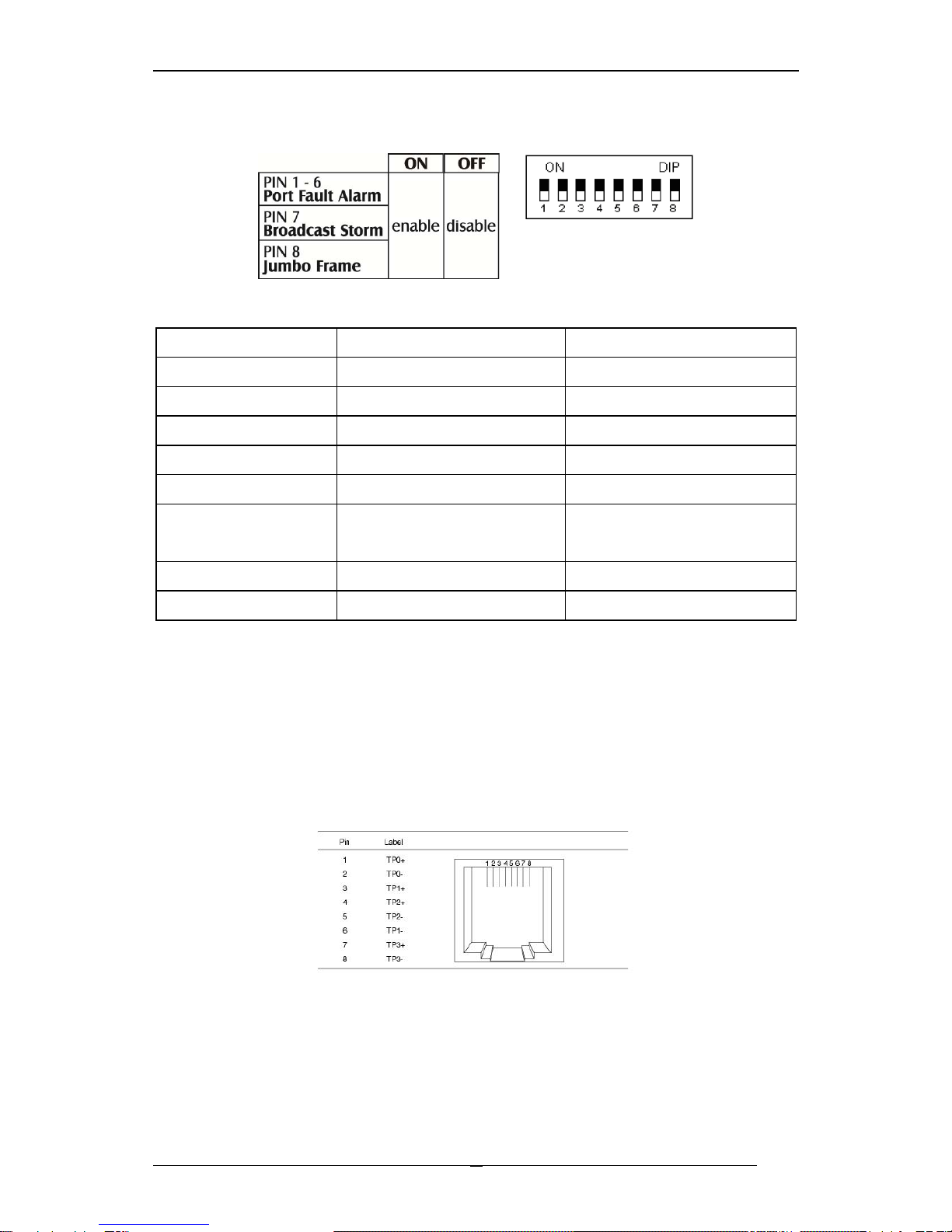

DIP Switch Settings

On OffDIP No.

1 Port 1 Alarm Enable. 1 Alarm Disable.Port

2 Port 2 Alarm Enable. Port 2 Alarm Disable.

3 Port 3 Alarm Enable. Port 3 Alarm Disable.

4 Port 4 Alarm Enable. Port 4 Alarm Disable.

5 Port 5 Alarm Enable. Port 5 Alarm Disable.

(Only for EX45915) Port 6 Alarm Enable. Port 6 Alarm Disable.

7 Broadcast Storm Enable. le.Broadcast Storm Disab

8 Jumbo Frame Enable. Jumbo Frame Disable.

he 1000Base-TX (PoE) and Gigabit Ethernet

se-TX Connections Base-TX ports.

Connectors

1. The 1000Ba

The following lists the pinouts of 1000

EX45900 series www.etherwan.com

Pin Signal Name Signal Definition

1 TP0＋Transmit and Receive Data 0 ＋

2 TP0－Transmit and Receive Data 0 －

3 TP1＋Transmit and Receive Data 1 ＋

4 TP2＋Transmit and Receive Data 2 ＋

5 TP2－Transmit and Receive Data 2 －

6 TP1－Transmit and Receive Data 1 －

7 TP3＋Transmit and Receive Data 3 ＋

8 TP3－Transmit and Receive Data 3 －

2. The SFP Socket Connections

The SFP socket for Gigabit fiber optic expansion.

3. The 1000Base-SX/LX Connections

The fiber port pinouts: The Tx (transmit) port of device I is

connected to the Rx (receive) port of device II, and the Rx

(receive) port of device I to the Tx (transmit) port of device II.

4. The WDM 1000Base-BX Connections

The fiber port pinouts: Only one optical fiber is required to

transmit and receive data.

EX45900 series www.etherwan.com

Functional Description

Complies with EN61000-6-2 & EN61000-6-4 EMC

Generic standard immunity for industrial environment.

Supports 802.3/802.3u/802.3ab/802.3z/802.3x.

Auto-negotiation: 10/100/1000Mbps, Full/Half-duplex.

Auto MDI/MDIX.

1000Base-SX/LX: Multi mode SC or ST type, Single

mode SC type. 1000Base-BX: WDM Single mode SC

type.

Supports 8192 MAC addresses, 1M bits buffer memory.

Supports IEEE802.3az Energy Efficient Ethernet

(EEE).

High speed, non-blocking four traffic class QoS switch

fabric.

Supports Jumbo frame up to 10K Bytes.

Enable Broadcast Storm Protection by DIP Switch No.

7 to limit 15,000 packets per second.

Port 1~4 support IEEE802.3at Power over Ethernet

(PoE) Power Sourcing Equipment (PSE) and provide

power up to 30W.

Power consumption: 7W Max (Device only, without

PoE).

PoE power budget: 120W.

Power Supply: Redundant 24/48VDC Terminal Block

power inputs.

Operating temperature ranges from -40°C to 75°C

(-40°F to 167°F).

Slim design with DIN-Rail mount installation.

EX45900 series www.etherwan.com

Assembly, Startup, and Dismantling

Assembly: Place the switch on the DIN rail from above

using the slot. Push the front of the switch toward the

mounting surface until it audibly snaps into place.

Startup: Connect the supply voltage to start up the

switch via the terminal block.

Dismantling: Pull out the lower edge and then remove

the switch from the DIN rail.

EX45900 series www.etherwan.com

Preface

This manual describes how to install and use the Hardened

PoE Gigabit Ethernet Switch. This switch introduced here is

capable of operating at temperature extremes of -40°C to

+75°C, this is the switch of choice for harsh environments

constrained by space.

Port 1 to port 4 on this switch supports IEEE802.3at Power

over Ethernet (PoE) Power Sourcing Equipment (PSE) and

can detect an IEEE802.3at compliant Powered Device (PD).

Using external 48VDC power inputs through Terminal Block,

data and power can be transmitted to a Powered Device (PD)

over the same twisted-pair Ethernet cable through port 1 to

port 4 on the switch.

To get the most out of this manual, you should have an

understanding of Ethernet networking concepts.

In this manual, you will find:

Features on the switch

Illustrative LED functions

Installation instructions

Specifications

EX45900 series www.etherwan.com

Table of Contents

QUICK START GUIDE 1

PHYSICAL DESCRIPTION 1

The Port Status LEDs 1

The Terminal Block and Power Inputs 2

DIP Switch Settings 3

The 1000Base-TX (PoE) and Gigabit Ethernet Connectors 3

FUNCTIONAL DESCRIPTION 5

ASSEMBLY,STARTUP,AND DISMANTLING 6

PREFACE 7

TABLE OF CONTENTS 8

PRODUCT OVERVIEW 9

HARDENED POEGIGABIT ETHERNET SWITCH 9

PACKAGE CONTENTS 9

PRODUCT HIGHLIGHTS 10

Basic Features 10

FRONT PANEL DISPLAY 11

PHYSICAL PORTS 12

INSTALLATION 13

SELECTING A SITE FOR THE SWITCH 13

DIN RAIL MOUNTING 14

CONNECTING TO POWER 15

DC Terminal Block Power Inputs 15

CONNECTING TO YOUR NETWORK 16

Cable Type & Length 16

Cabling 17

SPECIFICATIONS 18

EX45900 series www.etherwan.com

Product Overview

Hardened PoE Gigabit Ethernet Switch

Package Contents

When you unpack the product package, you shall find the

items listed below. Please inspect the contents, and report

any apparent damage or missing items immediately to your

authorized reseller.

This Switch

User’s Manual

EX45900 series www.etherwan.com

Product Highlights

Basic Features

Complies with EN61000-6-2 & EN61000-6-4 EMC

Generic standard immunity for industrial environment.

Supports 802.3/802.3u/802.3ab/802.3z/802.3x.

Auto-negotiation: 10/100/1000Mbps, Full/Half-duplex.

Auto MDI/MDIX.

1000Base-SX/LX: Multi mode SC or ST type, Single

mode SC type. 1000Base-BX: WDM Single mode SC

type.

Supports 8192 MAC addresses, 1M bits buffer memory.

Supports IEEE802.3az Energy Efficient Ethernet

(EEE).

High speed, non-blocking four traffic class QoS switch

fabric.

802.1Q VLAN Tag Based Priority, Class of Service.

Output Queue Schedule Mode: Weighted Round Robin

(WRR) with 4 priority queues.

The configurations of QoS are as below:

CoS Field Value Packet Count Priority

0 or 1 1 Lowest

2 or 3 2 Low

4 or 5 4 High

6 or 7 8 Highest

Supports Jumbo frame up to 10K Bytes.

Enable Broadcast Storm Protection by DIP Switch No.

7 to limit 15,000 packets per second.

Port 1~4 support IEEE802.3at Power over Ethernet

(PoE) Power Sourcing Equipment (PSE) and provide

power up to 30W.

Power consumption: 7W Max (Device only, without

PoE).

PoE power budget: 120W.
