ETEKCITY ESF93 Manual de usuario
1
Questions or Concerns? support@etekcity.com • (855) 686-3835

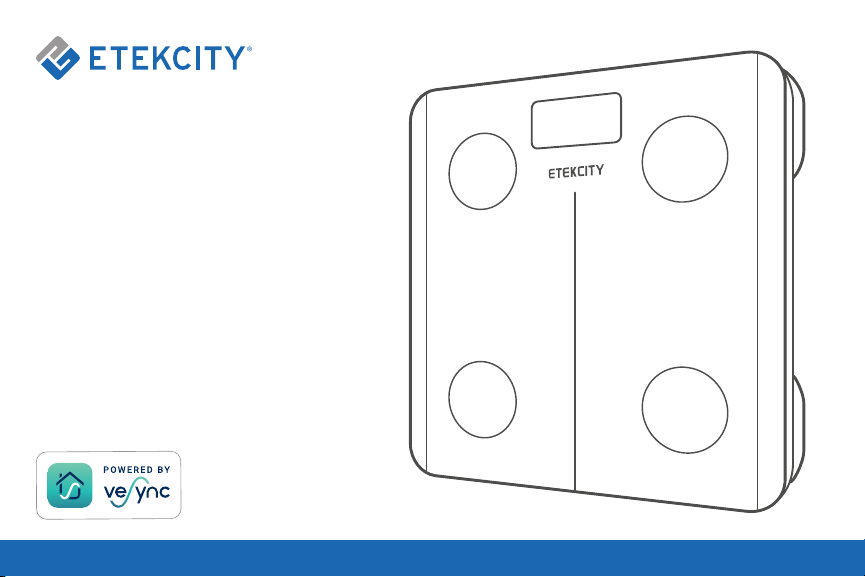

Smart Fitness Scale
Model: ESF93 Series
User Manual
2
Table of Contents
Package Contents
Specications
Safety Information
Function Diagram
Digital Display
Vesync App Setup
Using the Smart Scale
Maintenance
Troubleshooting
Warranty Information
Customer Support
2
2
3
5
6
7
8
10
13
17
19
1 x Smart Fitness Scale
1 x Micro-USB Charging Cable
1 x Quick Start Guide
Specifications
Package Contents
Input DC 5V, 500mA
Weight Capacity 400 lb / 28 st / 180 kg
Increments 0.1 lb / 0.05 kg
Weight Units lb / st / kg
Platform Tempered Glass
Dimensions 11.8 x 11.8 x 0.9 in /
30 x 30 x 2.3 cm
Battery Type 1000mAh Li-ion Battery
Charging Time 3 hours
Auto-Off 30 seconds
Note: To access additional smart fitness scale functions,
download the free VeSync app (see page 7).
3
Safety Information
READ AND
SAVE THESE
INSTRUCTIONS
Medical
General Use
• This scale should not be used to diagnose
or treat any medical condition.
• Scale data should not be used as a
substitute for medical advice from a
healthcare professional.
• This scale uses a harmless electrical
current to measure body fat. Consult a
healthcare professional before using the
• Check the scale before using. Do not use
the scale if it is damaged in any way.
• Do not strike or bang on the scale and do
not use the scale if there is a crack on the
glass. While tempered glass is stronger
and fractures more safely than ordinary
glass, it may shatter unexpectedly after
developing a slight crack. If you see a
crack, contact Customer Support (see
page 19).
• The glass platform is slippery when wet.
Always make sure the platform and
your feet are dry before stepping on for
measurement.
• Place the scale on a hard, at surface to
avoid tipping.
Please read and follow all instructions and
safety guidelines in this manual.
smart scale if you use medical electronic
equipment such as a pacemaker.
4
• To weigh safely and accurately, stand with
your feet shoulder-width apart while on
the scale. Do not stand on the edge of the
scale or jump on the scale.
• Avoid standing on the scale for a long
period of time, or when not weighing
yourself.
• Do not overload the scale. Maximum
weight capacity is 400 lb / 28 st / 180 kg.
• Keep the scale in a cool area with low
humidity. Keep the scale away from heat
sources, such as ovens or heaters. Avoid
temperature uctuations. Store the scale
in a horizontal position, not vertical.
• Do not use while charging. Remove the
charging cable before using.
• Handle with care.
• Not for commercial use. Household use
only.
5
UNIT
Function Diagram
A. USB Charging Cable
B. Weighing Platform
C. Display
D. USB Charging Socket
TOP UNDERSIDE
E. Reset Button
F. Unit Switching Button
G. Anti-Skid Padding
B
A
C
DE
F
G
UNIT
6
Digital Display
A. Weight Measurement
B. Battery Life Indicator
C. Bluetooth®Icon
D. Weight Units
lb
kg
B
C
D
A
7
VeSync App Setup
1. To download the VeSync app, scan the QR code
or search “VeSync” in the Apple App Store® or
Google Play Store.
Note: Due to app updates and improvements, the contents
of this manual may change without notice. The VeSync app
user interface may appear slightly different.
2. Open the VeSync app. If you already have an
account, tap Log In. To create a new account,
tap Sign Up.
Note:
• This scale uses the VeSync app, not the VeSyncFit
app.
• For Android™ users, you may need to select Allow
to use VeSync.
Note: You must create your own VeSync account to use
third-party services and products. These will not work
with a guest account. With a VeSync account, you can
also allow your family and friends to use your smart
fitness scale.
Note: You can change the name and icon at any time in
the smart fitness scale settings.
3. Make sure the scale is fully charged.
4. Make sure your phone has Bluetooth®turned on.
5. Tap +in the VeSync app and select your smart
tness scale.
6. Follow the in-app instructions to connect to your
smart tness scale.
8
Using the Smart Scale
Note:
• Fully charge before first use.
• To see measurements besides weight, you must
connect the scale to the VeSync app (see page 7).
• To switch between pounds (lb), stone (st), and
kilograms (kg), press the unit switching button on
the underside of the scale or change the units in the
VeSync app.
• If you are pregnant, scale measurements will not be
accurate.
• This scale is not recommended for children under the
age of 10 because data may be inaccurate.
Creating a User
If you are a new user, you will need to enter physical
information before weighing yourself for the rst
time so the scale can calculate your body metrics.
Follow the in-app instructions to create a user.
Note:
• Entering inaccurate information will make the
scale’s measurements less accurate.
• If you don’t identify with the available gender
options, or are unsure, pick the option that you
think best physically matches you. This choice is
used for physical measurements, such as body fat
percentages.
9
1. Place the scale on a hard, at surface (not a
carpet or mat). [Figure 1.1]
Figure 1.1
Figure 1.2
Note: Placing on carpet may cause inaccurate
measurements or tipping.
2. Make sure your feet are dry. Place bare feet
on the scale’s conductive areas. The scale will
automatically turn on and start measuring your
weight.
3. Continue standing on the scale until the digits
on the screen ash 3 times, showing your nal
measurement. [Figure 1.2] If your smart scale is
connected to the VeSync app, additional results
(such as BMI, body fat, etc) will show in the
app.
4. If you want to measure the weight of your baby
or pet, you can click the “ ”(Expand) button
in the lower right corner of the home page and
click the “ ”(Baby Mode) button to enter
the baby measurement mode and measure
according to the prompts. In baby mode, the
APP will only measure weight and BMI.
10

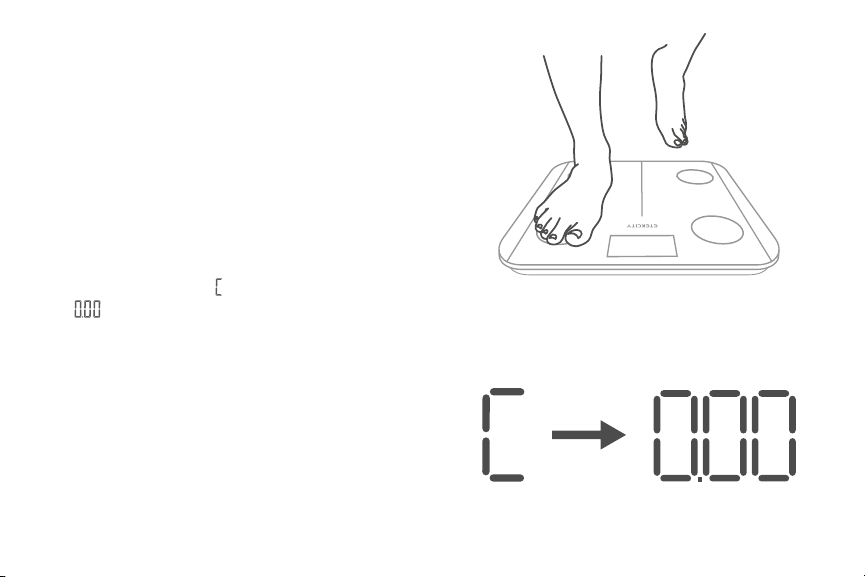

Maintenance
If the scale has been moved or ipped upside down,
it must be calibrated to ensure accurate results.
1. Place the scale on a hard, at surface.
2. Step on the scale with 1 foot until digits appear
on the display [Figure 3.1] Then, step off.
3. The scale will show “ ” while calibrating, then
“ ” when complete. [Figure 3.2]
• Use a slightly damp cloth to clean the surface of
the scale, followed by a soft, dry cloth to wipe
away any remaining moisture.
• Do not use chemical or abrasive cleaning agents
to clean the scale.
Calibrating the Smart Scale
Cleaning the Scale
Figure 3.1
Figure 3.2
