ColorSource®Spot

ColorSource Spot Page 1 of 8 Electronic Theatre Controls, Inc.

Corporate Headquarters



Middleton, Wisconsin, USA



Tel +608 831 4116



Service: (Americas) [email protected]

London, UK



Tel +44 (0)20 8896 1000



Service: (UK)

[email protected]

Rome, IT



Tel +39 (06) 32 111 683



Service: (UK) [email protected]

Holzkirchen, DE



Tel +49 (80 24) 47 00-0



Service: (DE) [email protected]

Hong Kong



Tel +852 2799 1220



Service: (Asia)

[email protected]

Web:

www.etcconnect.com



Product information and specifications subject to change

US Patent No. 7,901,089 . 8,403,523 . 8,384,294 . 8,633,649 . 6,020,110,157,302 . 2,638,781 . 8,878,455 . 9,041,308

8,723,450 . 8,593,074



EU Patent No. 2,150,746



All other patents pending

7413M2100



Rev C



Released 2016-04



ETC intends this document to be provided in its entirety.

Overview

The ColorSource Spot is an affordable profile fixture that offers the quality and

support of an ETC LED fixture. Utilizing an RGB-L color mixing system, the

ColorSource Spot produces amazing color and output for a four-color fixture.

This fixture is available in both original and Deep Blue variants. The Deep Blue

uses an array that offers richer, more saturated blues and stronger magentas

in exchange for the more jewel-toned blues like sky or turquoise. For more

information, see the ETC website at www.etcconnect.com.

This light engine can be used with standard ETC shutter barrels, lens tubes,

Fresnel and Cyc Adapters, and accessories.

Environment

The ColorSource Spot operates in ambient temperatures of 0°- 40°C and

comes with a variable-speed, quiet operation fan.

CAUTION:

• Risk of eye injury. Do not stare directly into the light.

• Do not operate in proximity to flammable materials.

Note:

The ColorSource Spot is for use in dry locations only.

Note:

• Maximum recommended ambient operating temperature:

Ta = 40°C (104°F)

• Maximum anticipated external surface temperature at 40°

ambient:

Tmax = 80°C (176°F)

• External temperatures after 5 minutes of full-brightness

operation at 25°C (77°F) ambient: 30°C (86°F)

• External Temperature (steady state achieved) at 25°C

(77°F): 36°C (97°F)

ETC Installation Manual

ColorSource Spot

ColorSource Spot Page 2 of 8 Electronic Theatre Controls, Inc.

Electrical

• Operates between 100V and 240VAC at a frequency of 50/60Hz.

• Maximum power consumption is 185W.

• Up to 9 luminaires (15A max) may be linked via power thru connector

(10 luminaires total per circuit) when used with an R20 relay module or

Unison Echo Relay Panel. Consult breaker trip curves when used with

other equipment. Requires power from a non-dimmable source.

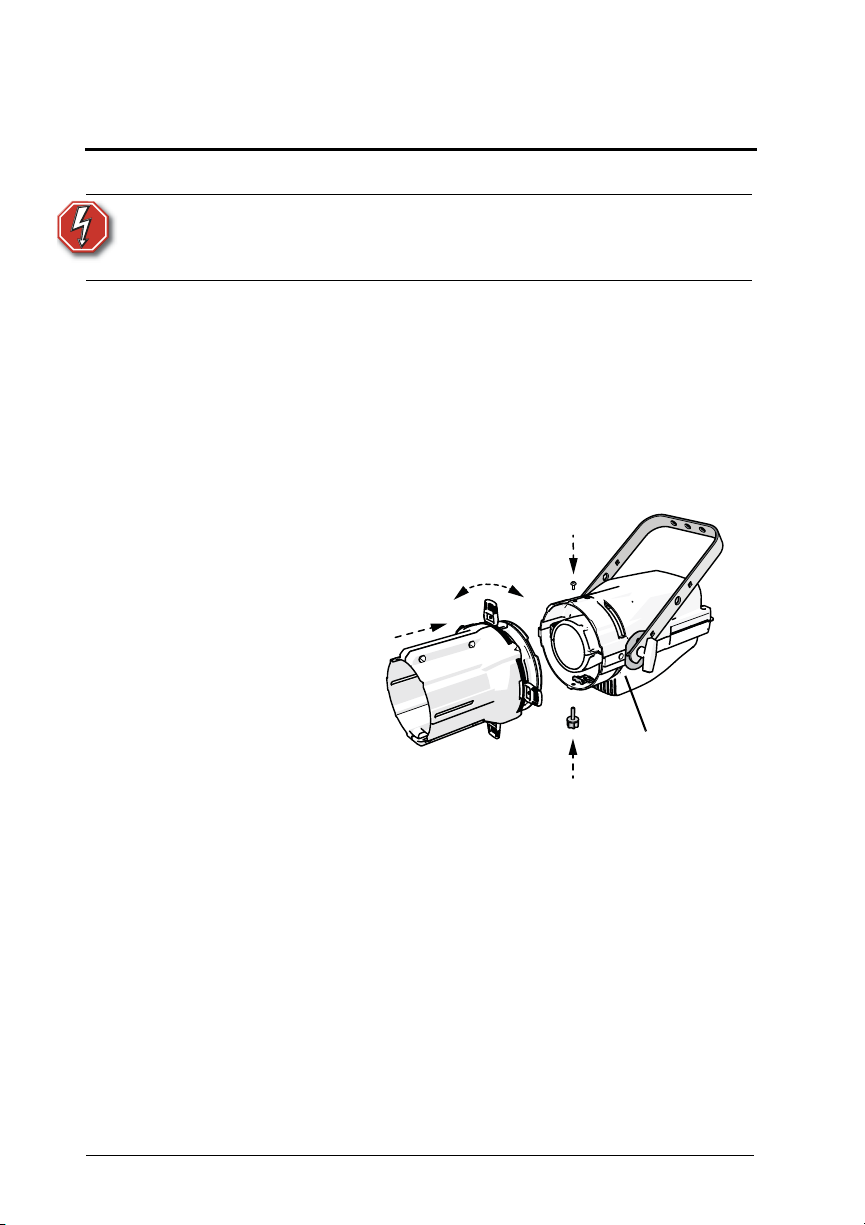

Installing a shutter barrel

The ColorSouce Spot can

be purchased with or

without a shutter barrel.

To install a shutter barrel

you will need a #2 Phillips

Screwdriver. (not

provided)

The ColorSource light

engine includes a barrel

screw. The small screw

used to secure the top of

the shutter barrel is

included with the shutter

barrel.

Step 1: Align the barrel to the front of the ColorSource Spot and

rotate it one quarter turn counter-clockwise

Step 2: Insert the shutter barrel into the front of the light engine and

rotate clockwise until it is fully threaded onto the light engine.

Step 3: Insert the barrel screw at the bottom of the light engine and

tighten.

Step 4: Insert the small screw into the top of the light engine and

tighten using the Phillips screwdriver

WARNING:

Disconnect the fixture from power and DMX and

allow it to cool before performing any cleaning and

maintenance.

Small screw included with the

shutter barrel

ColorSource Spot

light engine

ETC Installation Manual

ColorSource Spot

ColorSource Spot Page 3 of 8 Electronic Theatre Controls, Inc.

Mounting hardware

• The ColorSource Spot ships with a standard yoke for mounting with a

c-clamp.

• The provided safety cable (or other approved safety device) must be

attached to the fixture. Two attachment loops are provided on the rear

of the fixture body. Take care to leave as little slack as possible in the

safety cable to avoid catching the yoke of the fixture.

Connectors

•Power Connectors - two PowerCON connectors for power in and thru

•Data in and Thru: DMX512/RDM - two five pin XLR connectors OR

two RJ45 connectors

Fixture setup

Step 1: Plug power cord into the PowerCON in connector on the rear

of the fixture.

Step 2: Make any power-thru cable connections prior to applying a

power source.

Step 3: Plug power cord into power source.

Power up

Step 1: Press the Mode button once to wake the display. The first

screen you see displays the DMX address.

Step 2: Press the Mode button a second time to access the Presets/

Sequences screen.

Adjusting the tilt

The fixture can be tilted up and down and rotated (panned) as needed.

Step 1: Loosen, but do not remove the yoke locking knobs.

Step 2: Tilt the fixture to the desired angle.

Step 3: Tighten the yoke locking knobs.

Note:

This fixture is not Ethernet / data network compatible.

Note:

The ColorSource Spot is not self terminating. You must

terminate the last fixture in line with a 120 ohm resistor.

XLR terminators are not available from ETC.

To purchase an RJ45 terminator, please contact your ETC

customer service representative and request part number

N4086.

ETC Installation Manual

ColorSource Spot

ColorSource Spot Page 4 of 8 Electronic Theatre Controls, Inc.

User interface

The user interface allows you to set the start address of the fixture, and access

the stand-alone presets and sequences. After five seconds of inactivity, the

display goes dark

User interface lock

To l o c k : Press and hold the up and down arrows for three seconds to lock the

user interface. The UI will show  when locked.

To unlock: Press and hold the up and down arrows for three seconds to

unlock the user interface.

Mode button

Pressing the Mode button activates the Preset/Sequence selection screen; the

last active preset or sequence plays automatically. Pressing the Mode button a

second time deactivates the selected preset or sequence. The display will revert

to show the DMX start address.

• If DMX data is present, the current preset or sequence plays in the

background and DMX data continues to take priority.

• If DMX data is lost and a preset is active in the background, the last

selected preset or sequence automatically plays.

DMX addressing

Step 1: Press the Mode button until the DMX address is displayed.

Step 2: Use the Up and Down buttons to select the DMX address for

the fixture.

ETC Installation Manual

ColorSource Spot

ColorSource Spot Page 5 of 8 Electronic Theatre Controls, Inc.

Preset and sequence selection

There are twelve factory-configured presets followed by five factory-

configured sequences built into the fixture. From the Preset and Sequences

menu, use the Up and Down buttons to scroll through the list. The sequence

or preset plays immediately upon selection. All presets and sequences can be

re-recorded through an RDM device.

To re-record presets:

Step 1: Using DMX or RDM, set the desired RGB levels.

Step 2: Navigate to the Preset and Sequences menu.

Step 3: Using the Up and Down buttons, navigate to the preset

number you want to re-record.

Step 4: Hold the Mode button for three seconds to confirm the preset

selection. The user interface will show a three second count-

down. The preset number will then blink once to confirm the

preset has been recorded.

Power in

Data in

Down

Data thru

Power

thru

User

interface

DMX address

screen:

Preset/Sequence

screen:

Scroll through

presets ,

followed by

sequences 

Mode

button

Spot with XLR

connectors shown

Safety cable

attachment

point

ETC Installation Manual

ColorSource Spot

ColorSource Spot Page 6 of 8 Electronic Theatre Controls, Inc.

It is possible to activate a known preset or sequence from a connected fixture

when DMX is not present. If a connected fixture activates a preset or sequence

that is not recognized by the Spot, the Spot will hold its last look. When DMX

is restored, it will take priority.

Preset intensity adjustment

To edit the intensity of a preset from the UI:

Step 1: From the Preset menu select the preset you want to edit and

hold the Mode button for 3 seconds. You’ll see  ## where

the number is an intensity level from , or .

Step 2: Use the Up and Down buttons to change the intensity level of

the preset in real time.

Step 3: Press the Mode button to confirm your selection and return to

the Preset screen.

The fixture will automatically return to the Preset menu after 5 seconds of

inactivity without saving edits to the preset intensity. This cancels unsaved

changes.

Pre-configured presets

Preset Name Preset Name

1 3200K White 7 Magenta

2 5600K White 8 Yellow

3 Red 9 Orange

4 Green 10 Light Yellow

5 Blue 11 Light Blue

6 Cyan 12 Light Pink

Pre-configured sequences

Sequence Name

1 Rainbow Fast

2 Rainbow Slow

3WarmColorsFast

4 Cool Colors Fast

5Random

ETC Installation Manual

ColorSource Spot

ColorSource Spot Page 7 of 8 Electronic Theatre Controls, Inc.

Fixture update

A ColorSource fixture running software v1.3.0 or newer can update software

on all connected ColorSource fixtures that are running version 1.3.0 or newer.

The software version of the master fixtures will be pushed to all connected

fixtures.

Step 1: Remove power and DMX from the master fixture that is

running the firmware version that you want to push to other

fixtures.

Step 2: Hold the Up and Down button simultaneously while restoring

power.

Step 3: The display will show  to indicate the update mode

is selected.

Step 4: Press the Mode button to start the update process.

• The display will alternate between  and the

percentage complete while updating.

• The master fixture will reboot once the update is

complete.

ETC recommends using the UpdaterAtor software to manage software version

updates. For more information on UpdaterAtor, reference the UpdatorAtor

Software Quick Guide which is available for free downloaded at

www.etcconnect.com.

ETC Installation Manual

ColorSource Spot

ColorSource Spot Page 8 of 8 Electronic Theatre Controls, Inc.

Typical Power Consumption

DMX Control Channels

Error codes

There are three error codes that may be shown on the user interface.

•- Indicates a problem with the color calibration. The fixture will

need to be returned to the ETC factory; contact your local dealer to

setup a repair.

•- Indicates that the fixture has gone into over-temperature

protection mode to avoid damaging the fixture. Once the fixture has

self-cooled, the error will automatically clear.

•Screen toggles between  and   to indicate that the

upgraded fixtures have a software issue. Reload software to clear the

error. If the error persists, contact ETC.

To restore factory defaults:

Hold all three buttons on the user interface down simultaneously for five

seconds. You will see the DMX start address blink once to confirm that

defaults have been restored.

100V 120V 240V

Idle Power / Current 1.19W/0.0465A 2.07W/0.0479A 1.5W/0.0531A

RGB at Full / Current 148W/1.48A 147W/1.24A 144W/0.658A

DMX Profile Description

1Intensity

2Red

3 Green

4Blue

5 Strobe

Note:

The fixture listens to RGB but interprets color output using

the full RGB-L array. It is not possible to control a single

group of LEDs; i.e. only blue.

Otros manuales para ColorSource Spot

Tabla de contenidos

Otros manuales de Equipo de iluminación de ETC

ETC

ETC Source Four Revolution Scroller Cartridge Manual de usuario

ETC

ETC Source Four Revolution Rotating Wheel Module Manual de usuario

ETC

ETC High End Systems SolaFrame 3000 Manual de usuario

ETC

ETC F-Drive W1 Series Manual de usuario

ETC

ETC Selador Series Manual de usuario

ETC

ETC fos/4 Series Manual de usuario

ETC

ETC fos/4 Series Manual de usuario

ETC

ETC fos/4 Panel Yoke Manual de usuario

ETC

ETC fos/4 Fresnel Theatrical Yoke Manual de usuario

ETC

ETC Express 24/48 Manual de usuario

ETC

ETC Source 4WRD II Manual de usuario

ETC

ETC Hog 4 Series Manual de usuario

ETC

ETC Desire D22 Manual de usuario

ETC

ETC ColorSource Raceway Manual de usuario

ETC

ETC Expression 2.0 Manual de usuario

ETC

ETC 3 Series Manual de usuario

ETC

ETC Echo Manual de usuario

ETC

ETC Sensor3 Manual de usuario

ETC

ETC Source 4WRD Manual de usuario

ETC

ETC SolarFrame 750 Manual de usuario

ETC

ETC fos/4 Series Manual de usuario

ETC

ETC Source Four LED Series Manual de usuario

ETC

ETC fos/4 Fresnel Manual de usuario

ETC

ETC Source Four LED Series Manual de usuario

Manuales populares de Equipo de iluminación de otras marcas

Brizo

Brizo 8SP-MU-4 Manual de usuario

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manual de usuario

IKEA

IKEA BJÖRKSPIREA Manual de usuario

Laserworld

Laserworld Evolution Series ES-400RGB Manual de usuario

Alien

Alien RG STAR Manual de usuario

EuroLite

EuroLite LED B-40 Manual de usuario

Qazqa

Qazqa Suplux SL 3 Black 103062 Manual de usuario

Commercial Electric

Commercial Electric 54568141 Manual de usuario

CREE LIGHTING

CREE LIGHTING 304 Series Manual de usuario

Goobay

Goobay 49867 Manual de usuario

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manual de usuario

Alkalite

Alkalite Krypton KT-81 Manual de usuario

Clas Ohlson

Clas Ohlson GU10 Manual de usuario

DTS

DTS DELTA 10 F Manual de usuario

ring

ring Solar Steplight Manual de usuario

One Stop Gardens

One Stop Gardens 57696 Instrucciones de montaje

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manual de usuario

SIREM

SIREM Swimeo A2 Manual de usuario
