Rogue

Instruction manual

0463 710 001 GB 20200323 Valid for: A01-xxx-xxxx

ES 180iPro, ES 200iPro

TABLE OF CONTENTS

0463 710 001 © ESAB AB 2020

1SAFETY ....................................................................................................... 4

1.1 Meaning of symbols ............................................................................... 4

1.2 Safety precautions ................................................................................. 4

2INTRODUCTION.......................................................................................... 8

2.1 Equipment ............................................................................................... 8

3TECHNICAL DATA ...................................................................................... 9

4INSTALLATION............................................................................................ 11

4.1 Location................................................................................................... 11

4.2 Lifting instructions ................................................................................. 11

4.3 Mains supply........................................................................................... 12

5MAINTENANCE........................................................................................... 14

5.1 Routine maintenance ............................................................................. 14

5.2 Cleaning instruction............................................................................... 14

6TROUBLESHOOTING ................................................................................ 16

7ORDERING SPARE PARTS ........................................................................ 17

DIAGRAM ............................................................................................................ 18

ORDERING NUMBERS....................................................................................... 19

ACCESSORIES ................................................................................................... 20

Rights reserved to alter specifications without notice.

1 SAFETY

0463 710 001 -4- © ESAB AB 2020

1 SAFETY

1.1 Meaning of symbols

As used throughout this manual: Means Attention! Be Alert!

DANGER!

Means immediate hazards which, if not avoided, will result in immediate,

serious personal injury or loss of life.

WARNING!

Means potential hazards which could result in personal injury or loss of life.

CAUTION!

Means hazards which could result in minor personal injury.

WARNING!

Before use, read and understand the instruction manual

and follow all labels, employer´s safety practices and

Safety Data Sheets (SDSs).

1.2 Safety precautions

Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who

works on or near the equipment observes all the relevant safety precautions. Safety

precautions must meet the requirements that apply to this type of equipment. The following

recommendations should be observed in addition to the standard regulations that apply to

the workplace.

All work must be carried out by trained personnel well-acquainted with the operation of the

equipment. Incorrect operation of the equipment may lead to hazardous situations which can

result in injury to the operator and damage to the equipment.

1. Anyone who uses the equipment must be familiar with:

○ its operation

○ location of emergency stops

○ its function

○ relevant safety precautions

○ welding and cutting or other applicable operation of the equipment

2. The operator must ensure that:

○ no unauthorised person is stationed within the working area of the equipment

when it is started up

○ no-one is unprotected when the arc is struck or work is started with the

equipment

3. The workplace must:

○ be suitable for the purpose

○ be free from drafts

1 SAFETY

0463 710 001 -5- © ESAB AB 2020

4. Personal safety equipment:

○ Always wear recommended personal safety equipment, such as safety glasses,

flame-proof clothing, safety gloves

○ Do not wear loose-fitting items, such as scarves, bracelets, rings, etc., which

could become trapped or cause burns

5. General precautions:

○ Make sure the return cable is connected securely

○ Work on high voltage equipment may only be carried out by a qualified

electrician

○ Appropriate fire extinguishing equipment must be clearly marked and close at

hand

○ Lubrication and maintenance must not be carried out on the equipment during

operation

If equipped with ESAB cooler

Use ESAB approved coolant only. Non-approved coolant might damage the equipment and

jeopardize product safety. In case of such damage, all warranty undertakings from ESAB

cease to apply.

Recommended ESAB coolant ordering number: 0465720002.

For ordering information, see the "ACCESSORIES" chapter in the instruction manual.

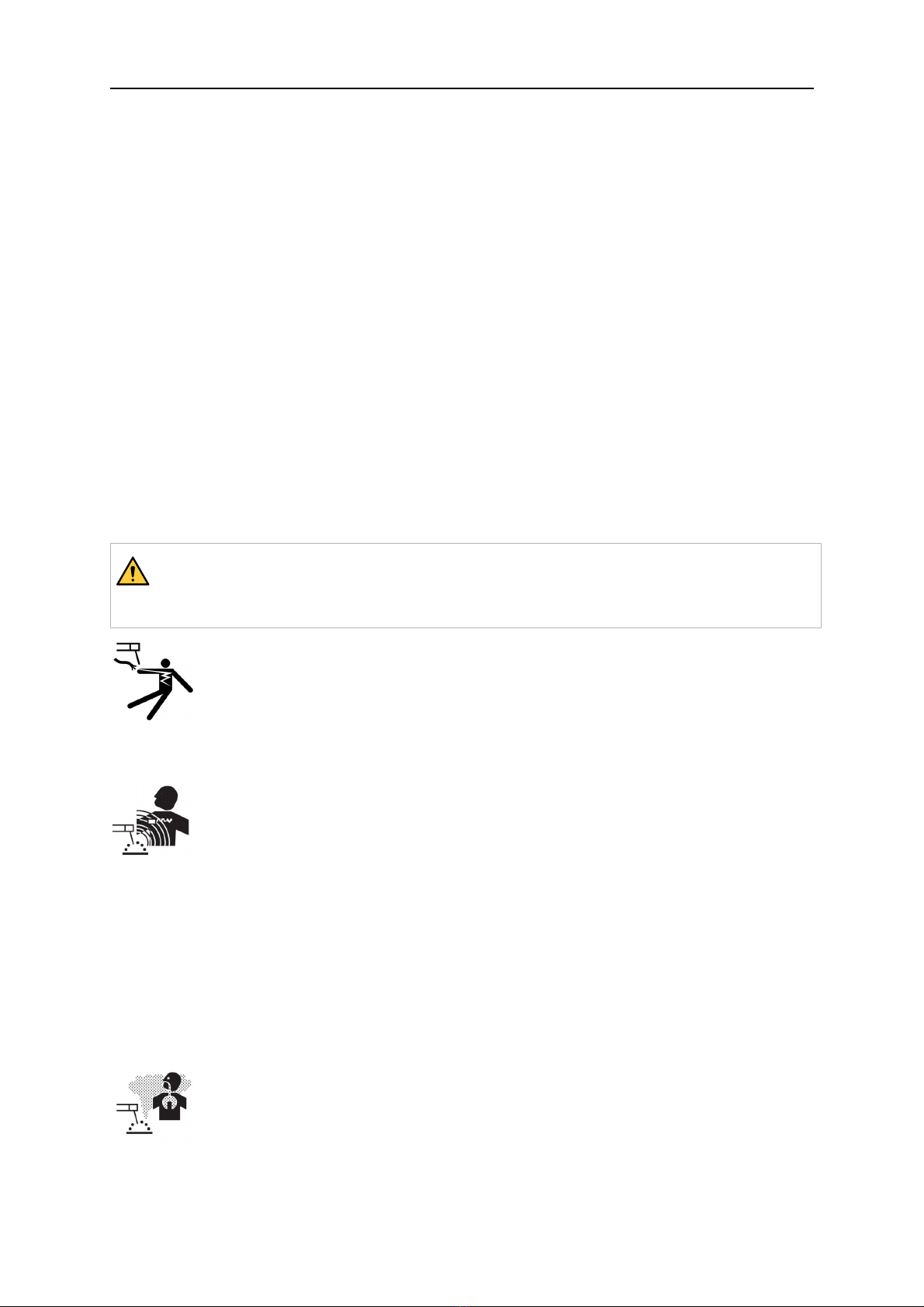

WARNING!

Arc welding and cutting can be injurious to yourself and others. Take precautions

when welding and cutting.

ELECTRIC SHOCK - Can kill

• Install and ground the unit in accordance with instruction manual.

• Do not touch live electrical parts or electrodes with bare skin, wet gloves or

wet clothing.

• Insulate yourself from work and ground.

• Ensure your working position is safe

ELECTRIC AND MAGNETIC FIELDS - Can be dangerous to health

• Welders having pacemakers should consult their physician before welding.

EMF may interfere with some pacemakers.

• Exposure to EMF may have other health effects which are unknown.

• Welders should use the following procedures to minimize exposure to

EMF:

○ Route the electrode and work cables together on the same side of

your body. Secure them with tape when possible. Do not place your

body between the torch and work cables. Never coil the torch or work

cable around your body. Keep welding power source and cables as

far away from your body as possible.

○ Connect the work cable to the workpiece as close as possible to the

area being welded.

FUMES AND GASES - Can be dangerous to health

• Keep your head out of the fumes.

• Use ventilation, extraction at the arc, or both, to take fumes and gases

away from your breathing zone and the general area.

1 SAFETY

0463 710 001 -6- © ESAB AB 2020

ARC RAYS - Can injure eyes and burn skin

• Protect your eyes and body. Use the correct welding screen and filter lens

and wear protective clothing.

• Protect bystanders with suitable screens or curtains.

NOISE - Excessive noise can damage hearing

Protect your ears. Use earmuffs or other hearing protection.

MOVING PARTS - Can cause injuries

• Keep all doors, panels and covers closed and securely in place. Have only

qualified people remove covers for maintenance and troubleshooting as

necessary. Reinstall panels or covers and close doors when service is

finished and before starting engine.

• Stop engine before installing or connecting unit.

• Keep hands, hair, loose clothing and tools away from moving parts.

FIRE HAZARD

• Sparks (spatter) can cause fire. Make sure that there are no inflammable

materials nearby.

• Do not use on closed containers.

HOT SURFACE - Parts can burn

• Do not touch parts bare handed.

• Allow cooling period before working on equipment.

• To handle hot parts, use proper tools and/or insulated welding gloves to

prevent burns.

MALFUNCTION - Call for expert assistance in the event of malfunction.

PROTECT YOURSELF AND OTHERS!

CAUTION!

This product is solely intended for arc welding.

WARNING!

Do not use the power source for thawing frozen pipes.

CAUTION!

Class A equipment is not intended for use in residential

locations where the electrical power is provided by the

public low-voltage supply system. There may be

potential difficulties in ensuring electromagnetic

compatibility of class A equipment in those locations,

due to conducted as well as radiated disturbances.

1 SAFETY

0463 710 001 -7- © ESAB AB 2020

NOTE!

Dispose of electronic equipment at the recycling

facility!

In observance of European Directive 2012/19/EC on

Waste Electrical and Electronic Equipment and its

implementation in accordance with national law,

electrical and/or electronic equipment that has reached

the end of its life must be disposed of at a recycling

facility.

As the person responsible for the equipment, it is your

responsibility to obtain information on approved

collection stations.

For further information contact the nearest ESAB dealer.

ESAB has an assortment of welding accessories and personal protection equipment

for purchase. For ordering information contact your local ESAB dealer or visit us on

our website.

2 INTRODUCTION

0463 710 001 -8- © ESAB AB 2020

2 INTRODUCTION

Overview

Rogue ES 180i Pro, ES 200i Pro is an inverter-based power source intended for MMA

(Manual Metal Arc) and TIG (Tungsten Inert Gas) welding.

ESAB accessories for the product can be found in the "ACCESSORIES" chapter of

this manual.

2.1 Equipment

Rogue ES 180i Pro, ES 200i Pro includes:

• Power Source

• Work Clamp Leadset

• Electrode Holder Leadset

• Safety Manual

• Quick Start Guide

• Shoulder Strap

3 TECHNICAL DATA

0463 710 001 -9- © ESAB AB 2020

3 TECHNICAL DATA

Technical data

Rogue ES 200i Pro Rogue ES 180i Pro

Outlet voltage 230V±15%

1~ 50/60Hz

115V±15%

1~ 50/60Hz

230V±15%

1~ 50/60Hz

115V±15%

1~ 50/60Hz

Primary current

Imax MMA 30 A 29A 26A 29A

ImaxLiveTIG 19.5A 24A 16.5A 24A

No-loadpower

demand when in

energy saving mode 50W 50W 50W 50W

Setting range

MMA 20-200A 20-110A 20-180A 20-110A

Live TIG 10-200A 10-140A 10-180A 10-140A

Permissible load at MMA

25% duty cycle 200A/ 28V 110A/ 24.4V 180A/ 27.2V 110A / 24.4V

60% duty cycle 129A/ 25.2V 70A/ 22.8V 116A/ 24.6V 70A/ 22.8V

100% duty cycle 100A/ 24V 55A/ 22.2V 90A/ 23.6V 55A / 22.2V

Permissible load at Live TIG

25% duty cycle 200A/ 18V 140A/ 15.6V 180A/ 17.2V 140A / 15.6V

60% duty cycle 129A/ 15.2V

90A/

13.6 V 116A/ 14.6V 90A / 13.6V

100% duty cycle 100A/ 14V

70A/

12.8 V 90A/ 13.6V 70A / 12.8V

Apparent power I2

at maximum current 6.9kVA 3.3kVA 6kVA 3.3kVA

Active

power I2

at maximum current 6.8kW 3.26kW 5.94kW 3.26kW

Power factor at maximum current

Live TIG 0.99 0.99 0.99 0.99

MMA 0.99 0.99 0.99 0.99

Efficiency at maximum current

MMA 82% 82% 82% 82%

Live TIG 82% 82% 82% 82%

Open-circuit voltage U0max

VRD 35 V

deactivated 78VDC 78VDC 78VDC 78VDC

VRD 35 V activated <30V <30V <30V <30V

3 TECHNICAL DATA

0463 710 001 - 10 - © ESAB AB 2020

Rogue ES 200i Pro Rogue ES 180i Pro

Operating

temperature

-10to

+40°C

(+14to

104°F)

-10to

+40°C

(+14to

104°F)

-10to

+40°C

(+14to

104°F)

-10to

+40°C

(+14to

104°F)

Transportation

temperature

-20 to +55°C

(-4 to +131°F)

-20 to +55°C

(-4 to +131°F)

-20 to +55°C

(-4 to +131°F)

-20 to +55°C

(-4 to +131°F)

Continual sound

pressure at

no-load

<70dB <70dB <70dB <70dB

Dimensions

l×w×h

403×153×264

(15.8×6×10.4

in.)

403×153×264

(15.8×6×10.4

in.)

403×153×264m

(15.8×6×10.4i

n.)

403×153×264m

(15.8×6×10.4i

n.)

Weight 8.4kg 8.4kg 8.4kg 8.4kg

Insulation class

transformer

H H H H

Enclosure class IP23S IP23S IP23S IP23S

Application class

Mains supply, Ssc min

Minimum short circuit power on the network in accordance with IEC 61000-3-12.

Duty cycle

The duty cycle refers to the time as a percentage of a ten-minute period that you can weld or

cut at a certain load without overloading. The duty cycle is valid for 40°C/104°F, or below.

Enclosure class

The IP code indicates the enclosure class, i.e. the degree of protection against penetration

by solid objects or water.

Equipment marked IP23S is intended for indoor and outdoor use; however, should not be

operated in precipitation.

Application class

The symbol indicates that the power source is designed for use in areas with increased

electrical hazard.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema de soldadura de ESAB

ESAB

ESAB WARRIOR EDGE 500 Manual de usuario

ESAB

ESAB 653 cvcc Manual de referencia

ESAB

ESAB LHF 400 Manual de usuario

ESAB

ESAB Retrofit Aristo Mig 4004i WeldCloud Manual de usuario

ESAB

ESAB Warrior 500i CV Manual de usuario

ESAB

ESAB Caddy 140 Manual de usuario

ESAB

ESAB Precision Plasmarc IEFC-S PT-24 Instrucciones generales

ESAB

ESAB AristoFeed 30- 4 Manual de usuario

ESAB

ESAB BOMBARDIER SVI-450i Manual de usuario

ESAB

ESAB Precision Plasmarc EPP-600 Manual de usuario

ESAB

ESAB Mig C420 Manual de usuario

ESAB

ESAB PT-27 Manual de usuario

ESAB

ESAB Aristo WeldCloud Mig U5000i Manual de usuario

ESAB

ESAB TIG 401iW Manual de usuario

ESAB

ESAB Aristo Origo Feed 4804 Manual de usuario

ESAB

ESAB A6 SFD1 Series Manual de usuario

ESAB

ESAB LAF 1251 Manual de usuario

ESAB

ESAB A2 Multitrac Manual de usuario

ESAB

ESAB PowerCut 400 Manual de usuario

ESAB

ESAB AristoMig 500 Manual de usuario

ESAB

ESAB Warrior 500i CC/CV Manual de usuario

ESAB

ESAB Feed L302 Origo M08 Manual de usuario

ESAB

ESAB PowerCut 1600 Manual de usuario

ESAB

ESAB Origo Tig 3001i Manual de usuario

Manuales populares de Sistema de soldadura de otras marcas

Berner

Berner PLASMACUT 54 Manual de usuario

Pro Spot

Pro Spot PR-155 Manual de usuario

Forney

Forney 210 Manual de usuario

Thermal Arc

Thermal Arc 400S Manual de usuario

Lincoln Electric

Lincoln Electric HANDYMIG 170I Manual de usuario

GYS

GYS PROTIG 201 AC/DC Manual de usuario

TAFA

TAFA 30*8B35 Manual de usuario

Lincoln Electric

Lincoln Electric INVERTEC V350-PRO CE Manual de usuario

CIGWELD

CIGWELD 636804 Guía rápida

Red-D-Arc

Red-D-Arc DC-400 Manual de usuario

Hobart Welding Products

Hobart Welding Products Spool Gun DP 3035-10 Manual de usuario

Elettro

Elettro HI-MIG 3000 SYNERGIC Manual de usuario

WIA

WIA Weldmatic 270 CP132-2 Manual de usuario

Sonics

Sonics H520T Manual de usuario

Miller

Miller Big Blue 400D Manual de usuario

NewArc

NewArc RT2000 Guía de inicio rápido

Hypertherm

Hypertherm powermax1000 Manual de usuario

Lincoln Electric

Lincoln Electric POWER WAVE I400 Manual de usuario
