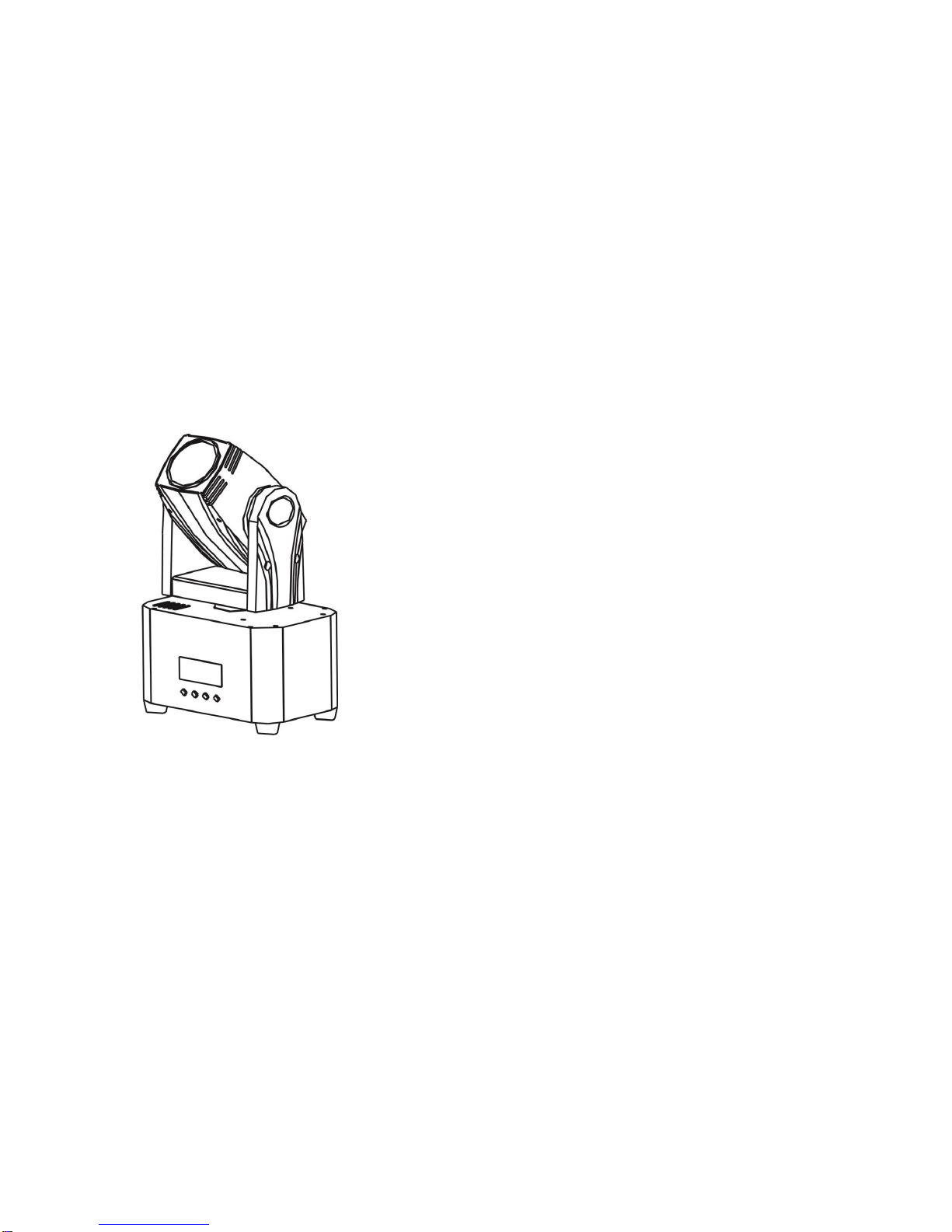

SLENDOR BEAM WHITE

User Manual

EQLED013

Contents

1. Safety Instructions

2. Features & Specifications

3. How To Set The Unit

4. Troubleshooting

5. Fixture Cleaning

1. Safety Instruction

WARNING

Please keep this User Guide for future consultation. If you sell the unit to

another user be sure that they also receive this.

Unpack and check carefully that there is no transportation damage before

using the unit.

Before operating, ensure that the voltage and frequency of the power

supply match the power requirements of the unit.

It’s important to ground the yellow/green conductor to earth in order to

avoid electric shock.

The unit is for indoor use only. Use only in a dry location.

The unit must be installed in a location with adequate ventilation, at least

50cm from adjacent surfaces. Be sure that no ventilation slots are

blocked.

Disconnect the mains power before replacement or servicing.

Make sure there are no flammable materials close to the unit while

operating as they may cause a fire hazard.

Always use a safety cable when installing this unit. Do not carry the unit

with its head only, always carry it using the base.

The maximum ambient temperature is: 40℃. Don’t operate it where the

temperature is higher than this.

In the event of a serious operating problem stop using the unit

immediately. Never try to repair the unit by yourself. Repairs carried out

by unskilled people can lead to damage or malfunction. Please contact the

nearest authorized technical assistance center. Always use the same type

spare parts.

Do not touch any power cables during operation as the high voltage may

cause an electric shock.

Warning

To prevent or reduce the risk of electrical shock or fire, do not expose the

unit to rain or moisture.

Do not open the unit within five minutes after switching off.

The housing and lenses must be replaced if they are visibly damaged.

Installation

The unit should be mounted via its screw holes onto the bracket. Always

ensure that the unit is firmly fixed to avoid vibration and slipping while

operating. Make sure that the structure to which you are attaching the unit

to is secure and is able to support a weight of 10 times of the unit’s weight.

Always use a safety cable that can hold 12 times of the weight of the unit

when installing the fixture.

The equipment must be installed by professionals and it must be installed

in a place where is out of the reach of people and no one can pass by or

under it.

2. Features & Technical Specifications

◇Control: Sound active, auto, Master/slave and DMX-512 modes

◇DMX Channels: 1CH/7CH

◇Electronic dimming: 0-100%

◇Compact size and light-weight

Voltage: 100V~240V, 50/60Hz

Fuse: T 2.5A

Power consumption: 23W

Light source: 1 x 10W white led

Dimension: 270 x 160 x 110mm

Weight: 2.5 kg

Pan/Tilt: 540°/180°

Power sockets: IEC

XLR sockets: 3-pin XLR IN/OUT

Please read the instructions carefully as they include important

information about installation, usage and maintenance.

3. How To Set The Unit

3.1 Control panel

Display

Shows the various menus and selected functions

Button

Selects the programming functions

To go forward in the selected functions

DOWN

To go backward in the selected functions

ENTER

Confirms the selected functions

Mains input

Connection to the power supply.

DMX input/output

For DMX 512 linking. Use a 3-pin XLR cables to link to the controller or to

other units.

3.2 Main Functions

To select any of the given functions, press the MENU button up to where the

required function is showing on the display. Select the function by pressing

the ENTER button and the display will blink. Use the DOWN and UP

buttons to change the mode. Once the required mode has been selected,

press the ENTER button to confirm. To go back to the functions without any

changes, press the MENU button again. Press and hold the MENU button

for one second or wait for one minute to go back to the main menu.

The main functions are as below:

ADDR

001-512

CHND

1CH/7CH

SLND

MAST

SL1

SL2

SHND

SH1

SH2

SH3

SH4

SOUN

OFF

SENS

000-100

LED

OFF

DISP→INVERT

PAN INVERT

YES

TILT INVERT

YES

TEST

VER

RSET

DMX Address Setting

Press the MENU button to select . Press the ENTER button and the

display will blink. Use the DOWN and UP buttons to choose the address to

confirm. To go back to the functions without any changes press the MENU

button again. Press and hold the MENU button for one second or wait for

one minute to go back to the main menu.

Channel Mode

Press the MENU button to select . Press the ENTER button and the

display will blink. Use the DOWN and UP buttons to select the (1

Channel) or (7 Channel) mode. Once the mode has been selected,

press the ENTER button to confirm. To go back to the functions without any

changes press the MENU button again. Press and hold the MENU button for

one second or wait for one minute to go back to the main menu.

Master Mode or Slave Mode

Press the MENU button to select . Press the ENTER button and the

display will blink. Use the DOWN and UP buttons to select the

(Slave 1), (Slave 2) or (Master) mode. Once the mode has

been selected, press the ENTER button to confirm. To go back to the

functions without any changes press the MENU button again. Press and

hold the MENU button for one second or wait for one minute to go back to

the main menu.

Show Mode

Press the MENU button to select . Press the ENTER button and the

display will blink. Use the DOWN and UP buttons to select the

(show 1) or (show 2) or (show 3) or (show 4) mode.

Once the mode has been selected, press the ENTER button to confirm. To

go back to the functions without any changes press the MENU button again.

Press and hold the MENU button for one second or wait for one minute to go

back to the main menu.

Sound Mode

Press the MENU button to select . Press the ENTER button and the

display will blink. Use the DOWN and UP buttons to select the

(sound on) or (sound off) mode. Once the mode has been selected,

press the ENTER button to confirm. To go back to the functions without any

changes press the MENU button again. Press and hold the MENU button for

one second or wait for one minute to go back to the main menu.

Sound Sensitivity

Press the MENU and use the UP and DOWN buttons to select and

select the sound sensitivity between value 0 and 255. Press the ENTER

button for confirmation after value selection. To go back to the functions

without any changes press the MENU button again.

Led Display

Press the MENU button to select . Press the ENTER button and the

display will blink. Use the DOWN and UP buttons to select the (Led

display on) or (Led display off) mode. Once the mode has been

selected, press the ENTER button to confirm. To go back to the functions

without any changes press the MENU button again. Press and hold the

MENU button for one second or wait for one minute to go back to the main

menu.

Display Inversion

Press the MENU button to select . Press the ENTER button to change

the mode (display normal), It will be automatically saved after 8

seconds. Press the ENTER button again to select the mode (display

inversion). To go back to the functions press the MENU button. Press and

hold the MENU button for one second or wait for one minute to go back to the

main menu.

Display normal mode is for floor standing the unit.

Display inversion mode is for hanging the unit upside down.

Pan Inversion

Press the MENU button to select . Press the ENTER button and the

display will blink. Use the DOWN and UP buttons to select the

(normal) or (pan inversion) mode. Once the mode has been selected,

press the ENTER button to confirm. To go back to the functions without any

changes press the MENU button again. Press and hold the MENU button for

one second or wait for one minute to go back to the main menu.

Tilt Inversion

Press the MENU button to select . Press the ENTER button and the

display will blink. Use the DOWN and UP buttons to select the

(normal) or (tilt inversion) mode. Once the mode has been

selected, press the ENTER button to confirm. To go back to the functions

without any change press the MENU button again. Press and hold the

MENU button for one second or wait for one minute to go back to the main

menu.

Auto-Test

Press the MENU button to select . Press the ENTER button and the

unit will run a self-test with its built-in programs. To go back to the functions

without any changes press the MENU button again. Press and hold the

MENU button for one second or wait for one minute to go back to the main

menu.

Reset

Press the MENU button to select . Press the ENTER button and all

channels of the unit will return to their standard position.

4. How To Control The Unit

1. Master/slave built-in preprogram function

2. Universal DMX controller

There is no need to turn the unit off when you change the DMX address as

new DMX address setting will be effected at once. Every time you turn the

unit on, it will show “ ”on the display and move all the motors to their

‘home’ position and you may hear some noises for about 20 seconds. After

that the unit will be ready to receive a DMX signal or run the built in

programs.

4.1 Master/Slave Built In Preprogrammed Function

By linking the units in master/slave connection, the first unit will control the

other units to give an automatic, sound activated, synchronized light show.

This function is good when you want an instant show. You have to set the

first unit as master and select show 1, show 2, show 3 or show 4 from

the Show Mode. The other units must be set to either Slave 1 (normal) or

Slave 2 (2 light show) mode. A DMX cable between the units for daisy

chaining is needed.

2-light show

In slave mode, Slave 1 means the unit works normally and Slave 2

means 2-light show. In order to create a great light show, you can set Slave

2on the second unit to get contrast movement to each other, even if you

have two units only.

4.2 DMX Controller

By using a universal DMX controller to control the units, you will need to set

a DMX address from 1 to 512 so that the units can receive a DMX signal.

Press the MENU button until is showing on the display. Press the

ENTER button and the display will blink. Use the DOWN and UP buttons to

change the DMX-512 address. Once the address has been selected, press

the ENTER button to confirm. To go back to the functions without any

changes press the MENU button again. Press and hold the MENU button

one second or wait for one minute to go back to the main menu.

Please refer to the below diagram to address your first 4 units：

Channel

mode

Unit 1

Address

Unit 2

Address

Unit 3

Address

Unit 4

Address

1 channel

7 channel

4.3 DMX 512 Configuration

1 CHANNEL MODE:

Channel

Value

Function

000-007

Blackout

008-067

Show 1

068-127

Show 2

128-187

Show 3

188-255

Random shows

7 CHANNEL MODE:

4.Troubleshooting

Following are a few common problems that may occur during

operation and some suggestions for easy troubleshooting:

A. The unit does not work, no light and the fan does not work

1. Check the connection of the power and the main fuse.

B. Not responding to DMX controller

1. DMX LED should be on. If not, check DMX cables to see if linked

correctly.

2. If the DMX address is showing but no response to the controller, check

the address settings and DMX polarity.

3. Try another DMX controller.

C. No response to the sound

1. Make sure the unit is not receiving a DMX signal.

Channel

Value

Function

0-255

Pan

0-255

Tilt

0-255

PAN/TILT Speed

(slow-fast)

0-255

Dimmer

0-255

Strobe(slow-fast)

0-255

NO FUNCTION

0-010

NO FUNCTION

011-255

Sound

2. Check the microphone to see if it is good by tapping it. The microphone

is located on the bottom plate of the unit.

5. Fixture Cleaning

The cleaning of external optical lenses must be carried out periodically to

optimize light output. Cleaning frequency depends on the environment in

which the fixture operates: damp, smoky or particularly dirty surrounding

can cause a greater accumulation of dirt on the unit’s optics.

Clean with a soft cloth using normal glass cleaning fluid or mild soapy water.

Always dry the parts carefully.

Clean the external optics at least every 20 days.

---------------------www.prolight.co.uk----------------------------------

Tabla de contenidos

Otros manuales de Equipo de iluminación de Equinox Systems

Equinox Systems

Equinox Systems Megabar System EQLED63 Manual de usuario

Equinox Systems

Equinox Systems Explo Strobe EX-2500 Manual de usuario

Equinox Systems

Equinox Systems KAMIKAZE EQLA14 Manual de usuario

Equinox Systems

Equinox Systems ATRIA Manual de usuario

Equinox Systems

Equinox Systems MidiPar Tri Plus Manual de usuario

Equinox Systems

Equinox Systems Fusion Saber Manual de usuario

Equinox Systems

Equinox Systems Goboceptor Manual de usuario

Equinox Systems

Equinox Systems UV Mini Batten 9 Manual de usuario

Equinox Systems

Equinox Systems SpectraPix Lithium Batten Manual de usuario

Equinox Systems

Equinox Systems Terminator 2 Manual de usuario

Equinox Systems

Equinox Systems Gigabar MKII COB Manual de usuario

Equinox Systems

Equinox Systems PIXELpoint Batten Manual de usuario

Equinox Systems

Equinox Systems GEMINI Manual de usuario

Equinox Systems

Equinox Systems FUSION SPOT MAX MKII Manual de usuario

Equinox Systems

Equinox Systems MaxiPar Tri Manual de usuario

Equinox Systems

Equinox Systems VEGA EQLA16 Manual de usuario

Equinox Systems

Equinox Systems XP 80W Manual de usuario

Equinox Systems

Equinox Systems LED Par 64 Manual de usuario

Equinox Systems

Equinox Systems ARIES EQLA20 Manual de usuario

Equinox Systems

Equinox Systems Power Flower EQLED77 Manual de usuario

Equinox Systems

Equinox Systems Nova Par 64 Manual de usuario

Equinox Systems

Equinox Systems Domin8r IIEQLED53 Manual de usuario

Equinox Systems

Equinox Systems POLARIS Manual de usuario

Equinox Systems

Equinox Systems Spectra Strobe Batten Manual de usuario

Manuales populares de Equipo de iluminación de otras marcas

Brizo

Brizo 8SP-MU-4 Manual de usuario

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manual de usuario

IKEA

IKEA BJÖRKSPIREA Manual de usuario

Laserworld

Laserworld Evolution Series ES-400RGB Manual de usuario

Alien

Alien RG STAR Manual de usuario

EuroLite

EuroLite LED B-40 Manual de usuario

Qazqa

Qazqa Suplux SL 3 Black 103062 Manual de usuario

Commercial Electric

Commercial Electric 54568141 Manual de usuario

CREE LIGHTING

CREE LIGHTING 304 Series Manual de usuario

Goobay

Goobay 49867 Manual de usuario

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manual de usuario

Alkalite

Alkalite Krypton KT-81 Manual de usuario

Clas Ohlson

Clas Ohlson GU10 Manual de usuario

DTS

DTS DELTA 10 F Manual de usuario

ring

ring Solar Steplight Manual de usuario

One Stop Gardens

One Stop Gardens 57696 Instrucciones de montaje

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manual de usuario

SIREM

SIREM Swimeo A2 Manual de usuario
