User’s Guide

BluetoothTM Print Adapter

from EPSON®

Printed on recycled paper

retrieval system, or transmitted in any form or by any means, electronic, mechanical,

photocopying, recording, or otherwise, without the prior written permission of

SEIKO EPSON CORPORATION. The information contained herein is designed

only for use with this EPSON product. EPSON is not responsible for any use of

this information as applied to other products.

Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable to the

purchaser of this product or third parties for damages, losses, costs, or expenses

incurred by purchaser or third parties as a result of accident, misuse, or abuse

of this product or unauthorized modifications, repairs, or alterations to this

product, or (excluding the U.S.) failure to strictly comply with SEIKO EPSON

CORPORATION’s operating and maintenance instructions.

SEIKO EPSON CORPORATION shall not be liable for any damages or

problems arising from the use of any options or any consumable products

other than those designated as Original EPSON Products or EPSON Approved

Products by SEIKO EPSON CORPORATION.

Trademarks

EPSON and EPSON Stylus are registered trademarks of SEIKO EPSON

CORPORATION.

Bluetooth is a trademark of SIG, Inc. and is used by SEIKO EPSON

CORPORATION under license.

General Notice: Other product names used herein are for identification purposes

only and may be trademarks of their respective owners. EPSON disclaims any and

all rights in those marks.

The ENERGY STAR emblem does not represent EPA endorsement of any

product or service.

2/02

Contents
Welcome 1
PDA System Requirements 2
Laptop System Requirements 2
Setting Up the Print Adapter 3
Before You Begin 3
Connecting the Print Adapter 4
Checking the Connection to the Printer 5
Using a Palm PDA 7
Installing the Software 7
Sending Your First Print Job 8
Using a Pocket PC 11
Installing the Software 11
Sending Your First Print Job 12
Using a Laptop 17
Adding a Virtual COM Port 17
Configuring the Printer Driver 17
Printing 19
Problem Solving 21
Where to Get Help 21
Notices 23
FCC Compliance Statement 23
Declaration of Conformity 23
Regulatory Information 24
iii

Welcome!

The BluetoothTM Print Adapter from EPSON®lets you print to many popular

EPSON printers from your Bluetooth-enabled PDA or laptop computer without

using a cable.

The print adapter supports printing to the following printers from the

following devices:

EPSON Stylus®C80 PalmTM PDAs, Pocket PCs, and laptops

EPSON Stylus C60 Pocket PCs and laptops

EPSON Stylus Photo 820 Pocket PCs and laptops

EPSON Stylus Photo 890 Pocket PCs and laptops

EPSON Stylus Photo 1280 Pocket PCs and laptops

The print adapter may support additional EPSON printers and

other devices, such as Bluetooth-enabled cell phones. All

devices must support the Bluetooth Serial Port Profile, Object

Push Profile, or LAN Access Profile. Visit EPSON Support at

http://support.epson.com for the latest information on

supported printers and devices.

The print adapter only supports EPSON printers.

EPSON printer with

Bluetooth Print Adapter

Bluetooth-enabled PDA

Bluetooth-enabled

laptop computer

This manual provides instructions for setting up the print adapter, installing the

Bluetooth printing software to your Bluetooth device, and printing. For information

on setting up your printer or installing the printer driver, see your printer

documentation.

For best results, print text and low-resolution graphics with

your print adapter. Because of the speed limitations of

Bluetooth wireless communications, high-resolution graphics

and photographs may require significant time to print.

PDA System Requirements

Palm m125, m500, m505, or i705 with a Bluetooth SDIO card running

OS 4.0 or later, or

Bluetooth-enabled Pocket PC, including the Compaq®iPAQTM with

CompactFlash sled and built-in Bluetooth capabilities; Compaq iPAQ

with the SocketTM Bluetooth Card; and Casio®E-125 with the Socket

Bluetooth Card

Microsoft®Windows®compatible PC running Windows XP, Me, 2000, 98,

95, or NT 4.0, with a Pentium®or better processor, 133 MHz or faster

CD-ROM or DVD drive and 10MB of free hard disk space to install

the software

Laptop System Requirements

Microsoft Windows compatible PC running Windows XP, Me, 2000, 98, 95,

or NT 4.0, with a Pentium or better processor, 133 MHz or faster

At least 64MB of RAM

TROY®WindPort PCMCIA card

Although other Bluetooth PCMCIA cards may work with the

print adapter, EPSON recommends that you use the TROY

WindPort card for best results.

Setting Up the Print Adapter

The print adapter connects to your printer’s parallel port. At the same time as

your printer is connected to the print adapter, you can connect it to your

computer with a USB cable.

Before You Begin

In addition to this User’s Guide, make sure you have the following:

Bluetooth Print Adapter (Model C1200BT)

Power supply

Bluetooth Software and Utilities CD-ROM

Observe these guidelines to reduce static discharge when you handle the

print adapter:

Make sure that you are adequately grounded by touching a bare metal

part of the printer while connecting the print adapter.

To reduce static charge buildup, avoid moving around too much and,

if possible, avoid working on a carpeted area.

It’s a good idea to make sure your EPSON printer and your computer, Pocket PC,

or Palm PDA are working before you begin.

Connecting the Print Adapter

Follow these steps to connect the print adapter to your printer:

1. Make sure that the printer is turned off.

2. Plug the print adapter into the printer’s parallel port, as shown.

3. Turn on the printer.

4. Connect the power supply to the print adapter, as shown. Then plug the

power supply into an electrical outlet.

The green light on the print adapter flashes for a few seconds and then goes out.

If the green light flashes continuously in a regular pattern, unplug the power

supply and plug it in again. If the problem persists, contact EPSON.

Connection light (green)

Test button

Acti ity light (yellow)

Parallel port

Power supply

Checking the Connection to the Printer

Make sure that both the print adapter and the printer are turned on, then press

the test button on the print adapter for one second to print a test page. If the test

page fails to print, try the following:

Make sure the print adapter is securely connected to the printer’s parallel port.

Make sure the printer is working and is not out of ink or paper.

Unplug the print adapter, plug it back in, and try printing the test page again.

If you cannot print a test page, contact EPSON as described on page 22.

When a Bluetooth device makes a connection to the print

adapter, the print adapter’s green light remains on. The yellow

light flashes whenever data is transmitted.

Because the print adapter does not support the EPSON Status

Monitor, you won’t be able to obtain print job status.

Using a Palm PDA

With the Bluetooth Print Adapter from EPSON, you can use your Palm PDA to

print to the EPSON Stylus®C80 printer.

This chapter explains how to install the software on the CD-ROM that came with

your print adapter and send your first print job. The steps for subsequent print

jobs are similar, but you won’t have to select a printer.

Installing the Software

Follow these steps to install the Bluetooth printing software to your Palm PDA:

1. Connect your Palm PDA to your computer.

2. Insert the CD-ROM that came with the print adapter in your computer’s drive.

3. Double-click the Palm Desktop icon on your Windows desktop,

and then click Install.

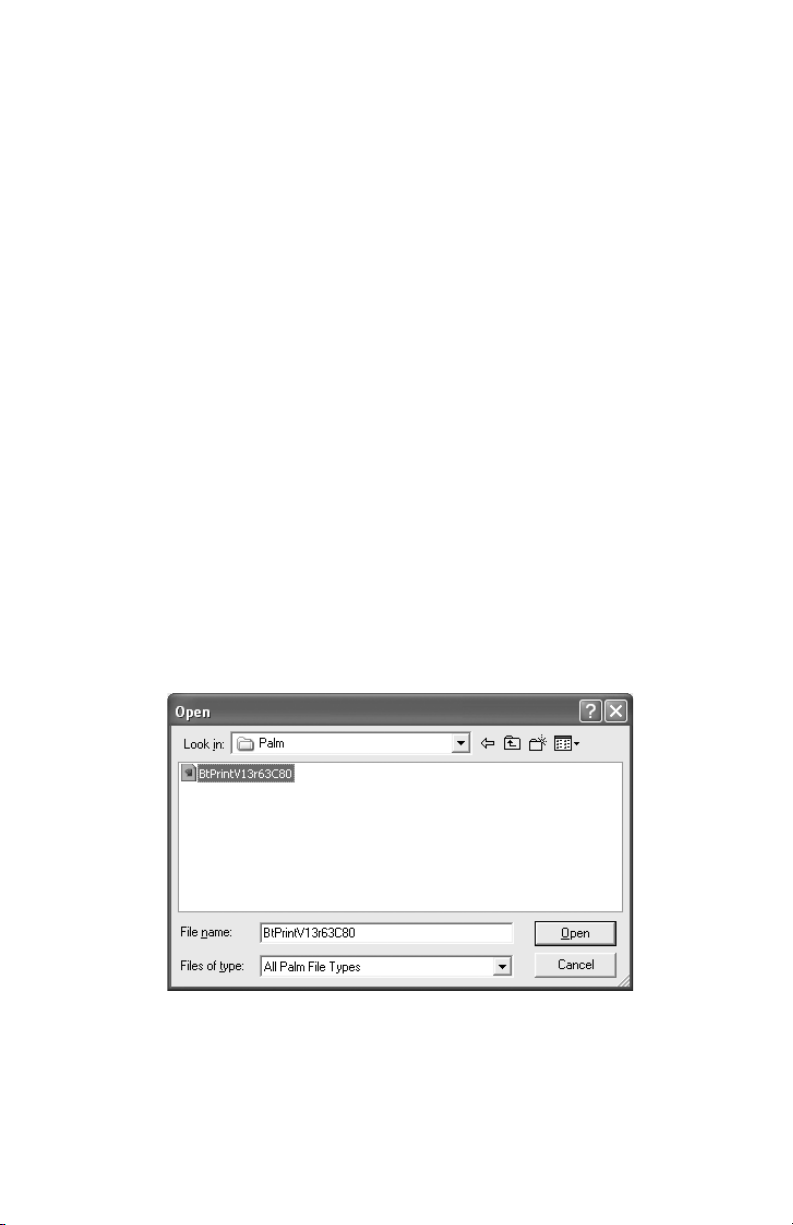

4. On the Install Tool window, click Add, then browse to your CD-ROM.

5. Double-click the Palm folder to open it.

6. Select BtPrintV13r63C80 and click Open.

7. Follow the instructions on your computer screen to complete installation

of the software.
