Eneo IPD-68M3611P5A Manual de usuario

User Manual

1/2.5" Network Dome, Fix,

3840x2160, Day&Night, DOL-

WDR, 3.6-11mm, Infrared, Indoor

IPD-68M3611P5A

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

To prevent electric shocks and risk of fire hazards, do NOT use other than

specific power source.

Warning :

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

Caution :

Any changes or modifications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user's authority

to operate the equipment.

Mains power quality should be that of a typical commercial environment. If the user

of the model requires continued operation during power mains interruptions, it is

recommended that the model be powered from an uninterruptible power supply

(UPS) or a battery.

The symbol is intended to alert the user to the presence of important

operating and maintenance(servicing) instructions in the literature

accompanying the unit.

The symbol is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

Safety Precaution

MEGA-PIXEL NETWORK CAMERA

Safety Precaution

NOTICE

• The image used in this instruction manual are processed to help comprehension

and may differ from actual video of the camera.

• Avoid installing areas where has shock or vibration which results in the problems.

• Pay attention to safety when laying the connection cable and observe that the cable

is not subjected to heavy loads, kinks or damage and no moisture can get in.

• Never open the device such as boards or lens.

The warranty becomes void if repairs are undertaken by unauthorized persons.

• Maintenance and repair have to be carried out only by authorized service centers.

• Use only a mild detergent to clean the housing body.

• The camera should never be operated beyond the technical specifications.

This can lead to destruction.

• The camera should never be operated in water.

MEGA-PIXEL NETWORK CAMERA

Contents

MEGA-PIXEL NETWORK CAMERA

Safety Precaution . . . . . . . . . . . . . . . . . . . . 03~04p

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05p

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 06p

Composition . . . . . . . . . . . . . . . . . . . . . . . . . . . 07p

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 07p

Part Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . 08p

Installation Instructions . . . . . . . . . . . . . . . . 09~11p

Operating Instructions . . . . . . . . . . . . . . . . . 14~17p

. . . . . . . . . . . . . . . . . . . . . . . . . 12~13p

Specifications

Full Menu Setup . . . . . . . . . . . . . . . . . . . . . 18~74p

Troubleshooting . . . . . . . . . . . . . . . . . . . . . 66~67p

3-1. Information

3-2. Video & Image

3-3. Record

3-4. Event

3-5. System

1. LIVE VIEW

2. PLAYBACK

3. SETUP

........................................................ 18p

........................................................ 20p

............................................... 21p

......................................... 21p

.............................................................. 21p

4. 4 EYES PRINCIPLE ......................................... 65p

...................................................... 37p

......................................................... 40p

...................................................... 54p

Features

MEGA-PIXEL NETWORK CAMERA

• 8.29Mega Pixel, NETWORK CAMERA, 3840x2160(30/25fps)

• The best low light performance with SONY’s STARVIS sensor

• ONVIF Conformance

• ONVIF Event Mapping

• Zero configuration

• Cross Web Browsing (IE, Edge, Safari, Firefox, Chrome)

• Adaptive web resizing depending on layout & resolution of

display device by RESPONSIVE WEB

• Increased usability for all PC, tablet and mobile

• HTML5 playback for recorded video on Micro SD card

• Simultaneously H.265(+), H.264(+) & MJPEG (Quad streaming)

• f=3.6~11mm, 3x Motorized zoom lens

• Motorized Zoom & Focus Adjustment

• DOL WDR (Digital Overlap Wide Dynamic Range)

• D-WDR (Digital Wide Dynamic Range)

• Improved noise figure with the enhanced 3DNR

• LDC(Lens Distortion Compensation)

• Smart Stream, ROI(Region of Interest)

- Enables to process video data smartly according

to users demand.

- Available to deliver high quality video on interested

region while less quality video on non interested region.

- Lowering overall bandwidth and reduce the storage burden

• Privacy Mask, Motion Detection, Defog, HLC/ BLC,

Digital Zoom(~x10), Mirror/Flip, Contrast, Brightness, Hue,

Saturation, Sharpness, DIS (Digital Image Stabilization)

• Circuit protection against faulty connection in power polarity

• PoE(IEEE Std. 802.3af), DC12V

• Built-in 2pcs High power SMD LEDs

• Cooling Fan & Optimized Heat sink System

• 3-Axis Gimbal

• Anti-Scratch hard coated clear bubble

• Quick installation with Easy Adaptor (Flat/Tilted type)

Composition

Dimensions

MEGA-PIXEL NETWORK CAMERA

(unit : mm)

Mounting Screw:

3.5 x 25mm (3pcs)

Plastic Anchor:

6 x 30mm (3pcs)

Dome Camera

Easy Adaptor Tilted Adaptor Open Driver (1pc)

Option

Ø116

Ø80

94 (with Flat adaptor)

52.5

116.3 (with Tilted adaptor)

Mounting

Template

Operating

Instruction

Part Names

MEGA-PIXEL NETWORK CAMERA

Micro SD-Card Slot

(option)

IP Reset Button

Tilted Easy Adaptor

3-Axis Gimbal

Dome Cover

Lens

Bubble Dome

Dome Base

Easy Adaptor

Flat type

IR LEDs

Light Sensor

Power Cable

IR-LED Type

Installation Instructions

MEGA-PIXEL NETWORK CAMERA

1. Drill three holes for mounting on the ceiling or wall.

2. Attach the Easy Adaptors at the pre-drilled installation position and fix it by using

mounting screws.

3. Route the power cable to the connecting place.

4. Place the dome base assembly to the Easy Adaptor.

5. Adjust the camera’s viewing angle (Pan, Tilt, Rotation)

6. Tighten the set screw to fix a pan plate after the setting.

7. Assemble the dome cover to the dome base unit.

• Extreme care should be taken NOT to scratch the bubble dome surface while

the camera installing or adjusting.

• Care should be taken the cable is NOT to be damaged, kinked or exposed in

the hazardous area.

• Do not expose the camera directly to a strong light source such as the sun or

spot light.

CAUTION

Mounting Screw

(3.5x25mm)

Plastic Anchor

(6x30mm)

OPEN

LOCK

Installation Instructions

MEGA-PIXEL NETWORK CAMERA

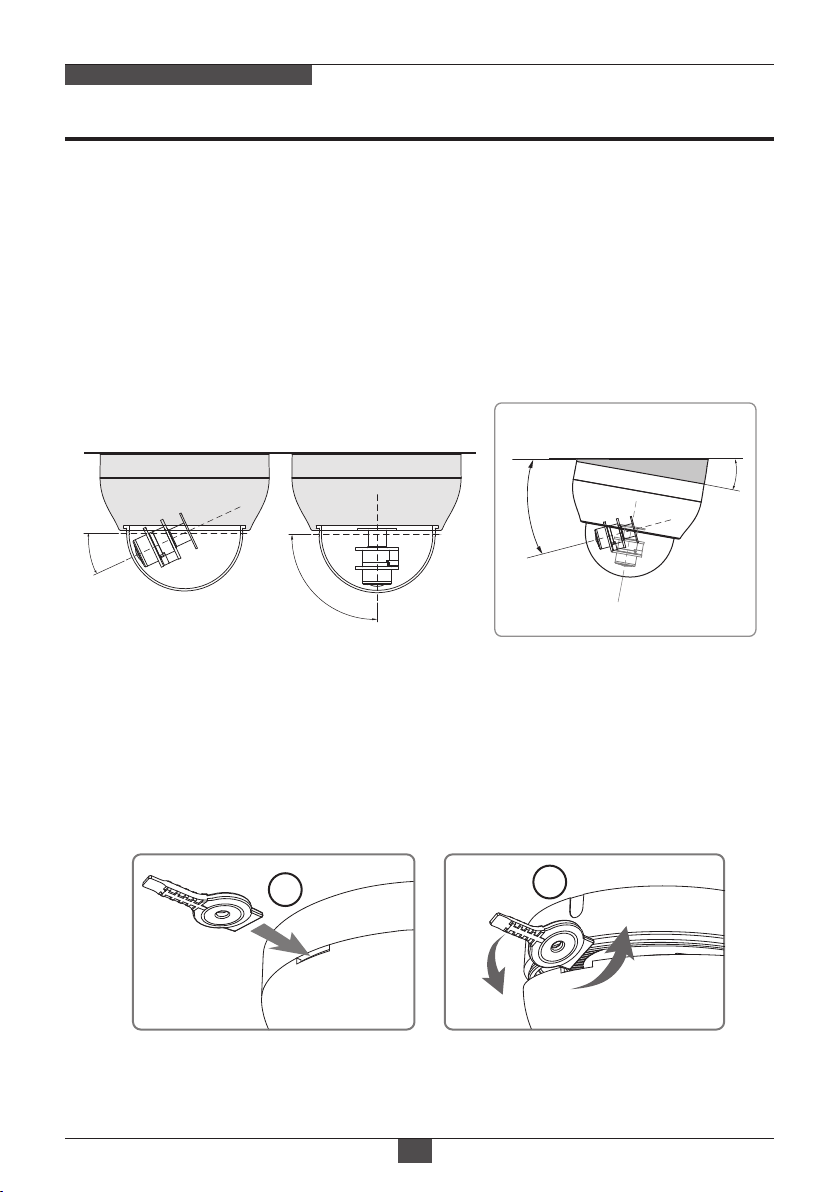

Limit of Pan & Tilt

1) Pan limit: Pan is limited to +/- 165°.

Do NOT force to rotate the gimbal over the limit to prevent from the internal

damage.

2) Tilt limit:

Tilt is limited to 25° min ~ 90° max. with reference to the ceiling when the

inclination of camera module is 0°, that is, the image is aligned horizontally.

3) Inclination limit (Horizontal image alignment):

Inclination limited to +/-60° max.

25º

90º

10º

[Option] Tilted Easy Adaptor

■ EXTENDED VIEWING ANGLE

15º

■ Open the dome cover

②Hold the Dome housing with one hand and turn the open tool until Dome

Cover is sufficiently open.

①Insert wide side of Open Tool into the lock of Dome Cover.

③Once Dome Base and Dome Cover are detached, press the edge of

Dome Cover and pull it down with hands.
