Eneo MPD-68V2713P0A Manual de usuario

User Manual

1/2.8" HD Dome Fix, Day&Night,

3840x2160, Infrared, WDR,

2.7-13.5mm, 12VDC, Indoor

MPD-68V2713P0A

Safety Precaution

ULTRA CLEAR RESOLUTION CAMERA

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To prevent electric shocks and risk of fire hazards, do NOT use other than

specific power source.

The symbol is intended to alert the user to the presence of important

operating and maintenance(servicing) instructions in the literature

accompanying the unit.

The symbol is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

Warning :

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

Caution :

Any changes or modifications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user's authority

to operate the equipment.

Mains power quality should be that of a typical commercial environment. If the user

of the model requires continued operation during power mains interruptions, it is

recommended that the model be powered from an uninterruptible power supply

(UPS) or a battery.

ULTRA CLEAR RESOLUTION CAMERA

Safety Precaution

NOTICE

The image used in this instruction manual are processed to help comprehension

and may differ from actual video of the camera.

Avoid installing areas where has shock or vibration which results in the problems.

Pay attention to safety when laying the connection cable and observe that the cable

is not subjected to heavy loads, kinks or damage and no moisture can get in.

The warranty becomes void if repairs are undertaken by unauthorized persons.

Maintenance and repair have to be carried out only by authorized service centers.

Use only a mild detergent to clean the housing.

The camera should never be operated beyond the technical specifications.

This can lead to destruction.

The camera should never be operated in water.

ULTRA CLEAR RESOLUTION CAMERA

Contents

Safety Precaution

p.03~04

Contents

p.05

Features

p.06

Composition

p.07

Dimensions

p.08

Part Names

p.09

Installation Instructions

p.10~12

Operating Instructions

p.13~32

Specifications

p.33

ULTRA CLEAR RESOLUTION CAMERA

Features

Key Features

• 8Mega Pixel CAMERA, 3840x2160(15/12.5fps)

• The best low light performance with SONY’s STARVIS sensor

• Video output EX-SDI / HD-SDI / THD / CHD / AHD /

CVBS(960H) Selectable

• THD mode / AHD mode / CHD mode,

Video Transmission Distance over Coax.; 500M

• f= 2.7~13.5mm, 8 MP Motorized Zoom lens

• Motorized Zoom & Focus adjustment

• DIS (Digital Image Stabilization) function

• DOL(Digital OverLap) WDR

• ROI (Region of Interest) WDR mode:

- Proper compensation of exposure for each inside and outside

of interested area.

- Better contrast and No motion ghost effect

• Improved Noise figure with the enhanced 3D-NR

• Motion Detection, Privacy Mask, Defog, Sens-up,

D-Zoom, Sharpness, Mirror/Flip, BLC/HLC,

LSC (Lens Shading Compensation)

• OSD Menu for easy installation & maintenance

• Menu control by UTC(THD/AHD) through compatible DVR

• Circuit protection against faulty connection in power polarity

• Built-in 2pcs High power SMD LED

• 3-Axis Gimbal

• Double side Anti-scratch Hard coated clear bubble dome

• Quick installation with Easy Adaptor (Flat or Tilted Adaptor)

• DC12V

Composition

ULTRA CLEAR RESOLUTION CAMERA

Mounting Template Operating Instruction

Video Sub-out Cable

Mounting Screw:

3.5 x 25mm (3pcs)

Plastic Anchor:

6 x 30mm (3pcs)

Dome Camera

Easy Adaptor

(Flat type)

Open Driver (1pc)

Easy Adaptor

(Tilted type)

ULTRA CLEAR RESOLUTION CAMERA

Dimensions

(unit : mm)

• Extreme care should be taken NOT to scratch the bubble dome surface while

the camera installing or adjusting.

• Care should be taken the cable is NOT to be damaged, kinked or exposed in

the hazardous area.

• Do not expose the camera directly to a strong light source such as the sun or

spot light.

CAUTION

Tilted Adaptor

Ø116

Ø80

94 (with Flat adaptor)

52.5

116.3 (with Tilted adaptor)

ULTRA CLEAR RESOLUTION CAMERA

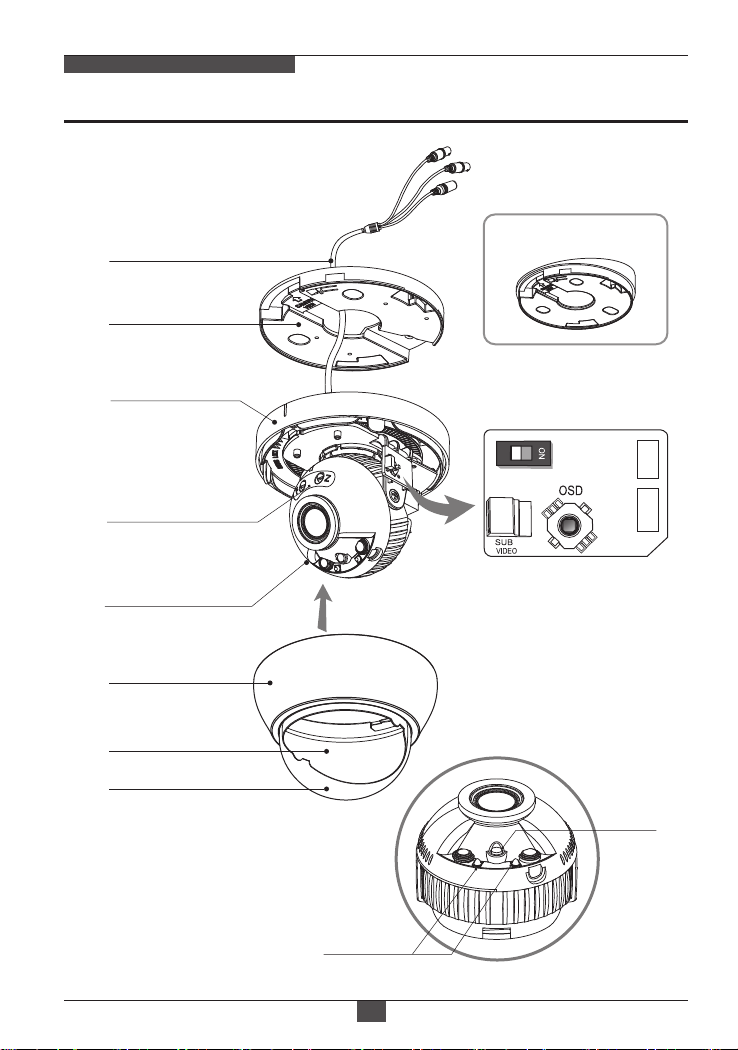

Part Names

Dome Cover

Bubble Shield

Bubble

Dome Base

Easy Adaptor

Flat type

SMD LEDs

Focus & Zoom

adjustment

Light

Sensor

3-Axis Gimbal

OSD Menu Control board

HD-SDIEX-SDI

Tilted Easy Adaptor

Power/Video Cable

ULTRA CLEAR RESOLUTION CAMERA

Installation Instructions

Mounting Screw

(3.5x25mm)

Plastic Anchor

(6x30mm)

OPEN

LOCK

1. Drill three holes for mounting on the ceiling or wall.

2. Place the Easy Adaptors at the pre-drilled installation position and fix it by

using mounting screws.

3. Route the power/video cable to the connecting place.

4. Attach the dome base assembly to the Easy Adaptor.

5. Adjust the camera’s viewing angle (Pan, Tilt, Rotation)

6. Assemble the dome cover to the dome base unit.

• Be careful the LEDs when you control

the OSD setting with the joystick.

• Remove the sticker on the gimbal after

the OSD setting

CAUTION

Open & Adjust

Driver
