Eneo VMC-27LEDM Manual de usuario

All contents of this document may change without prior notice, and actual product appearance may differ from that depicted herein

Installation and User's Guide

TFT LCD MONITOR

Installation and Operating Instructions

VMC-27LEDM

VMC-32LEDM

VMC-42LED

1. SAFETY INSTRUCTION

Follow this safety instruction to use the monitor properly and prevent the damage.

Keep this user’s guide book for later use.

This safety instruction has “Warning” & “Caution” as below

Warning - If the user does not follow this instruction,

it may cause the serious damage to the user.

Caution - If the user does not follow this instruction, it may cause the slight

damage to the user or cause some damages to the monitor.

Warning

Keep away the monitor from the

direct sunlight and a heating appliance.

Never put objects of any kind into

this product as they may result in

a risk of fire or electric shock.

Connect the power cord to the wall

outlet tightly. If the power cord or plug

are defective and the wall outlet is not

tight, please do not use them.

Never remove the back cover and

touch the inside of the monitor.

If you need a service, please

contact the service center.

Installation and User's Guide

Warning

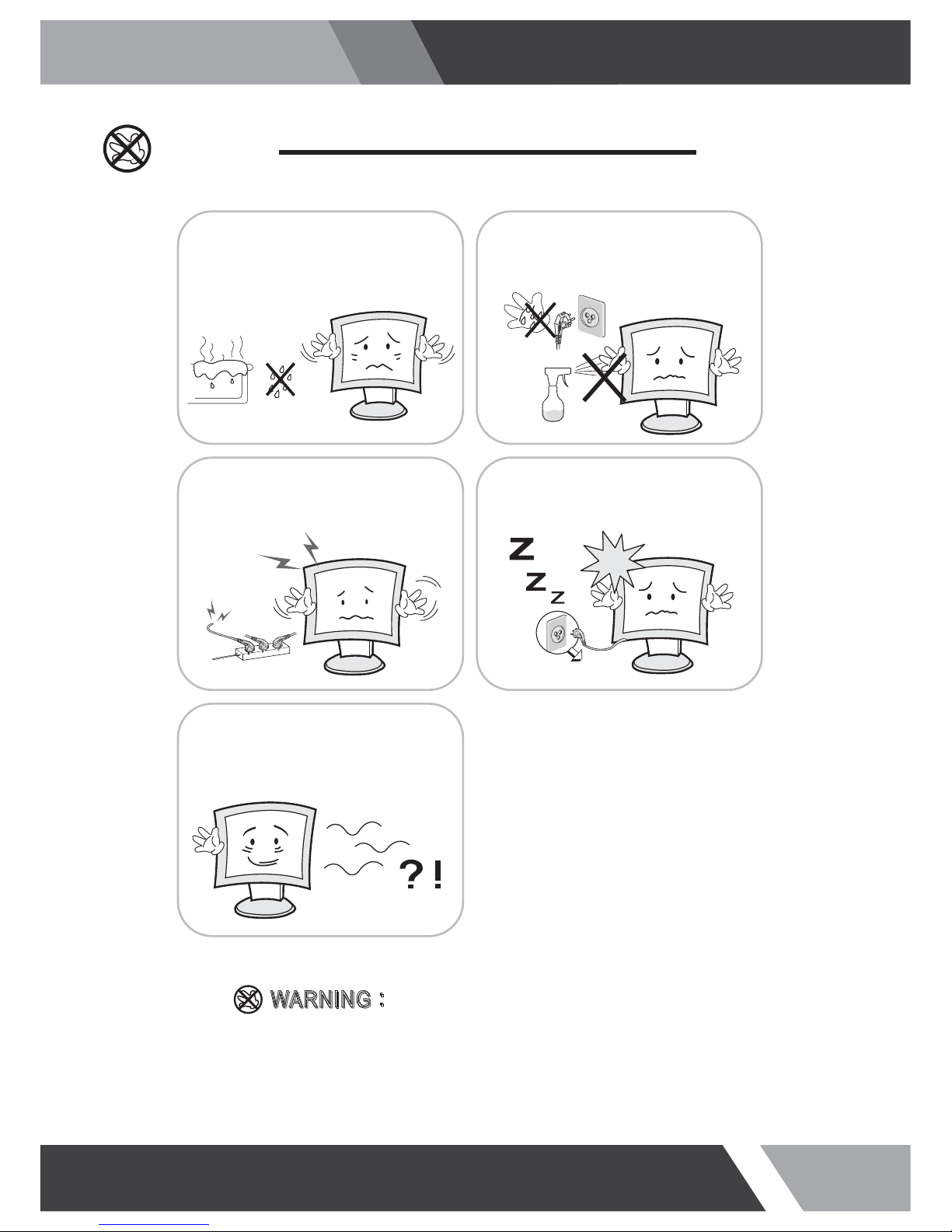

Do not install this monitor on the outside

and near water. It may cause damage to

the product, electric shock and fire.

For cleaning do not use liquid cleaners.

Never touch the power plug with wet-hands.

When lightning and thundering, unplug the

monitor from the wall outlet and never touch

it.

When smoking and noising from the monitor,

unplug the product from the wall outlet and

contact a service center.

Unplug this product from the wall outlet, when

it does not operate for a long time.

How to fix

Do not open this product as it contains high voltage inside.

It may create an electric shock.

If the user disassembles and remove the back cover, it does not make sure

to make up for the damage and do a service and exchange the monitor.

Installation and User's Guide

Cautions

Install this monitor some distance

from the wall and do not install unless

proper ventilation is provided.

Place this product on a stable place.

If not, it may fall, causing serious

damages to the monitor and people.

The openings must not be blocked by

curtain, rug or other similar surface.

Before carrying the monitor, turn it off and

unplug the signal cables and the power cord

from the wall outlet.

When carrying this monitor, be careful

not to damage the panel and drop it

It may cause some trouble.

Take the power plug out from the wall

outlet.

Do not pull the cable. It may snap the inner-

wires and cause overheating and fire.

Installation and User's Guide

Cautions

Install this monitor about 50cm far from

the eyes and an angle of 0~15 degrees

below eyes. Too close installation may

cause having weak sight.

Do not press the LCD panel with hands or

the sharpened material hardly.

Do not use the chemical liquid for cleaning.

It may cause fading and breakage.

For cleaning, unplug the monitor from the

wall outlet. Do net use the liquid cloth.

Use the soft cloth.

Installation and User's Guide

2. FCC RF INTERFERENCE STATEMENT

NOTE

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following measures.

● Reorient or relocate the receiving antenna.

● Increase the separation between the equipment and receiver.

● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

● Consult the dealer or an experienced radio, TV technician for help.

● Only shielded interface cable should be used.

Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void

the users authority to operate such equipment.

DOC COMPLIANCE NOTICE

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the radio

interference regulation of Canadian Department of communications.

Installation and User's Guide

1. SAFETY INSTRUCTION

1-1 Warning

1-2 Caution

2. FCC STATEMENT

3-1 Parts

3-2 How to Install

6. TROUBLESHOOTING

3. INSTALLATION

4-1 Mode Setting

4-2 Menu Setting (VIDEO, S-VIDEO, COMPONENT Mode)

4-3 Menu Setting (VGA Mode)

4-4 Menu Setting (DVI, HDMI Mode)

4. OSD MENU SETTING

5. FEATURES

TABLE OF CONTENTS

Installation and User's Guide

3. INSTALLATION

3-1 Parts

LCD Monitor

VGA Cable Trigger Cable Power Cable

Remote ControllerBattery User Manual

Installation and User's Guide

3-2 How to Install

SHORT KEY FUNCTION

KEY BUTTON

OSD Key Function

Activates and exit the OSD

Select input source, and select the OSD menu

Move the OSD menu and auto adjustment of RGB source

Decrease the level of volume and move the previous menu

Increase the level of volume and select rhe OSD menu

Turns the power ON or OFF. There will be a few seconds

delay before the display appears.The power LED (next to the

power switch) lights with green when the power is turned ON.

The power is turned off by pressing the power switch again

and the power LED goes red.

Installation and User's Guide

CONNECTION

1 2 3 4 5 6 7 8 9 10 11

HDMI

1AUDIO (VIDEO-1 / S-VIDEO)

HDMI signal 1 / 2 input Stereo audio input for VIDEO-1 or S-VIDEO

DVI

2S-VIDEO IN / OUT

DVI signal input S-VIDEO signal input / looping out

VGA

3VIDEO-2 IN / OUT

VGA (PC RGB) signal input VIDEO-2 signal input / looping out

AUDIO (PC)

4VIDEO-1 IN / OUT

Stereo audio input for VGA VIDEO-1 signal input / looping out

COMPONENT

5TRIGGER

COMPONENT (Y/Pb/Pr) signal & stereo audio input TRIGGER signal input

AUDIO (VIDEO-2)

6AC POWER

Stereo audio input for VIDEO-2 AC100~240V input

Installation and User's Guide
