QUICK MANUAL
17.0"/19.0" TFT LCD MONITOR
Installation and Operating Instructions
VMC-17LEDOPC4 B
VMC-19LEDOPC4

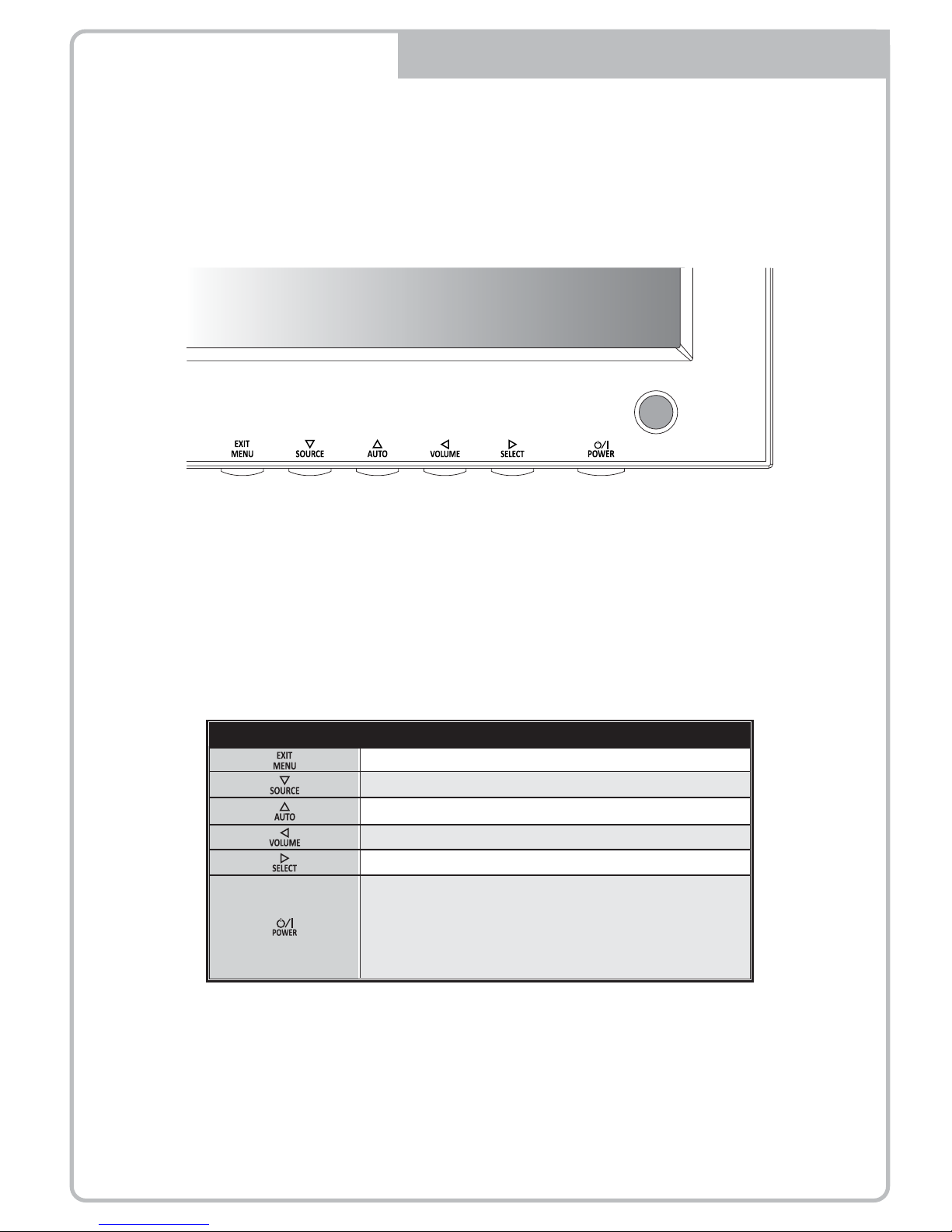

KEY BUTTON
SHORT KEY FUNCTION
OSD KeyFunction
Activates and exit the OSD
Select input source, and select the OSD menu
Move the OSD menu and auto adjustment of RGB source
Decrease the level of volume and move the previous menu
Increase the level of volume and select rhe OSD menu
Turns the power ON or OFF.There will be a few seconds
delay before the display appears. The power LED (next to the
power switch) lights with green when the power is turned ON.
The power is turned off by pressing the power switch again
and the power LED goes red.
CONNECTION
1
VIDEO-2 IN / OUT
DC12V
DC adapter input
VIDEO-2 signal input / looping out
4
2
AUDIO (PC)
Stereo audio input for VGA
6
8
5
3
7
VIDEO-1 IN / OUT
VIDEO-1 signal input / looping out
HDMI
17 inches
19 inches
HDMI signal input
AUDIO (VIDEO)
Stereo audio input for VIDEO or S-VIDEO S-VIDEO
VGA
S-VIDEO signal input
VGA (PC RGB) signal input
12345678
1 2 3 4 5 6 7 8
INPUT SELECT
VOLUME MENU
Inputs can be set toAV1,AV2, S-VIDEO, HDMI and PC mode.
AV1
AV2
SVIDEO
HDMI
PC
1. Press the SOURCE button and then ▲/▼ Button
to move the source
2. Press the ►button to select the source
3. Press the MENU/EXIT Button to exit the INPUT menu.
Press the ◄ / ►button for adjusting the volume up and down.
Volume
50
PICTURE MENU
PC Mode only
1. Press the MENU/EXIT Button and then ◄ / ► Button to select the PICTURE menu.
2. Press the ▲or ▼ Button and then button to select the Button to select the adjustment
item you need.
3. Press the ◄ or ►Button to active the item.
6. Press the MENU/EXIT button to move to the previous menu.
AV1/2, S-VIDEO & HDMI Mode
Contrast
Brightness
Tint
Color
Sharpness
Color Tone
Scale
Picture Mode
57
50
50
55
51
Normal
Full
Standard
Ex) if you select the BRIGHTNESS, then the below picture appears on the bottom screen.
Brightness
80
Contrast
Brightness
Color Tone
Auto
Color Auto
50
50
4. ‘Auto’ function is adjusting the location of screen by receiving the sync signal from PC.
5. ‘Color Auto’ is adjusting the optimum color coordination automatically.
Ex) Resolution change
SYSTEM MENU
1. Press the MENU/EXIT Button and then ◄ / ► Button to select the SYSTEM menu.
2. Press the ▲ or ▼ Button and then button to select the Button to select the
adjustment item you need.
3. Press the ◄ or ►Button to active the item.
4. ‘Key Lock’ function is adjust the button lock option.
5. ‘Duration’ function is adjust the time to display OSD menu.
6. ‘Halftone’ function is adjust the transparency of the OSD menu.
7. ‘DPMS’ function is adjust the time to turn power off during no input signal.
8. ‘No Operation’ function is adjust the time to turn power off during no input key button.
SYSTEM
50
50
15
100
Key Lock
Language
H-Position
V-Position
Duration
Halftone
DPMS
No Operation
Reset
OFF
English
OFF
OFF
Release the lock - Press KEY LOCK button on the remote controller.
- Press & button on the key pad.
FUNCTION MENU
PC Mode only
1. Press the MENU/EXIT Button and then ◄ / ► Button to select the FUNCTION menu.
2. Press the ▲or ▼ Button and then button to select the Button to select the adjustment
item you need.
3. Press the ◄ or ►Button to active the item.
4. Press the MENU/EXIT button to move to the previous menu.
FUNCTION
50
50
100
100
H-Position
V-Position
Clock
Phase
Technical changes reserved.
© Copyright by Videor E. Hartig GmbH 03/2014
eneo
®
is a registered trademark of Videor E. Hartig GmbH
Exclusive distribution through specialised trade channels only.
Videor E. Hartig GmbH
Carl-Zeiss-Straße 8 • 63322 Rödermark, Germany
Tel. +49 (0) 6074 / 888-0 • Fax +49 (0) 6074 / 888-100
www.videor.com
www.eneo-security.com
QUICK MANUAL
17.0"/19.0" TFT LCD MONITOR
VMC-17LEDOPC4 B
VMC-19LEDOPC4
Betriebsanleitung
KEY BUTTON
Hauptfunktionstasten
OSD Key Function
Aktiviert oder beendet das OSD-Menü
Bewegung nach unten im OSD-Menü /Auswahl der Eingangsquelle
Bewegung nach oben im OSD-Menü / automatischeAnpassung der RGB-Quelle
Zurück zum vorherigen Menüpunkt / Verringerung der Lautstärke
Bestätigung derAuswahl im OSD-Menü / Erhöhung der Lautstärke
Schaltet die Stromversorgung ein (ON) oder aus (OFF).
Die Bildschirmanzeige erscheint ein paar Sekunden zeitverzögert.
Die Stromanzeige-LED (7) leuchtet grün, wenn die Stromversorgung
eingeschaltet ist. Die Stromzufuhr wird durch erneutes Drücken der
Taste ausgeschaltet. Die LED leuchtet rot
