Eneo VMC-27LEDM Manual de usuario

QUICK MANUAL

Installation and Operating Instructions

TFT LCD MONITOR

VMC-27LEDM

VMC-32LEDM

KEY BUTTON

OSD Key Function

MENU Activate the menu function / Exit from the menu

SOURCE / ▼Input source menu / Source selection(move down from OSD menu)

AUTO / ▲Auto-fit screen with PC-RGB input / move up from OSD menu

◀(VOL) Decrease the level of volume and move the previous menu

(VOL)▶Increase the level of volume and select the OSD menu

Power On / Off

LED

Red : Power Off state

Green : Power On and available input signal state

Orange : When DPMS "ON" state, no input signal

▲+◀Press “▲ , ◀” Key 10 seconds simultaneously to lock /

unlock OSD Key

SHORT KEY FUNCTION

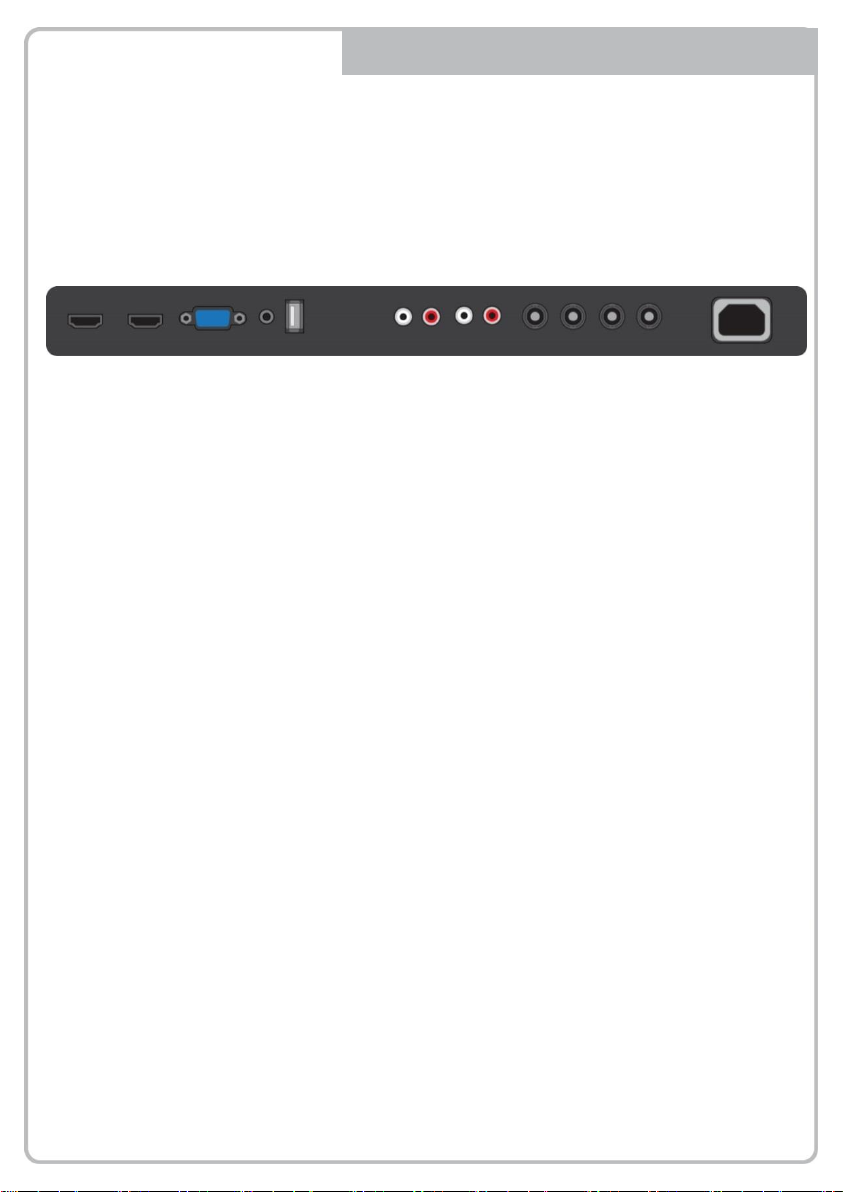

CONNECTION

<VMC-27LEDM>

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩

①HDMI 1

HDMI signal 1 input

②HDMI 2

HDMI signal 2 input

③VGA

VGA (PC RGB) signal input

④AUDIO (PC)

Stereo audio input for VGA

⑤For FW Update

⑥DC12V

DC adapter input

⑦AUDIO(VIDEO-1)

Stereo audio input for VIDEO-1

⑧AUDIO(VIDEO-2)

Stereo audio input for VIDEO-2

⑨VIDEO-1 IN/OUT

VIDEO-1 signal input/looping out

⑩VIDEO-2 IN/OUT

VIDEO-2 signal input/looping out

CONNECTION

①HDMI 1

HDMI signal 1 input

②HDMI 2

HDMI signal 2 input

③VGA

VGA (PC RGB) signal input

④AUDIO (PC)

Stereo audio input for VGA

⑤For FW Update

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩

⑥AUDIO(VIDEO-1)

Stereo audio input for VIDEO-1

⑦AUDIO(VIDEO-2)

Stereo audio input for VIDEO-2

⑧VIDEO-1 IN/OUT

VIDEO-1 signal input/looping out

⑨VIDEO-2 IN/OUT

VIDEO-2 signal input/looping out

⑩AC POWER

AC100~240V input

<VMC-32LEDM>

PICTURE MENU

Picture Mode Adjust sate of the picture

Color Temperature Change color according to the color temperature

Aspect Ratio Change the aspect ratio

Noise Reduction Adjust noise attenuation of input signal

Screen Adjust the PC-RGB input signal to fit the screen

Color Range Setting the Color Expression Range

The PICTURE Menu can be selected from the following 7 modes by pressing the ▲or ▼key.

OPTION MENU

PICTURE MENU

INPUT MENU

The Option Menu can be selected from the following 6 modes by pressing the ▲or ▼key.

OSD Language Selectable OSD Menu Language

Blending Adjust blending for OSD Menu and Main window

OSD Duration Setting Duration time of OSD Menu

Restore Factory Default

Software Update(USB)

Key Lock Locking the button(prevent operation)

DPMS When input signal is the no signal, DPMS "on" change

the power saving mode.

Input Source can be selected from the following four input modes by using the ▲and ▼

keys when the window as shown below is displayed by pressing the "SOURCE / ▼" key

in the Main window.

(Input Source can be selected by ▲and ▼key when window shown as below. To be in this menu,

pressing the “SOURCE” / ▼" key in the Main window.)

VOLUME MENU

Audio Volume can be increased or decreased by pressing "VOL- / ◀", "VOL + / ▶" Key.

eneo® is a registered trademark of Videor E. Hartig GmbH

Exclusive distribution through specialised trade channels only.

Videor E. Hartig GmbH

Carl-Zeiss-Straße 8 · 63322 Rödermark, Germany

Tel. +49 (0) 6074 / 888-0 · Fax +49 (0) 6074 / 888-100

www.videor.com

www.eneo-security.com

Technical changes reserved.
