Eneo VMC-17LCD-OPC3 Manual de usuario

All contents of this document may change without prior notice, and actual product appearance may

differ from that

depicted herein

Installation and User’s Guide

Installation and Operating Instructions

17, 19” TFT LCD MONITOR

VMC-17LCD-OPC3, VMC-19LCD-OPC3

Installation and User’s Guide

pg2

* Follow this safety instruction to use the monitor properly and prevent the damages.

* Keep this user’s guide book for later use.

Warning Statements

* This safety instruction has “ Warning” and “ Caution” as below.

WARNING: If the user does not follow this instruction,

it may cause the serious damage to the user.

CAUTION: If the user does not follow this instruction, it may cause the slight

damage to the user or cause some damages to the monitor.

Never remove the back over and touch

the inside of the monitor. If you need a

service, please contact the service center.

Keep away the monitor from the

direct sunlight and a heating appliance.

Never push objects of any kind into this

product as they may result in a risk of fire

or electric shock.

Connect the power code to the wall

outlet tightly. If the power code or plug are

defective and the wall outlet is not tight,

please do not use them.

Installation and User’s Guide

pg3

Warning Statements

Do not install this monitor on the outside

and near water. If may cause damage to

the product, electric shock and fire.

For cleaning do not use liquid cleaners.

Never touch the power plug with wet-

hands.

When lightning and thundering, unplug

the monitor from the wall outlet and never

touch it.

Unplug this product from the wall outlet,

when It does not operate for a long time.

When smoking and noising from the

monitor, unplug the product from the wall

outlet and contact a service center.

How to fix

Do not open this product as it c

ontains high voltage inside.

2. It may create an electric shock.

3. It the user disassembles and remove the back cover, it does not make sure

4. To make up for the damages and do a service and exchange the monitor..

Installation and User’s Guide

pg4

Cautions

Install this monitor some distance

From the wall and do not install unless

Proper ventilation is provided.

Place this product on a stable place.

If not, it may fall, causing serious

Damages to the monitor and people.

The openings must not be blocked by

curtain, rug or other similar surface.

When carrying this monitor, be careful

not to damage the panel and drop it

It may cause some trouble.

Before carrying the monitor, tum it off

and Unplug the signal cables and the

power code From the wall outlet.

Take the power plug out from the wall

outlet. Do not pull the cable. It may

snap the inner wires and cause

overheating and fire.

Install this monitor about 50cm far from

the eyes and an angle of 0~15 degrees

below eyes. Too close installation may

cause having weak sight.

Do not press the LCD panel with hands

or the sharpened material hardly.

For cleaning, unplug the monitor from

the Wall outlet. Do net use the liquid

cloth. Use the soft cloth.

Do not use the chemical liquid for

cleaning. It may cause fading and

breakage.

Installation and User’s Guide

pg5

TABLE OF CONTENTS

1. INSTALLATION

Unpacking

……

.....

....

.......................................................

.................

............................

OSD SETTING

…

...

....

.......................................................

.................

.......................

...

3. FEATURES

6. TROUBLESHOOTING

....

.................................................

......

.................

....................

7. LIMITED WARRANTY

....

.......................................................

.................

......................

Main Functional Button

……

.....

....

.......................................................

.................

........

5. INFORMATION TO THE USER

....

.......................................................

................

.........

4. APPENDIX

....

.......................................................

.....

...........

.........................

Part List

……

.....

....

.......................................................

.................

........................

....

Connection

……

.....

....

.......................................................

.................

.........

.................

3.1 Specifications

……

.....

....

.......................................................

.................

............

Remote Controller

…

.......................................................

.................

..........................

Installation and User’s Guide

pg6

INSTALLATION

1.1 Unpacking

Remove the package cover and place the product on a flat and secure surface or in the installation

location. This equipment should be unpacked and handled with care. If an item appears to have been

damaged in shipment, notify the shipper immediately. Check whether all the following device and

accessories are included with the main system. If any items are missing, notify your Sales or

Customer Service Representative.

1.2 Part List

The following table lists the parts included:

SECURITY MONITOR

USER

’

S GUIDE

EXTERNAL POWER CABLE

POWER ADAPTO

VGA CABLE

REMOTE CONTROL

BATTERY

Installation and User’s Guide

pg7

INSTALLATION

Activates and exits the OSD.

SOURCE / ▽

Select input source, and move the OSD menu.

AUTO / △

Move the OSD menu and auto adjustment of RGB source.

IR RECEIVER & POWER INDICATOR WINDOW

◁ / VOLUME

Decrease the level of volume and move the previous menu.

VOLUME / ▷

Increase the level of volume and select the OSD menu.

Turn the power ON or OFF. There will be a few seconds delay before the display appears.

The power LED(in the power indicator window) lights with green when the power is turned ON.

The power is turned off by pressing the power switch again and the power LED goes Red.

1.3 Main Functional Button

Installation and User’s Guide

pg8

INSTALLATION

HDMI IN

RGB IN

DC12V IN

VIDEO-1 IN

VIDEO-1 OUT

VIDEO-2 OUT

VIDEO-2 IN

S-VIDEO IN

VIDEO AUDIO IN

PC AUDIO IN

1.4 Connection

Installation and User’s Guide

pg9

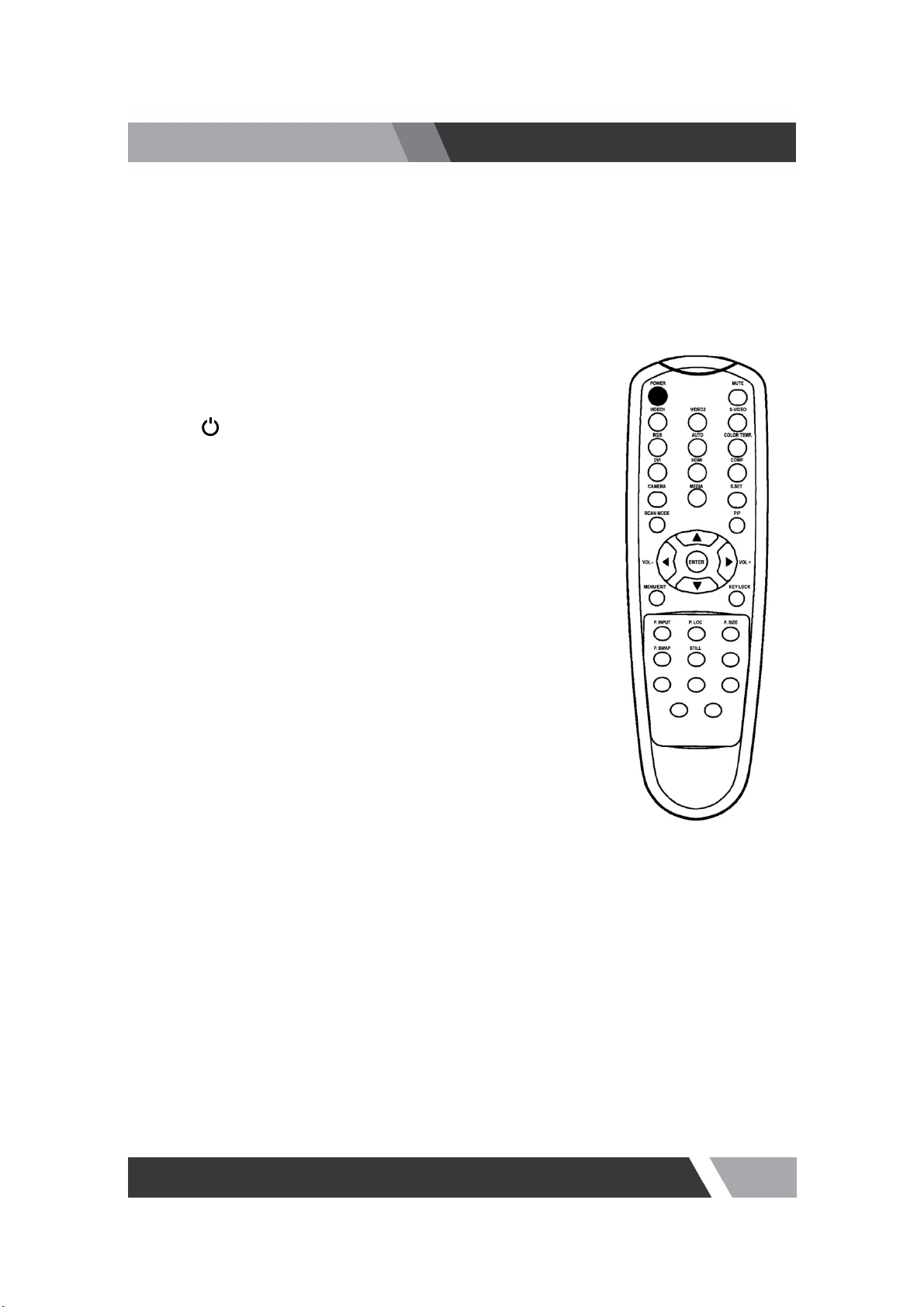

INSTALLATION

A. SOURCE SELECT

Press the button to select the desired input source.

(VIDEO1, S-VIDEO, RGB… etc)

B. CONTROL MENU

□ POWER ( )

Turn the monitor ON or OFF.

□ MUTE

Temporarily silences the sound.

□ COLOR TEMP.

Adjust the color temperature of the screen.

□ SCAN MODE

Change the scan mode of the screen. (FULL / UNDER / OVER)

□ MENU/EXIT

Activates and exits the OSD menu.

□ KEY LOCK

Prevent unauthorized operation of the equipment by locking the buttons.

□ STILL

Freeze the current picture.

C. PIP MENU

□ PIP : Activates/deactivates PIP/PBP mode.

□ P. INPUT : Selects an input source for the sub picture.

□ P. LOC : Selects a location for the sub picture.

□ P. SIZE : Selects the size of the sub picture.

□ P. SWAP : Swaps the main and sub picture.

□ S. SET : Alternates between main and sub audio input.

1.5 Remote Controller

Installation and User’s Guide

pg10

OSD (On Screen Display) SETTING

■ A. INPUT Select

Inputs can be set to VIDEO1, VIDEO2, S-VIDEO, RGB PC and HDMI mode.

Press the ► key then you can change the input source.

■ B. MENU SELECTION

1. Press the MENU/EXIT key to access the main menu.

2. Use the  and  arrow key to highlight a selection.

3. Press the ►/SELECT key to select an item.

4. Use the  and  arrow key to highlight a selection.

5. Use the ◀ and  arrow key to adjust the setting on a selected item.

NOTE : If you don’t connect RGB port, RGB SETUP menu is not select.
