Brief Operating Instructions

Flowmeter

Proline 300

HART transmitter

with electromagnetic sensor

These instructions are Brief Operating Instructions; they are

not a substitute for the Operating Instructions pertaining to

the device.

Brief Operating Instructions part 2 of 2: Transmitter

Contain information about the transmitter.

Brief Operating Instructions part 1 of 2: Sensor →  3

KA01308D/06/EN/03.22-00

71574812

2022-08-01

Flowmeter Proline 300

2 Endress+Hauser

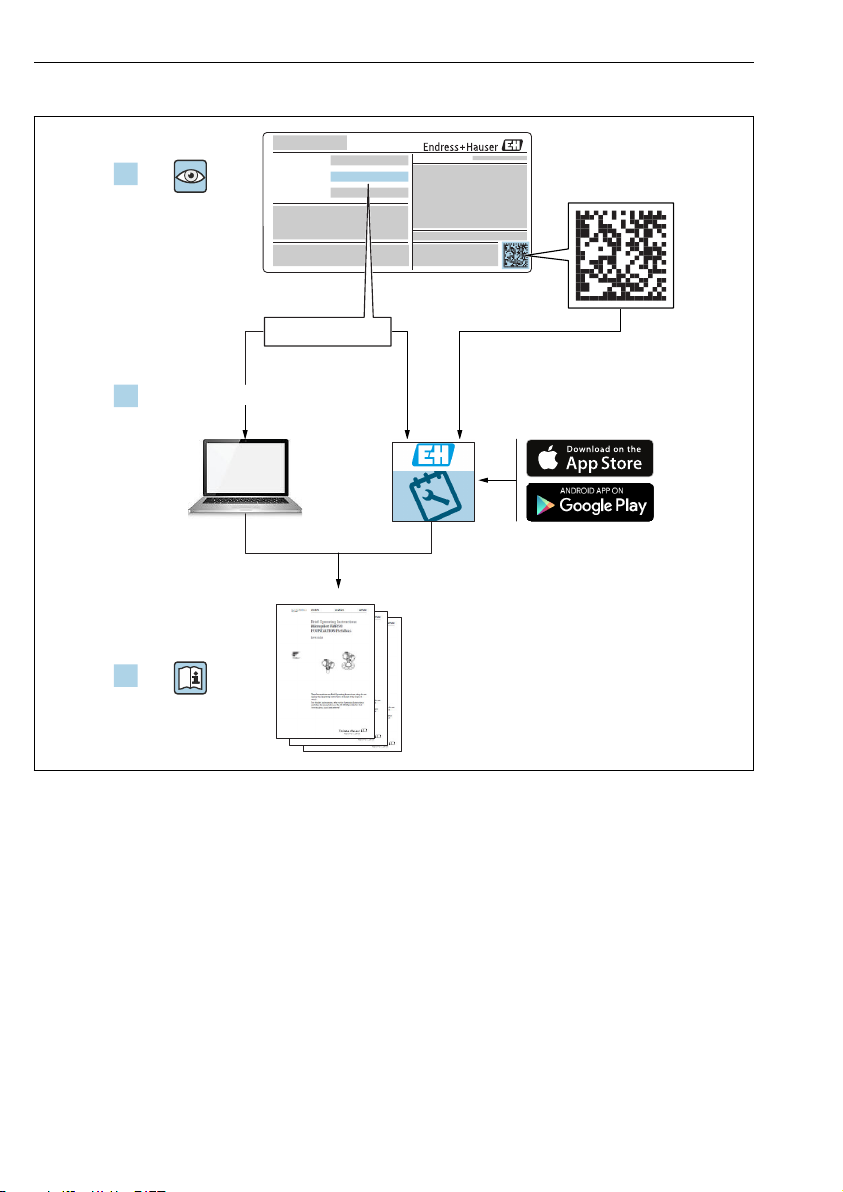

Order code:

Ext. ord. cd.:

Ser. no.:

www.endress.com/deviceviewer Endress+Hauser

Operations App

XXXXXXXXXXXX

XXXXX-XXXXXX

XXX.XXXX.XX

Serial number

A0023555

Flowmeter Proline 300 Brief Operating Instructions for flowmeter

Endress+Hauser 3

Brief Operating Instructions for flowmeter

The device consists of a transmitter and a sensor.

The process of commissioning these two components is described in two separate manuals

that together form the Brief Operating Instructions for the flowmeter:

• Brief Operating Instructions Part 1: Sensor

• Brief Operating Instructions Part 2: Transmitter

Please refer to both parts of the Brief Operating Instructions when commissioning the device,

as the contents of the manuals complement one another:

Brief Operating Instructions Part 1: Sensor

The Sensor Brief Operating Instructions are aimed at specialists with responsibility for

installing the measuring device.

• Incoming acceptance and product identification

• Storage and transport

• Installation

Brief Operating Instructions Part 2: Transmitter

The Transmitter Brief Operating Instructions are aimed at specialists with responsibility for

commissioning, configuring and parameterizing the measuring device (until the first

measured value).

• Product description

• Installation

• Electrical connection

• Operation options

• System integration

• Commissioning

• Diagnostic information

Additional device documentation

These Brief Operating Instructions are Brief Operating Instructions Part 2:

Transmitter.

The "Brief Operating Instructions Part 1: Sensor" are available via:

• Internet: www.endress.com/deviceviewer

• Smart phone/tablet: Endress+Hauser Operations App

Detailed information about the device can be found in the Operating Instructions and the

other documentation:

• Internet: www.endress.com/deviceviewer

• Smart phone/tablet: Endress+Hauser Operations App

Table of contents Flowmeter Proline 300

4 Endress+Hauser

Table of contents

1 About this document .............................................................. 5

1.1 Symbols ............................................................................. 5

2 Safety instructions ................................................................ 7

2.1 Requirements for the personnel ............................................................ 7

2.2 Intended use .......................................................................... 7

2.3 Workplace safety ...................................................................... 8

2.4 Operational safety ......................................................................8

2.5 Product safety ......................................................................... 8

2.6 IT security ............................................................................ 9

2.7 Device-specific IT security ................................................................ 9

3 Product description .............................................................. 10

4 Mounting ....................................................................... 11

4.1 Turning the transmitter housing .......................................................... 11

4.2 Turning the display module .............................................................. 13

4.3 Transmitter post-installation check ........................................................ 13

5 Electrical connection ............................................................ 14

5.1 Electrical safety .......................................................................14

5.2 Connecting requirements ............................................................... 14

5.3 Connecting the measuring device ......................................................... 17

5.4 Ensuring potential equalization ........................................................... 21

5.5 Ensuring the degree of protection ......................................................... 26

5.6 Post-connection check ..................................................................26

6 Operation options ............................................................... 27

6.1 Overview of operation options ............................................................ 27

6.2 Structure and function of the operating menu ................................................ 28

6.3 Access to the operating menu via the local display ............................................. 29

6.4 Access to the operating menu via the operating tool ............................................ 32

6.5 Access to the operating menu via the Web server .............................................. 32

7 System integration .............................................................. 32

8 Commissioning .................................................................. 32

8.1 Function check ....................................................................... 32

8.2 Setting the operating language ........................................................... 33

8.3 Configuring the measuring device ......................................................... 33

8.4 Protecting settings from unauthorized access ................................................. 34

9 Diagnostic information .......................................................... 35

Flowmeter Proline 300 About this document

Endress+Hauser 5

1 About this document

1.1 Symbols

1.1.1 Safety symbols

DANGER

This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in

serious or fatal injury.

WARNING

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

serious or fatal injury.

CAUTION

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

minor or medium injury.

NOTICE

This symbol contains information on procedures and other facts which do not result in

personal injury.

1.1.2 Symbols for certain types of information

Symbol Meaning Symbol Meaning

Permitted

Procedures, processes or actions that

are permitted.

Preferred

Procedures, processes or actions that

are preferred.

Forbidden

Procedures, processes or actions that

are forbidden.

Tip

Indicates additional information.

Reference to documentation

Reference to page

Reference to graphic

… Series of steps

Result of a step Visual inspection

1.1.3 Electrical symbols

Symbol Meaning Symbol Meaning

Direct current Alternating current

Direct current and alternating current Ground connection

A grounded terminal which, as far as

the operator is concerned, is grounded

via a grounding system.

About this document Flowmeter Proline 300

6 Endress+Hauser

Symbol Meaning

Potential equalization connection (PE: protective earth)

Ground terminals that must be connected to ground prior to establishing any other connections.

The ground terminals are located on the interior and exterior of the device:

• Interior ground terminal: potential equalization is connected to the supply network.

• Exterior ground terminal: device is connected to the plant grounding system.

1.1.4 Communication-specific symbols

Symbol Meaning Symbol Meaning

Wireless Local Area Network

(WLAN)

Communication via a wireless, local

network.

Promag 10, 400, 800

Bluetooth

Wireless data transmission between

devices over a short distance.

LED

Light emitting diode is on.

LED

Light emitting diode is off.

LED

Light emitting diode is flashing.

1.1.5 Tool symbols

Symbol Meaning Symbol Meaning

Torx screwdriver Flat-blade screwdriver

Phillips head screwdriver Allen key

Open-ended wrench

1.1.6 Symbols in graphics

Symbol Meaning Symbol Meaning

1, 2, 3,... Item numbers

… Series of steps

A, B, C, ... Views A-A, B-B, C-C, ... Sections

Hazardous area

Safe area (non-hazardous area)

Flow direction

Flowmeter Proline 300 Safety instructions

Endress+Hauser 7

2 Safety instructions

2.1 Requirements for the personnel

The personnel must fulfill the following requirements for its tasks:

‣Trained, qualified specialists must have a relevant qualification for this specific function

and task.

‣Are authorized by the plant owner/operator.

‣Are familiar with federal/national regulations.

‣Before starting work, read and understand the instructions in the manual and

supplementary documentation as well as the certificates (depending on the application).

‣Follow instructions and comply with basic conditions.

2.2 Intended use

Application and media

The measuring device described in this manual is intended only for the flow measurement of

liquids with a minimum conductivity of 5 µS/cm.

Depending on the version ordered, the measuring device can also measure potentially

explosive, flammable, poisonous and oxidizing media.

Measuring devices for use in hazardous areas, in hygienic applications or in applications

where there is an increased risk due to process pressure, are marked accordingly on the

nameplate.

To ensure that the measuring device remains in proper condition for the operation time:

‣Keep within the specified pressure and temperature range.

‣Only use the measuring device in full compliance with the data on the nameplate and the

general conditions listed in the Operating Instructions and supplementary documentation.

‣Based on the nameplate, check whether the ordered device is permitted for the intended

use in the hazardous area (e.g. explosion protection, pressure vessel safety).

‣Use the measuring device only for media to which the process-wetted materials are

sufficiently resistant.

‣If the ambient temperature of the measuring device is outside the atmospheric

temperature, it is absolutely essential to comply with the relevant basic conditions as

specified in the device documentation.

‣Protect the measuring device permanently against corrosion from environmental

influences.

Incorrect use

Non-designated use can compromise safety. The manufacturer is not liable for damage caused

by improper or non-designated use.

LWARNING

Danger of breakage due to corrosive or abrasive fluids and ambient conditions!

‣Verify the compatibility of the process fluid with the sensor material.

‣Ensure the resistance of all fluid-wetted materials in the process.

‣Keep within the specified pressure and temperature range.

Safety instructions Flowmeter Proline 300

8 Endress+Hauser

NOTICE

Verification for borderline cases:

‣For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in

verifying the corrosion resistance of fluid-wetted materials, but does not accept any

warranty or liability as minute changes in the temperature, concentration or level of

contamination in the process can alter the corrosion resistance properties.

Residual risks

LWARNING

If the temperature of the media or electronics unit is high or low, this may cause the

surfaces of the device to become hot or cold. This poses a risk of burns or frostbite!

‣In the case of hot or cold medium temperatures, install appropriate protection against

contact.

2.3 Workplace safety

When working on and with the device:

‣Wear the required personal protective equipment as per national regulations.

2.4 Operational safety

Risk of injury!

‣Operate the device only if it is in proper technical condition, free from errors and faults.

‣The operator is responsible for the interference-free operation of the device.

2.5 Product safety

This measuring device is designed in accordance with good engineering practice to meet state-

of-the-art safety requirements, has been tested, and left the factory in a condition in which it

is safe to operate.

It meets general safety standards and legal requirements. It also complies with the EU

directives listed in the device-specific EU Declaration of Conformity. Endress+Hauser confirms

this by affixing the CE mark to the device.

Furthermore, the device meets the legal requirements of the applicable UK regulations

(Statutory Instruments). These are listed in the UKCA Declaration of Conformity along with

the designated standards.

By selecting the order option for UKCA marking, Endress+Hauser confirms a successful

evaluation and testing of the device by affixing the UKCA mark.

Contact address Endress+Hauser UK:

Endress+Hauser Ltd.

Floats Road

Manchester M23 9NF

United Kingdom

www.uk.endress.com

Flowmeter Proline 300 Safety instructions

Endress+Hauser 9

2.6 IT security

Our warranty is valid only if the product is installed and used as described in the Operating

Instructions. The product is equipped with security mechanisms to protect it against any

inadvertent changes to the settings.

IT security measures, which provide additional protection for the product and associated data

transfer, must be implemented by the operators themselves in line with their security

standards.

2.7 Device-specific IT security

The device offers a range of specific functions to support protective measures on the operator's

side. These functions can be configured by the user and guarantee greater in-operation safety

if used correctly.

For detailed information on device-specific IT security, see the Operating Instructions for

the device.

2.7.1 Access via service interface (CDI-RJ45)

The device can be connected to a network via the service interface (CDI-RJ45). Device-specific

functions guarantee the secure operation of the device in a network.

The use of relevant industrial standards and guidelines that have been defined by national

and international safety committees, such as IEC/ISA62443 or the IEEE, is recommended.

This includes organizational security measures such as the assignment of access authorization

as well as technical measures such as network segmentation.

Transmitters with an Ex de approval may not be connected via the service interface (CDI-

RJ45)!

Order code for "Approval transmitter + sensor", options (Ex de): BA, BB, C1, C2, GA, GB,

MA, MB, NA, NB

Product description Flowmeter Proline 300

10 Endress+Hauser

3 Product description

The device consists of a Proline 300 transmitter and an electromagnetic Proline Promag

sensor.

The device is available as a compact version:

The transmitter and sensor form a mechanical unit.

Nicht unter

Spannung öffnen

Do not open when

energized

Ne pas ouvrir

sous tension

Power

I/O

ESC

–

123

A0029586

1 Connection compartment cover

2 Display module

3 Transmitter housing

4 Electronics compartment cover

5 Sensor

Use of the device with the remote display and operating module DKX001 →  21.

For detailed information on the product description, see the Operating Instructions for

the device →  3

Otros manuales para Flowmeter Proline 300

Tabla de contenidos

Otros manuales de Transmisor de Endress+Hauser

Endress+Hauser

Endress+Hauser Liquisys M CCM223 Manual de usuario

Endress+Hauser

Endress+Hauser Liquisys CUM 252 Manual de usuario

Endress+Hauser

Endress+Hauser iTEMP PA TMT184 Manual de usuario

Endress+Hauser

Endress+Hauser Nivotester FTR525 Manual de usuario

Endress+Hauser

Endress+Hauser Liquisys M CXM 223 Manual de usuario

Endress+Hauser

Endress+Hauser FHX50 Manual de usuario

Endress+Hauser

Endress+Hauser iTEMP TMT84 Manual de usuario

Endress+Hauser

Endress+Hauser smartgrad TMD833 Manual de usuario

Endress+Hauser

Endress+Hauser iTEMP TMT82 Especificaciones técnicas

Endress+Hauser

Endress+Hauser iTEMP TMT84 Especificaciones técnicas

Endress+Hauser

Endress+Hauser cerabar S PROFIBUS-PA Manual de usuario

Endress+Hauser

Endress+Hauser Proline 500 HART Especificaciones técnicas

Endress+Hauser

Endress+Hauser Proline 300 Especificaciones técnicas

Endress+Hauser

Endress+Hauser Liquisys M CLM223F Manual de usuario

Endress+Hauser

Endress+Hauser iTEMP TMT80 Manual de usuario

Endress+Hauser

Endress+Hauser Proline 500 digital EtherNet/IP Especificaciones técnicas

Endress+Hauser

Endress+Hauser iTEMP TMT82 Especificaciones técnicas

Endress+Hauser

Endress+Hauser Liquiline CM442R Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar M PMD55 Especificaciones técnicas

Endress+Hauser

Endress+Hauser Proline 500 Especificaciones técnicas

Endress+Hauser

Endress+Hauser Liquisys M COM 223 Manual de usuario

Endress+Hauser

Endress+Hauser Flowmeter Proline 200 Especificaciones técnicas

Endress+Hauser

Endress+Hauser CM14 Manual de usuario

Endress+Hauser

Endress+Hauser iTEMP TMT84 Especificaciones técnicas

Manuales populares de Transmisor de otras marcas

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manual del propietario

Honeywell

Honeywell 5816WMBR Manual de usuario

Kamstrup

Kamstrup READy MTU Instrucciones de funcionamiento

Omega

Omega ZW Series Manual de usuario

ABB

ABB Field 264H Guía

Alinco

Alinco DJ-V17T Manual de usuario

Dejero

Dejero EnGo 3x Manual de usuario

Rosemount

Rosemount 4600 Manual de usuario

Speaka Professional

Speaka Professional 2342740 Manual de usuario

trubomat

trubomat GAB 1000 Manual de usuario

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manual de usuario

Rondish

Rondish UT-11 Manual de usuario

MG 10JRE Manual de usuario

Burkert

Burkert 8177 Manual de usuario

Firetide

Firetide HotPort 3203 Manual

Tele Radio

Tele Radio T9-02 Manual de usuario

Rotronic

Rotronic HygroFlex HF3 Series Manual de usuario

Jamara

Jamara FCX6 Pro Tel Manual de usuario
