Brief Operating Instructions

Flowmeter

Proline 200

FOUNDATION Fieldbus transmitter

with vortex flow sensor

These instructions are Brief Operating Instructions; they are

not a substitute for the Operating Instructions pertaining to

the device.

Brief Operating Instructions part 2 of 2: Transmitter

Contain information about the transmitter.

Brief Operating Instructions part 1 of 2: Sensor →  3

KA01327D/06/EN/02.18

71423497

2018-12-03

Flowmeter Proline 200

2 Endress+Hauser

Order code:

Ext. ord. cd.:

Ser. no.:

www.endress.com/deviceviewer Endress+Hauser

Operations App

XXXXXXXXXXXX

XXXXX-XXXXXX

XXX.XXXX.XX

Serial number

A0023555

Flowmeter Proline 200 Brief Operating Instructions for the flowmeter

Endress+Hauser 3

Brief Operating Instructions for the flowmeter

The device consists of a transmitter and a sensor.

The process of commissioning these two components is described in two separate manuals,

that form the Brief Operating Instructions of the flowmeter:

• Brief Operating Instructions part 1: Sensor

• Brief Operating Instructions part 2: Transmitter

Please refer to both Brief Operating Instructions when commissioning the flowmeter as the

contents complement one another:

Brief Operating Instructions part 1: Sensor

The Sensor Brief Operating Instructions are aimed at specialists with responsibility for

installing the measuring device.

• Incoming acceptance and product identification

• Storage and transport

• Installation

Brief Operating Instructions part 2: Transmitter

The Transmitter Brief Operating Instructions are aimed at specialists with responsibility for

commissioning, configuring and parameterizing the measuring device (until the first

measured value).

• Product description

• Installation

• Electrical connection

• Operation options

• System integration

• Commissioning

• Diagnostic information

Additional device documentation

These Brief Operating Instructions are the Brief Operating Instructions part 2:

Transmitter.

The "Brief Operating Instructions part 1: Sensor" are available via:

• Internet: www.endress.com/deviceviewer

• Smart phone/tablet: Endress+Hauser Operations App

Detailed information about the device can be found in the Operating Instructions and the

other documentation:

• Internet: www.endress.com/deviceviewer

• Smart phone/tablet: Endress+Hauser Operations App

Table of contents Flowmeter Proline 200

4 Endress+Hauser

Table of contents

1 Document information ............................................................ 5

1.1 Symbols used ......................................................................... 5

2 Basic safety instructions .......................................................... 7

2.1 Requirements for the personnel ............................................................ 7

2.2 Designated use ........................................................................ 7

2.3 Workplace safety ...................................................................... 8

2.4 Operational safety ......................................................................8

2.5 Product safety ......................................................................... 8

2.6 IT security ............................................................................ 8

2.7 Device-specific IT security ................................................................ 9

3 Product description ............................................................... 9

4 Installation ....................................................................... 9

4.1 Mounting the transmitter of the remote version ................................................9

4.2 Turning the transmitter housing .......................................................... 11

4.3 Turning the display module .............................................................. 11

4.4 Transmitter post-installation check ........................................................ 12

5 Electrical connection ............................................................ 13

5.1 Connection conditions .................................................................. 13

5.2 Connecting the measuring device ......................................................... 19

5.3 Ensuring the degree of protection ......................................................... 26

5.4 Post-connection check ..................................................................27

6 Operation options ............................................................... 28

6.1 Overview of operation options ............................................................ 28

6.2 Structure and function of the operating menu ................................................ 29

6.3 Access to the operating menu via the local display ............................................. 30

6.4 Access to the operating menu via the operating tool ............................................ 33

7 System integration .............................................................. 33

7.1 Overview of device description files ........................................................ 33

7.2 Cyclic data transmission ................................................................ 34

8 Commissioning .................................................................. 34

8.1 Function check ....................................................................... 34

8.2 Switching on the measuring device ........................................................ 35

8.3 Setting the operating language ........................................................... 35

8.4 Configuring the measuring device ......................................................... 35

8.5 Defining the tag name ..................................................................36

8.6 Protecting settings from unauthorized access ................................................. 37

8.7 Application-specific commissioning ........................................................ 37

9 Diagnostic information .......................................................... 43

Flowmeter Proline 200 Document information

Endress+Hauser 5

1 Document information

1.1 Symbols used

1.1.1 Safety symbols

Symbol Meaning

DANGER

DANGER!

This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in

serious or fatal injury.

WARNING

WARNING!

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

serious or fatal injury.

CAUTION

CAUTION!

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

minor or medium injury.

NOTICE

NOTE!

This symbol contains information on procedures and other facts which do not result in

personal injury.

1.1.2 Symbols for certain types of information

Symbol Meaning Symbol Meaning

Permitted

Procedures, processes or actions that

are permitted.

Preferred

Procedures, processes or actions that

are preferred.

Forbidden

Procedures, processes or actions that

are forbidden.

Tip

Indicates additional information.

Reference to documentation

Reference to page

Reference to graphic

… Series of steps

Result of a step Visual inspection

1.1.3 Electrical symbols

Symbol Meaning Symbol Meaning

Direct current Alternating current

Direct current and alternating current Ground connection

A grounded terminal which, as far as

the operator is concerned, is grounded

via a grounding system.

Document information Flowmeter Proline 200

6 Endress+Hauser

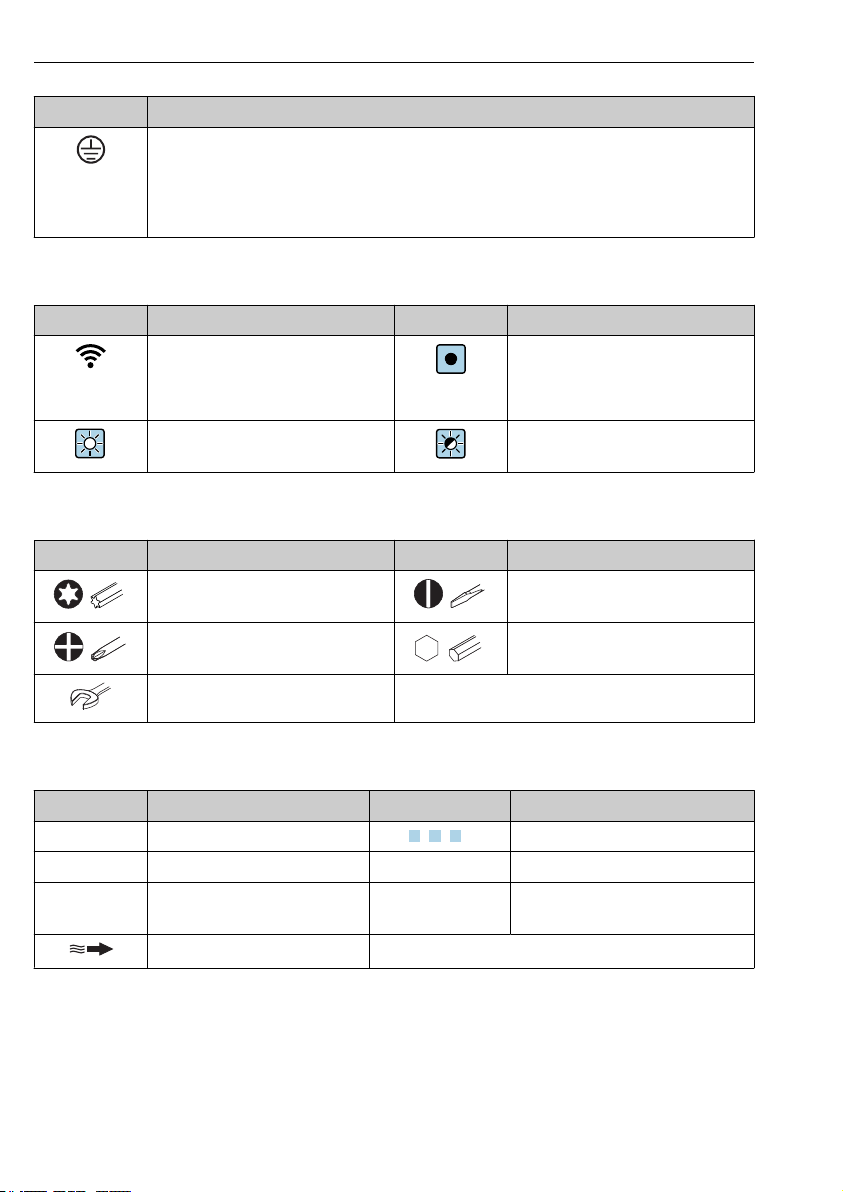

Symbol Meaning

Protective Earth (PE)

A terminal which must be connected to ground prior to establishing any other connections.

The ground terminals are situated inside and outside the device:

• Inner ground terminal: Connects the protectiv earth to the mains supply.

• Outer ground terminal: Connects the device to the plant grounding system.

1.1.4 Communication symbols

Symbol Meaning Symbol Meaning

Wireless Local Area Network

(WLAN)

Communication via a wireless, local

network.

LED

Light emitting diode is off.

LED

Light emitting diode is on.

LED

Light emitting diode is flashing.

1.1.5 Tool symbols

Symbol Meaning Symbol Meaning

Torx screwdriver Flat blade screwdriver

Cross-head screwdriver Allen key

Open-ended wrench

1.1.6 Symbols in graphics

Symbol Meaning Symbol Meaning

1, 2, 3,... Item numbers

… Series of steps

A, B, C, ... Views A-A, B-B, C-C, ... Sections

Hazardous area

Safe area (non-hazardous area)

Flow direction

Flowmeter Proline 200 Basic safety instructions

Endress+Hauser 7

2 Basic safety instructions

2.1 Requirements for the personnel

The personnel must fulfill the following requirements for its tasks:

‣Trained, qualified specialists must have a relevant qualification for this specific function

and task.

‣Are authorized by the plant owner/operator.

‣Are familiar with federal/national regulations.

‣Before starting work, read and understand the instructions in the manual and

supplementary documentation as well as the certificates (depending on the application).

‣Follow instructions and comply with basic conditions.

2.2 Designated use

Application and media

Depending on the version ordered, the measuring device can also measure potentially

explosive, flammable, poisonous and oxidizing media.

Measuring devices for use in hazardous areas, in hygienic applications or where there is an

increased risk due to process pressure, are labeled accordingly on the nameplate.

To ensure that the measuring device remains in proper condition for the operation time:

‣Keep within the specified pressure and temperature range.

‣Only use the measuring device in full compliance with the data on the nameplate and the

general conditions listed in the Operating Instructions and supplementary documentation.

‣Based on the nameplate, check whether the ordered device is permitted for the intended

use in the hazardous area (e.g. explosion protection, pressure vessel safety).

‣Use the measuring device only for media to which the process-wetted materials are

sufficiently resistant.

‣If the measuring device is not operated at atmospheric temperature, compliance with the

relevant basic conditions specified in the associated device documentation is absolutely

essential: "Documentation" section.

‣Protect the measuring device permanently against corrosion from environmental

influences.

Incorrect use

Non-designated use can compromise safety. The manufacturer is not liable for damage caused

by improper or non-designated use.

LWARNING

Danger of breakage due to corrosive or abrasive fluids!

‣Verify the compatibility of the process fluid with the sensor material.

‣Ensure the resistance of all fluid-wetted materials in the process.

‣Keep within the specified pressure and temperature range.

Basic safety instructions Flowmeter Proline 200

8 Endress+Hauser

NOTICE

Verification for borderline cases:

‣For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in

verifying the corrosion resistance of fluid-wetted materials, but does not accept any

warranty or liability as minute changes in the temperature, concentration or level of

contamination in the process can alter the corrosion resistance properties.

Residual risks

LWARNING

The electronics and the medium may cause the surfaces to heat up. This presents a burn

hazard!

‣For elevated fluid temperatures, ensure protection against contact to prevent burns.

2.3 Workplace safety

For work on and with the device:

‣Wear the required personal protective equipment according to federal/national

regulations.

For welding work on the piping:

‣Do not ground the welding unit via the measuring device.

If working on and with the device with wet hands:

‣Due to the increased risk of electric shock, gloves must be worn.

2.4 Operational safety

Risk of injury.

‣Operate the device in proper technical condition and fail-safe condition only.

‣The operator is responsible for interference-free operation of the device.

2.5 Product safety

This measuring device is designed in accordance with good engineering practice to meet state-

of-the-art safety requirements, has been tested, and left the factory in a condition in which it

is safe to operate.

It meets general safety standards and legal requirements. It also complies with the EU

directives listed in the device-specific EU Declaration of Conformity. Endress+Hauser confirms

this by affixing the CE mark to the device.

2.6 IT security

We only provide a warranty if the device is installed and used as described in the Operating

Instructions. The device is equipped with security mechanisms to protect it against any

inadvertent changes to the device settings.

IT security measures in line with operators' security standards and designed to provide

additional protection for the device and device data transfer must be implemented by the

operators themselves.

Flowmeter Proline 200 Product description

Endress+Hauser 9

2.7 Device-specific IT security

The device offers a range of specific functions to support protective measures on the operator's

side. These functions can be configured by the user and guarantee greater in-operation safety

if used correctly.

For detailed information on device-specific IT security, see the Operating Instructions for

the device.

3 Product description

The device consists of a transmitter and a sensor.

Two device versions are available:

• Compact version – transmitter and sensor form a mechanical unit.

• Remote version - transmitter and sensor are mounted in separate locations.

For detailed information on the product description, see the Operating Instructions for

the device

4 Installation

For detailed information about mounting the sensor, see the Sensor Brief Operating

Instructions →  3

4.1 Mounting the transmitter of the remote version

LCAUTION

Ambient temperature too high!

Danger of electronics overheating and housing deformation.

‣Do not exceed the permitted maximum ambient temperature .

‣If operating outdoors: Avoid direct sunlight and exposure to weathering, particularly in

warm climatic regions.

LCAUTION

Excessive force can damage the housing!

‣Avoid excessive mechanical stress.

The transmitter of the remote version can be mounted in the following ways:

• Wall mounting

• Pipe mounting

Installation Flowmeter Proline 200

10 Endress+Hauser

4.1.1 Wall mounting

80 (3.15)

19 (0.6)

! 8.6 (0.39)

A0033484

 1 mm (in)

4.1.2 Post mounting

! …20 70

(! 0.79 to 2.75)

4 x SW 13

A0033486

 2 mm (in)

Tabla de contenidos

Otros manuales de Transmisor de Endress+Hauser

Endress+Hauser

Endress+Hauser Liquiline M OM42 Manual

Endress+Hauser

Endress+Hauser iTEMP TMT82 Especificaciones técnicas

Endress+Hauser

Endress+Hauser Prosonic S FMU95 Instrucciones de funcionamiento e instalación

Endress+Hauser

Endress+Hauser Proline Prosonic Flow 93 Manual de usuario

Endress+Hauser

Endress+Hauser Liquisys M CLM223 Manual de usuario

Endress+Hauser

Endress+Hauser Flowmeter Proline 300 Especificaciones técnicas

Endress+Hauser

Endress+Hauser Proline 500 Especificaciones técnicas

Endress+Hauser

Endress+Hauser cerabar S PMC Series Manual de usuario

Endress+Hauser

Endress+Hauser iTEMP PA TMT184 Manual de usuario

Endress+Hauser

Endress+Hauser Levelflex FMP 232 Hoja de especificaciones

Endress+Hauser

Endress+Hauser iTEMP TMT112 Manual de usuario

Endress+Hauser

Endress+Hauser Prosonic S FMU90 Instrucciones de funcionamiento e instalación

Endress+Hauser

Endress+Hauser Liquiline CM42 Especificaciones técnicas

Endress+Hauser

Endress+Hauser Liquisys M COM 223 Manual de usuario

Endress+Hauser

Endress+Hauser iTEMP TMT85 Manual de usuario

Endress+Hauser

Endress+Hauser iTEMP PCP TMT181 Manual de usuario

Endress+Hauser

Endress+Hauser Cerabar PMC71B Manual de usuario

Endress+Hauser

Endress+Hauser Promag Series Manual de usuario

Endress+Hauser

Endress+Hauser Cerabar S PMP71 Manual de usuario

Endress+Hauser

Endress+Hauser CM14 Manual de usuario

Endress+Hauser

Endress+Hauser iTEMP TMT82 Especificaciones técnicas

Endress+Hauser

Endress+Hauser Micropilot S FMR540 Manual

Endress+Hauser

Endress+Hauser Deltabar S FMD76 Manual de usuario

Endress+Hauser

Endress+Hauser CM14 Manual de usuario

Manuales populares de Transmisor de otras marcas

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manual del propietario

Honeywell

Honeywell 5816WMBR Manual de usuario

Kamstrup

Kamstrup READy MTU Instrucciones de funcionamiento

Omega

Omega ZW Series Manual de usuario

ABB

ABB Field 264H Guía

Alinco

Alinco DJ-V17T Manual de usuario

Dejero

Dejero EnGo 3x Manual de usuario

Rosemount

Rosemount 4600 Manual de usuario

Speaka Professional

Speaka Professional 2342740 Manual de usuario

trubomat

trubomat GAB 1000 Manual de usuario

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manual de usuario

Rondish

Rondish UT-11 Manual de usuario

MG 10JRE Manual de usuario

Burkert

Burkert 8177 Manual de usuario

Firetide

Firetide HotPort 3203 Manual

Tele Radio

Tele Radio T9-02 Manual de usuario

Rotronic

Rotronic HygroFlex HF3 Series Manual de usuario

Jamara

Jamara FCX6 Pro Tel Manual de usuario
