Brief Operating Instructions

Proservo NMS80

Tank Gauging

These Instructions are Brief Operating Instructions; they are

not a substitute for the Operating Instructions pertaining to

the device.

Detailed information about the device can be found in the

Operating Instructions and the other documentation:

Available for all device versions via:

– Internet: www.endress.com/deviceviewer

– Smart phone/tablet: Endress+Hauser Operations App

KA01200G/00/EN/01.16

71320492

Proservo NMS80

2 Endress+Hauser

Order code:

Ext. ord. cd.:

Ser. no.:

www.endress.com/deviceviewer Endress+Hauser Operations App

XXXXXXXXXXXX

XXXXX-XXXXXX

XXX.XXXX.XX

Serial number

A0023555

Proservo NMS80 Table of contents

Endress+Hauser 3

Table of contents

1 About this document ............................................................. 4

1.1 Symbols ............................................................................ 4

2 Basic safety instructions ......................................................... 6

2.1 Requirements for the personnel ........................................................... 6

2.2 Designated use ....................................................................... 6

2.3 Workplace safety ...................................................................... 7

2.4 Operational safety ..................................................................... 7

2.5 Product safety ........................................................................ 7

3 Product description .............................................................. 8

3.1 Product design ....................................................................... 8

4 Incoming acceptance and product identification .................................. 9

4.1 Incoming acceptance ................................................................... 9

4.2 Product identification .................................................................. 9

4.3 Storage and transport .................................................................. 9

5 Installation ..................................................................... 10

5.1 Requirements ....................................................................... 10

5.2 Mounting of the device ................................................................ 15

6 Electrical connection ............................................................ 27

6.1 Terminal assignment .................................................................. 27

6.2 Connecting requirements ............................................................... 37

6.3 Ensuring the degree of protection ........................................................ 38

6.4 Post-connection check ................................................................. 38

7 Commissioning ................................................................. 39

7.1 Operating methods ................................................................... 39

7.2 Terms related to tank measurement ....................................................... 42

7.3 Setting the display language ............................................................ 43

7.4 Calibration ......................................................................... 44

7.5 Configuration of the inputs ............................................................. 52

7.6 Linking measured values to tank variables .................................................. 56

7.7 Configuration of the limit evaluation ...................................................... 57

7.8 Configuration of the signal output ........................................................ 58

About this document Proservo NMS80

4 Endress+Hauser

1 About this document

1.1 Symbols

1.1.1 Safety symbols

Symbol Meaning

DANGER

DANGER!

This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in

serious or fatal injury.

WARNING

WARNING!

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

serious or fatal injury.

CAUTION

CAUTION!

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

minor or medium injury.

NOTICE

NOTE!

This symbol contains information on procedures and other facts which do not result in personal

injury.

1.1.2 Electrical symbols

Symbol Meaning Symbol Meaning

Direct current Alternating current

Direct current and alternating current Ground connection

A grounded terminal which, as far as

the operator is concerned, is grounded

via a grounding system.

Protective ground connection

A terminal which must be connected to

ground prior to establishing any other

connections.

Equipotential connection

A connection that has to be connected

to the plant grounding system: This

may be a potential equalization line or

a star grounding system depending on

national or company codes of practice.

1.1.3 Tool symbols

A0011219 A0011220 A0013442 A0011221 A0011222

Cross-head

screwdriver

Flat blade

screwdriver Torx screwdriver Allen key Hexagon wrench

Proservo NMS80 About this document

Endress+Hauser 5

1.1.4 Symbols for certain types of information

Symbol Meaning Symbol Meaning

Permitted

Procedures, processes or actions that

are permitted.

Preferred

Procedures, processes or actions that

are preferred.

Forbidden

Procedures, processes or actions that

are forbidden.

Tip

Indicates additional information.

Reference to documentation Reference to page

Reference to graphic

,…

Series of steps

Result of a sequence of actions Visual inspection

1.1.5 Symbols in graphics

Symbol Meaning

1, 2, 3 ... Item numbers

,…

Series of steps

A, B, C, ... Views

A-A, B-B, C-C, ... Sections

Hazardous area

Indicates a hazardous area.

Safe area (non-hazardous area)

Indicates the non-hazardous area.

1.1.6 Symbols at the device

Symbol Meaning

Safety instructions

Observe the safety instructions contained in the associated Operating Instructions.

Temperature resistance of the connection cables

Specifies the minimum value of the temperature resistance of the connection cables.

Basic safety instructions Proservo NMS80

6 Endress+Hauser

2 Basic safety instructions

2.1 Requirements for the personnel

The personnel must fulfill the following requirements for its tasks:

‣Trained, qualified specialists must have a relevant qualification for this specific function

and task

‣Are authorized by the plant owner/operator

‣Are familiar with federal/national regulations

‣Before beginning work, the specialist staff must have read and understood the instructions

in the Operating Instructions and supplementary documentation as well as in the

certificates (depending on the application)

‣Following instructions and basic conditions

2.2 Designated use

Application and measured materials

Depending on the version ordered, the measuring device can also measure potentially

explosive, flammable, poisonous and oxidizing media.

Measuring devices for use in hazardous areas, in hygienic applications or in applications

where there is an increased risk due to process pressure, are labeled accordingly on the

nameplate.

To ensure that the measuring device remains in proper condition for the operation time:

‣Only use the measuring device in full compliance with the data on the nameplate and the

general conditions listed in the Operating Instructions and supplementary documentation.

‣Check the nameplate to verify if the device ordered can be put to its intended use in the

approval-related area (e.g. explosion protection, pressure vessel safety).

‣Use the measuring device only for media against which the process-wetted materials are

adequately resistant.

‣If the measuring device is not operated at atmospheric temperature, compliance with the

relevant basic conditions specified in the associated device documentation is absolutely

essential.

‣Protect the measuring device permanently against corrosion from environmental

influences.

‣Observe the limit values in the "Technical Information".

The manufacturer is not liable for damage caused by improper or non-designated use.

Residual risk

During operation the sensor may assume a temperature near the temperature of the

measured material.

Danger of burns due to heated surfaces!

‣For high process temperatures: Install protection against contact in order to prevent burns.

Proservo NMS80 Basic safety instructions

Endress+Hauser 7

2.3 Workplace safety

For work on and with the device:

‣Wear the required personal protective equipment according to federal/national

regulations.

2.4 Operational safety

Risk of injury.

‣Operate the device in proper technical condition and fail-safe condition only.

‣The operator is responsible for interference-free operation of the device.

Conversions to the device

Unauthorized modifications to the device are not permitted and can lead to unforeseeable

dangers.

‣If, despite this, modifications are required, consult with the manufacturer.

Repair

To ensure continued operational safety and reliability,

‣Carry out repairs on the device only if they are expressly permitted.

‣Observe federal/national regulations pertaining to repair of an electrical device.

‣Use original spare parts and accessories from the manufacturer only.

Hazardous area

To eliminate a danger for persons or for the facility when the device is used in the hazardous

area (e.g. explosion protection, pressure vessel safety):

‣Based on the nameplate, check whether the ordered device is permitted for the intended

use in the hazardous area.

‣Observe the specifications in the separate supplementary documentation that is an integral

part of these Instructions.

2.5 Product safety

This measuring device is designed in accordance with good engineering practice to meet state-

of-the-art safety requirements, has been tested, and left the factory in a condition in which it

is safe to operate. It meets general safety standards and legal requirements.

2.5.1 CE mark

The measuring system meets the legal requirements of the applicable EC guidelines. These are

listed in the corresponding EC Declaration of Conformity together with the standards applied.

Endress+Hauser confirms successful testing of the device by affixing to it the CE mark.

Product description Proservo NMS80

8 Endress+Hauser

3 Product description

3.1 Product design

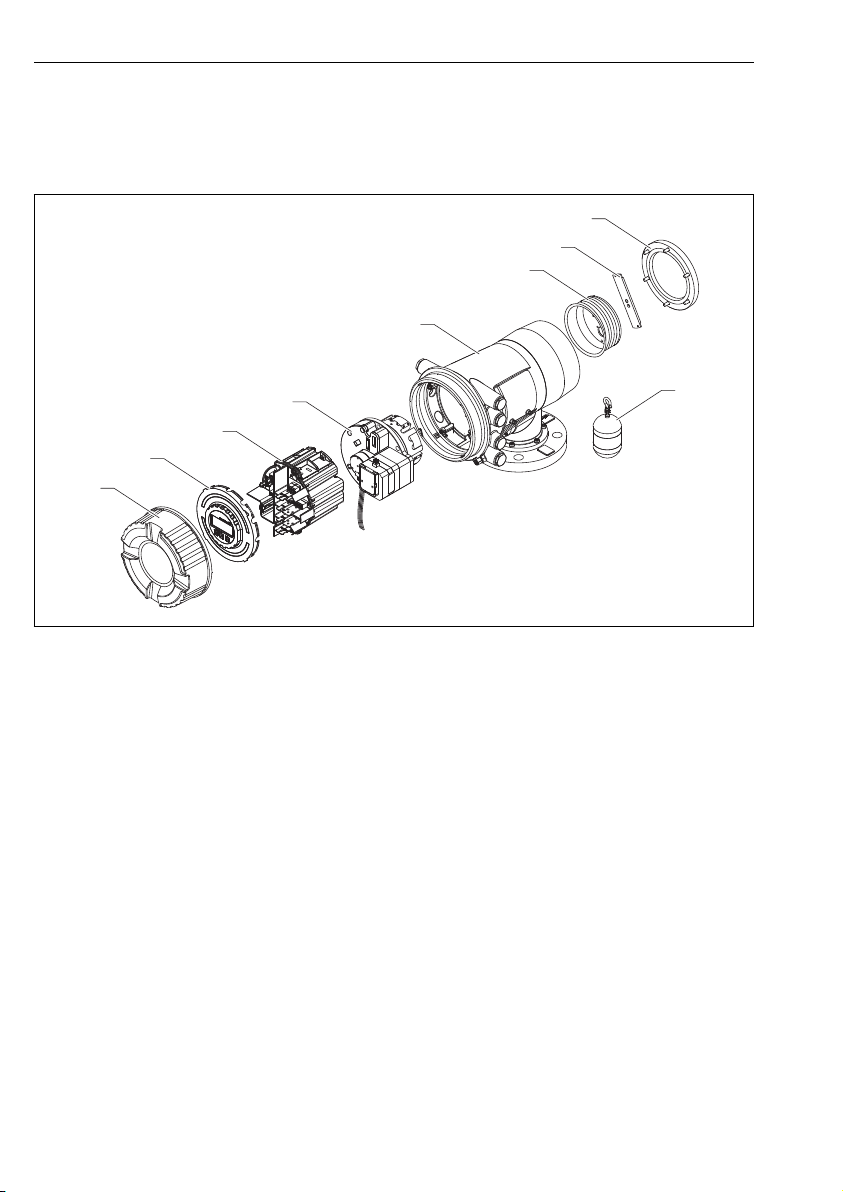

A0030105

 1 Configuration of NMS80

1 Front cover

2 Display

3 Modules

4 Sensor unit

5 Housing

6 Wire drum

7 Bracket

8 Rear cover

9 Displacer

Proservo NMS80 Incoming acceptance and product identification

Endress+Hauser 9

4 Incoming acceptance and product identification

4.1 Incoming acceptance

Upon receipt of the goods check the following:

• Are the order codes on the delivery note and the product sticker identical?

• Are the goods undamaged?

• Do the nameplate data match the ordering information on the delivery note?

• If required (see nameplate): Are the Safety Instructions (XA) enclosed?

If one of these conditions is not satisfied, contact your Endress+Hauser Sales Center.

4.2 Product identification

The following options are available for identification of the measuring device:

• Nameplate specifications

• Extended order code with breakdown of the device features on the delivery note

• Enter serial numbers from nameplates in W@M Device Viewer

( www.endress.com/deviceviewer ): All information about the measuring device is

displayed.

• Enter the serial number from the nameplates into the Endress+Hauser Operations App or

scan the 2-D matrix code (QR code) on the nameplate with the Endress+Hauser Operations

App: all the information for the measuring device is displayed.

For an overview of the scope of the associated Technical Documentation, refer to the

following:

• The W@M Device Viewer: Enter the serial number from the nameplate

(www.endress.com/deviceviewer)

• The Endress+Hauser Operations App: Enter the serial number from the nameplate or scan

the 2-D matrix code (QR code) on the nameplate.

4.3 Storage and transport

4.3.1 Storage conditions

• Storage temperature: –50 to +80 °C (–58 to +176 °F)

• Store the device in its original packaging.

4.3.2 Transport

NOTICE

Risk of injury

‣Transport the measuring device to the measuring point in its original packaging.

‣Take into account the mass center of the device in order to avoid unintended tilting.

‣Comply with the safety instructions, transport conditions for devices over 18kg (39.6lbs)

(IEC61010).

Installation Proservo NMS80

10 Endress+Hauser

5 Installation

5.1 Requirements

5.1.1 Mounting with guide wires

It is also possible to guide the displacer with guide wires to prevent swinging.

100 (3.94)

A0026819

 2 Guide wire; dimensions mm (in)

No. Description

A Calibration chamber

B Spring and sleeve

C Guide wire sleeve

Otros manuales para Proservo NMS80

Tabla de contenidos

Otros manuales de Instrumento de medición de Endress+Hauser

Endress+Hauser

Endress+Hauser Proline Prosonic Flow 93 Manual de usuario

Endress+Hauser

Endress+Hauser Turbimax CUE21 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promass A 500 PROFINET Manual de usuario

Endress+Hauser

Endress+Hauser Proline Prosonic Flow P 500 Manual de usuario

Endress+Hauser

Endress+Hauser Memosens Wave CAS80E Manual de usuario

Endress+Hauser

Endress+Hauser Proline t-mass B 150 HART Manual de usuario

Endress+Hauser

Endress+Hauser Levelflex M FMP40 Manual de usuario

Endress+Hauser

Endress+Hauser Levelflex M FMP43 Manual de usuario

Endress+Hauser

Endress+Hauser Smartec S CLD132 Manual de usuario

Endress+Hauser

Endress+Hauser Cerabar M PMC51? Cerabar M PMP51 Manual de usuario

Endress+Hauser

Endress+Hauser ria45 Especificaciones técnicas

Endress+Hauser

Endress+Hauser Liquiphant FTL64 Manual de usuario

Endress+Hauser

Endress+Hauser Prosonic M Series Manual de usuario

Endress+Hauser

Endress+Hauser MODBUS RS485 Manual de usuario

Endress+Hauser

Endress+Hauser Liquiphant M with FEL56 Instrucciones de uso

Endress+Hauser

Endress+Hauser analytikjena multi N/C UVHS Manual de usuario

Endress+Hauser

Endress+Hauser RID14 Manual de usuario

Endress+Hauser

Endress+Hauser Micropilot NMR81 Manual de usuario

Endress+Hauser

Endress+Hauser Proline t-mass 65 Manual de usuario

Endress+Hauser

Endress+Hauser Gammapilot FMG50 Manual de usuario

Endress+Hauser

Endress+Hauser Levelflex FMP50 Manual de usuario

Endress+Hauser

Endress+Hauser Liquiphant M/S Instrucciones de uso

Endress+Hauser

Endress+Hauser iTEMP TMT181 Instrucciones de instalación

Endress+Hauser

Endress+Hauser Deltabar S FMD76 Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario

Acterna

Acterna MS1400 Manual de usuario

R&S

R&S ZPH Manual de usuario
