Ender 3 Series Instrucciones de montaje
◆This guide is for the Ender 3 3D printer.
◆Select the correct input voltage to match your local mains
(220V or 110V)
◆Because of software/hardware upgrades and model
differences, new revisions may not be listed in this guide.
◆Detailed instructions for use are available on the SD card.
Ender 3 3D Printer
Instructions for assembly
Assemblys
List 1
Zm Zl
E
K2S Ba P
K1
N
R1 R2 CP B
2pcs
L
R T8
Sections
B1 B2
List 2
Tools
Fasteners
M4X20
M4X16
M5X45
M5X8
4pcs
4pcs
M5X25
4pcs
2pcs
5pcs
4pcs
2pcs
M5 T-nut
TF
Tie
M5X45
4pcs
R
Step 1
L
Ba
RL
2pcs
M5X8
S
2pcs
M4X20
*Select the correct input voltage to match your local mains (220V or 110V).
P
Step 2
Step 3
Zl
≈32mm
ZmT8
1
2

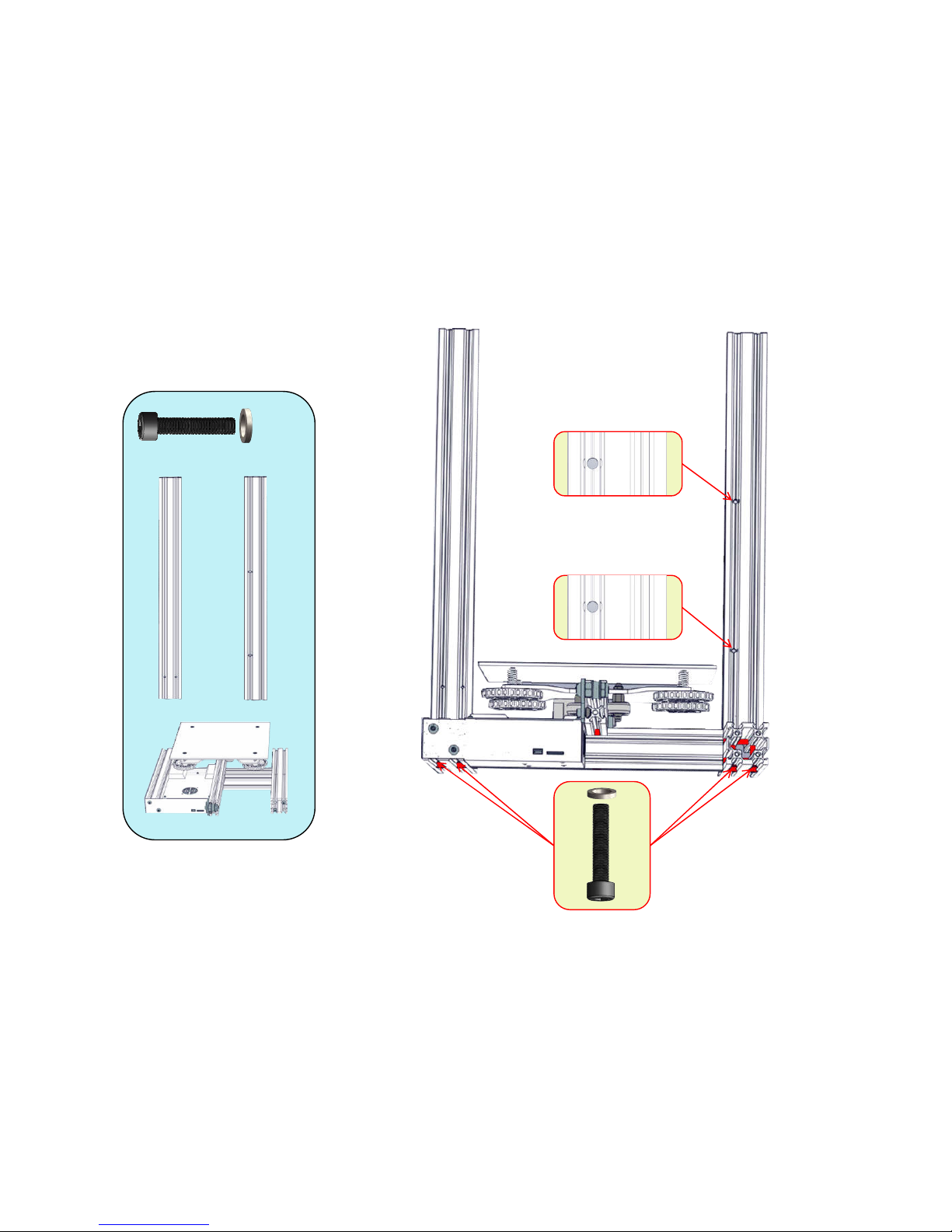

Step 4
M4X16
2pcs
B1
E
Step 5
M4X16
2pcs
K2N
Step 6
Be
Step 7
