Emerson Rosemount 2511 Manual de usuario
Quick Start Guide
00825-0100-2511, Rev AA
October 2019
Rosemount™ 2511 Solids Level Switch
Vibrating Fork
Contents
Introduction.................................................................................................................................3
Mechanical installation.................................................................................................................8
Electrical installation.................................................................................................................. 13
Configuration.............................................................................................................................19
Operation...................................................................................................................................21
Maintenance.............................................................................................................................. 22
Quick Start Guide October 2019
2 Quick Start Guide
1 Introduction
The level switch detects the presence and absence of a process media at its
installation point, and reports it as a switched electrical output.
Note
Other language versions of this Quick Start Guide can be found at
Emerson.com/Rosemount.
1.1 Safety messages
NOTICE
Read this manual before working with the product. For personal and system
safety, and for optimum product performance, ensure you thoroughly
understand the contents before installing, using, or maintaining this
product.
For technical assistance, contacts are listed below:
Customer Central
Technical support, quoting, and order-related questions.
•United States - 1-800-999-9307 (7:00 am to 7:00 pm CST)
•Asia Pacific- 65 777 8211
North American Response Center
Equipment service needs.
•1-800-654-7768 (24 hours a day — includes Canada)
•Outside of these areas, contact your local Emerson representative.
WARNING
Physical access
Unauthorized personnel may potentially cause significant damage to and/or
misconfiguration of end users’ equipment. This could be intentional or
unintentional and needs to be protected against.
Physical security is an important part of any security program and
fundamental to protecting your system. Restrict physical access by
unauthorized personnel to protect end users’ assets. This is true for all
systems used within the facility.
October 2019 Quick Start Guide
Quick Start Guide 3
WARNING
Failure to follow safe installation and servicing guidelines could result in
death or serious injury.
•Ensure the level switch is installed by qualified personnel and in
accordance with applicable code of practice.
•Use the level switch only as specified in this manual. Failure to do so may
impair the protection provided by the level switch.
Explosions could result in death or serious injury.
•In explosion-proof/flameproof, non-Incendive/type n, and dust ignition-
proof installations, do not remove the housing cover when power is
applied to the level switch.
•The housing cover must be fully engaged to meet flameproof/explosion-
proof requirements.
Electrical shock could cause death or serious injury.
•Avoid contact with the leads and terminals. High voltage that may be
present on leads can cause electrical shock.
•Ensure the power to the level switch is off, and the lines to any other
external power source are disconnected or not powered while wiring the
level switch.
•Ensure the wiring is suitable for the electrical current and the insulation is
suitable for the voltage, temperature, and environment.
Process leaks could result in death or serious injury.
•Ensure the level switch is handled carefully. If the process seal is
damaged, gas or dust might escape from the silo (or other vessel)
Any substitution of non-recognized parts may jeopardize safety. Repair,
e.g. substitution of components, etc. may also jeopardize safety and is
under no circumstances allowed.
•Unauthorized changes to the product are strictly prohibited as they may
unintentionally and unpredictably alter performance and jeopardize
safety. Unauthorized changes that interfere with the integrity of the
welds or flanges, such as making additional perforations, compromise
product integrity and safety. Equipment ratings and certifications are no
longer valid on any products that have been damaged or modified
without the prior written permission of Emerson. Any continued use of
product that has been damaged or modified without the written
authorization is at the customer’s sole risk and expense.
Quick Start Guide October 2019
4 Quick Start Guide
CAUTION
The products described in this document are NOT designed for nuclear-
qualified applications.
•Using non-nuclear qualified products in applications that require
nuclear-qualified hardware or products may cause inaccurate readings.
•For information on Rosemount nuclear-qualified products, contact your
local Emerson Sales Representative.
Individuals who handle products exposed to a hazardous substance can
avoid injury if they are informed of and understand the hazard.
•If the product being returned was exposed to a hazardous substance as
defined by Occupational Safety and Health Administration (OSHA), a
copy of the required Safety Data Sheet (SDS) for each hazardous
substance identified must be included with the returned level switch.
1.2 Applications
A Rosemount™ 2511 Solids Level Switch is used for monitoring the level of
bulk materials in all types of containers and silos.
The level switch can be used with all powdery and granulated bulk materials
that have a density greater than 30 g/l (1.9 lb/ft3) and that do not show a
strong tendency to form crusts or deposits.
Typical applications are:
•Building materials
—Lime, extruded polystyrene foam (XPS), molding sand, etc.
•Food and beverage
—Milk powder, flour, salt, etc.
•Plastics
—Plastic granulates, etc.
•Timber
•Chemicals
The level switch has a threaded, flanged, or Tri Clamp process connection for
mounting it onto a silo (or other vessel). You can mount it on a side wall of
the silo, so that it is level with the filling limit to be monitored. Alternatively,
if it has an extended length, mount it vertically on top of a silo to monitor the
maximum filling limit.
The length of the fork can be up to 157.5 in. (4 m) with an extension tube.
October 2019 Quick Start Guide
Quick Start Guide 5
The use of a sliding sleeve is recommended so that the switching point can
be changed easily during the live operation of the level switch.
Figure 1-1: Typical Installation Examples
A
B
C
C
C
C
D
A. Rosemount 2511 with the tube-extended fork length
B. Rosemount 2511 with the tube-extended fork length and thermal tube-
extension
C. Rosemount 2511 with the standard length fork
D. Optional sliding sleeve
Quick Start Guide October 2019
6 Quick Start Guide
1.3 Measurement principles
Using the principle of a tuning fork, a piezo-electric crystal oscillates the
forks at their natural frequency. Changes to the oscillation frequency are
continuously monitored by electronics which varies depending on whether
the fork is covered or uncovered by a solids medium.
When the solids medium in the vessel (silo) falls away from the fork, it causes
a change of oscillation frequency that is detected by the electronics and the
output switches to indicate an 'uncovered' state.
When the solids medium in the vessel (silo) rises and covers the fork, it
causes a change of oscillation frequency that is detected by the electronics
and the output switches to indicate a 'covered' state.
The electrical output will vary depending on the electronics selected when
the Rosemount 2511 was ordered.
October 2019 Quick Start Guide
Quick Start Guide 7
2 Mechanical installation
2.1 Mounting considerations
Before mounting the level switch on a silo (or other vessel), review the safety
and pre-mounting sections.
2.1.1 Safety
General safety
1. Installation of this equipment shall be carried out by suitably trained
personnel, in accordance with the applicable code of practice.
2. If equipment is likely to come into contact with aggressive
substances, it is the user’s responsibility to take suitable precautions
that prevent it from being adversely affected, thus ensuring the type
of protection is not compromised.
a. Aggressive substances: e.g. acidic liquids or gases that may
attack metals or solvents that may affect polymeric materials.
b. Suitable precautions: e.g. regular checks as part of routine
inspections or establishing from a material's data sheet that it
is resistant to specific chemicals.
3. It is the responsibility of the installer to:
a. Take protective measures, such as fitting an angled shield
(reverse V shape) to the silo or selecting an extension tube
option, when there are high mechanical forces.
b. Ensure that the process connection is tightened by the
correct amount of torque and sealed to prevent process
leaks.
4. Technical data
a. The Rosemount 2511 Product Data Sheet has all the technical
specifications. See Emerson.com/Rosemount for other
language versions.
Hazardous area safety
The Rosemount 2511 Product Certifications document has safety
instructions and control drawings for hazardous area installations. See
Emerson.com/Rosemount for other language versions.
Quick Start Guide October 2019
8 Quick Start Guide
2.1.2 Mechanical load
The load at the mounting point must not exceed 300 Nm (Rosemount 2511
with an extended length fork).
Figure 2-1: Maximum Mechanical Load
B
A
A. Mounting point
B. Mechanical load
2.1.3 Vertical installations
Table 2-1 provides the maximum fork lengths and the corresponding
maximum deviations from a normal vertical installation.
Table 2-1: Maximum Vertical Deviation
Maximum deviation Maximum fork length
5° 157.5 in. (4000 mm)
45° 47.24 in. (1200 mm)
> 45° 23.62 in. (600 mm)
October 2019 Quick Start Guide
Quick Start Guide 9
2.1.4 Mounting location
Take time to assess a suitable mounting location. Avoid mounting the level
switch near the filling point, internal structures, and walls of a silo (or other
vessel). When mounting the extended length versions of the level switch, it
is especially important to consider internal structures. Forcing the level
switch into a small or congested space risks damage to the sensor and could
impair the protection it provides.
2.1.5 Sliding sleeve

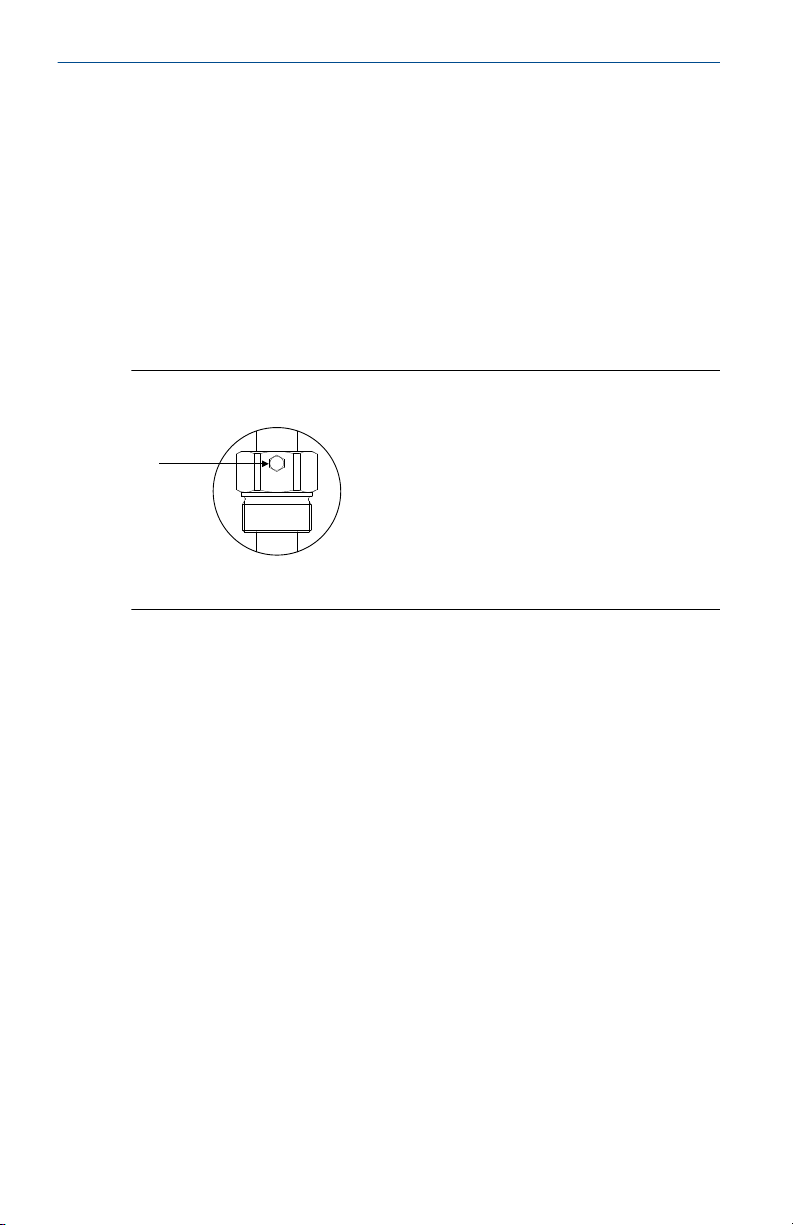

Tighten both M8 screws with a torque of 20 Nm to establish a seal and
maintain the process pressure. See Figure 2-2.
Figure 2-2: Sliding Sleeve, M8 Screws
A
A. Two off M8 screws
2.1.6 Flange mounting
A suitable gasket must be fitted to provide a seal when the flanges are
tightened.
2.1.7 Tightening threaded process connections
When tightening the threaded process connection of a Rosemount 2511:
•Use an open-ended wrench on the hexagonal boss of the level switch or
the sliding sleeve.
•Never tighten by using the housing.
•Do not exceed the maximum torque of 80 Nm.
2.1.8 Hygienic applications
The food-grade materials are suitable for use under normal and predictable
hygienic applications (according to directive 1935/2004 Art.3). There are
currently no hygienic certifications for the Rosemount 2511.
2.1.9 Vibrating forks
Bending, shortening, or extending the forks will damage the level switch.
Quick Start Guide October 2019
10 Quick Start Guide
Tabla de contenidos
Otros manuales de Cambiar de Emerson
Emerson
Emerson ASCO 7000 Series Manual de usuario
Emerson
Emerson Rosemount 2110 Manual de usuario
Emerson
Emerson SM-ETHERCAT 0471-0128-02 Manual de usuario
Emerson
Emerson ASCO 3ATS Manual de usuario
Emerson
Emerson ASCO 300 Series Manual de usuario
Emerson
Emerson Rosemount 2460 Manual de usuario
Emerson
Emerson Rosemount 2460 Manual de usuario
Emerson
Emerson Alco Controls PS1 Series Manual de usuario
Emerson
Emerson TopWorx TX Series Manual de usuario
Emerson
Emerson Rosemount FS-IR-975 Manual de usuario
Emerson
Emerson VLS**435A Manual de usuario
Emerson
Emerson PACSystems SLM042 Manual de usuario
Emerson
Emerson 200I/48-NT5C05C Manual de usuario
Emerson
Emerson Avocent AutoView 2108 Instrucciones de instalación y mantenimiento
Emerson
Emerson Cybex SC KM 140 Manual de usuario
Emerson
Emerson SmartSwitch Manual de usuario
Emerson
Emerson Topworx Valvetop DXN Manual de instrucciones
Emerson
Emerson ASCO 185 Series Manual de usuario
Emerson
Emerson SC885 Manual de usuario
Emerson
Emerson PACSystems SLM080 Manual de usuario
