Emerson Rosemount 2110 Manual de usuario
Quick Start Guide
00825-0100-4029, Rev CB
November 2020
Rosemount™ 2110 Level Switch
Vibrating Fork
Contents
About this guide...........................................................................................................................3
Installation................................................................................................................................... 5
Prepare the electrical connections................................................................................................9
Connect wiring and power up.....................................................................................................14
Product certifications................................................................................................................. 17
Quick Start Guide November 2020
2 Rosemount 2110 Level Switch
1 About this guide
This Quick Start Guide provides basic guidelines for the Rosemount 2110.
Refer to the Rosemount 2110 Reference Manual for more instructions. The
manual and this guide are also available electronically at Emerson.com/
Rosemount.
WARNING
Failure to follow safe installation and servicing guidelines could result in
death or serious injury.
•Ensure the level switch is installed by qualified personnel and in
accordance with applicable code of practice.
•Use the level switch only as specified in this manual. Failure to do so may
impair the protection provided by the level switch.
Explosions could result in death or serious injury.
•The level switch must only be installed and operated in non-hazardous
(ordinary) locations.
Electrical shock could cause death or serious injury.
•Avoid contact with the leads and terminals. High voltage that may be
present on leads can cause electrical shock.
•Ensure the power to the level switch is off, and the lines to any other
external power source are disconnected or not powered while wiring the
level switch.
•Ensure the wiring is suitable for the electrical current and the insulation is
suitable for the voltage, temperature, and environment.
Process leaks could result in death or serious injury.
•Ensure the level switch is handled carefully. If the process seal is
damaged, gas might escape from the vessel (tank) or pipe.
November 2020 Quick Start Guide
Quick Start Guide 3
WARNING
Any substitution of non-recognized parts may jeopardize safety. Repair (e.g.
substitution of components) may also jeopardize safety and is not allowed
under any circumstances.
•Unauthorized changes to the product are strictly prohibited as they may
unintentionally and unpredictably alter performance and jeopardize
safety. Unauthorized changes that interfere with the integrity of the
welds or flanges, such as making additional perforations, compromise
product integrity and safety. Equipment ratings and certifications are no
longer valid on any products that have been damaged or modified
without the prior written permission of Emerson. Any continued use of
product that has been damaged or modified without the written
authorization is at the customer’s sole risk and expense.
WARNING
Physical access
Unauthorized personnel may potentially cause significant damage to and/or
misconfiguration of end users’ equipment. This could be intentional or
unintentional and needs to be protected against.
Physical security is an important part of any security program and
fundamental to protecting your system. Restrict physical access by
unauthorized personnel to protect end users’ assets. This is true for all
systems used within the facility.
CAUTION
Hot surfaces
The flange and process seal may be hot at high process
temperatures.
Allow to cool before servicing.
Quick Start Guide November 2020
4 Rosemount 2110 Level Switch
2 Installation
2.1 Fork alignment in a pipe installation
Figure 2-1: Correct Fork Alignment for Pipe Installation
OK
A
B
A. Tri Clamp process connections have a circular notch
B. Threaded process connections have a groove
2.2 Fork alignment in a vessel (tank) installation
Figure 2-2: Correct Fork Alignment for Vessel (Tank) Installation
OK
OK
OK
OK OK
A
B
A. Tri Clamp process connections have a circular notch
B. Threaded process connections have a groove
November 2020 Quick Start Guide
Quick Start Guide 5
2.3 Mounting the threaded version
2.3.1 Seal and protect the threads
•Use anti-seize paste or PTFE tape according to site procedures.
A gasket may be used as a sealant for BSPP (G) threaded connections.

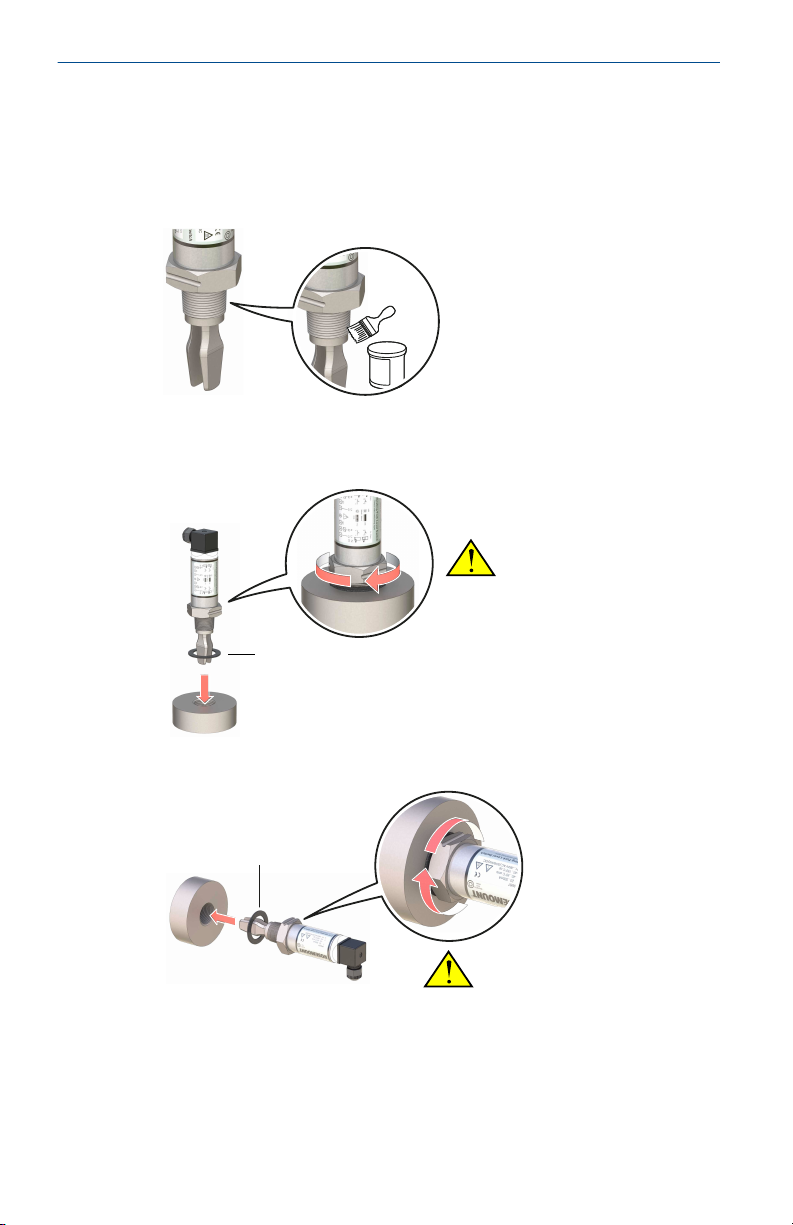

2.3.2 Threaded vessel (tank) or pipework connection
•Vertical installation.
A
B
•Horizontal installation.
A
B
A. Tighten using the hexagon nut only
B. Gasket for BSPP (G) threaded connection
Quick Start Guide November 2020
6 Rosemount 2110 Level Switch
2.3.3 Threaded flange connection
Procedure
1. Place the customer-supplied flange and gasket on the vessel (tank)
nozzle.
A
A. Gasket (customer supplied)
2. Tighten the bolts and nuts with sufficient torque for the flange and
gasket.
3. Screw the level switch into the flange thread.
A
B
A. Tighten using the hexagon nut only
B. Gasket for BSPP (G) threaded connection
November 2020 Quick Start Guide
Quick Start Guide 7
2.4 Mounting the Tri Clamp version
Procedure
1. Lower the level switch into the flange face.
A
A. Seal (supplied with Tri Clamp)
2. Fit the Tri Clamp.
Note
The Tri Clamp and seal are supplied in an accessory kit that has to be
ordered separately. See the Rosemount 2110 Product Data Sheet for
ordering information.
Quick Start Guide November 2020
8 Rosemount 2110 Level Switch
3 Prepare the electrical connections
Note
See the Rosemount 2110 Product Data Sheet for all electrical specifications.
3.1 Cable selection
Twisted-pairs and shielded wiring is recommended for environments with
high EMI (electromagnetic interference). Two wires can be safely connected
to each terminal screw. Maximum wire size is 15 AWG.
3.2 Cable glands/conduits
The cable gland is integrated in the four-position plug of the level switch. Do
not make any modifications to the level switch.
3.3 Power supply
The Direct Load electronics operate on 21 - 264 Vdc or 21 - 264 Vac (50/60
Hz) at the level switch terminals.
The PNP electronics operate on 18 - 60 Vdc at the level switch terminals.
3.4 Mode selection
Table 3-1 shows how the mode selection is determined from the wiring
connections. Modes are “Dry on, high level alarm” and “Wet on, low level
alarm”.
November 2020 Quick Start Guide
Quick Start Guide 9
Table 3-1: Mode Selection By Customer Wiring
Modes Electronics option code 0 Electronics option code 1
Load switching: ac/dc
Direct load switching: ac/dc
PNP output: dc
PNP for PLC/SPS connection: dc
Dry = on, high level
alarm
1
3
2
Orientation
cut-out
PE (ground)
R
N (21-264 Vac,
50/60 Hz)
L1
0 V (21-264 Vdc)+V
2A
(T)
1
3
PE (ground)
R
PLC
input
(18-60 Vdc)
0 V +V
2A
(T)
1
2
3
Wet = on, low level
alarm
1
3
2
Orientation
cut-out
PE (ground)
R
N (21-264 Vac,
50/60 Hz)
L1
0 V (21-264 Vdc)+V
2A
(T)
1
2
PE (ground)
R
PLC
input
(18-60 Vdc)
0 V +V
2A
(T)
1
2
3
R = external load
(must be wired)
R = external load
Maximum inrush current: 5A (over current protected)
I maximum continuous: 500 mA
Voltage drop: 6.5 V @ 24 Vdc or
5.0 V @ 240 Vac
Voltage drop: less than 3 V
I load off: less than 3 mA I load off: less than 0.5 mA
Quick Start Guide November 2020
10 Rosemount 2110 Level Switch
