Emerson Rosemount 2460 Manual de usuario
Quick Start Guide
00825-0100-2460, Rev AA
September 2020
Rosemount™ 2460 System Hub
Contents
About this guide...........................................................................................................................3
Overview......................................................................................................................................5
General information...................................................................................................................11
Installation................................................................................................................................. 12
Configuration.............................................................................................................................35
Operation...................................................................................................................................58
Product certifications................................................................................................................. 59
Quick Start Guide September 2020
2 Rosemount 2460 Tank Hub
1 About this guide
This Quick Start Guide provides basic guidelines for installation and
configuration of the Rosemount 2460 System Hub.
NOTICE
Read this manual before working with the product. For personal and system
safety, and for optimum product performance, ensure you thoroughly
understand the contents before installing, using, or maintaining this
product.
For equipment service or support needs, contact your local Emerson
Automation Solutions/Rosemount Tank Gauging representative.
Spare Parts
Any substitution of non-recognized spare parts may jeopardize safety.
Repair, e.g. substitution of components etc, may also jeopardize safety and
is under no circumstances allowed.
Rosemount Tank Radar AB will not take any responsibility for faults,
accidents, etc caused by non-recognized spare parts or any repair which is
not made by Rosemount Tank Radar AB.
CAUTION
Make sure that there is no water or snow on top of the lid when it is opened.
This may damage the electronics inside the housing.
CAUTION
Be careful when opening the lid in very low temperatures. High humidity and
temperatures far below the freezing point may cause the gasket to get stuck
to the lid. In that case you may use a heating fan to warm the housing in
order to release the gasket. Be careful not to use excess heat which may
damage the housing and electronics.
CAUTION
The products described in this document are NOT designed for nuclear-
qualified applications. Using non-nuclear qualified products in applications
that require nuclear-qualified hardware or products may cause inaccurate
readings. For information on Rosemount nuclear-qualified products, contact
your local Emerson Sales Representative.
September 2020 Quick Start Guide
Quick Start Guide 3
WARNING
Failure to follow safe installation and servicing guidelines could result in
death or serious injury.
•Ensure only qualified personnel perform the installation.
•Use the equipment only as specified in this manual. Failure to do so may
impair the protection provided by the equipment.
•Do not perform any service other than those contained in this manual
unless you are qualified.
•Substitution of components may impair Intrinsic Safety.
Explosions could result in death or serious injury.
•Verify that the operating atmosphere of the transmitter is consistent
with the appropriate hazardous locations certifications.
•Do not remove the gauge cover in explosive atmospheres when the
circuit is alive.
High voltage that may be present on leads could cause electrical shock.
•Avoid contact with the leads and terminals.
•Ensure the mains power to the device is off and the lines to any other
external power source are disconnected or not powered while wiring the
device.
Electrical shock could cause death or serious injury.
•Use extreme caution when making contact with the leads and terminals.
WARNING
Physical access
Unauthorized personnel may potentially cause significant damage to and/or
misconfiguration of end users’ equipment. This could be intentional or
unintentional and needs to be protected against.
Physical security is an important part of any security program and
fundamental to protecting your system. Restrict physical access by
unauthorized personnel to protect end users’ assets. This is true for all
systems used within the facility.
Quick Start Guide September 2020
4 Rosemount 2460 Tank Hub
2 Overview
2.1 Communication
The Rosemount Tank Gauging system supports various communication
interfaces for field devices, TankMaster PC and other host computers.
Figure 2-1: Typical Configuration of a Rosemount 2460 System Hub
A I
F
J J
K
L
M
O
G
C
E
H
N
D
B
E
A. TankMaster
B. USB, RS232
C. Modem
D. Ethernet (Modbus TCP), RS232, RS485
E. TRL2, RS485
F. DCS/Other hosts (TRL2, RS485, RS232)
G. Rosemount 2460 System Hub
H. Modbus RTU/TCP
I. Other hosts
J. Field devices
K. Tankbus
L. Rosemount 2410 Tank Hub
M. Primary bus: TRL2, RS485
N. TRL2, RS485, other vendors
O. Secondary bus: Enraf, Whessoe and others, HART 4-20 mA analog
output/input
September 2020 Quick Start Guide
Quick Start Guide 5
The Rosemount 2460 System Hub collects measurement data from field
devices and transmits the data to a host system. It also handles
communication from a host to the field devices.
The Rosemount 2460 supports a number of host communication interface
standards such as Ethernet, TRL2, RS485, and RS232. TRL2 and RS485 are
supported for field device communication also, as well as other standards
such as Enraf and Digital Current Loop (Whessoe).
Quick Start Guide September 2020
6 Rosemount 2460 Tank Hub
2.2 Components
This section shows the various parts of the Rosemount 2460 System Hub.
Note
The Rosemount 2460 is designed for use in non-hazardous areas.
Figure 2-2: Rosemount 2460 System Hub Front and Top View
A
B
CE
F
G
D
A. Main label
B. Locking ring for securing lid
C. External ground terminal (M5 screw, flat, lug dimension max. 10 x 4
mm)
D. LEDs for status and error messages
E. Cable entries (Nine (9) M20 x 1.5, Two (2) M25 x 1.5)
F. Lid (can be removed by removing the locking ring)
G. Terminal compartment with communication boards and ports
September 2020 Quick Start Guide
Quick Start Guide 7
Figure 2-3: Cable Entries
A
D
E F G
C
B
A. Cable entry M25
B. Cable entries (6 x M20 x 1.5)
C. Cable entry M25 (power)
D. Membrane
E. Cable entries (3 x M20 x 1.5)
F. Cable entry for Ethernet connection ETH 1
G. Cable entry for Ethernet connection ETH 2
Quick Start Guide September 2020
8 Rosemount 2460 Tank Hub
Figure 2-4: Inside the Rosemount 2460 System Hub
G
H
I
A
B
C
D
F
J
E
A. Communication boards
B. Write protection switch
C. Terminal board / ports (1 to 8)
D. Ethernet ports
E. USB port
F. SD memory card slot
G. LEDs (power=green, status=yellow, error=red)
H. Power input connector (IEC C16)
I. Fuses
J. Ground bar
Note
For signal/shield wire ground only.
September 2020 Quick Start Guide
Quick Start Guide 9
2.2.1 Write protection switch
The Rosemount 2460 System Hub is equipped with a write protection switch
for preventing unauthorized changes of the 2460 configuration database.

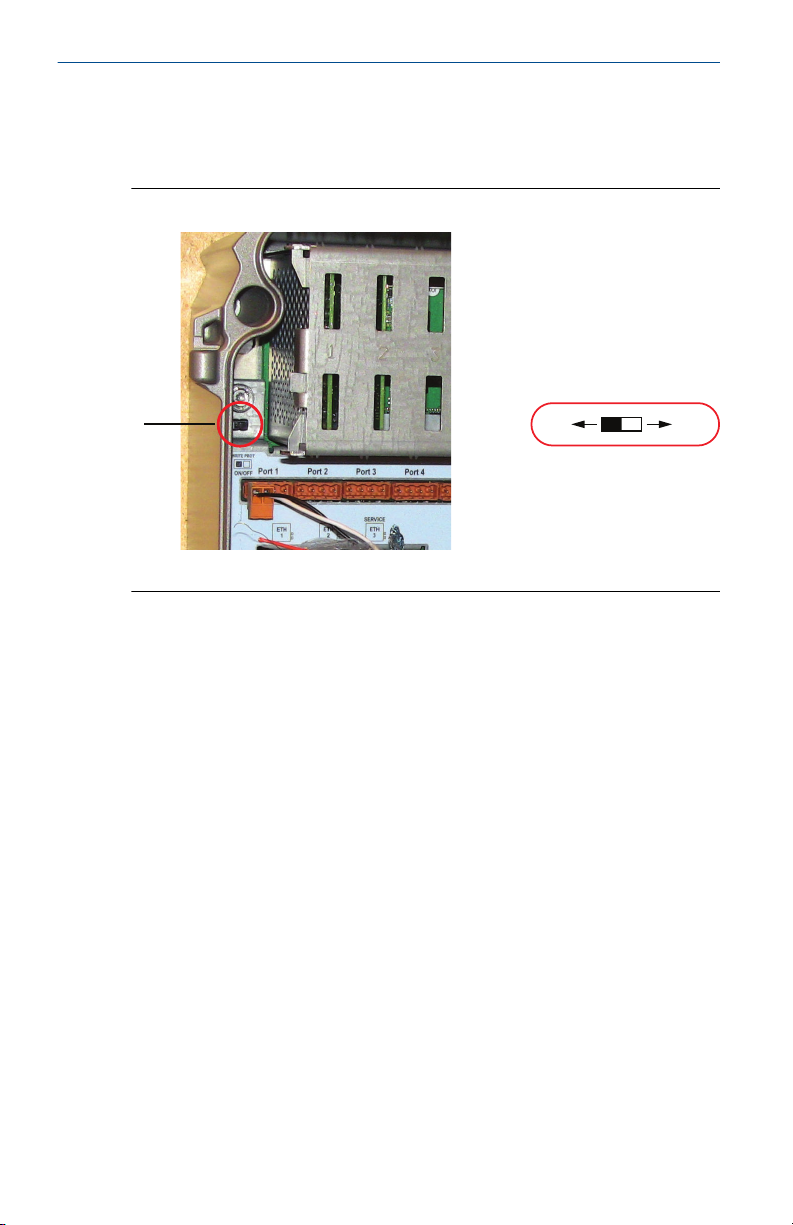

Figure 2-5: Write protection
OFF
ON
A
A. Write protection switch
In addition to the switch, the Rosemount 2460 supports software write
protection.
Quick Start Guide September 2020
10 Rosemount 2460 Tank Hub
