Elo TouchSystems 1537L Manual de usuario

Touchmonitor User Guide

1537L 15” LCD Rear-Mount Touchmonitor

EloTouch Solutions

1537L 15” LCD

Touchmonitor

Optional Power Brick

User Guide

Revision C

P/N E783501

Elo

ouch Solutions

1-800-ELOTOUCH

www.elotouch.com

iii

All Rights

Reserved.

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language or computer language,in any form or by any means,

including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise

without prior written permission of ELOTouchSolutions.

Disclaimer

The informationin this document is subject to change without notice. ELOTouchSolutions

and its Afffiliates makes no representationsor warranties with respect to the contents

herein, and specificallydisclaims any implied warranties of merchantability or fitness

for a particular purpose. ELOTouchSolutions reserves the right to revise this publication

and to make changes from time to time in the content hereof without obligation of ELO

TouchSolutionsto notify any person of such revisions or changes.

Trademark

Acknowledgments

AccuTouch, Elo (logo), ELOTouchSolutions, and IntelliTouch, are trademarks of ELOTouch

Solutions.Windows is a trademark of the Microsoft group of companies. Other product names

mentioned herein may be trademarks or registered trademarks of their respective companies. ELO

TouchSolutionsclaims no interest in trademarks other than its own.

Table of Contents

Chapter 1

Introduction 1

Product Description....................................................1

Precautions.................................................................1

Chapter 2

Installation and Setup ...................................3

UnpackingYour Touchmonitor ....................................3

Interface Connection .................................................5

Power Requirements..................................................5

Product Overview.......................................................6

Main Unit ..............................................................6

Rear View.............................................................6

Installing the Driver Software......................................7

Installing the Serial Touch Driver

(not applicable

Acoustic Pulse Recognition and

Projected-Capacitive

monitor) ................................................................8

Installing the Serial Touch Driver for Windows

7, Windows Vista, Windows XP, Windows 2000,

Me, 98/95 and NT 4.0 .....................................8

Installing the Serial Touch Driver for

Windows 3.1 and MS-DOS ............................9

Installing the USB Touch Driver............................10

Installing the USB Touch Driver for Windows 7,

Windows Vista, Windows XP, Windows 2000,

Me, 98/95 and NT 4.0 .....................................10

Chapter 3

Operation 11

About Touchmonitor Adjustments...............................11

Rear Panel Controls.............................................12

Remote OSD Buttons(option) ..............................12

Controls and Adjustment............................................13

OSD Menu Functions...........................................13

OSD Control Options............................................14

Preset Modes .......................................................15

Power Management System.................................16

IntelliTouch Plus Touch Technology............................17

Gesture Support.........................................................18

Chapter 4

Troubleshooting 19

Solutions to Common Problems.................................19

Appendix A....................................................20

Appendix B

Touchmonitor Safety...................................................22

Care and Handling of Your Touchmonitor ...................23

Warning......................................................................23

Appendix C

Touchmonitor Specifications.......................................24

15" LCD Touchmonitor (1537L) Dimension ................26

Regulatory Information 27

Warranty 30

C H A P T E

NTRODUCTION

Product Description

Your new touchmonitor combines the reliable performance of touch technology with the latest

advances in (LCD) display design. This combination of features creates a natural flowof infor-

mation between a user and your touchmonitor.

This LCD monitor incorporates a 15” color active matrix thin-film-transistor(TFT) to provide

superior display

performance.

A maximum resolution of XGA1024 x 768 is ideal for

displaying graphics and images. Other outstanding features that enhance this LCD monitor’s

performance are Plug & Play compatibility, and OSD (On Screen Display) controls.

Precautions

Follow all warnings, precautions and maintenance as recommended in this user’s manual to

maximize the life of your unit. SeeAppendix B for more information on touchmonitor safety.

About the Product

Your LCD kiosk touchmonitor is a 15” XGA TFT color display with the following features:

• The internal microprocessor digitally controls auto-scanning. For horizontal scan frequencies

between 31.5 KHz and 60.2 KHz, and vertical scan frequencies between 56.3 Hz and 75.0

Hz. In each frequency mode, the microprocessor-based circuitry allows the monitor to

function at the precision-of a fixed frequency.

• High contrast color TFT LCD display support resolution up to XGA 1024 x 768. Compatible

with VGA, SVGA, XGA(non-interlaced) and most Macintosh compatible color video cards.

• Power management system conforms to VESA DPMS standard.

• Supports DDC2B for Plug & Play compatibility.

• Advanced OSD control for picture quality adjustment.

For full Product Specificationsrefer to Appendix C.

2-3

C H A P T E

INSTALLATIONAND

ETUP

This chapter discusses how to install your LCD touchmonitorand how to install the driver

software.

Unpacking Your Touchmonitor

Check that the following items are present and in good condition:

LCD monitor Video cable USB cable

Serial cable Power Adapter

(Exclude APR & IntelliTouch Plus model) (Exclude NPB model)

Elo

QuickStart

Software

CD + Quick Install Guide Brackets

2-4

Power cable for European models (exclude NPB models)

Europe/VDE power cable

Power cable for Japan models (exclude NPB models)

Japanese/PSE power cable Adapter/Terminal

Power cable forAsia models (exclude NPB models)

and

or or

China/CCC power cable Taiwan/BSMI power cable Korea/KC power cable

Power cable for Worldwide models (exclude NPB models)

USA/UL Power cable Europe/VDE power cable

2-5

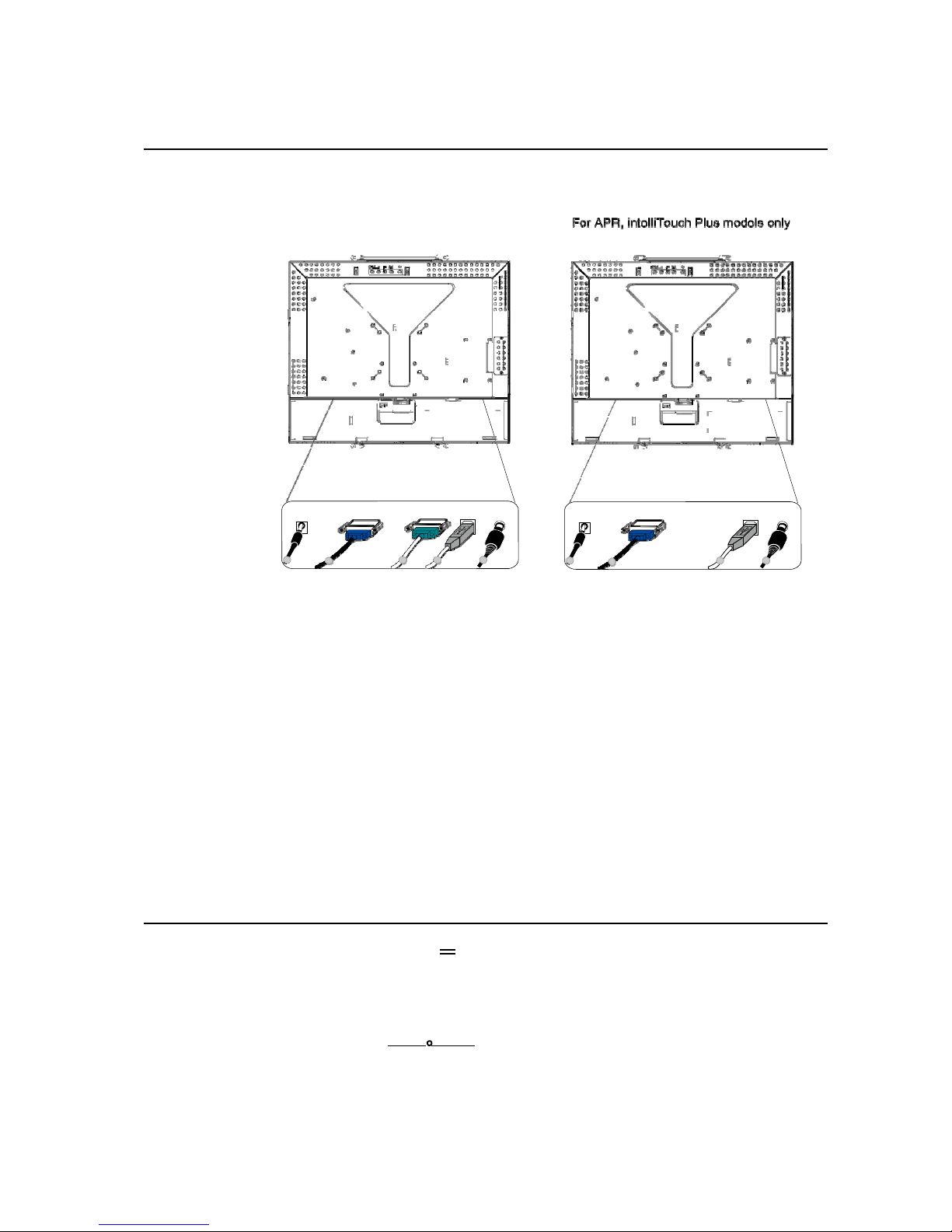

Interface Connection

Note: Before connecting the cables to your touchmonitor and PC, be sure that the computer

and touchmonitor are turned off.

1 3 2 2

1 3 2

Adapter Video Cable Serial Cable USB Cable OSD Remote Control

Key

(option)

Adapter Video Cable USB Cable OSD Remote Control

Key

(option)

1. Connect one end of the power adapter to the monitor and the other end to the connector of

the power cord.

2. Connect one end of either the touchscreen serial (RS232) cable or the touchscreen USB

cable (but not both) to the rear side of the computerand the other end to the LCD monitor.

Tighten by turning the two thumb screws clockwise to ensure proper grounding (optional

module USB cable does not have thumb screws).

3. Connect one end of the video cable to the rear side of computer and the other to the LCD

monitor. Tighten by turning the two thumb screws clockwise to ensure proper grounding.

4. Press the power button on the rear panel to turn the monitor power on.

5. Connect one end of OSD remote control key(option) to the monitor.

Power Requirements

Note: This monitor operates at 12V 2.5A

DC Input:

Plug shape: Tuning Fork Type

Plug polarity: (+) ) (-)

Outside dimension: Ø 5.5 ± Ø.1

Inside dimension: Ø 2.1 ± Ø.1

2-6

Product Overview

Main Unit

Rear View
