Elo TouchSystems 1000 Series Manual de usuario

Touchmonitor User Guide

1537L 15¨ LCD Kiosk Touchmonitor

1000 Series

Revision A

User Guide

15"LCD KIOSK TOUCHMONITOR

ET1537L Series

Revision A

P/N E250918

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system,

or translated into any language or computer language, in any form or by any means, including, but not

limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written per-

mission of Elo TouchSystems. Disclaimer

The information in this document is subject to change without notice. Elo TouchSystems makes no

representations or warranties with respect to the contents hereof, and specifically disclaims any

implied warranties of merchantability or fitness for a particular purpose. Elo TouchSystems re-

serves the right to revise this publication and to make changes from time to time in the content

hereof without obligation of Elo TouchSystems to notify any person of such revisions or changes.

Trademark Acknowledgments

AccuTouch,AT4, CarrollTouch, Elo TouchSystems Entuitive, IntelliTouch, iTouch, MonitorMouse

and SecureTouch are trademarks of Elo TouchSystems, Inc.

Other product names mentioned herein may be trademarks or registered trademarks of their respec-

tive companies.

iii

Table of Contents

Chapter1 Regulatory Information 33

Introduction 7 Warranty 37

Product Description ...................................................7

Precautions ................................................................7 Index 39

Chapter2

Installation and Setup .................................... 9

Unpacking Your Touchmonitor...................................9

Product Overview ......................................................10

Main Unit ..............................................................10

Rear View ............................................................10

Touch Interface Connection .......................................11

Installing the Driver Software .....................................12

Installing the Serial Touch Driver .........................13

Installing the Serial Touch Driver for Windows

XP, Windows 2000, Me, 95/98 and NT 4.0 .....13

Installing the Serial Touch Driver for MS-DOS

and Windows 3.1..................................................14

Installing the USB Touch Driver...........................15

Installing the USB Touch Driver for Windows

XP, Windows 2000, Me, 95/98 and NT 4.0 .....15

Chapter3

Operation 17

About Touchmonitor Adjustments ..............................17

Front Panel Controls ............................................18

Controls and Adjustment ............................................19

OSD Menu Functions ..........................................19

OSD Control Options ...........................................20

Preset Modes.......................................................21

Power Management System ................................22

Chapter4

Troubleshooting 23

Solutions to Common Problems .................................23

AppendixA.................................................... 25

AppendixB

Care and Handling of Your Touchmonitor ..................28

AppendixC

Touchmonitor Specifications ......................................30

AccuTouch Touchscreen Specifications .............31

15" LCD Touchmonitor (ET1537L-XXWA-1)

Dimensions ..........................................................32

C H A P T E R

INTRODUCTION

Product Description

Your new touchmonitor combines the reliable performance of touch technology with the latest

advances in (LCD) display design. This combination of features creates a natural flow of informa-

tion between a user and your touchmonitor.

This LCDmonitor incorporates a 15” color active matrix thin-film-transistor (TFT) to provide

superior display performance. A maximum resolution of XGA 1024x768 is ideal for displaying

graphics and images. Other outstanding features that enhance this LCD monitor’s performance are

Plug & Play compatibility, and OSD(On Screen Display) controls.

Precautions

Follow all warnings, precautions and maintenance as recommended in this user’s manual to

maximize the life of your unit. SeeAppendix B for more information on touchmonitor safety.

1-7

About the Product

Your LCDdesktop touchmonitor is a 15” XGATFTcolor display with the following features:

• The internal microprocessor digitally controls auto-scanning. For horizontal scan frequencies

between 31.5 KHz and 60.2 KHz, and vertical scan frequencies between 56.3 Hz and 75.0 Hz. In

each frequency mode, the microprocessor-based circuitry allows the monitor to function at the

precision-of a fixed frequency.

• High contrast color TFTLCD display support resolution up to XGA1024x768. Compatible with

VGA, SVGA, XGA(non-interlaced) and most Macintosh compatible color video cards.

• Power management system conforms to VESA DPMS standard.

• SupportsDDC1/2B for Plug & Play compatibility.

• Advanced OSDcontrol for picture quality adjustment.

For full Product Specifications refer toAppendix C.

1-8 UserGuide

C H A P T E R

INSTALLATION AND SETUP

This chapter discusses how to install your LCDtouchmonitor and how to install the driver software.

Unpacking Your Touchmonitor

Check that the following 8 items are present and in good condition:

LCD monitor Video cable USB cable

Serial cable European power cable Power cable US/Canada

CDand Quick InstallGuide Brick power supply

2-9

Touch Interface Connection

Note: Before connecting the cables to your touchmonitor and PC, be sure that the computer and

touchmonitor are turned off.

1. Connect one end of the power adapter to the monitor and the other end to the connector of the

power cord.

2. Connect one end of either the touchscreen serial (RS232) cable or the touchscreen USB cable

(but not both) to the rear side of the computer and the other end to the LCDmonitor. Tighten by

turning the two thumb screws clockwise to ensure proper grounding (optional module USB cable

does not have thumb screws).

3. Connect one end of the video cableto the rear side of computer and the other to the LCDmonitor.

Tighten by turning the two thumb screws clockwise to ensure proper grounding.

4. Press the power button on the front panel to turn the monitor power on.

2-10 UserGuide

Adapter Video Cable Serial Cable USB Cable

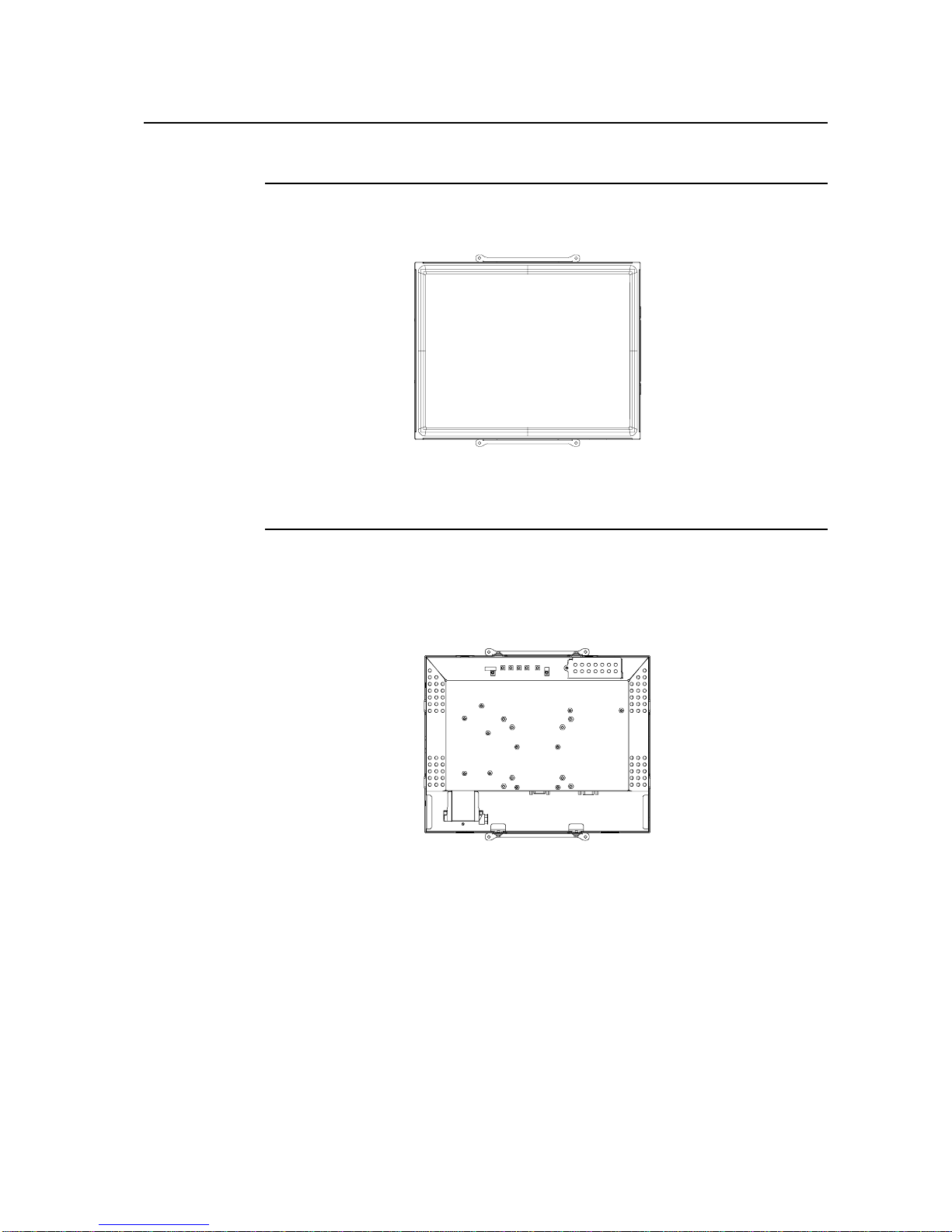

Product Overview

Main Unit

Rear View

2-11

Installing the Driver Software

Elo TouchSystems provides driver software that allows your touchmonitor to work with your

computer. Drivers are located on the enclosed CD-ROM for the following operating systems:

• WindowsXP

• Windows 2000

• Windows Me

• Windows 98

• Windows 95

• WindowsNT4.0

Additional drivers and driver information for other operating systems are available on the Elo

TouchSystems web site at www.elotouch.com.

Your Elo touchmonitor is plug-and-play compliant. Information on the video capabilities of your

touchmonitor is sent to your video display adapter when Windows starts. If Windows detects your

touchmonitor, follow the instructions on the screen to install a generic plug-and-play monitor.

Refer to the appropriate section for driver installation instructions.

Depending upon whether you connected the serial communication cable or the USB

communication cable, you should install only the serial driver or the USB driver.

2-12 UserGuide
