Elo 1725L 17” Touch Screen Monitor

Installation Guide

Product Name: Elo 1725L 17- inch Monitor

0621407

Elo 1725L 17” Touch Screen Monitor Installation and Configuration Guide

work of McKesson Corporation, which may be used only in accordance with a license

agreement with McKesson Corporation. Any unauthorized use, duplication, or disclosure

is prohibited.

McKesson Corporation assumes no responsibility or liability for any errors or inaccuracies

that may appear in this documentation. Except as permitted by such license, no part of

this publication may be reproduced, stored in a retrieval system, or transmitted, in any

form or by any means, electronic, mechanical, recorded, or otherwise, without the prior

written permission of McKesson Corporation.

Any reference to company names in samples, procedures, or templates are for

demonstration purposes only and are not intended to refer to any actual organization.

Pharmaserv is a registered trademark of McKesson Corporation.

ActiveX, Microsoft, Windows, Windows Vista, Windows XP, Windows NT, and Windows

Server 2003 are either registered trademarks or trademarks of Microsoft Corporation in

the United States and/or other countries.

All other trademarks are the property of their respective owners.

Documentation Feedback

We welcome your feedback. If you have comments or suggestions regarding our product

online Help or user documentation (upgrade instructions, release notes, etc.), please e-

mail us at mpsdoctech@mckesson.com and type doc tech in the subject line.

•Please include the following information with your feedback:

•Product and version number (e.g., Pharmaserv Version 3.1.3)

•Document name and page numbers

•Topic title (for online Help)

•Brief description of content error (for example, inaccurate instructions, more

detail needed, grammatical error, inaccurate sample graphic, etc.)

Thank you for taking the time to help us improve our product.

McKesson Pharmacy Systems Page 2 of 19

Elo 1725L 17” Touch Screen Monitor Installation and Configuration Guide

Table of Contents

Supported Operating Systems............................................................................................4

Cable Installation...........................................................................................................4

Touch Screen Drivers....................................................................................................4

Windows NT 4.0 System Drivers........................................................................................5

Calibrating the Touch Screen on Windows NT..............................................................8

Windows XP and Windows Server 2003 Drivers..............................................................10

Windows Vista Drivers......................................................................................................14

Calibrating the Elo 1725L on Vista..............................................................................18

McKesson Pharmacy Systems Page 3 of 19

Elo 1725L 17” Touch Screen Monitor Installation and Configuration Guide

Supported Operating Systems

The Elo touch screen monitor can be installed on the following operating systems:

•Windows NT4.0

•Windows XP

•Windows Server 2003

•Windows Vista

Please review and select the installation instructions that match your operating system.

Cable Installation

There are two cable options (USB and Serial) for the Elo 1725L monitor. Refer to the

Quick Installation Guide included with the monitor for additional information.

Windows NT4.0 requires an open serial port on the computer to support the monitor. The

Elo supplied serial cable must be installed to connect the monitor to the computer. Please

refer to illustration 3a of the Quick Installation Guide. Illustration 3a will also assist in

installing the video, sound, and power cables to the monitor.

Windows XP, Windows Server 2003, and Windows Vista require an open USB port on

the computer. The Elo supplied USB cable must be installed to connect the monitor to the

computer. Please refer to illustration 3b of the Quick Installation Guide. Illustration 3b

will also assist in installing the video, sound, and power cables to the monitor.

IMPORTANT: Do not connect the USB cable until directed to do so.

Touch Screen Drivers

A CD labeled MPS Elo 17” Touch Screen Monitor Installation is used to install the

touch screen drivers on Windows NT, Windows XP, Windows Vista, and Windows Server

2003 systems. The CD autoruns and displays the main menu when inserted into a

CD-ROM drive. Print the Installation Instructions before installing the touch screen

drivers.

McKesson Pharmacy Systems Page 4 of 19

Elo 1725L 17” Touch Screen Monitor Installation and Configuration Guide

Windows NT 4.0 System Drivers

Use the following steps to install the Elo Touch Screen drivers for Windows NT4.0

systems.

1. Insert the CD labeled MPS Elo 17” Touch Screen Monitor Installation into the

CD-ROM drive. When the CD autoruns, a menu displays similar to the following:

2. Click Install Touch Screen Drivers. A window displays similar to the following:

McKesson Pharmacy Systems Page 5 of 19

Elo 1725L 17” Touch Screen Monitor Installation and Configuration Guide

3. Click Next. A window similar to the following displays:

4. Click Yes. A window similar to the following displays:

McKesson Pharmacy Systems Page 6 of 19

Elo 1725L 17” Touch Screen Monitor Installation and Configuration Guide

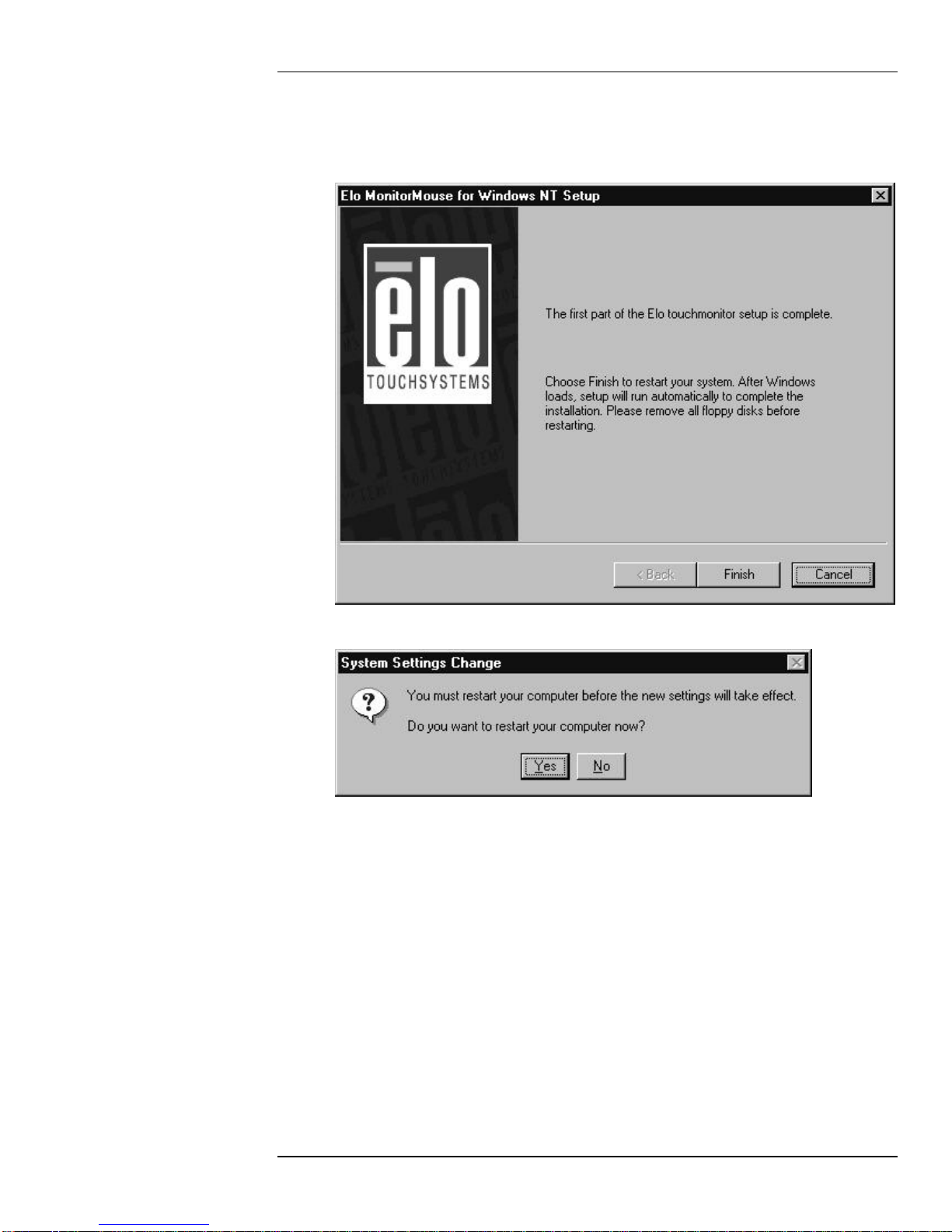

5. Select the COM port to which the Elo supplied serial cable is attached, and then

click Next. The driver files transfer and then a window similar to the following

displays:

6. Click Finish. A window similar to the following displays:

7. Click Yes. The system reboots. When the system restarts, the touch screen must

be calibrated.

8. See the next section Calibrating the Touch Screen on Windows NT to

complete the installation.

McKesson Pharmacy Systems Page 7 of 19

Elo 1725L 17” Touch Screen Monitor Installation and Configuration Guide

Calibrating the Touch Screen on Windows NT

Use the following steps to calibrate the Elo 1725L Touch Screen Monitor.

To calibrate the Elo Touch Screen:

1. Select Start | Settings | Control Panel. A window displays similar to the

following:

2. Double-click the Elo Touchscreen icon. A window displays similar to the

following:

McKesson Pharmacy Systems Page 8 of 19

Elo 1725L 17” Touch Screen Monitor Installation and Configuration Guide

3. Select Align. A window displays similar to the following:

Touch the red circle as it moves to the different locations on the touch screen. Be

sure to touch the screen carefully and firmly. When calibration is complete you

will have 30 seconds to select Yes to save the calibration.

4. Select OK to close the Elo Touchscreen Properties window.

5. Close all open windows. The Elo Touch Screen Monitor is ready for use.

6. Please remove the installation CD from the CD-ROM drive.

McKesson Pharmacy Systems Page 9 of 19

Elo 1725L 17” Touch Screen Monitor Installation and Configuration Guide

Windows XP and Windows Server 2003 Drivers

Use the following steps to install the Elo Touch Screen driver for Windows XP and

Windows Server 2003 systems.

1. Insert the CD labeled MPS Elo 17” Touch Screen Monitor Installation. When

the CD autoruns a menu displays similar to the following:

IMPORTANT: Verify that the USB cable is connected at this time.

2. Click Install Touch Screen Drivers. A window displays similar to the following:

McKesson Pharmacy Systems Page 10 of 19
