Elo Entuitive Touchmonitor

User Guide

For 18” LCD Touchmonitor

Version 1.0

P/N 80-8025-01-A

1800L Series

Models

ET1825L-8SWA-1

ET1825L-7SWA-1

ET1866L-8SNA-1

ET1866L-7SNA-1

ET1886L-8SNA-1

ET1886L-7SNA-1

Elo TouchSystems, Inc.

1-800-ELOTOUCH

www.elotouch.com

Elo LCD Touchmonitor User Guide-2

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated

into any language or computer language, in any form or by any means, including, but not limited to, electronic,

magnetic, optical, chemical, manual, or otherwise without prior written permission of Elo TouchSystems.

Disclaimer

The information in this document is subject to change without notice. Elo TouchSystems makes no rep-

resentations or warranties with respect to the contents hereof, and specifically disclaims any implied warranties of

merchantability or fitness for a particular purpose. Elo TouchSystems reserves the right to revise this publication

and to make changes from time to time in the content hereof without obligation of Elo TouchSystems to notify any

person of such revisions or changes.

Trademark Acknowledgments

IntelliTouch, SecureTouch, AccuTouch, Entuitive, and MonitorMouse are trademarks of Elo TouchSystems, Inc.

Other product names mentioned herein may be trademarks or registered trademarks of their respective

companies. Elo TouchSystems claims no interest in trademarks other than its own.

Elo LCD Touchmonitor User Guide-3

Chapter 1. Introduction........................................4

Precautions................................................................4

About the Product......................................................4

Chapter 2. Installation and Setup......................5

Unpacking Your Touchmonitor.................................5

Touch Interface Connection......................................6

Optimizing the LCD Display.....................................6

VESA Mount on Your Touchmonitor........................6

Installing the Driver Software....................................7

Installing Windows 2000, 9X, NT 4.0 Drivers.…..7

Installing MS-DOS and Windows 3.1 Drivers…...8

Chapter 3. Operation............................................9

About Touchmonitor Adjustments............................9

Using the On-Screen Display Menus......................9

Auto Adjustment........................................................10

First OSD Menu.........................................................10

Contrast......................................................................10

Horizontal Position....................................................11

Vertical Position........................................................11

Horizontal Size...........................................................11

Tracking......................................................................11

Reset..........................................................................11

Chapter 4. Troubleshooting...............................12

Chapter 5. Care and Handling............................13

Cleaning Your Touchmonitor....................................14

Screen........................................................................14

Cabinet.......................................................................14

Safety..........................................................................14

Appendix A. Native Resolution..........................15

Appendix B. Technical Specifications.............16

Appendix C. Mechanical Specifications……..17

Warranty ..................................................................18

Contacting Elo .......................................................19

Table of Contents

Elo LCD Touchmonitor User Guide-4

Congratulations on your purchase of an Elo TouchSystems Entuitive LCD touchmonitor.

Your new high-resolution touchmonitor combines the reliable performance of Elo’s touch

technology with the latest advances in LCD display design. This combination of features

creates a natural flow of information between a user and your touchmonitor.

Precautions

Follow all warnings, precautions and maintenance as recommended in this user’s manual

to maximize the life of your unit. See Chapter 5 “Care and Handling of your

Touchmonitor” for more information on touchmonitor safety.

About the Product

Your LCD Touchmonitor is a 18.1” Analog TFT/ Active matrix LCD color display with the

following features:

Dual Inputs (BNC/D-Sub)

18.1” diagonal screen size

Unlimited number of displayable colors

1280 x 1024 resolution

XGA/ SVGA/ VGA/ VESA/ Mac/ NEC PC-98 compatible

24~80kHz horizontal scan

56~76z high refresh rate

Auto adjustment capability

High quality full screen re-scaling

VESA DPMS power saving

VESA flat panel monitor physical mounting interface (100mm)

For full Technical Specifications refer to Appendix B.

For full Mechanical Specifications refer to Appendix C.

Chapter 1 –Introduction

Elo LCD Touchmonitor User Guide-5

Chapter 2 –Installation and Setup

This chapter discusses how to install your LCD touchmonitor and how to install Elo

TouchSystems driver software.

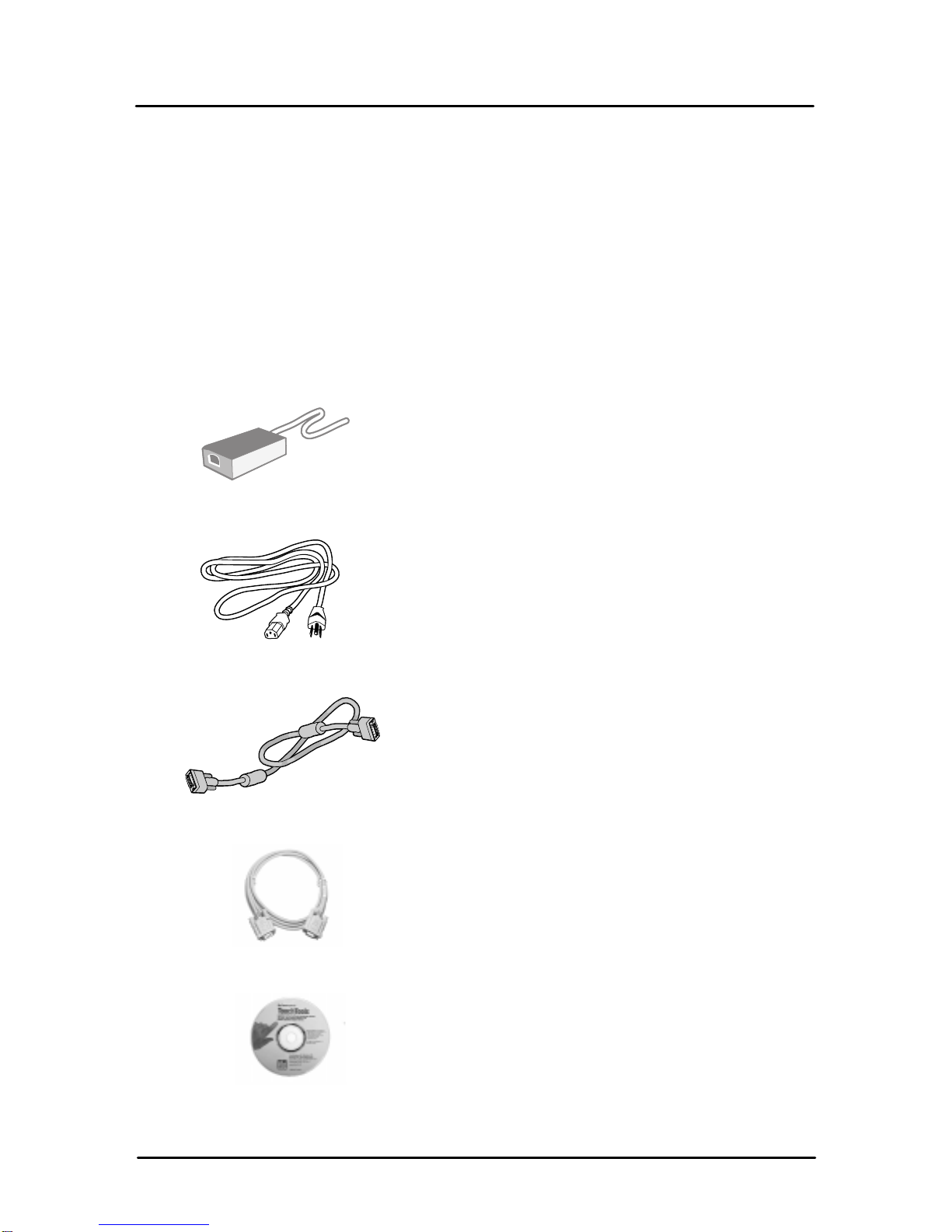

Unpacking Your Touchmonitor

Carefully unpack your touchmonitor. Check that you have everything you need and that

none of the components have been damaged during shipping. Save the box and

packaging in caseyou need to ship the touchmonitor..f

Power Cord

Video Cable

External AC Power Adaptor

Touchscreen Cable (ET1866L & ET1886L Models Only)

Elo TouchTools CD (Contains drivers and documentation)

Elo LCD Touchmonitor User Guide-6

Touch Interface Connection

Note: Your interface cables may have been pre-connected to your monitor at the

factory.

1. Before connecting the cables to your touchmonitor and PC, be sure that the

computer and the touchmonitor are turned off.

2. Connect the ferrite end of the video cable to the video connector on your PC.

Connect the other end of the video cable to the touchmonitor. Secure the cable to

your touchmonitor and PC by turning the screws on the connector.

3. Connect the female end of the serial (RS-232) cable to the serial port on the back of

your PC. Connect the male end of the cable to the touchscreen connector on your

touchmonitor.

4. Power on your PC then your touchmonitor. After a brief pause the picture should

appear.

5. Install the driver software using the procedure described in the documentation

accompanying the driver disk.

Optimizing the LCD Display

To ensure the LCD display works well with your computer, configure the display mode of

your graphic card to make it less than or equal to 1280 x 1024 resolution, and make sure

the timing of the display mode is compatible with the LCD display. Refer to Appendix A

for more information about resolution. Compatible video modes for your touchmonitor are

listed in Appendix B.

VESA Mount on Your Touchmonitor

(Desktops Only)

Your desktop touchmonitor comes with a VESA standard mounting holes for additional

mounting options. Your touchmonitor conforms to the VESA Flat Panel Monitor Physical

Mounting Interface (FPMPMI™) Standard, which defines a physical mounting interface

for flat panel monitors, and corresponding standards for flat panel monitor mounting

devices, such as wall and table arms.

The following companies provide VESA mounting devices compatible with your

touchmonitor

Ergotron Innovative Office Products GCX

800-888-8458 800-524-2744 800-228-2555

651-681-7600 800-524-2744 707-773-1100

www.ergotron.com www.innov-office-prod.com www.gcx.com

Chapter 2 –Installation and Setup (Continued)

Elo LCD Touchmonitor User Guide-7

Installing the Driver Software

Elo TouchSystems provides driver software that allows your touchmonitor to work with

your computer. Drivers are located on the enclosed CD-ROM for the following operating

systems:

Windows 2000

Windows 98

Windows 95

Windows NT 4.0

Windows 3.x

MS-DOS 2.x or later

Additional drivers and driver information for other operating systems (including OS/2,

Macintosh and Linux) are available on the Elo TouchSystems web site at

www.elotouch.com.

Your Elo touchmonitor is plug-and-play compliant. Information on the video capabilities of

your touchmonitor is sent to your video display adapter when Windows starts. If Windows

detects your touchmonitor, follow the instructions on the screen to install a generic plug-

and-play monitor.

Installing the Serial Touch Driver for Windows 2000, 95/98

and NT 4.0

Note: For Windows 2000 and NT 4.0 you must have administrator access

rights to install the driver.

1. Insert the Elo CD-ROM in your computer’s CD-ROM drive.

2. If the AutoStart feature for your CD-ROM drive is active, the system

automatically detects the CD and starts the setup program.

Follow the directions on the screen to complete the driver setup for your

version of Windows.

3. If the AutoStart feature is not active:

Click Start > Run.

Click the Browse button to locate the touch.exe program on the CD-ROM.

Click Open, then OK to run touch.exe.

Follow the directions on the screen to complete the driver setup for your

version of Windows.

Chapter 2 –Installation and Setup (Continued)

Elo LCD Touchmonitor User Guide-8

Installing the Serial Touch Driver for MS-DOS and Windows

3.1

1. Insert the Elo CD-ROM in your computer’s CD-ROM drive.

2. From DOS, type d:\EloDW to change to the correct directory on the CD-

ROM (your CD-ROM drive may be mapped to a different drive letter).

3. Type install and press Enter to start the installation.

4. Align the touchscreen.

You must have already completed Steps 1 and 2 before proceeding. Refer

to Chapter 2 of the Elo DOS and Windows Driver Guide as necessary for

additional installation information.

1. Type INSTALL at the DOS prompt in the directory containing the driver

install files.

2. INSTALL asks you to select the software to install. Then choose

d:\EloDW from the displayed list.

3. INSTALL also asks you for the paths to use during installation, or you

may use its defaults. INSTALL creates directories as necessary, and

warns you if they exist.

4. If you are updating your software, you may wish to specify the paths

containing the earlier versions, and overwrite the obsolete files. All exe-

cutable programs are upward compatible. For a list of differences from

each previous version of the drivers, be sure to select "Differences from

Previous Versions" during the installation process.

5. INSTALL updates your AUTOEXEC.BAT file with the drivers you select.

INSTALL makes a copy of your original AUTOEXEC.BAT file, called

AUTOEXEC.OLD. If you already have Elo driver commands in your

AUTOEXEC.BAT file, they will be commented out.

6. When INSTALL is finished, it leaves a file called GO.BAT in the subdi-

rectory you specified. GO loads the touchscreen driver, runs the calibra-

tion program ELOCALIB, and gives you some final instructions.

7. If you are using Windows 3.1, you will also align the touchscreen within

Windows 3.1 with the Touchscreen Control Panel.

Chapter 2 –Installation and Setup (Continued)

Elo LCD Touchmonitor User Guide-9

About Touchmonitor Adjustments

Your touchmonitor will likely require adjustment. Variations in video output and

application will require you to adjust your touchmonitor to optimize the quality of the

display.

For best performance, your monitor should be operating in native resolution, that is 1280 x

1024 @ 60 Hz. Use the Display control panel in Windows to choose 1280 x 1024 resolution.

Operating in other resolutions will degrade video performance. For further information,

please refer to Appendix A.

All adjustments you make to the controls are automatically memorized. This feature

saves you from having to reset your choices every time you unplug or power your

touchmonitor off and on. If there is a power failure your touchmonitor settings will not

default to the factory specifications.

Using the On-Screen Display Menus

All adjustments are made by using the on-screen display (OSD) menus. All menu items

can be selected by using the buttons on the side bezel.

The user controls are labeled and are mounted on the front of the touchmonitor for all

Desktop models.

Panel Mount and Chassis Mount touchmonitors have user controls that are labeled and

located at the rear of the unit.

Chapter 3 –Operation

Elo LCD Touchmonitor User Guide-10

User Controls (The following is an excerpt taken from pages 10 –12 of the NEC user manual)

Chapter 3 –Operation (Continued)

AUTO

BNC/D-SUB: Allows you to change between the BNC and D-SUB signal inputs.

OSM™ (On-Screen Manager) control buttons on the front of the

monitor function as follows:

To access OSM menu, press any of the control buttons ( , , , ) or the

PROCEED or EXIT button.

To rotate OSM between Landscape and Portrait modes, press the RESET button.

NOTE: OSM menu must be closed in order to rotate.

Main Menu Sub-Menu

EXIT Exits the OSM controls. Exits to the OSM main

menu.

CONTROL /Moves the highlighted Moves the highlighted

area up/down to select area up/down to select

one of the controls. one of the controls.

CONTROL / Moves the highlighted area Moves the bar left/

left/right to select control right to increase or

menus. decrease the

adjustment.

PROCEED Has no function Activates Auto Adjust

and ALL RESET functions.

RESET Resets the highlighted Resets the highlighted

control menu to the factory control to the factory

setting. setting.

NOTE: When RESET is pressed in the main and sub-menu, a warning window

will appear allowing you to cancel the RESET function by pressing the EXIT button.

Brightness/Contrast Controls

BRIGHTNESS

Adjusts the overall image and background screen brightness.

CONTRAST

Adjusts the image brightness in relation to the background.

AUTO ADJUST CONTRAST

Adjusts the image displayed for non-standard video inputs.

OSM LOCK OUT

The OSM LOCK OUT control completely locks out access to all OSM control

functions. When attempting to activate OSM controls while in the LOCK OUT

mode, a screen will appear indicating that OSM controls are locked out.

• To enter the LOCK OUT mode, simultaneously press the PROCEED and

button. The LOCK OUT window will appear.

• To activate the LOCK OUT function, simultaneously press and hold down

the PROCEED and button. The OSM window will disappear within

seconds and the LOCK OUT function will be activated.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Monitor de Elo TouchSystems

Elo TouchSystems

Elo TouchSystems Entuitive ET1X45C-4SWE-1 Series Manual de usuario

Elo TouchSystems

Elo TouchSystems 15A2 for wireless card Manual de usuario

Elo TouchSystems

Elo TouchSystems 1939L Manual de usuario

Elo TouchSystems

Elo TouchSystems ET1302L Manual de usuario

Elo TouchSystems

Elo TouchSystems Tyco Manual de usuario

Elo TouchSystems

Elo TouchSystems ET2294L Manual de usuario

Elo TouchSystems

Elo TouchSystems ET2203LM Manual de usuario

Elo TouchSystems

Elo TouchSystems Elo Entuitive 3000 Series 1729L Manual de usuario

Elo TouchSystems

Elo TouchSystems Entuitive ET1529L Series Manual de usuario

Elo TouchSystems

Elo TouchSystems D-Series Manual de usuario

Elo TouchSystems

Elo TouchSystems ET1545C Series Manual de usuario

Elo TouchSystems

Elo TouchSystems 4200L Manual de usuario

Elo TouchSystems

Elo TouchSystems M467 Instrucciones de instalación y funcionamiento

Elo TouchSystems

Elo TouchSystems IDS ET3203L Manual de usuario

Elo TouchSystems

Elo TouchSystems 1529L Manual de usuario

Elo TouchSystems

Elo TouchSystems Elo Entuitive 3000 Series 1739L Manual de usuario

Elo TouchSystems

Elo TouchSystems ET 1725C Series Manual de usuario

Elo TouchSystems

Elo TouchSystems ET2039L Manual de usuario

Elo TouchSystems

Elo TouchSystems Entuitive 1925L Series Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems Entuitive 1247L Series Guía del usuario

Elo TouchSystems

Elo TouchSystems ET2200L Manual de usuario

Elo TouchSystems

Elo TouchSystems Entuitive 1747L Series Guía del usuario

Elo TouchSystems

Elo TouchSystems 17A2 Manual de usuario

Elo TouchSystems

Elo TouchSystems 1529L Manual de usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación
