Elo TouchSystems M467 Instrucciones de instalación y funcionamiento

Warning! It will cause malfunction if the monitor is operating with unspecified power supply unit

or incorrect power voltage. Do not exposure this unit in the rain or moisture environment to reduce the

risk of fire or electric shock.

Content:

I. Introduction.............................................................................................................................1

Features....................................................................................................................................1

Unpack the monitor .................................................................................................................2

Ⅱ. Installation...............................................................................................................................3

I/O placement...........................................................................................................................3

To PC .......................................................................................................................................3

Touch driver.............................................................................................................................4

MSR (optional)........................................................................................................................6

Control Buttons........................................................................................................................8

Structure of OSD settings.........................................................................................................9

Ⅲ. For your safety........................................................................................................................10

Ⅳ. Support timing........................................................................................................................10

Ⅴ. Mechanical dimension............................................................................................................10

Ⅵ. FCC Warning Statement........................................................................................................11

Ⅶ. Product General Specification...............................................................................................12

Version. 1.0 1

I. Introduction

M467 is color TFT LCD monitor, integrate with ELO or TWN resistive touch, suitable for many types of

application. Optional MSR and 2nd display, please contact our regional distributor for further information.

¾Features

-Optimal display resolution 1024 * 768

-VESA 75 * 75 mm wall mount standard

-Durable and sturdy base design

-Optional 3 tracks Magnetic Strip Reader (MSR)

-Optional variety of 2nd display (8.4”)

-Adjustable viewing angel freely up to 90 degrees horizontally

-Low power consumption only 20W with CCFL backlight

Version. 1.0 2

¾Unpacking the monitor

-Put the monitor on a clean surface, make sure the box in upright position.

-Remove packing materials from inside of box.

Check accessory

Please make sure all the accessory are included:

Standard Items

a. b. c.

d. e. f.

Optional Items

a. b.

a. MSR b. 2nd display ( 8.4” )

a. LCD Monitor b. VGA cable

c. Touch driver / User Manual CD d. Touch cable (USB or RS232)

e. Power adaptor f. Power cable

Version. 1.0 3

Ⅱ. Installation

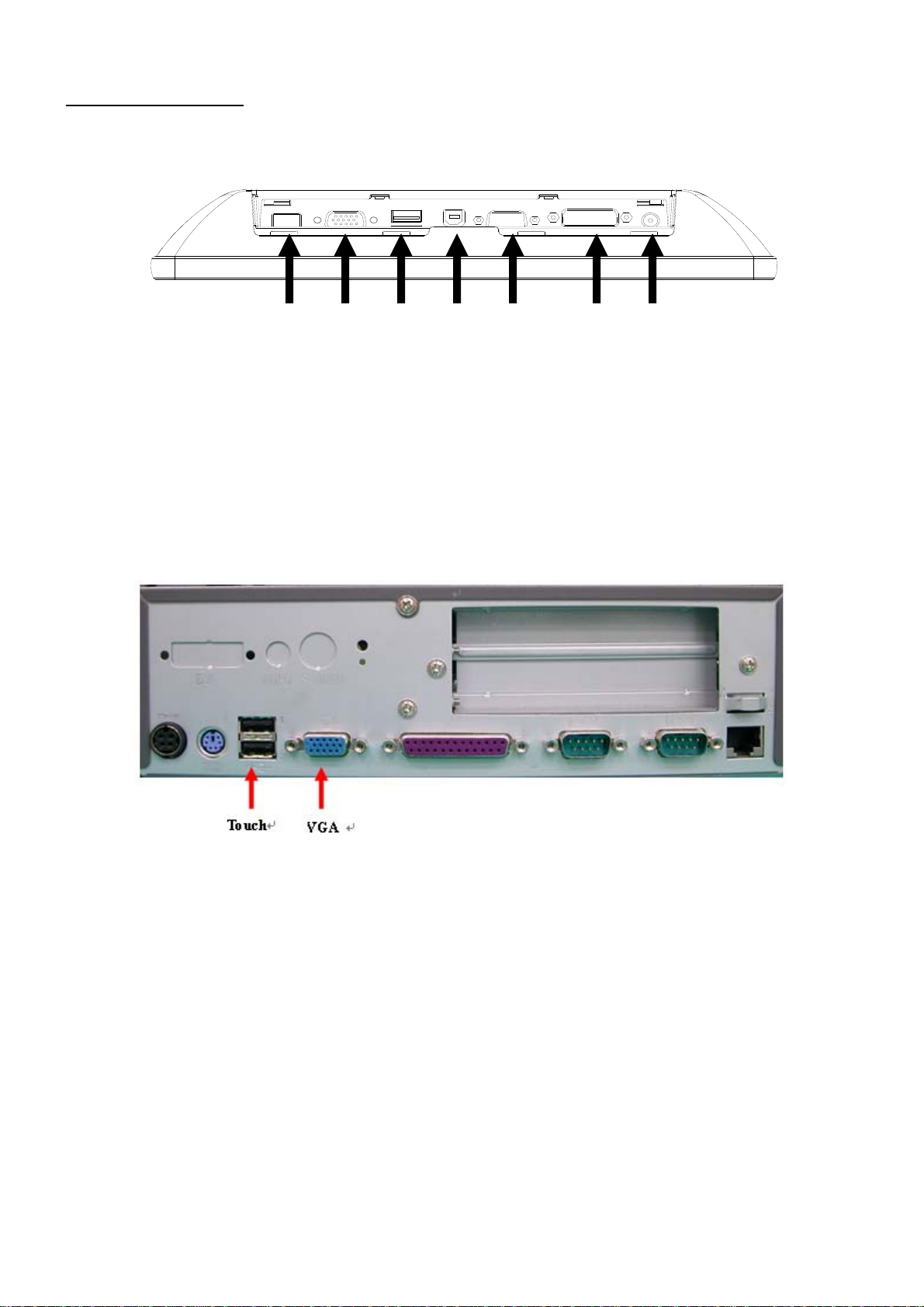

¾I/O placement:

1 DC JACK 2 DVI

3 VGA 4 USB B Type

5 Dual USB AType 6 RS232

7 RJ45(RS232)

¾To PC:

1. Connect VGAcable from monitor to PC

2. Connect USB touch cable to PC

3. Connect DC plug to monitor and the other side to wall outlet

1234567

Version. 1.0 4

¾Touch Driver installation：

TWN Touch：

1. Double click “setup.exe” from driver menu 2. Click “next” from welcome window

3. Click “next” from choose destination location window 4. Click “next” from ready to install the

program

5.Click“next”fromsetuptype 6.Click“finish”whensetupcompleted

Calibration procedures:

1. Double click “POS Touch+” icon to run calibration function

2. Follow 9 points linearity calibration procedures and save the data

3. Follow free draw calibration

4. Exit calibration menu

5. Reboot PC

Version. 1.0 5

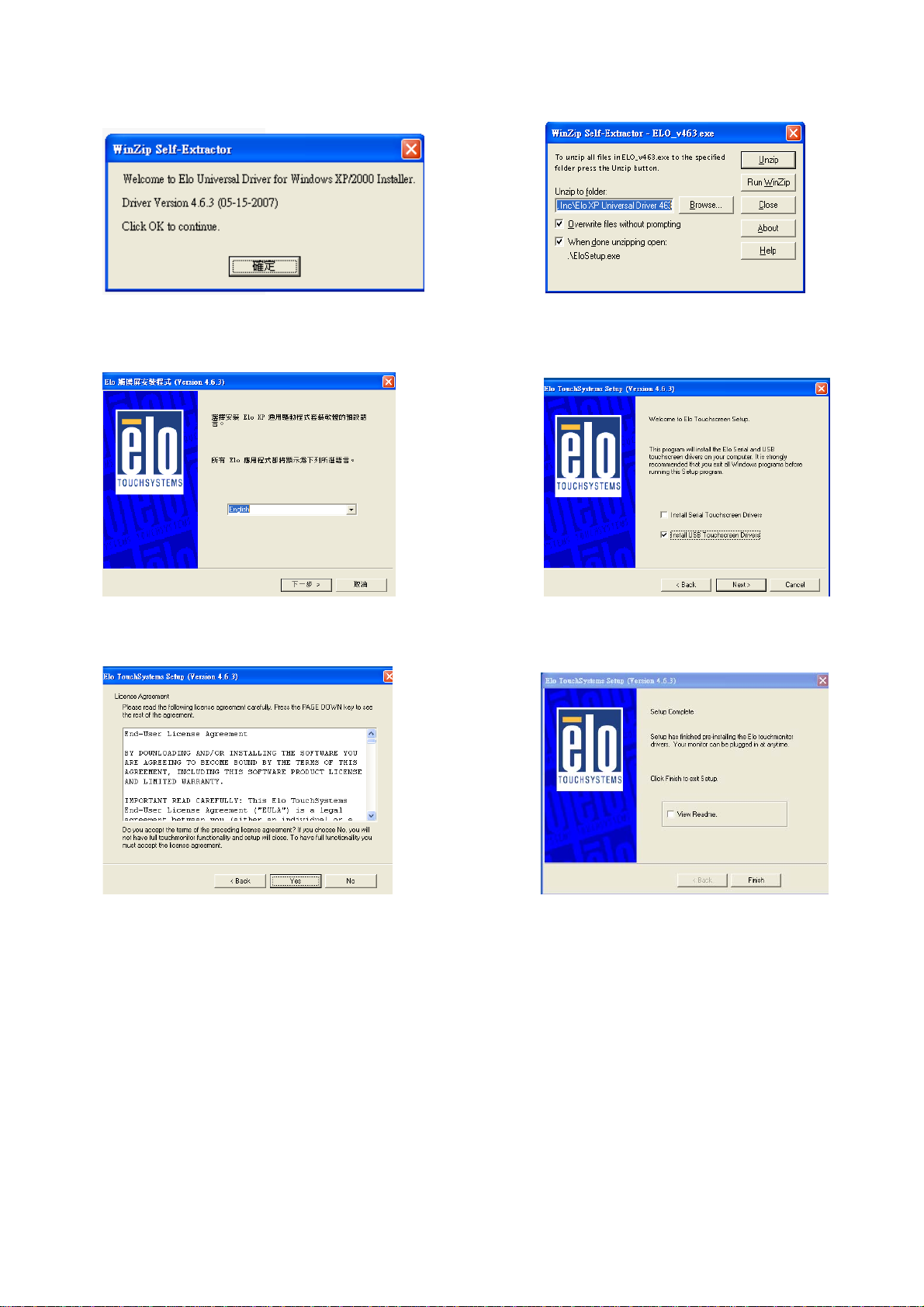

ELO Touch：

1.Install ELO Touchscreen Driver 2. Click “Unzip” from WinZip

Self-Extractor-ELO_v463.exe

3. Click “next” from Select Language 4.Select Install Serial or USB Touchscreen

Driver

5.Click-on “Yes” after Installation 6.Click-on“Finish”

Calibration procedures:

1. Double click “Elo Touchscreen” icon to run calibration function

2. Follow 3 points linearity calibration procedures and save the data

3. Follow free draw calibration

4. Exit calibration menu

Version. 1.0 6

¾MSR installation (optional)：

Components of MSR Kit:

1. Slide the MSR into the right position of the System.

2. Fasten the screws (x2).

Screws

USB

MSR

Version. 1.0 7

¾Control Buttons

Auto Adjusting

a.) Pressing to execute AUTO-Adjusting function. This function will set the

monitor display area to the optimal position.

b.) Sometimes this function can't achieve the optimal effects. Please follow the

manual adjusting procedure.

When the light bar move other item, the key are used to select it, and read to adjust.

Press the MENU key to activate the On Screen Display (OSD). Press twice to turn

off the OSD. After 30 sec idle time, the OSD screen will automatically turn off.

Power Use the power switch to turn the power ON or OFF. We recommend to turn your

system power on first, then the LCD monitor.

Down

a.) When OSD mode is activated (When “MENU” key is pressed). The two keys

areusedtoselecttheadjustmentitems.

b.) When adjustment item is selected, the two keys are defined to decrease or

increase the value of each selected item.

Version. 1.0 8

¾Structure of OSD settings:

First Level Second Level Third

Level Operating Procedure

Auto Adjust Press “UP” or “DOWN” to adjust H-phase &

H-position & V-position clock automatically.

Luminance Brightness

Contrast

Exit

Press “UP” key to increase brightness, “DOWN” key to

decrease brightness.

Press “UP” key to increase contrast, “DOWN” key to

decrease contrast.

Geometry

H. Position

V. Position

Clock

Phase

Exit

Press “UP” key to shift screen right, “DOWN” key to

shift screen left.

Press “UP” key to shift picture upward, “DOWN” key

to shift picture downward.

Adjust sampling clock of analog to digital converter

until clock is equal to pixel frequency of video input.

By varying this “UP” “DOWN” control the exact

sampling time within the pixel can be adjusted.

9300K

6500K

5800K

User Preset

Red

Green

Blue

Exit

Color

Exit

Press “UP” or “DOWN” to choose three types of color

temperature 9300°k, 6500°k and user define.

OSD

H. Position

V. Position

OSD Timeout

Exit

Adjust OSD frame horizontal location, press “UP” key

to shift frame right, “DOWN” key to shift frame left ,

timeout and preset OSD.

Adjust OSD frame vertical location, press “UP” key to

shift frame upward, “UP” key to shift frame

downward , timeout and preset OSD.

Language

English

French

German

Italian

Spanish

Japanese

T. Chinese

S. Chinese

Press “UP” or “DOWN” to choose any one of the

following language, English, French, Germany, Italy,

Spain , Japanese, Traditional Chinese and Simplified

Chinese.

Recall Color Recall

Recall All

Exit Recall the default value.

Miscellaneous

Sharpness

Display

Information

Exit

Press “UP” key to increase sharpness, “DOWN” key to

decrease sharpness.

Main

Exit

Version. 1.0 9

III. For your safety

1. When move the monitor, always switch off power and disconnect all cables to avoid any danger.

2. Please use the power and signal cables correctly when install or bend it.

3. In case of notice any abnormal smell or noise, please stop operation and call the nearest dealer or

service center.

IV. Support timing chart:

Timing

Mode

Reference

Standard Resolution Pixel

MHz FH KHz FV Hz Interlace H

Polarity

Mode 1 VESA 1024×768 65.000 48.363 60.004 NO - -

Mode 2 VESA 1024×768 75.000 56.476 70.069 NO - -

Mode 3 VESA 1024×768 75.011 57.524 72.000 NO

Mode 4 VESA 1024×768 78.750 60.023 75.029 NO

V. Mechanical Dimension:

361,6

339,3

278,660,7

70,8 220

47,1

40 47,1

220

139,3

?58

35 67,55

118,57175,48
