Elmo Dome Camera TND4104X Manual de usuario

DOME CAMERA

INSTRUCTION MANUAL

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and maintenance

(servicing) instructions in the literature

accompanying the appliance.

CAUTION

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within

an equilateral triangle, is intended to alert the user

to the presence of uninsulated "dangerous

voltage" within the product's enclosure that may

be of sufficient magnitude to constitute a risk of

electric shock to persons.

TND4104X

INFORMATION

This equipment has been tested and found

to comply with the limits for Class A digital

device, pursuant to Part 15 of the FCC

Rules. These limits are designed to

provide reasonable protection against

harmful interference when the equipment

is operated in a commercial environment.

This equipment generates, uses, and can

radiate radio frequency energy and, if not

installed and used in accordance with the

instruction manual, may cause harmful

interference to radio communications.

Operation of this equipment in a

residential area is likely to cause harmful

interference in which case the user will be

required to correct the interference at his

own expense.

USER-INSTALLER CAUTION: Your

authority to operate this FCC verified

equipment could be voided if you make

changes or modifications not expressly

approved by the party responsible for

compliance to Part of the FCC Rules.

CAUTION

•Do not use any power supply other than

specified.

WARNING

TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE

THIS APPLIANCE TO RAIN OR MOISTURE.

* The CAUTION label is attached on the

bottom of camera.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings, install in accordance with the manufacturer's

instructions.

8. Do not install near heat sources such as radiators, heat registers, stoves or other apparatus

(including amplifiers) that produce heat.

9. Only use attachment/accessories specified by the manufacturer.

10. Unplug this apparatus during lighting storms or when unused for long periods of time.

11. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled

or objects have been fallen onto the apparatus, the apparatus has been exposed to rain or

moisture, does not operate normally, or has been dropped.

No. Name Function

Name and Function of Each part

The main body of the camera section.

For adjusting the image size.

For adjusting the focus.

Protective cover for the lens.

Protective cover for the main body.

Main body

Zoom ring

Focus ring

Cover lens

Dome cover main body

For fixing the main body with screws.

Used when the white balance is in the PUSH mode.

For setting the vertical sync. phase.

For adjusting the brightness of the image.

For locking the tilt after adjusting the image up/down

direction.

Connect this to output images. When adjusting the image

shooting direction, field angle or focus (in wiring work, for

example), connect a monitor TV, etc.

Image output terminal to be connected to the image input

terminal such as monitor TV.

Connect this to the AC24V 60Hz or DC12V power supply.

Refer to P4.[Selector Switch (Details)]

No.

Name Function

Screw hole for

mounting main body

AW PUSH

DOWN/UP

ALC adjustment volume

Tilt lock screw

Monitor terminal

BNC cable

AC/DC power cord

Selector switch

Selector switch (Details)

1.SENS UP switch

To set the max. value (upper limit value) of the

operating gain in the auto gain control circuit, set this

switch to ON position. In case the back lighting is too

dark and the camera sensitivity is insufficient, set this

switch to ON position.

2. BLC (Back Light Control) switch

In case the back lighting is too bright to shoot the

main object clearly, set this switch to ON position.

3. INT/LL switch(Set at LL position from the factory)

a. INT. (internal) control switch

When the internal synchronization is used, set the switch to the INT side.

b. L.L. (Line-lock) control switch

Matching the vertical synchronization with the power frequency is called the

line-lock.

When two or more cameras are connected to a monitor TV through a video

switcher, the vertical sync. phase can be locked with the power frequency, and

a stable vertical sync. is obtained without being disturbed at the time of

switching. Line-Lock is operative only when the AC24V 60Hz power supply is

connected.

Use Down/up Buttons to adjust the vertical sync. phase.

4. PUSH/ATW switch

This is the switch to select the white balance PUSH/ATW.

PUSH: When the lighting from the source is constant, it is possible to fix the AW

setting.

Place something white (paper, etc.) in front of the lens in a way that the

whole screen may be covered, then push the AW PUSH switch. At this

moment the setting is saved and retained even after the power is turned

OFF.

ATW: The camera automatically adjusts the white balance as it continuously

measures the color temperature of the lighting source.

5. 1/100s

When this switch is turned ON, the shutter speed is set to 1/100 second. It is

effective in reducing the light intensity.

Caution:

When this switch is turned ON, AES does not operate.

1/100S

PUSH/ATW

INT/LL

BLC

SENS UP

ON OFF

(This figure shows the setting

before shipment from our factory.)

How to Install

1. Make holes in the mounting surface.

(Fig. 1)(Fig. 2)

2. Unscrew the dome cover screw and dome

cover main body mount screw (Fig. 3).

Be careful not to drop any of the dome

cover screw and dome cover main

body mount screw.

3. Remove the dome cover main body by

turning it counterclockwise (arrow

direction) (Fig. 3).

83.5mm(3.29inch)

46mm(1.81inch)

Center of camera

10mm(0.39inch)

20mm(0.79inch)

Dome cover

main body

mount screw

Dome cover

main body

Dome cover

screw

Ceiling/wall/box (Fig. 1)

10mm(0.39inch)

Center of

camera

121.2mm(4.77inch)

20mm(0.79inch)

Gang box (Fig. 2)

(Fig.3)

Front of camera

4. Fasten the main body to the ceiling/wall

surface/box with a main body mount

screw (Figs. 4).

Make sure that it is fixed firmly.

Make sure of the position of the front

of the camera.

5. While watching the monitor, adjust the

image direction.

· Right/left direction (Fig.5)

Rotate the base pan to right or left, and

adjust the right/left direction.

· Up/down direction (Fig.6)

Loosen the tilt lock screw, and adjust

up/down direction.

After setting the up/down direction,

fasten the tilt lock screw.

Be careful not to drop the tilt lock

screw.

Manually fasten the tilt lock screw.

If fastened with pliers or the like, the

tilt lock screw may be broken.

(Fig.4)

Main body

Dome cover

main body

Screw hole

for mounting

main body

Base pan

Lens

(Fig.5)

Warning

Weight of the main body and

mounting metal piece is 650 g.

Make sure that the ceiling or wall

is strong enough to support the

weight of the main body and

mounting metal piece

altogether.If not strong enough,

the device may drop and injure

the personnel around.

Caution

Please do not hold a part of the

lens, when adjusting the image

direction. It may cause a

breakdown of the lens.

Tilt lock screw

(Fig.6)

Main body

mount screw

(not attached)

Front of camera

Lens

6. Correct the tilting of the image (Fig. 7).

Be sure to hold the cover motor.

7. Install the cover lens (Fig. 8).

8. Mount the dome cover main body by

matching the dome cover main body mount

screw with the mark on the main body and

turning it clockwise (arrow direction) (Fig. 9).

If the mount screw does not match with

the mark, the dome cover main body

cannot be installed.

9. Fasten the dome cover main body mount

screw, then cover screw (Fig. 10).

Cover motor Lens

(Fig.7)

(Fig.8)

(Fig.9)

Cover

lens

Main

body

Dome

cover

mainbody

Main body

mark

Dome

cover

main body

mount screw

(Fig.10)

Dome cover

main body

mount screw

Cover

screw

Dome

cover

main body

Dome

cover

main body

When any failure is suspected

Symptoms

Image is not displayed.

Color is not correct.

Image is disarrayed.

Check here.

Are cables connected correctly?

Are the power plugs of peripheral units inserted correctly

into the receptacles?

Is the video monitor adjusted correctly?

Is any connector of this machine or video monitor loose or

contacted poorly?

162

(

6.38

)

2.8

(

3.65

)

101.6

(

4.00

)

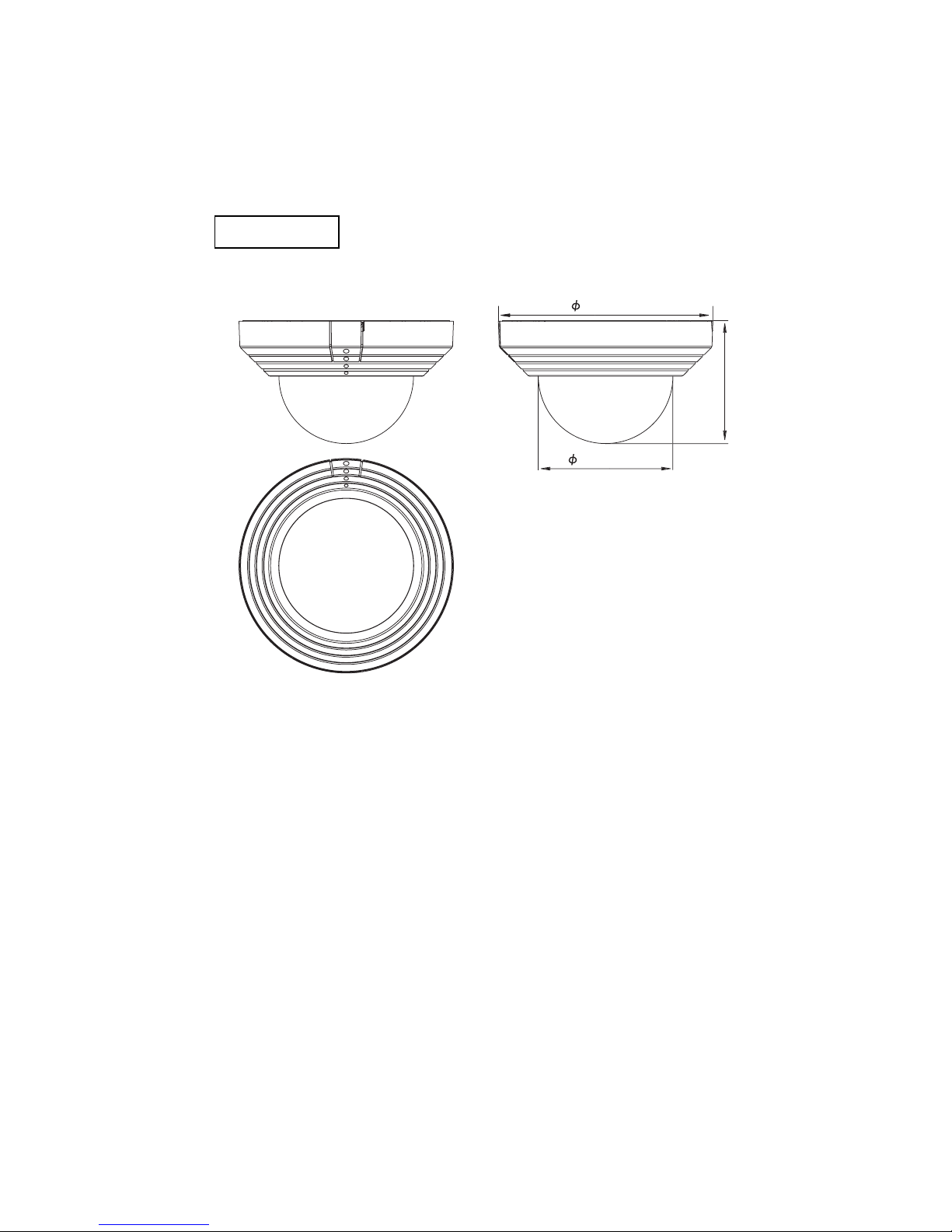

Appearance

All dimensions in mm(inch)
