Elmo Dome Camera TND4004 Manual de usuario

DOME CAMERA

INSTRUCTION MANUAL

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and maintenance

(servicing) instructions in the literature

accompanying the appliance.

CAUTION

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within

an equilateral triangle, is intended to alert the user

to the presence of uninsulated "dangerous

voltage" within the product's enclosure that may

be of sufficient magnitude to constitute a risk of

electric shock to persons.

TND4004

CAUTION

· Do not use any power supply other than

specified.

WARNING

TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

* The CAUTION label is attached on the back

of camera.

INFORMATION

This equipment has been tested and

found to comply with the limits for Class A

digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to

provide reasonable protection against

harmful interference when the equipment

is operated in a commercial environment.

This equipment generates, use, and can

radiate radio frequency energy and, if not

installed and used in accordance with the

instruction manual, may cause harmful

interference to radio communications.

Operation of this equipment in a

residential area is likely to cause harmful

interference in which case the user will be

required to correct the interference at his

own expense.

USER-INSTALLER CAUTION: Your

authority to operate this FCC verified

equipment could be voided if you make

changes or modifications not expressly

approved by the party responsible for

compliance to Part of the FCC Rules.

- 1 -

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings, install in accordance with the manufacture's instructions.

8. Do not install near heat sources such a radiators, heat registers, stoves or other apparatus (including

amplifiers) that produce heat.

9. Only use attachment/accessories specified by the manufacturer.

10. Unplug this apparatus during lighting storms or when unused for long periods of time.

11. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged

in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have

been fallen onto the apparatus, the apparatus has been exposed to rain or moisture, does not operate

normally, or has been dropped.

- 2 -

1. Appearance view

2. Specifications

()

106 (4.2)

SR53 (2.1)

SR56 (2.2)

Unit : mm (inch)

Model

Power source

Power consumption

Pick-up device

Effective picture element

Scanning area

Scanning system

Scanning frequency

Sync. system

Resolution

S/N ratio

Standard illumination

AGC

Sens-up

White balance

Backlight control (BLC)

Iris level adjustment

VIDEO OUT terminal

Lens

Angle of view

Iris

Appearance color

Dimensions

Weight

Ambient temperature

Ambient humidity

TND4004

DC 12V (DC 11V-35V) or AC 24V (AC 15V-27V) 60Hz ± 0.5Hz

Approx. 3.5W

1/3" Color interline-transfer CCD

768 (H) X 494 (V)

4.88mm (H) X 3.66mm (V)

2:1 interlaced

LL : 15.75kHz (H), 60Hz (V) / INT : 15.734kHz (H), 59.94Hz (V)

Line-Lock/Internal (Factory-set at Line-Lock)

470TV lines (H), 350TV lines (V)

More than 48dB

150 lx (F1.4 under incandescent lamp)

Built-in

Provided (Factory-set at OFF)

ATW/AWC/manual/Preset (Factory-set at ATW)

Provided (Factory-set at OFF)

Provided (volume adjustment)

VBS 1V (p-p) 75Ω

F 1.4, f = 2.8 ~ 6mm

Horizontal : 47° (TELE) ~ 96° (WIDE)

Vertical : 36° (TELE) ~ 72° (WIDE)

Auto

Main body : White

Cover : Black

Diameter : 116mm (4.6") Height : 106mm (4.2") without protruded part

0.5 kg (1.1 lbs)

-10°C ~ +50°C (14°F~122°F)

30% ~ 90%

Note : Weight and dimensions are approximate.

Design and specifications are subject to change without prior notice.

- 3 -

3. Name and Function of Each Part

Metal fitting

For mounting on the ceiling or wall.

Hook (3 locations)

For temporarily fixing the main body.

Main body

The main body of a camera section.

Dome cover

A protective cover for the lens section.

AC/DC power terminal

Connect this to the AC24V 60Hz or DC12V

power supply.

VIDEO OUT terminal

Connect coaxial cable to a monitor TV, etc.

Ground terminal

Connect this to the ground wire of the power

supply cord.

DC12V

AC24V

- 4 -

Tilt lock screw

For locking the tilt after adjusting the image up/down

direction.

Pan lock screw

For locking the pan after adjusting the image

right/left direction.

Zoom ring

For adjusting the image size.

Focus ring

For adjusting the focus.

PUSH button

· Vertical sync. phase adjustment

To adjust the vertical sync. phase when using two or

more Line-Lock cameras, press the PUSH button

( ) or ( ) until images stop rolling.

However, it should be noted that this adjustment is not valid when the select switch is in such positions as

WB1: L, WB2: L and WB3: H.

· Manual white balance selector

When the white balance selector is set to MANU (shift change) in on the next page, the white balance

can be adjusted by using the PUSH button. This mode will prove effective under shooting conditions with

little variation in color temperature.

* When the white balance selector is set to MANU (shift change), the vertical sync. phase can not be

adjusted.

ALC LEVEL

For adjusting the image brightness.

Main body mount screws (2 pcs)

Screws located for mounting the main body to the metal fitting.

Caution: Both screws must be tighten to prevent the camera from falling.

Reinforce board

A board rotating together with the camera part.

* This board may interfere with the selector switch depending on the set pan direction. Slide

the board to avoid the interference with the selector switch. After this sliding, be sure to

ED8

- 5 -

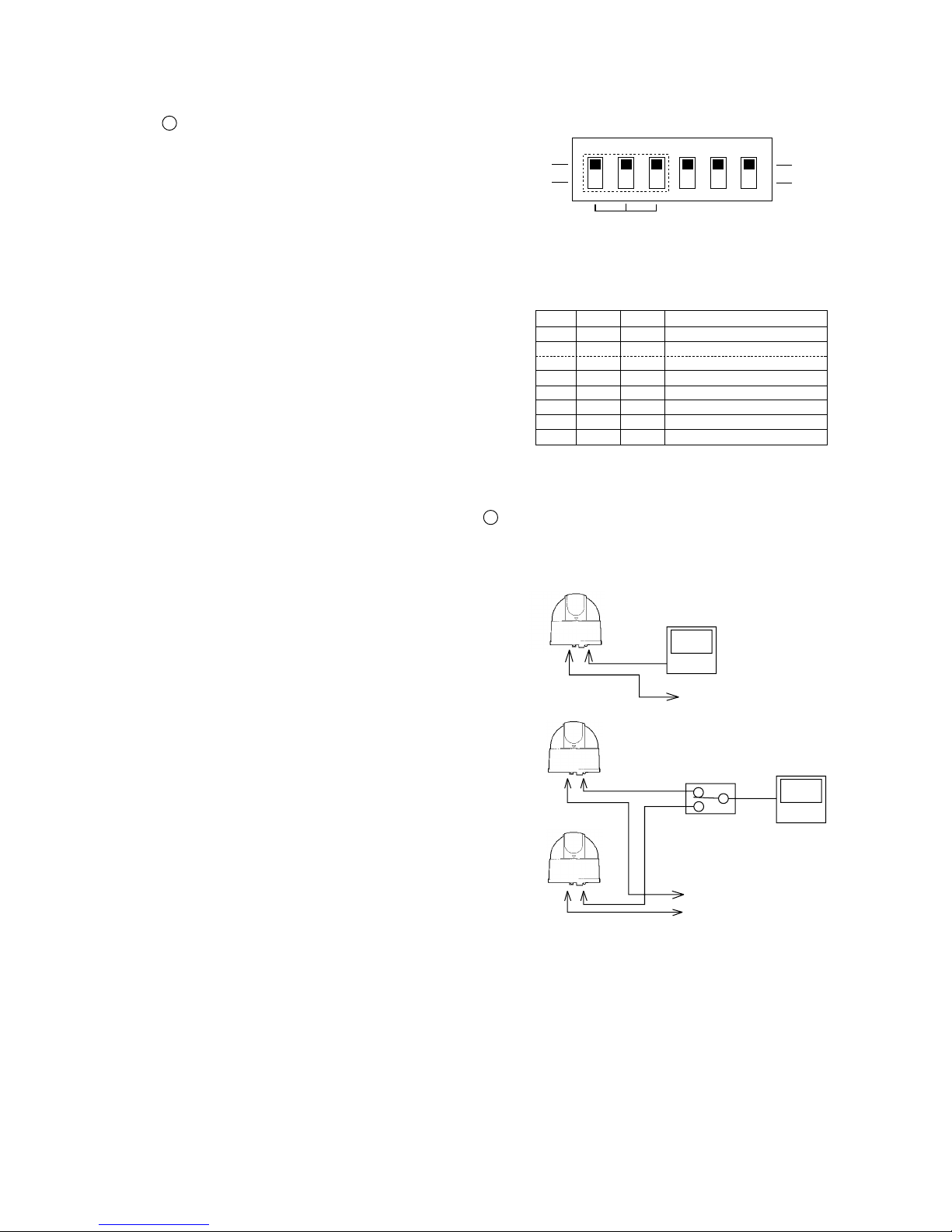

4. Preset (MWB)

Color temperature can be selected from among four different color temperatures.

b. INT/LL switch

· INT (internal) control switch

When the internal synchronization is used, set the

switch to the INT side.

· LL (Line-Lock) control switch

Matching the vertical synchronization with the power

frequency is called the line-lock.

When two or more cameras are switched by the video

switcher to a monitor TV, the vertical sync. phase can be

locked with the power frequency, and a stable vertical

sync. is obtained without being disturbed at the time of

switching.

Line-lock is operative only when the AC 24V power

supply is connected.

Caution:

1. The camera is synchronized to the power

frequency of 60Hz ± 0.5Hz covering a normal

fluctuation of the power frequency.

The camera may not compensate for large

fluctuation caused by power generated by an engine generator. etc.

2. It takes about 10 seconds or more to obtain a stable synchronization after the power is

turned on. This is necessary to stabilize the camera against the power noise.

3. When DC 12V power supply is used, set the switch to the INT side.

c. BLC (Back Light Control) switch

In case the back lighting is too bright to shoot the main object clearly, set this switch to ON position.

d. SENS-UP switch

To increase the sensitivity, set this switch to ON position.

To DC 12V power supply

To AC 24V power supply

Monitor TV

Video output

Video switcher

Video

input

Monitor TV

To AC 24V power supply

Selector switch (details)

a. White balance selector

Combination of the switch 1, 2, and 3, the following

adjustments are available:

1. ATW (AWB)

The camera adjusts the white balance by automatically

following the color temperature change within the pull-

in color temperature range.

The pull-in color temperature range is from approx.

2500K to approx. 9500K.

2. AWC/HOLD (AWB)

AWC

This is auto white balance mode with no limits, such

as pull-in frame.

HOLD

The white balance in the state can be held by switching

the mode to HOLD after the white balance is attained

by AWC.

This mode is effective for imaging conditions with

little color temperature change.

3. Manual White Balance (MWB)

The color temperature can be shifted by pressing the PUSH button.

For the information of switch shift, refer to P. 4 .

(This figure shows the setting before shipment from

our factory.)

WB1

WB2

WB3

ATW

AWC

HOLD

Manual

Manual (Fixed 3200k)

Manual (Fixed 4200k)

Manual (Fixed 4700k)

Manual (Fixed 6300k)

2 WB

BLC

INT

SENS UP

a. b. c. d.

OFF

- 6 -

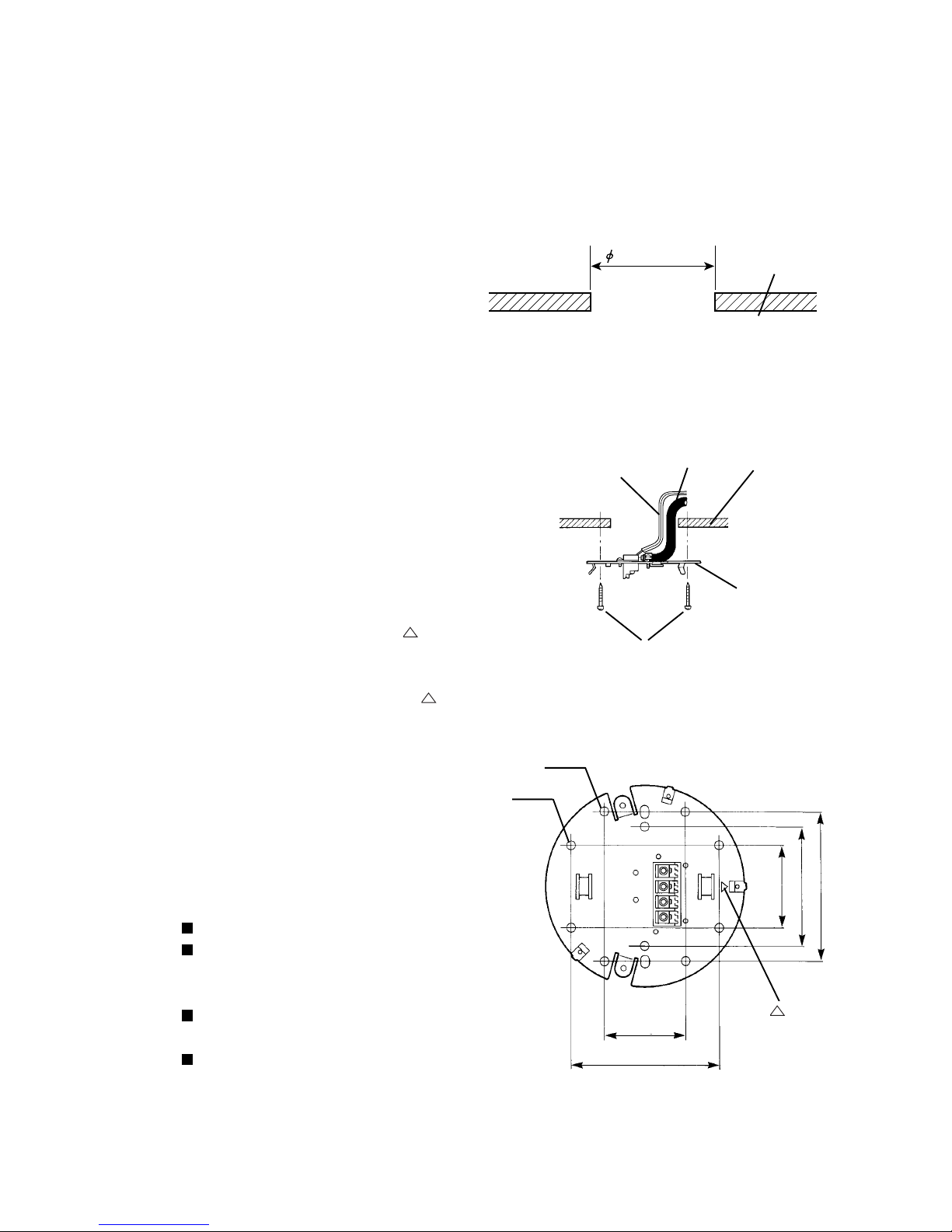

70mm (2.76")

Recommended mounting surface is wood or dry

wall.

(1) Make a round hole of 70mm OD (2.76") to the

mounting surface where the camera is to be

mounted. (Refer to Fig.1)

4-1 How to Install and Adjust

(2) Attach coaxial cable and power cord to the

POWER & VIDEO terminal on the metal

fitting. (Refer to Fig. 2)

Refer to Page 11 for preparation of the coaxial

cable.

4. How to Set Up

(Fig. 1)

(Fig. 2)

(3) Mark four mounting holes to the mounting

surface with pencil for the metal fitting as

follows:

1. Dimensions: Refer A or B from Fig. 3.

2. To mount on the ceiling, point mark on

the metal fitting toward the object. (Refer

to Fig. 3)

3. To mount on the wall, point the mark

on the metal fitting facing downward.

(Refer to Fig. 3)

Unit : mm (inch)

(Fig. 3)

Ceiling

Metal fitting

Ceiling mount screws

Coaxial cable

46 (1.81)

83.5 (3.29)

46 (1.81)

66.7 (2.63)

83.5 (3.29)

Power cables

(4) To mount on a wood surface, use four #8x

1.5" screws to secure the metal fitting.

To mount on a dry wall surface, drill four

3/16" holes first and insert 3/16" anchors then

secure the metal fitting with four #8x1.5"

screws.

All hardware is optional.

To directly mount on the surface, make

sure to use four screws to ensure firm

locking.

Be careful not to damage the coaxial or

power cables.

If it is impossible to make a 70mm hole to

the surface, use an optional metal fitting for

the wall (EB-413B).

Ax4

Bx4

mark

- 7 -

(6) Mount the body to the metal fitting.

Match the positioning mark on the main body

with the mark on the metal fitting, and

thrust the main body toward the metal fitting.

Be sure that the main body engages with the

hooks (3 locations) of the metal fitting (Fig. 5).

Confirm that the main body is in parallel with

the metal fitting when viewed from the side

(Fig. 6).

* If not, the camera

may come off from

the metal fitting and

drop.

(5) Remove the dome cover from the main body.

Remove the dome cover by turning it

counterclockwise (arrow direction) (Fig. 4).

(Fig. 4)

Hook (Fig. 5)

Hook

Dome cover

Main body

Positioning mark

Metal fitting

mark

Bad example Good example (Fig. 6)

(7) Fasten the main body mount screws (2 pcs)

attached with the main body to lock the main

body on the metal fitting (Fig. 7).

* Confirm that notches and are

matched with the main body mount

screws. If not, loosen the pan lock screw,

turn the base, and match the notches

and with these screws.

If the notches are not matched with these

screws, a screwdriver cannot catch the

screws, and the body cannot be locked.

* Be sure to fasten the main body mount

screws.

Ceiling

Main body

(Fig. 7)

Main body

mount screw

Main body

mount screw

Base

Pan lock screw

Main body

Metal fitting

Driver

- 8 -

(8) While watching the monitor, adjust the image

direction.

· Right/left direction (Fig. 8)

Loosen the pan lock screw, turn the base

right and left, and adjust the right/left

direction. After setting the right/left

direction, tightly fasten the pan lock screw.

* If the pan lock screw is not tightly

fastened, the base may turn when the

dome cover is mounted.

* Be careful not to drop the pan lock screw.

· Up/down direction (Fig. 9)

Loosen the tilt lock screw, and adjust

up/down direction.

After setting the up/down direction, fasten

the tilt lock screw.

* Manually fasten the tilt lock screw.

If fastened with pliers or the like, the tilt

lock screw may be broken.

50°

(Fig. 8)

(Fig. 9)

Tilt lock screw

Base

Pan lock screw

(9) Adjust the optical axis (Fig. 10).

Correct the tilt of the image with the optical

axis ring.

* Be sure to hold the optical axis ring when

making this correction.

(10) Adjust the angle of view with the zoom ring

(Fig. 11).

(Fig. 10)

(Fig. 11)

Optical

axis ring

Zoom ring

- 9 -

(11) Adjust the focus with the focus ring (Fig. 12).

* Adjust the focus after adjusting the angle

of view.

(Fig. 12)

Focus ring

(12) Match the "I" mark on the lens with the

recessed portion of the camera holder

(Fig. 13).

* Be sure to match them, or the dome cover

may not be mounted in same lens

position.

(13) Mount the dome cover on the main body.

Match the mark on the dome cover with that

on the base, and turn the dome cover

clockwise (arrow direction) until it is clicked

(Fig. 14).

* If these marks are not matched, the dome

cover cannot be mounted.

(Fig. 13)

(Fig. 14)

Lens

Recessed part of the camera holder

Dome cover

Base Main body

Mark

Otros manuales para Dome Camera TND4004

Tabla de contenidos

Otros manuales de Cámara de seguridad de Elmo

Elmo

Elmo SN2230IP II Manual de usuario

Elmo

Elmo Dome Camera TND4004 Manual de usuario

Elmo

Elmo ESD-380 Manual de usuario

Elmo

Elmo HC7501 Manual de usuario

Elmo

Elmo MN400 Manual de usuario

Elmo

Elmo TSN410D Manual de usuario

Elmo

Elmo CCD Color Video Camera TSN410H Manual de usuario

Elmo

Elmo PTC-200C Manual de usuario

Elmo

Elmo PTC-201CIP Manual de usuario

Elmo

Elmo PTC-400C Manual de usuario

Elmo

Elmo PTC-100S Manual de usuario

Elmo

Elmo TNC4614X Manual de usuario

Elmo

Elmo Vandal Resistant Dome Camera TND4204VX Manual de usuario

Elmo

Elmo Vandal Resistant Dome Camera TND4204VX Manual de usuario

Elmo

Elmo TSN420D Manual de usuario

Elmo

Elmo BUTP200 Manual de usuario

Elmo

Elmo One-Piece Color Video Micro Camera MN30 Manual de usuario

Elmo

Elmo QN42H Manual de usuario

Elmo

Elmo TSN280D Manual de usuario

Elmo

Elmo GIR-S7322WS Manual de usuario

Elmo

Elmo PTC-401CIP Manual de usuario

Elmo

Elmo Dome Camera TND4104X Manual de usuario

Elmo

Elmo CCD Color Dome Camera TSN400A Manual de usuario

Elmo

Elmo TSE270X Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
