Elero VarioCom Slide 915 Guía

FCC Documentation

VarioCom Slide 915

Technical Documentation

VarioCom Slide 915

(13 buttons handled Transmitter with Slider)

elero Antriebstechnik GmbH

Maybachstraße 30

73278 Schlierbach (Germany)

FCC Documentation
VarioCom Slide 915



Table of content
Overview......................................................................................................................................3
Description of the product ............................................................................................................3
Technical Schemes......................................................................................................................3
Technical specifications...............................................................................................................4
Instruction Manual........................................................................................................................4
Physical Dimensions....................................................................................................................5
Label............................................................................................................................................6
1 Type of Label........................................................................................................................6
2 Label of all product variants..................................................................................................6
2.1 VarioComSlide...............................................................................................................6
2.2 VarioCom.......................................................................................................................6
2.3 LumeroCom...................................................................................................................6
2.4 MonoCom Slide.............................................................................................................7
2.5 MonoCom......................................................................................................................7
3 Placement of Label...............................................................................................................7


FCC Documentation

VarioCom Slide 915

1. Overview

The product has the function to control roller shutters, venetian blinds or awning in 6 channels. To

control the actor there are push buttons or a slider. The channels are built with a different code and

not with different frequencies.

The VarioComSlide 915 consist of 13 push buttons, one slider and 8 dual Led’s. All models have the

same circuit but different components. The slider will be connected to the circuit over a connector.

The product is powered by two 1.5V alkaline battery AAA. (Included)

2. Description of the product

The circuit consists of the main elements µC and transceiver chip. The µC creates the control

messages depending on the pressed push buttons. The transceiver chip works as a transmitter and

as a receiver. After a Message is sent the transceiver will be switched into the receiver mode and

wait for ack’s. The LED’s signals when a message will be sent and also shows the result of received

ack’s.

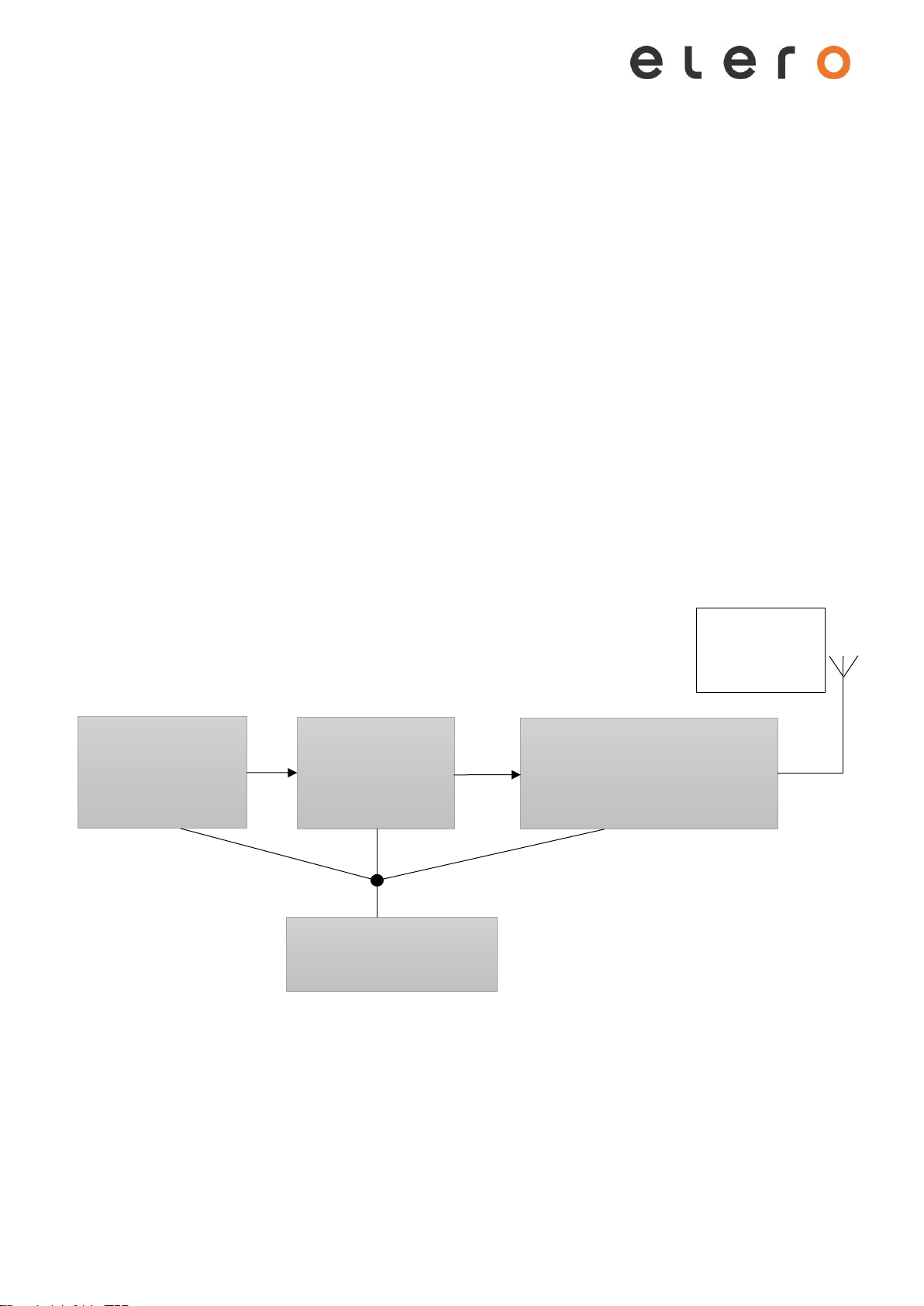

3. Technical Schemes

Buttons, Slider,

LED‘s µC

Oscillator 4MHz

Radio Transceiver 918.3 MHz FM

HF Oscillator 26 MHz

Vcc 3V

Power Supply Battery

PCB Antenna

- Monopol

-918.3 MHz

T +49 7025 13-01

F +49 7025 13-212

[email protected]

www.elero.com

FCC Documentation

VarioCom Slide 915

Seite 4 von 7

elero GmbH

Maybachtraße 30

73278 Schlierbach

Deutschland/Germany

4. Technical specifications

Center frequency: 918.3 MHz

Deviation: 35 kHz

Oscillator: 26MHz

Modulation: GFSK

Data rate: 76.8 kbps

Data coding: NRZ

Code: a train of pulses lasting 7.8ms in 100ms

Radiated power (ERP): 81.9dBµV/m @ 3m

Correction average power: -22.1dB

Working temperature: from 0°C to +55°C

5. Instruction Manual

For details, please read the annex: HandsenderCOM_138220001_DE+EN+FR+IT_0918.pdf

T +49 7025 13-01

F +49 7025 13-212

[email protected]

www.elero.com

FCC Documentation

VarioCom Slide 915

Seite 5 von 7

elero GmbH

Maybachtraße 30

73278 Schlierbach

Deutschland/Germany

6. Physical Dimensions

T +49 7025 13-01

F +49 7025 13-212

[email protected]

www.elero.com

FCC Documentation

VarioCom Slide 915

Seite 6 von 7

elero GmbH

Maybachtraße 30

73278 Schlierbach

Deutschland/Germany

7. Label

7.1 Type of Label

Metal foil label 32 x 22mm

7.2 Label of all product variants

7.2.1 VarioComSlide

7.2.2 VarioCom

7.2.3 LumeroCom

T +49 7025 13-01

F +49 7025 13-212

[email protected]

www.elero.com

FCC Documentation

VarioCom Slide 915

Seite 7 von 7

elero GmbH

Maybachtraße 30

73278 Schlierbach

Deutschland/Germany

7.2.4 MonoCom Slide

7.2.5 MonoCom

7.3 Placement of Label

Position of Label
