Electrolux EBA 60002 X Manual de usuario

Automatic coffee machine

user manual

EBA 60000 X / EBA 60002 X

ENGLISH

CONTENTS

1. Safety instructions

2. Description of the coffee machine

3. Description of the control panel: touch control

4. Instructions for the first use of the machine

5. Making Coffee

6. Hot water

7. Steam

8. Programming the amount of coffee beans to be grinded

9. Programming the volume of coffee dispended in the cup

10. If you wish to reset the standard values

11. Signals and alarms

12. Coffee menus

13. Cleaning

14. Installation

15. Something not working....

16. Technical specifications

17. After-sales Service, spare parts and guarantee

2/37

1. SAFETY INSTRUCTION

Please read this instruction book before using the appliance and retain for

future reference. These warnings are provided in the interests of your safety,

ensure you understand them fully before using the appliance.

Intended use

•The appliance is intended for use in the home. If the appliance is used for

purposes other than those intended or used incorrectiy, no liability can be

accepted by the manufacturer for any damage or injury that may be caused. •

• Alterations or changes to the appliance are not permitted for reasons of

safety.

Prior to initial start-up

•Check the appliance for transport damage. Under no circumstance should

a damaged appliance be plugged in! In the event of damage, please con-

tact your retailer.

Safety of children

•Keep packaging material away from children. Risk of suffocation!

•Please make old appliances unusable prior to disposal. Pull out the mains

plug, and cut off the mains cable.

DURING USE

CAUTION:

The filtering unit will always be kept very hot to obtain an excellent coffee.

Therefore please empty the “used” coffee tank with extreme care to avoid

being scalded.

•This machine must be used only by adults. Make sure that children cannot

touch the controls nor play with the machine.

•Modifying or merely trying to modify the characteristics of this product is very

dangerous, and will invalidate your guarantee.

•Always keep this machine clean.

•The external parts of this machine become very hot while it is operating

and they will not cool down immediately after the machine is switched

off. Keep children out of reach.

•Before cleaning or servicing the machine, make sure that it is

disconnected from the power supply.

•In case of malfunction, never try to repair the machine yourself. Consult this

manual and if the necessary information cannot be found, please contact the

nearest Service Force Centre. This machine must be serviced exclusively by an

authorised Service Force Centre. Always ensure the use of genuine spare parts.

3/37

FOR INSTALLATION AND SERVICING

Keep this instruction manual together with the machine for any future

reference. If the machine is sold or transferred to another person, make sure

that this instruction manual is given to the new user, so that he/she can

become familiar with the machine’s functions and with the

recommendations given.

•This machine must be installed and connected to the mains by a

COMPETENT PERSON. Make sure that the machine is DISCONNECTED

from the power supply before any servicing operation.

•After unpacking the machine make sure that the product has not suffered any

damage and that the power cord is in perfect condition. In case of damage, please

contact your retailer or our customer service dept.

•The Manufacturer declines all responsibility if the safety rules are not

complied with.

SOME HINTS OF ENVIRONMENTAL PROTECTION

PACKAGE

•All the packing materials are environmentally friendly and they can be recycled.

Please help in preserving the environment, by using the proper channels of

separate collection of rubbish.

DISPOSAL

Appliance Packaging Information

All materials are environmentally sound.

The plastics can be recycled and are identifìed as follows:

>PE< for polyethylene, e.g. the outer covering and the bags in the interior.

>PS< for polystyrene foam, e.g. thè pads, which are ali free of chlorofluorocarbon.

The carton parts are made from recycled paper and should be disposed of at a waste-

paper recycling collection location.

Diposal of Old Appliances

• Use an authorised disposal site.

Contact your Local Council or Environmental Health Office to see if there

are facilities in your area to recycle the appliance.

The symbol on the product or on its packaging indicates that this product may

not be treated as household waste. Instead it shall be handed over to the applicable

collection point for the recycling of electrical and electronic equipment. By ensuring this

product is disposed of correctly, you will help prevent potential negative consequences

for the environment and human health, which could otherwise be caused by

inappropriate waste handling of this product. For more detailed information about

recycling of this product, please contact your local city office, your household waste

disposal service or the shop where you purchased the product

4/37

CE This machine complies with the directive BT 73/23

Electrical safety rules EN 60335-1 (August 1995 - Safety for electrical household and

similar appliances – General Standard) and EN 60335-2-15 (April 1996 – Specific Rules

concerning the equipment for heating liquids).

Directive EMC 89/336 in conformity with the following standards:

-55014-1; 55014-2; 61000-3-2; 61000-3-3

ELECTRICAL CONNECTION

Any electrical work required to install this appliance should be carried out by a qualified

electrician or competent person.

WARNING: THIS APPLIANCE MUSTBE EARTHED.

Should the appliance power supply cable need to be replaced, this must be carried out

by a Service Force agent. The manufacturer declines any liability should this safety

measure not be observed.

Before switching on, make sure the electricity supply voltage is the same as that

indicated on the appliance’s rating plate.

The appliance should be fitted with a 13amp plug. The plug should be fitted with a

13amp ASTA approved BS1363/A fuse. The mains lead of the appliance should be

connected as described below. The wires in the mains lead are coloured in accordance

with the following code:

•Green and Yellow - Earth

•Blue - Neutral

•Brown - Live

In the plug the colours of the wires may not correspond with the markings identified

with the terminals in your plug:

1) Connect the Green and Yellow (earth) wire to the terminal in the plug which is

marked with the letter "E" or the earth symbol or coloured green and yellow.

2) Connect the Blue (neutral) wire to the terminal in the plug which is marked

with the letter "N" or coloured black.

3) Connect the Brown (live) wire to the terminal in the plug which is marked with

the letter "L" or coloured red.

4) Upon completion there must be no cut, or stray strands of wire present and

the cord clamp must be secure over the outer sheath.

5/37

THE PLUG MUST STILL BE ACCESSIBLE AFTER THE APPLIANCE HAS

BEEN INSTALLED.

THE APPLIANCE SHOULD NOT BE CONNECTED TO THE ELECTRICAL

SUPPLY BY MEANS OF AN EXTENSION CABLE

PERMANENT CONNECTION

In the case of permanent connection it is necessary that you install a double pole

switch between the appliance and the electricity supply (mains), with a minimum gap

of 3mm between the switch contacts and of a type suitable for the required load in

compliance with the current electrical regulations.

The switch must not break the yellow and green earth cable at any point.

6/37

2. DESCRIPTION OF THE COFFEE MACHINE

1. Water reservoir

2. Brita filter

3. Coffee Outlet

4. Steam/water nozzle

5. Drip tray

6. Coffee beans container

7. Grinding regulation knob

8. Control panel

9. “Used” coffee drawer

7/37

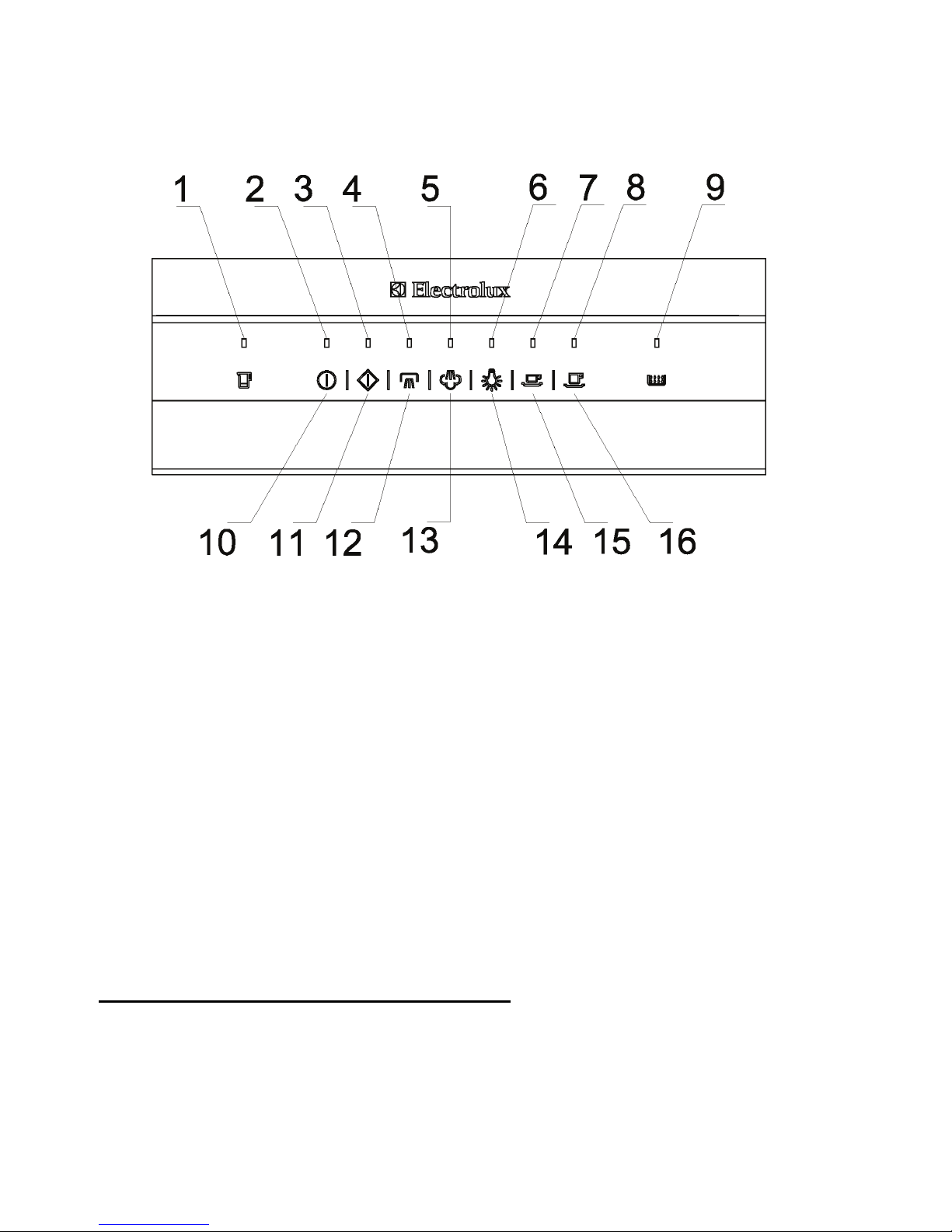

3. DESCRIPTION OF THE CONTROL PANEL:

TOUCH CONTROLS

1. Water refill indicator

2. ON-OFF/stand-by indicator

3. Start indicator

4. Hot water selector indicator

5. Steam selector indicator

6. Light selector indicator

7. Espresso coffee indicator

8. Regular coffee indicator

9. Used Coffee 'drawer full' indicator

10. ON-OFF/stand-by control

11. Start control

12. Hot water selector control

13. Steam selector control

14. Light selector control

15. Espresso coffee control

16. Regular coffee control

TOUCH CONTROLS: Instructions for use

These touch controls must be pressed precisely to prevent functions from being

enabled accidentally. Pressing lightly on the respective symbol will enable the

corresponding function.

8/37

4INSTRUCTIONS FOR THE FIRST USE OF THE MACHINE

FILLING UP THE WATER RESERVOIR

•Squeeze together the

unlocking levers found under

the drip tray

•Gently pull the coffee machine

forward from the housing by

sliding it along the telescopic

runners.

9/37
