102221 REV. C2

Installation Instructions

Built-In Coffee Maker

E24CM75GSS E24CM76GSS

Steamer

Coffee

Single

Water

Hot

Espresso

Double

Latté

Double Decaf Large Cappuccino

Espresso

Single

Latté

2Before You Begin

READ THESE INSTRUCTIONS

Read all instructions before installing the coffee maker.

For your safety, please read and observe all safety instructions. This guide will

help you anticipate electrical and water connections and help you select the best

location for the coffee maker.

QUESTIONS?

1-877-4Electrolux (1-877-435-3287)

For toll-free telephone support in the U.S. and Canada.

INTERNET

For online support and product information:

In the U.S. visit www.electroluxusa.com. In Canada, visit www.electroluxca.com.

Post Ofﬁce Box 212378, Augusta, Georgia 30917, USA

NOTE

Installer: Leave these instructions with the owner.

Owner: Read your Coffee Maker Use and Care Guide completely before use.

It contains important safety information for operating this appliance. It also has

many suggestions for getting the best results from your coffee maker.

WARNING

Tip Over Hazard: Do not use coee maker until completely installed.

Do not connect this appliance to electrical power until it is completely

installed.

Finding Information

Before You Begin...................................................... 2

Finding Information ............................................... 3

Important Safety Instructions...........4

Safety ........................................................................... 5

Preparing for Installation...................................... 7

Planning the Location ...........................7

Installation ...............................................................10

Before You Start.................................. 10

Tools Needed for Installation ...........11

Plumbing Installation .......................... 12

Installing the Cabinet Glides............ 14

Installing the Unit in the Cabinet.. 16

Coffee Maker Removal ...................... 16

Connecting the Plumbing ................. 17

Verifying Operation ............................ 18

TABLE OF CONTENTS

IF YOUR UNIT REQUIRES SERVICE...

IMPORTANT: If the unit requires service, be sure to have

the model and serial number available when you call. The

model and serial number are on the data plate located

inside the brewing unit door. See the use and care guide for

instructions on how to open the front panel and brewing unit

doors.

Serial Number Plate

Brewing Unit Door

Front Panel Door

4Safety

IMPORTANT SAFETY INSTRUCTIONS

Safety Precautions

Do not attempt to install or operate this appliance until you read the safety

precautions in this guide. Safety items throughout this guide are labeled with a

Warning or Caution based on the risk type.

Denitions

This symbol is the safety alert symbol. It is used to alert you to potential

personal injury hazards. Obey all safety messages that follow to avoid

possible injury or death.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided,

could result in death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided,

may result in minor or moderate injury.

CAUTION

CAUTION used without the safety alert symbol indicates a potentially

hazardous situation which, if not avoided, may result in property damage.

IMPORTANT

Indicates installation, operation or maintenance information which is

important but not hazard related.

WARNING

Electrolux cannot be held responsible for damage to property or injury to persons

caused by failure to comply with the installation, maintenance and safety instructions

contained in this handbook.

Safety

WARNING

To reduce the risk of fire, electrical shock, or injury when using your coffee

maker, follow basic safety precautions including the following:

Read all instructions before operating the coffee maker.

IMPORTANT: Before performing any type of service or installation, make sure

that electric power to the coffee maker is disconnected.

IMPORTANT: To avoid the possibility of explosion or fire, do not store or use

combustible, flammable, or explosive liquids or vapors (such as gasoline) inside

or in the vicinity of this or any other appliance.

IMPORTANT: This appliance is equipped with

a three-prong grounding plug for protection

against possible electric shock hazards. Plug

it only into a dedicated, grounded electrical

outlet. When only a standard two-prong

electrical outlet is available, the customer

must have it replaced with a dedicated,

properly grounded three-prong electrical outlet

before using this appliance. Do not under

any circumstances, cut or remove the third

(ground) prong from the power cord. Do not

use an adapter plug. Do not use an extension

cord. Do not use a power cord that is frayed or damaged. The use of a ground

fault interrupter (GFI) is not recommended.

Do not install or use a damaged appliance. If you receive a damaged

appliance, immediately contact your dealer or builder.

Do not use the coffee maker until it has been properly installed by a

qualified installer according to these installation instructions. The installer

must show the customer the location of the power plug so that they know

where and how to disconnect power to the coffee maker.

Do not install, repair, or replace any part of the coffee maker unless

specifically recommended in the literature accompanying it. A qualified

service technician should perform all other service.

Keep packaging materials away from children. Plastic sheets and bags can

cause suffocation.

Save These Instructions for Future Reference.

•

6Safety

General Safety Precautions (continued)

WARNING

Do not tamper with the controls.

Clean the coffee maker thoroughly according to the Flushing Out the

Coffee Maker section in the use and care guide before operating it for the

first time.

When installing or cleaning the mechanical parts of the coffee maker,

exercise care with hands and arms around the metal edges.

Many metal surfaces behind the front panel and inside the brewing

compartment are hot when power is on. Exercise care around metal

surfaces in these areas when the power switch is in the on position.

During normal operation, the person using the coffee maker must pull it out

from the cabinet to fill the coffee bins, etc. To prevent personal injury, when

pushing the coffee maker back into the cabinet, make sure body parts and

clothing are clear of the portion of the coffee maker behind the front panel.

To prevent an electrical shock hazard due to steam and water leakage, do

not install this appliance above or below any other appliance.

•

CAUTION

To prevent jamming of the grinding mechanism, use only the types of coffee

beans specified in these instructions.

Remove the drip tray before closing the front panel door. Closing the front

panel door without the drip tray removed could damage parts of the coffee

maker.

Keep the coffee maker keys in a safe place. Replacement keys are not

covered by the warranty.

To prevent property damage, the back of the cabinet must be ventilated.

See the location planning section.

Clean and flush the coffee maker according the the Routine Cleaning

Instructions in the use and care guide before using this appliance.

•

Preparing for Installation

PLANNING THE LOCATION

IMPORTANT:

All statutory regulations, local and regional codes and local power supply

company connection specifications must be strictly observed.

The supplied power cord is 60” (152.4cm) long, terminated by a three-prong

plug. It is located in the lower right rear corner on the back of the unit. It must

be plugged directly into a dedicated, wall-mounted electrical receptacle.

The electrical outlet (and water shut off valve for model E24CM76GSS)

should be located in an adjacent cabinet. Both must be accessible when the

unit is installed.

The coffee maker(E24CM76GSS) is supplied with a flexible water hose for

connection to a 1/4” threaded water line connection. See page 12 for further

information on planning the water line connection.

The coffee maker must be installed at a safe distance from other sources

of heat, such as home appliances, in order to avoid an excessive rise in

temperature.

For ventilation purposes, there must be a slot near the top of the cabinet

back. The minimum dimensions are 4” X 12” (10.0 X 30.0cm).

•

17 7/8”

(454mm)

1” (26mm)

Screw 8 places

(provided)

3/4” (19mm)

Level Support Platform

24”

(610mm)

Steam Barrier

(provided)

Optimal Water

and Electrical

Supply Location

20 3/4”

(527mm)

1/8”

(3mm)

22 3/16”

(564mm)

1” Min.

(26mm)

1” Min. (26mm)

3/4” (19mm)

Min. Side Walls

22 1/8” - 22 3/8”

(562mm - 568mm)

4” X 12”

(100mm - 300mm)

Ventilation Cut-Out

in Cabinet Back

8””

(203mm)

3/4” (19mm)

Min. Side Walls

IMPORTANT:

DO NOT install the coffee maker in an unrestrained, free-standing cabinet.

During normal operation, the user must have access to the top of the unit.

The user needs to be able to pour coffee into the coffee bins on top and,

on model E24CM75GSS, be able to remove the water tank for filling and

cleaning. Install the coffee maker low enough so that the user can reach the

top of the unit easily when it is slid out of the cabinet.

When installing the coffee maker under overhanging cabinets, allow sufficient

room for access to the coffee bins (and on some models, the water tank) on

top. See the table below.

Do not install any appliance above or below the the coffee maker.

Model Vertical distance

to overhang

E24CM75GSS 14” (Minimum)

E24CM76GSS 6” (Minimum)

12” (Recommended)

•

Install unit low enough

for easy access to

coffee bins on top

Coffee maker pulled

out from cabinet

Overhanging

cabinet

Veritical distance

to overhang

Preparing for Installation

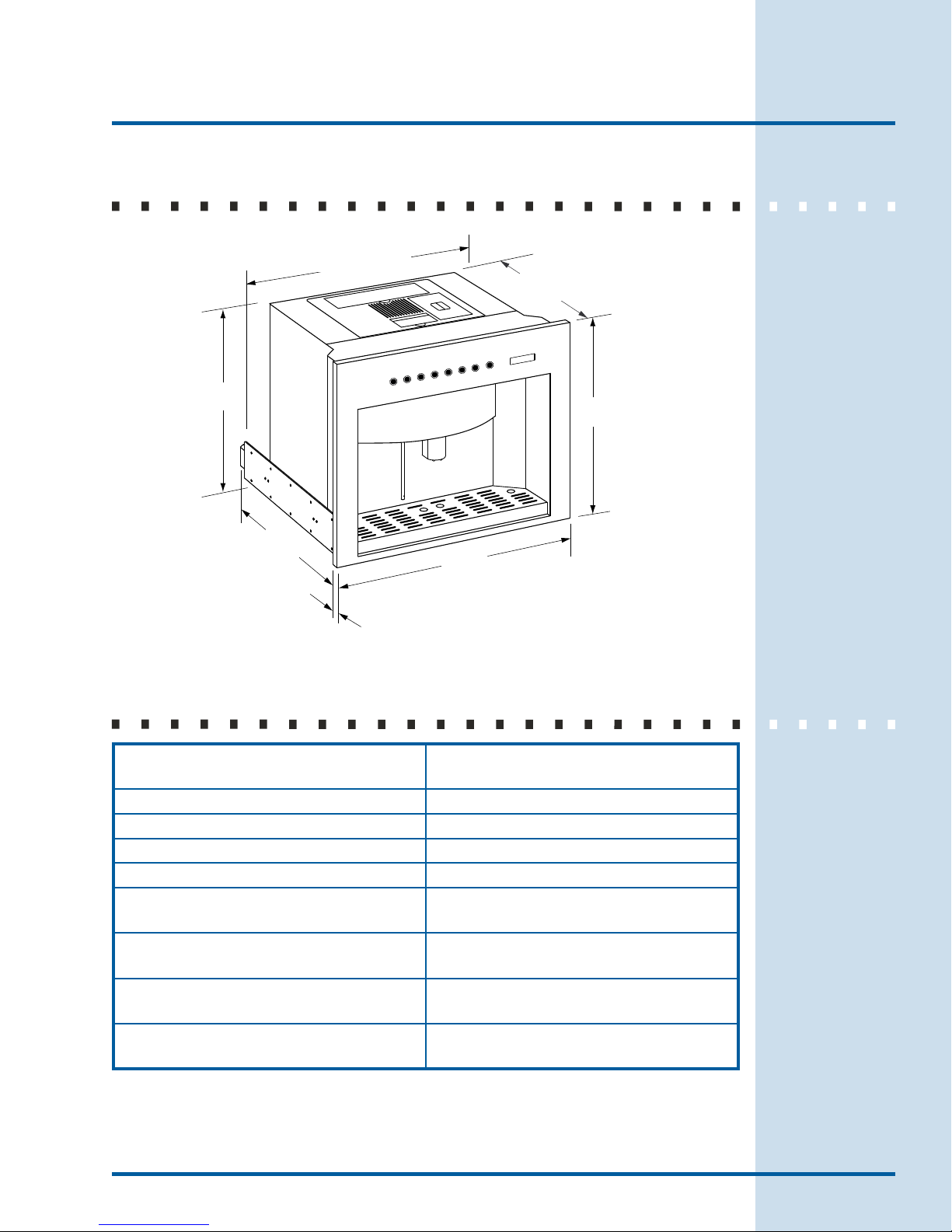

DIMENSIONS

TECHNICAL SPECIFICATIONS

Power Requirements 120 Vac, 60Hz, 20A grounded,

dedicated circuit required

Total Connected Load 1.8kW (15A)

Power Cord Length 60 inches

Unit Weight 110 lbs.

Shipping Weight 139 lbs.

Fresh Water Capacity

(Model E24CM75GSS) 5 Liters/1.3 Gallons

Minimum Input Water Pressure

(Model E24CM76GSS) 1.40 Bar (20 psi)

Maximum Input Water Pressure

(Model E24CM76GSS) 2.75 Bar (40 psi)

Water inlet diameter

(Model E24CM76GSS) 3/4”

18 3/16”

(46.2cm)

22 1/16 (56.0cm)

17 9/16”

(44.5cm)

21 9/16”

(54.8cm)

13/16”

(2.0cm)

23 1/2”

(59.6cm)

18 3/16”

(44.0cm)

All tolerances: + 1/16”, - 0”

unless otherwise stated.

The correct voltage, frequency and amperage must be supplied to the electrical

outlet from a grounded, dedicated, single phase circuit that is protected by a

properly sized circuit breaker or time-delay fuse. If one is not installed, call a

licensed electrician.

10 Installation

BEFORE YOU START

Remove the coffee maker from the packaging and inspect it for damage. Do not

install a damaged maker. To prevent damage to the control panel door, do not set

the appliance on the floor or counter prior to installation.

Check to make sure all parts are included.

PARTS LIST

Steam barrier with mounting screws

2 guide assemblies with mounting screws

6” metal shims, 1/16” (1mm)

Three foot 1/4” to 3/4” flexible water supply hose(E24CM76GSS)

Use & care guide

Detergent tablets (sample)

Spare tank O-ring (model E24CM75GSS)

Spare piston assembly O-ring

Allen wrench (for grinder adjustment)

Anti-liming powder (sample)

Measuring cup for ground coffee

Cleaning brush

Keys (taped to the right side of the unit)

•

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cafetera de Electrolux

Electrolux

Electrolux EKF 5210 Manual de usuario

Electrolux

Electrolux Cafe Ole CO 20 Manual de usuario

Electrolux

Electrolux ECG6400 Manual de usuario

Electrolux

Electrolux E24CM75GSS - Water Reservoir 24 Inch Coffee... Manual de usuario

Electrolux

Electrolux EEA150 Manual de usuario

Electrolux

Electrolux AEG KF 31 Series Manual de usuario

Electrolux

Electrolux E24CM75GS Manual de usuario

Electrolux

Electrolux Pump Espresso EES250 Manual de usuario

Electrolux

Electrolux EKF3 series Manual de usuario

Electrolux

Electrolux Favola Plus ELM 5200 Amodo Mio Manual de usuario

Electrolux

Electrolux LAVAZZA ELM6100 Manual de usuario

Electrolux

Electrolux E24CM75GSS - Water Reservoir 24 Inch Coffee... Manual de usuario

Electrolux

Electrolux EKF31 SERIES Manual de usuario

Electrolux

Electrolux E6EC1 Series Manual de usuario

Electrolux

Electrolux EBC54524 Manual de usuario

Electrolux

Electrolux EKF3100 Manual de usuario

Electrolux

Electrolux ECM1303K Manual de usuario

Electrolux

Electrolux EBA63810X Manual de usuario

Electrolux

Electrolux EEA250 Manual de usuario

Electrolux

Electrolux Explore 7 Manual de usuario

Electrolux

Electrolux EASYPRESSO EEA110 Manual de usuario

Electrolux

Electrolux EKAM 200 Manual de usuario

Electrolux

Electrolux Favola Easy ELM 5000 Manual de usuario

Electrolux

Electrolux AEG PE3810-M Manual de usuario

Manuales populares de Cafetera de otras marcas

Taurus

Taurus Livorno 6 Manual de usuario

Delta-q

Delta-q QUICK Manual de usuario

Bunn

Bunn LCA-1 Guía de solución de problemas

Black & Decker

Black & Decker BLACK DECKER HOME DE790 Instrucciones de instalación

Saeco

Saeco Vienna Plus Sup 018M Manual de usuario

DeLonghi

DeLonghi DC300 Manual de usuario

INCAPTO

INCAPTO BXCO1470E Manual de usuario

Bosch

Bosch TASSIMO finesse TAS16B Series Manual de usuario

Exido

Exido 245-072 Manual de usuario

Animo

Animo OptiVend Choco Manual de usuario

Siemens

Siemens TQ505DF Series Manual de usuario

DeLonghi

DeLonghi ECI341 Manual de usuario

Krups

Krups KT406511 Manual de usuario

Cimbali

Cimbali M32 Classic Manual de usuario

Philips

Philips HL3844N Manual de usuario

Bosch

Bosch TES 515 SERIES Manual de usuario

Tekmatix

Tekmatix TMFM - 65 Manual de usuario

Scarlett

Scarlett SC-CM33005 Manual de usuario
