Ekwb EK-Quantum Vector RTX 3080/3090 D-RGB Manual de usuario

USER GUIDE

GPU WATER BLOCK

EK-Quantum

Vector Trio RTX 3080/3090 D-RGB

Before you start using this product, please follow these basic guidelines:

Carefully read the manual before beginning with the

installation process.

Remove your graphics card from the computer for the safest

mounting process to prevent any possible damage to your

GPU or its circuit board (PCB).

EK Fittings require only a small amount of force to screw

them ﬁrmly in place since the liquid seal is ensured with the

rubber O-ring gaskets.

The use of quality market-proven corrosion-inhibiting

coolants is always strongly recommended for any liquid

cooling system.

Do not use pure distilled water as a cooling liquid! For best

results, EK recommends the use of EK-CryoFuel Coolants.

Make sure to bleed air out of your water block thoroughly in

order to reach optimal performance.

- 3 -

TABLE OF CONTENTS

BOX CONTENTS 4

WATER BLOCK DIMENSIONS 5

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS 6

PREPARING THE GRAPHICS CARD 7

REMOVING THE STOCK COOLER AND BACKPLATE 7

CUTTING AND PLACING THERMAL PADS 8

CLEANING THE PCB 8

APPLYING THERMAL COMPOUND 9

INSTALLING THE WATER BLOCK 10

PLACING THE BLOCK ON THE GRAPHICS CARD 10

ATTACHING THE BLOCK TO THE GRAPHICS CARD 10

CHECKING FOR CONTACT 11

INSERTING THE GRAPHICS CARD INTO THE CHASSIS 11

INSTALLATION OF FITTINGS AND TUBING 12

CONNECTING THE D-RGB LED STRIP 12

TESTING THE LOOP 13

REPLACING THE LED STRIP (Optional) 13

SUPPORT AND SERVICE 14

SOCIAL MEDIA 14

- 4 -

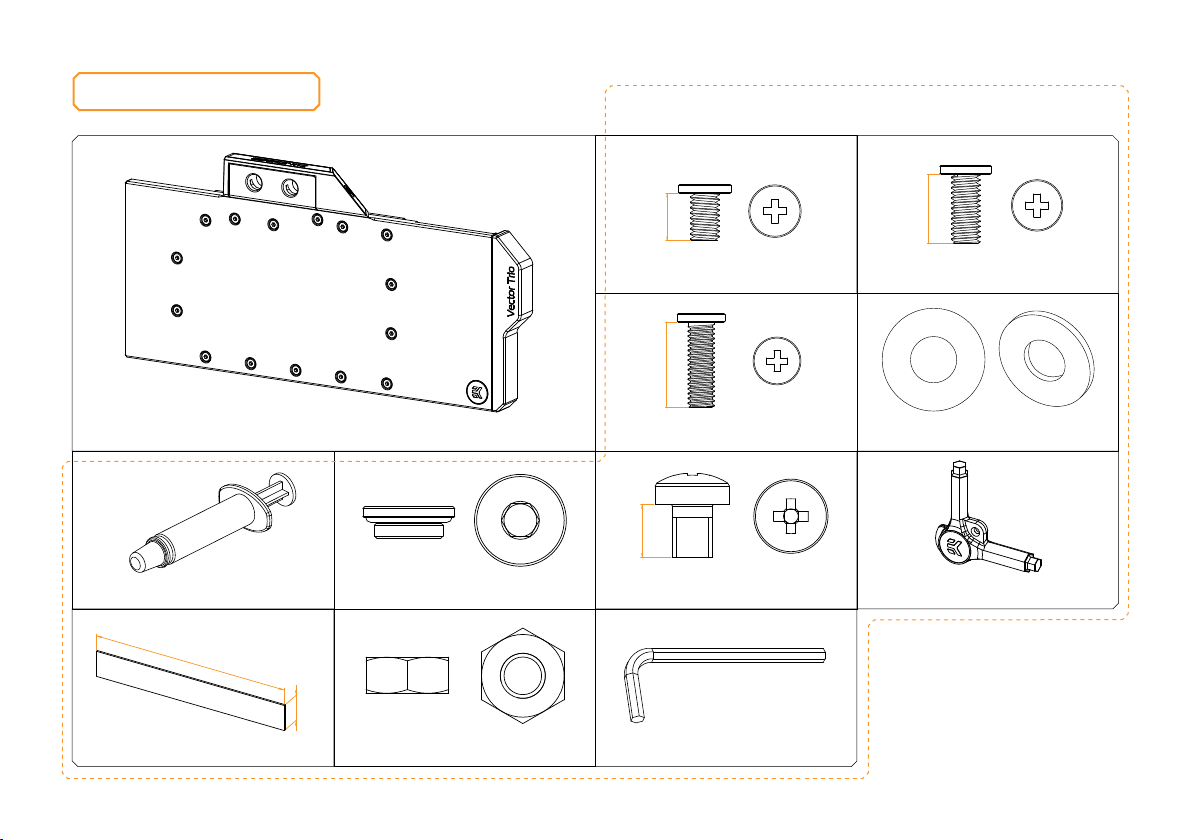

BOX CONTENTS

4 mm

6 mm

8 mm

M3x4 DIN7985 Screw (2 pcs) EK-Loop Multi Allen Key (1 pc)

M2.5 Nut (6 pcs)

M2.5x6 AX1 Screw (13 pcs)

Allen Key 2.5 mm (1 pc)

Thermal Pad F 1.0 mm (5 pcs)

Thermal Grease (1 pc)

M2.5x8 AX1 Screw (2 pcs)

M2.5x4 AX1 Screw (20 pcs)

EK-Quantum Vector Trio RTX 3080/3090 D-RGB PVC Washer M2.5 (20 pcs)

120 mm

16 mm

EK-Plug G1/4 CSQ-Bridge (2 pcs)

Universal Mounting Mechanism – You may not need every

screw from this package.

- 5 -

WATER BLOCK DIMENSIONS

105.62 mm

134.62 mm

319.43 mm

141.50 mm

156.90 mm

20.35 mm

- 6 -

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS

Technical Speciﬁcation:

Dimensions: (LxHxW) – 319.43 x 156.9 x 20.35

D-RGB (Adressable RGB) wire harness cable length: 335 mm

D-RGB LED COUNT: 9

D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)

M4x8 DIN7984 SCREW

O-RING 15x1

M4x20 DIN7984 SCREW

TERMINAL COVER

TERMINAL

TOP PLATE

(PLEXI,ACETAL)

COLDPLATE

INSERT (PLEXI)

JE T PL AT E

EK BADGE

LED D-RGB STRIP

STICKER EK

STICKER GEFORCE

STICKOUT (ACETAL

WHITE/BLACK)

M4/M2,5x2,5 STANDOFF/

SCREW FOR STICKOUT

O-RING 171x2

M4/M2,5x10.5

STANDOFF-LONG

M4/M2,5x2,5 STANDOFF-SHORT

- 7 -

PREPARING THE GRAPHICS CARD

For this Step, you will need:

Phillips Head Screwdriver

STEP 1

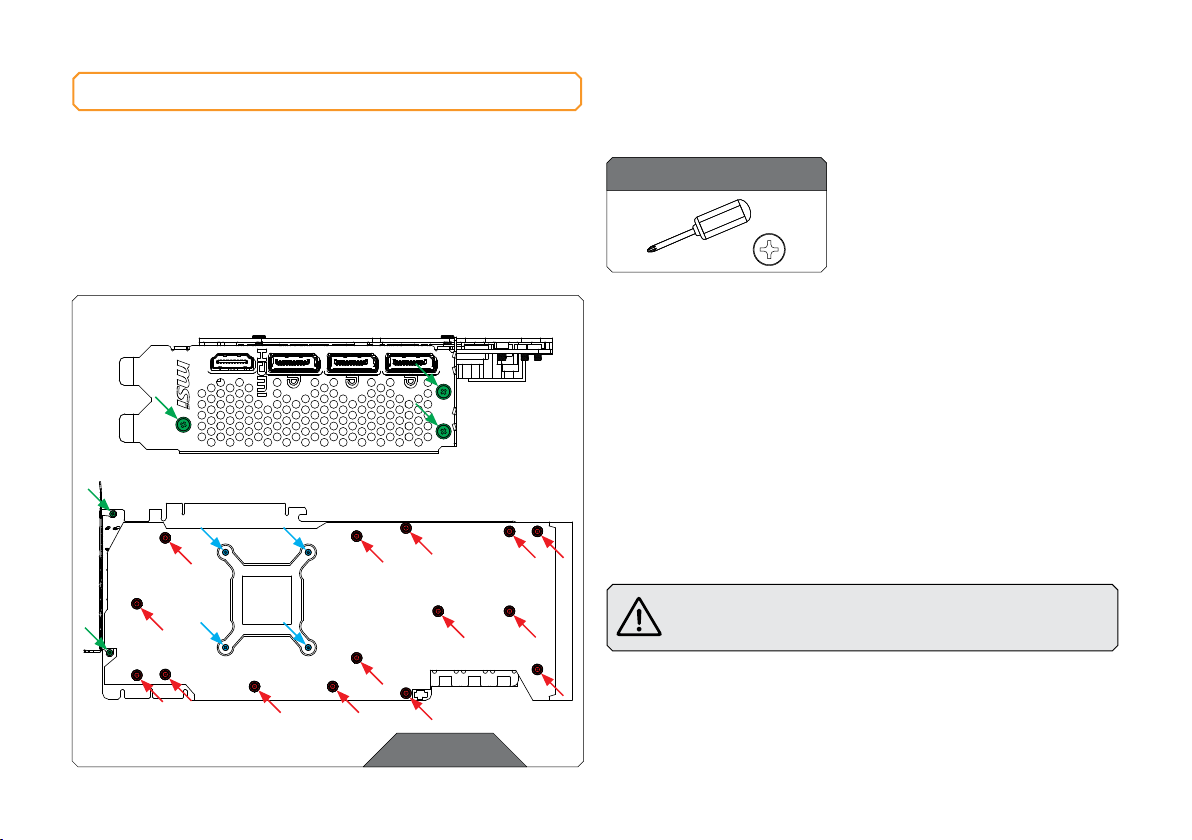

REMOVING THE STOCK COOLER AND BACKPLATE

Place your graphics card on the ﬂat surface and carefully remove the

stock cooler. Do not forget to unplug all the LED and fan connectors.

Pay attention to the following steps in order to install the EK-Quantum

Vector Trio RTX 3080/3090 D-RGB water block on the graphics card.

Use the Phillips head screwdriver to remove the ﬁve (5) green marked

screws from the GPU bracket side.

Then remove the ﬁfteen (15) red marked screws with Phillips head

screwdriver and carefully detach the stock backplate from the PCB.

After removing the stock backplate remove four (4) blue marked

screws on retention bracket and you can move to step 2 of the process.

Always remove the stock cooler slowly - it might be ﬁrmly

glued to the PCB with thermal pads.

STEP 2

- 8 -

STEP 1

Your GPU water block comes with thermal pads that have to be cut

into smaller pieces to cover all the VRM components, such as COILs,

MOSFETs, and drivers.

You must remove the protective foil from both sides of the

thermal pad before installation.

Replacement thermal pads:

5x Thermal Pad F 1.0 mm – (120 x 16 mm) EAN: 3830046996732

STEP 1

Thermal Pad F – 1.0 mm (120 x 16 mm)

CUTTING AND PLACING THERMAL PADS

120 mm

16 mm

1 mm

STEP 2

CLEANING THE PCB

Carefully detach the original stock cooler after removing all screws

that are securing it to the board. Wipe off the remains of the original

thermal compound using a nonabrasive cloth or Q-tip, as shown

in the sample image, until the components and circuit board are

completely clean. EK recommends the use of denatured alcohol for

removing TIM leftovers.

STEP 2

- 9 -

Thermal Grease

STEP 1

Apply the enclosed EK-TIM Ectotherm thermal grease (thermal

compound) on the CPU heat spreader – IHS – as shown in the

image. The layer of the thermal compound must be thin and even

over the entire surface of the IHS.

The excessive or uneven application of thermal grease

may lead to poor performance!

STEP 1

APPLYING THERMAL COMPOUND

For this Step, you will need:

STEP 2

Once cut to size, thermal pads should be placed on the PCB, as

illustrated below. EK made sure to provide you with more than an

adequate quantity of thermal pads to complete this Step.

Thermal Pad F 1.0 mmRTX™ 3080/3090

- 10 -

M2.5 Nut

1 pcs

For this Step, you will need:

M 2.5 PVC Washer

(19 pcs)

Phillips Head

Screwdriver

M2.5 x 4 AX1

(19 pcs)

4 mm

STEP 2

M2.5 x 4 AX1 SCREW

M2.5 PVC WASHER

M2.5 NUT

STEP 2

ATTACHING THE BLOCK TO THE GRAPHICS CARD

Use nineteen (19) M2.5 X 4 AX1 screws and M2.5 PVC washers.

Tighten the screws evenly using the Phillips head screwdriver. EK

recommends you start tightening the screws around the GPU core

ﬁrst and then continuing outward to prevent damage to the GPU.

Always use a plastic washer under each screw! For one (1) M2.5

screw marked with red triangle you will also need one (1) M2.5 Nut to

succesfully attach bracket to pcb.

INSTALLING THE WATER BLOCK

STEP 1

PLACING THE BLOCK ON THE GRAPHICS CARD

This procedure is the same for all full-cover water blocks.

Carefully position the water block with preinstalled standoffs on

the graphics card. During this process, make sure you have aligned

mounting holes of the PCB with holes of the water block (the same

applies to other tops).

Pay attention not to use too much force when pressing the

block down to the PCB since chip dies are prone to cracking.

STEP 1
