USER GUIDE

GPU WATER BLOCK

EK-Quantum

Vector² Xtreme RTX 3080/90 ABP Set D-RGB

Please note the installation of the product is intented to be undertaken

by an adequately trained and experienced person. You are installing the

product at your own risk. If you are not properly trained or experienced

or feel unsure about the installation procedure, please refrain from

installing the product yourself and contact our tech support for

assistance. We disclaim our liability for any damages to the product as

well as incidental, consequential or indirect damages incurred due to

improper or inappropriate installation.

Before you start using this product, please follow these basic guidelines:

Carefully read the manual before beginning with the

installation process.

Remove your graphics card from the computer for the safest

mounting process to prevent any possible damage to your

GPU or its circuit board (PCB).

The EK Fittings require only a small amount of force to screw

them ﬁrmly in place since the liquid seal is ensured by the

rubber O-ring gaskets.

The use of corrosion inhibiting coolants is always

recommended for liquid cooling systems and mandatory for

nickel-plated water blocks!

Do not use pure distilled water!

For best results, EK recommends the use of EK-CryoFuel

coolants! To reach optimal performance, make sure to

thoroughly bleed the air out of your water block!

- 3 -

TABLE OF CONTENTS

BOX CONTENTS 4

WATER BLOCK DIMENSIONS 5

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS 6

NICKEL PLEXI 6

PREPARING THE GRAPHICS CARD 7

REMOVING THE STOCK COOLER 7

CLEANING THE PCB 7

PREPARING THE WATER BLOCK FOR INSTALLATION 8

CUTTING AND PLACING THERMAL PADS 9

APPLYING THERMAL COMPOUND 10

ATTACHING THE WATER BLOCK 11

ATTACHING THE AC TIVE BACKPLATE 13

FITTINGS AND TUBING 15

INSERTING THE GRAPHICS CARD INTO THE CHASSIS 15

CONNECTING THE D-RGB LED STRIP 16

TESTING THE LOOP 16

WARRANTY 17

SUPPORT AND SERVICE 18

SOCIAL MEDIA 18

- 4 -

Thermal Pad F 1.0 mm (6 pcs)

(3830046996732)

120 mm

16 mm

Thermal Pad F 2.0 mm (4 pcs)

(3830046996756)

120 mm

16 mm

Thermal Grease (1 pc)

BOX CONTENTS

4 mm

8 mm

10 mm

EK-Loop Multi Allen Key (1 pc)

Allen Key 2 mm (1 pc)

Allen Key 2.5 mm (1 pc)

M2.5x8 AX1 Screw (1 pc)

M3x10 AX1 Screw (1 pc)

EK-Quantum Vector2Xtreme RTX

3080/90 ABP Set D-RGB

M2.5x4 AX1 Screw (9 pcs)

Polyamid Washer M2.5 0.5mm (9 pcs)

Standoff Ø4.5/2.5 (1 pc)

Quantum Plug (2 pcs)

EK-Plug Out Spludger Tool (1 pc)

Standoff M2.5-M3 x 6.6mm (1 pc)

Nut M2.5 (2 pcs)

EAN: 105161

EAN: 104549

Terminal OR - Vector

14x1 mm (2 pcs)

- 5 -

WATER BLOCK DIMENSIONS

308.5 mm

212.5 mm

184.5 mm

135.5 mm

148 mm

41 mm

35.5 mm

- 6 -

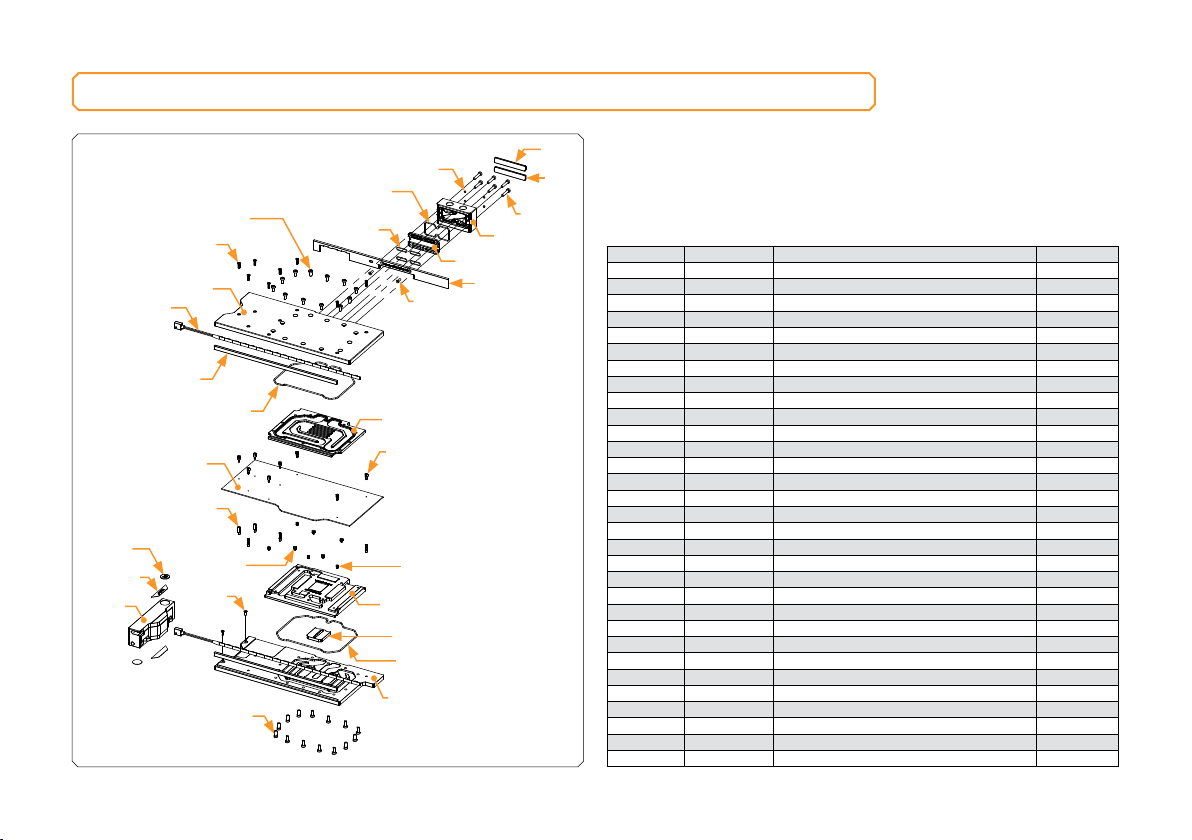

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS

NICKEL PLEXI

- Dimensions: (LxHxW): 308.5 x 148 x 41 mm

- D-RGB LED count: 30

- D-RGB cable length: 50 cm

- D-RGB connector 3-pin 5V digital LED header

Position EAN Description Quantity

1105139 Coldplate (Nickel) 1

2105142 Top plate (Plexi) 1

3103962 Plexi insert 1

4101556 LED D-RGB strip 500/300 mm 2

5103964 Mylar sticker 2

6100663 EK - Badge 2

78208 Screw M3x8 7991DIN 2

8105148 LED Cover 2

9103987 Standoff M3.5-M2.5 x 3 mm 4

10 103988 Standoff M4-M2.5 x 3 mm 4

11 103986 Standoff M3.5-M2.5 x 11.3 mm 5

12 9024 Screw M4 x 10 DIN7984 14

13 104106 Terminal OR - 14 x 1 mm 4

14 103942 Terminal Badge 1

15 104098 Stand out (Acetal) 1

16 104393 FC Terminal (Acetal) 1

17 104395 Terminal plate (Nickel) 1

18 104414 0R 52 x 2 mm 1

19 105163 Disc magnet 3 x 2 4

20 104086 Active Backplate Terminal Badge 1

21 8311 Screw M4 x 20 DIN7984 6

22 8201 Screw M3 x 10 DIN7991 2

23 105141 Coldplate ABP (Nickel) 1

24 105145 ABP Top plate (Plexi) 1

25 105156 Sideplate (Bl. Elox) 1

26 104093 Standoff M2.5-M3 x 6.6 mm 8

27 104105 Screw AX1 M3 x 10 8

28 9013 Screw M4 x 8 DIN7984 12

29 5116 OR 142 x 2 mm 1

30 104916 OR 138 x 2 mm 1

31 105162 PCB cardboard 1

- 7 -

PREPARING THE GRAPHICS CARD

STEP 1

REMOVING THE STOCK COOLER

Place your graphics card on the flat surface and carefully remove

the stock cooler. Do not forget to unplug all the LED and fan

connectors. Pay attention to the following steps when installing

the EK-Quantum Vector2Xtreme RTX 3080/3090 water block

onto your graphics card.

STEP 2

CLEANING THE PCB

Wipe off the remains of the original thermal compound using a

nonabrasive cloth or Q-tip, as shown in the sample image, until the

components and circuit board are completely clean. EK recommends

the use of denatured alcohol for removing TIM leftovers. After that,

remove all remaining stock thermal pads from the PCB.

STEP 2

- 8 -

PREPARING THE WATER BLOCK FOR INSTALLATION

STEP 1

First, remove the terminal badge which is attached to the

terminal with two magnets. Under the badge, unscrew three (3)

screws M4 x 20 DIN7984. Additional eight (8) screws M3 x 10 AX1

need to be removed (as shown in the image).

DO NOT REMOVE THE UPPER TERMINAL BADGE!

STEP 1

STEP 2

Carefully remove the complete active backplate with the terminal.

Additional two (2) O-rings 14 x 1 EPDM50 need to be removed.

STEP 2

For this step, you will need:

Phillips Head Screwdriver

UPPER

TERMINAL

BADGE

TERMINAL

BADGE

TERMINAL

O-RING 14 x 1 mm

M4 x 20 DIN7984

SCREW

M3 x 10 AX1

SCREW

DO NOT

REMOVE

THE UPPER

TERMINAL

BADGE!

Allen Key 2.5mm

ACTIVE

BACK PL AT E

- 9 -

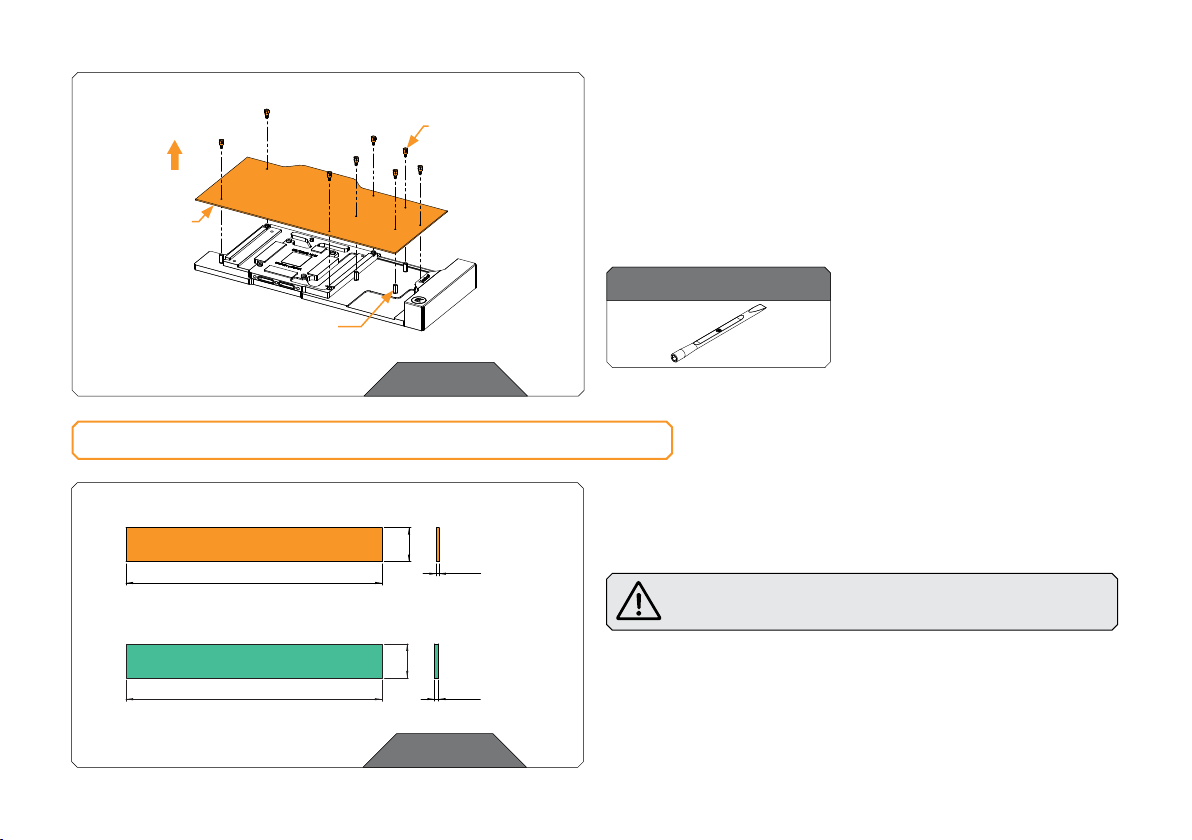

STEP 3

Unscrew eight (8) M2.5-M3 x 6.6 standoff with the included

tool (EK-Plug out Spludger Tool). Make sure not to unscrew the

M3.5-M2.5 x 11.3 standoff! In case the M3.5-M2.5 x 11.3 standoff

unscrews, carefully tighten it back with the 4 mm wrench.

After removing the standoffs, the PCB cardboard needs to be

removed.

STEP 3

M3.5-M2.5x11.3

STAN DO FF

PCB

CARDBOARD

M2.5-M3 x 6.6

STAN DO FF

CUTTING AND PLACING THERMAL PADS

STEP 1

Your GPU water block comes with thermal pads that have to be cut

into smaller pieces to cover all the VRM components, such as COILs,

MOSFETs, and drivers.

You must remove the protective foil from both sides of the

thermal pad before installation.

Replacement thermal pads:

Thermal Pad F 1.0 mm – (120 x 16 mm) EAN: 3830046996732

Thermal Pad F 2.0 mm – (120 x 16 mm) EAN: 3830046996756

Thermal Pad F – 1.0 mm (120 x 16 mm)

120 mm

16 mm

1 mm

Thermal Pad F – 2.0 mm (120 x 16 mm)

2 mm

120 mm

16 mm

STEP 1

For this step, you will need:

EK-Plug Out Spludger Tool

- 10 -

STEP 2

For this step, you will need:

Scissors

STEP 2

Once cut to size, thermal pads should be placed on the PCB, as

illustrated below. EK made sure to provide you with more than an

adequate quantity of thermal pads to complete this Step.

Before attaching the PCB to the Water Block, make sure

all the Thermal Pads are placed correctly!

STEP 2

Thermal Grease

STEP 1

Apply the enclosed EK-TIM Ectotherm thermal grease (thermal

compound) on the GPU heat spreader – IHS – as shown in the

image. The layer of the thermal compound must be thin and even

over the entire surface of the IHS.

The excessive or uneven application of thermal grease

may lead to poor performance!

APPLYING THERMAL COMPOUND

For this step, you will need:

Thermal Pad - 120 x 16 x 1.0 mm

STEP 1
