Ekwb EK-Pro RTX A5000 Manual de usuario

USER GUIDE

GPU WATER BLOCK

EK-Pro

RTX A5000

If this product is made from aluminum and can be only used

with other aluminum liquid cooling components, such as Al

ﬁttings, water blocks and radiators. Mixing aluminum with

copper and brass products can cause galvanic corrosion of

the metal and render liquid cooling equipment useless. Such

misuse is not covered by warranty.

Before you start using this product, please follow these basic guidelines:

Please carefully read the manual before beginning with the

installation process!

Please remove your graphics card from the computer to

assure safest mounting process in order to prevent any

possible damages to your GPU and/or graphics card circuit

board (PCB).

The EK Fittings require only a small amount of force to screw

them ﬁrmly in place since the liquid seal is ensured by the

rubber O-ring gaskets.

The use of corrosion inhibiting coolants is always

recommended for liquid cooling systems, and mandatory for

nickel plated water blocks!

Do not use pure distilled water! For best results EK

recommends the use of EK-CryoFuel coolants!

Make sure to thoroughly bleed air out of your water block, or

you will not reach optimal performance!

- 3 -

TABLE OF CONTENTS

BOX CONTENTS 4

WATER BLOCK DIMENSIONS 5

WATER BLOCK SPECIFICATIONS AND MAIN PARTS 6

PREPARING THE GRAPHICS CARD 7

CLEANING THE PCB 7

CUTTING AND PLACING THERMAL PADS 7

APPLYING THERMAL COMPOUND 8

UNPACKING AND REASSEMBLYING 9

INSTALLING THE WATER BLOCK 10

MOUNTING PCB ON THE WATER BLOCK 10

ATTACHING THE BACKPLATE TO THE GRAPHICS CARD 11

MOUNTING BACKPLATE ON PCB 11

CHECKING FOR CONTACT 12

INSERTING THE GRAPHICS CARD INTO THE CHASSIS 12

FITTINGS AND TUBING 13

TESTING THE LOOP 13

SUPPORT AND SERVICE 14

SOCIAL MEDIA 14

- 4 -

Standard mounting kit 1

Standard mounting kit 2 Additional

BOX CONTENTS

4 mm

10 mm

Allen Key 2 mm (1 pc)

Thermal Pad F 1.5 mm (120 x 16 mm)

(10 pcs) (3830046996749)

Thermal Grease (1 pc)

Karton - Screw size guide

M2.5x10 AX1 Screw (5 pcs)

EK-Pro Fitting Barb 10mm G1/4

(2 pcs)

EK-Pro RTX A5000

M2.5x4 AX1 Screw (13 pcs)

Polyamid Washer M2.5 x 0.7mm

selfglued (6 pcs)

Polyamid Washer M2.5 x 0.5 mm

(13 pcs)

120 mm

16 mm

7 mm

M2.5x7 AX1 Screw (8 pcs)

- 5 -

WATER BLOCK DIMENSIONS

141.2 mm

129.9 mm

311.1 mm

270.3 mm

23.5 mm

20.1 mm

- 6 -

WATER BLOCK SPECIFICATIONS AND MAIN PARTS

Technical Speciﬁcation:

- Dimensions (LxHxW): 311.1 x 141.2 x 23.5 mm

Pos. EAN Description Qty.

104957

RTX A5000 Coldplate 1

105039

RTX A5000 Backplate 1

104959

RTX A5000 Top 1

103987

Standoff M3.5-M2.5 x 3 8

103698

RTX A5000 Bracket

68483

Screw UNC6-32 x 5

102490

Pro GPU Bracket standoff M4

8489

Screw M3 x 6 DIN7991 2

102549

Pro GPU Jet 1

104318

GPU insert 1

102932

Standoff M3-M2.5 x 12.7 4

3674

FC Terminal M4 Pre-ﬁlled 1

5155

O-ring 15 x1 2

9024

Screw M4 x 10 DIN7984 2

100006

Screw M4 x 27 DIN7984 1

4569

ALU - EK Badge 1

8627

Washer POLYAMID M2.5 0.7 mm selfglued 5

105485

O-ring 122 x 2 1

9049

Screw M2.5x7 4

105106

Power adapter 1

103090

Screw ISO 14581 M3 x 6

104344

Screw M2.5 x 10 4

8623

Washer Poliamid M2.5 x 0.5 4

9047

Screw M2.5 x 4 4

- 7 -

PREPARING THE GRAPHICS CARD

CLEANING THE PCB

Place your graphics card on the ﬂat surface and carefully remove

the stock cooler. Do not forget to unplug all fan connectors. Pay

attention to the following steps when installing the EK-RTX A5000

water block onto your graphics card.

Wipe off the remains of the original thermal compound using a

nonabrasive cloth or Q-tip, as shown in the sample image, until the

components and circuit board are completely clean. EK recommends

the use of denatured alcohol for removing TIM leftovers. After that,

remove all remaining stock thermal pads from the PCB.

NONABRASIVE

CLOTH

STEP 1

Your GPU water block comes with thermal pads that have to be cut

into smaller pieces to cover all the VRM components, such as COILs,

MOSFETs, and drivers.

You must remove the protective foil from both sides of the

thermal pad before installation.

Thermal pads:

10x Thermal Pad F 1.5 mm – (120 x 16 mm) EAN: 3830046996749

STEP 1

1.5 mm

120 mm

16 mm

Thermal PAD F 1.5 mm (120 x 16 mm)

CUTTING AND PLACING THERMAL PADS

- 8 -

STEP 2

Once cut to size, thermal pads should be placed on the PCB, as

illustrated below. EK made sure to provide you with more than an

adequate quantity of thermal pads to complete this Step.

STEP 2

Thermal Pad F 1.5 mm (5 pcs)

(3830046996749)

For this Step, you will need:

120 mm

16 mm

F1.5

F1.5 F1.5

F1.5

F1.5 F1.5

F1.5

Thermal Pad F 1.5 mm

STEP 1

Apply the enclosed EK-TIM Ectotherm thermal grease (thermal compound)

on the GPU heat spreader – IHS – as shown in the image. The layer of the

thermal compound must be thin and even over the entire surface of the IHS.

The excessive or uneven application of thermal grease may

lead to poor performance!

APPLYING THERMAL COMPOUND

STEP 1

Thermal Grease

For this Step, you will need:

- 9 -

Phillips Head

Screwdriver

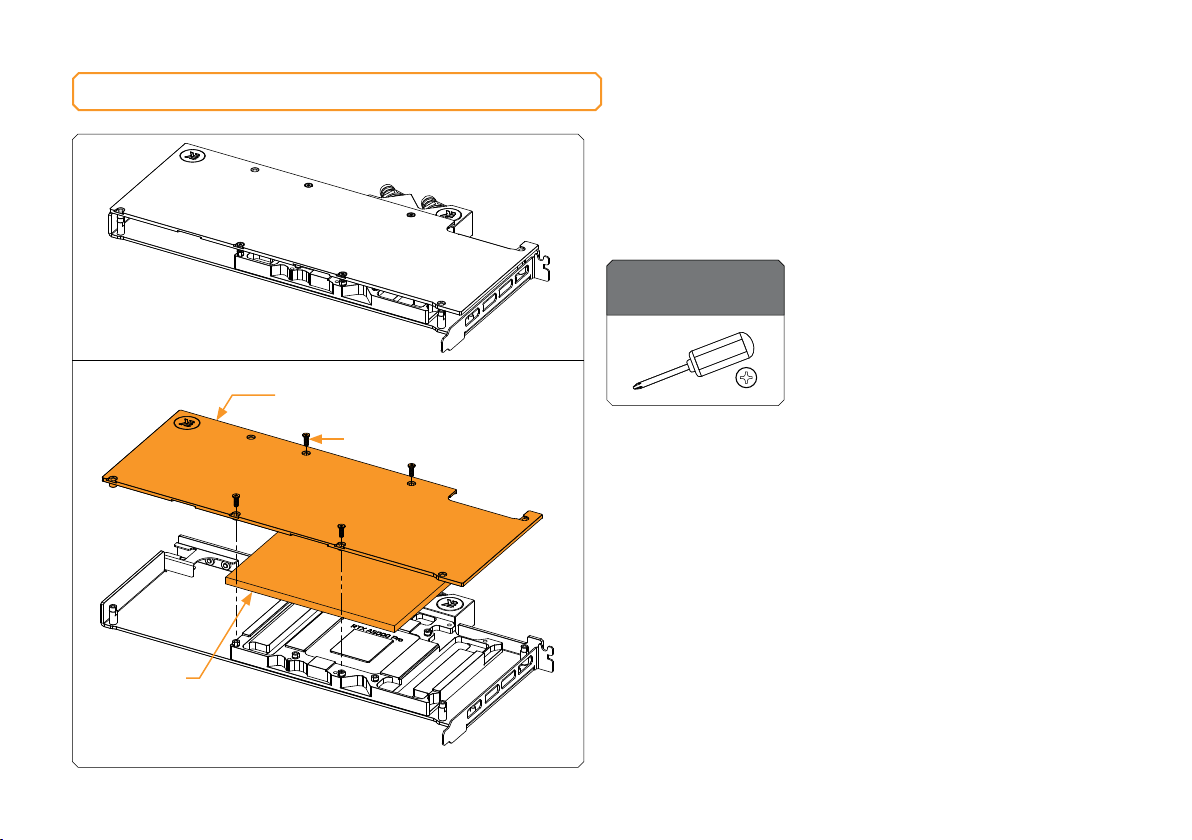

After unboxing the preinstalled water block, carefully put it on soft

surface. Untighten four (4) screws AX1 M2.5 x 7 and remove foam

and RTX A5000 Backplate. Four (4) screws AX1 M2.5 x 7 and foam

you will not need any more.

UNPACKING AND REASSEMBLYING

For this Step, you will need:

FOAM

SCREW AX1 M2.5 x 7 (4x)

RTX A5000 BACKPLATE

- 10 -

This procedure is the same for all full-cover water blocks.

STEP 1

MOUNTING PCB ON THE WATER BLOCK

Firstly, stick three (3) Washer POLYAMID M2.5 0.7 mm selfglued, on

the top of 3 the biggest standoffs.

Carefully position the graphic card on water block with preinstalled

standoffs. During this process, make sure you have aligned mounting

holes of the PCB with holes of the water block.

Unscrew two (2) preinstalled M3 x 6 DIN7991 screws to properly

place the PCB power connector in power adapter. After placement

is done, tighten them on place again.

Pay attention not to use too much force when pressing

the PCB down to the block since chip dies are prone to

cracking.

Tighten four (4) screws AX1 M2.5 x 4 with belonging four (4) Washers

M2.5 x 0.5 as shown in the picture. Tighten the screws evenly using

the Phillips head screwdriver.

For this step you will need Standard mounting kit 2.

INSTALLING THE WATER BLOCK

STEP 1

4 mm

Allen Key 2 mm

(1 pc)

Thermal Grease

(1 pc)

M2.5 x 4 AX1 Screw

(13 pcs)

Polyamid Washer M2.5 x 0.7 mm

selfglued (6 pcs)

Polyamid Washer M2.5 x 0.5 mm

(13 pcs)

Standard mounting kit 2

SCREW M3 x 6

DIN7991 - INOX (2x)

WASHER

POLYAMID

M2.5 0.7 mm

SELFGLUED

SCREW AX1 M2.5 x 4 (4x)

WASHER M2.5 x 0.5 mm (4x)

PCB POWER

CONNECTOR

POWER

ADAPTER
