INSTALLATION MANUAL

Starter Liquid Cooling Kit

Classic D-RGB S240 S360 P240 P360

For EK-KIT Classic series units | 1st revision, jun 2nd 2020

/ 1 /

EK Water Blocks bears the name of its founder Edvard König, who

started experimenting with liquid cooling in 1999. From the humble

beginnings in the early years of the previous decade, the company

grew steadily to become a global premium liquid cooling gear

manufacturer. Today, EKWB offers a complete range of products

for liquid cooling, from a renowned Supremacy line of CPU water

blocks, wide range of inhouse developed CoolStream radiators and

Vardar High pressure fans to Phoenix all-in-one (AIO) Modular Liquid

Cooling (MLC) solution, providing overclocking enthusiasts and PC

builders with the best of what the market can offer. EK-KIT Classic

the cooling solution is the next step to bring extreme liquid cooling

performance in the hands of dedicated gamers and PC enthusiasts

around the world.

Safety precautions

1. Keep and store the product away from the reach of children.

2. Check the component list and condition of the product before

installation. If there is any problem, contact the shop where you

have purchased the product to get a replacement or refund.

3. EKWB d.o.o. is not responsible for any damages due to external

causes, including but not limited to, improper use, problems

with electrical power, accident, neglect, alteration, repair,

improper installation, and improper testing.

4. CPU and motherboard are subject to damage if the product is

incorrectly installed.

5. This product is a CPU liquid cooling solution kit, comprising of

individual original EKWB parts. Combining this liquid cooling

unit with parts, other than EK Water Blocks products, may

lead to warranty loss.

6. The product warranty period is 24 months.

QUICK INSTALLATION GUIDE

/ 2 /

RADIATOR SPACE CONSTRAINT REQUIREMENTS 5

DOZEN GOOD ADVICES FOR THE NEWCOMERS 6

LIQUID COOLING SYSTEM 6

GENERAL INFORMATION ON WATER BLOCK COMPATIBILITY 7

INSTALLING THE WATER BLOCK 8

WHAT IS ENCLOSED 8

LGA20113 SOCKET MOTHERBOARDS 9

LG A115xSOCKET MOTHERBOARDS 11

AMD® SOCKET MOTHERBOARDS 15

INSTALLING THE RADIATOR AND FANS 19

INSTALLING THE RADIATOR AND FANS IN ONE GO 20

INSTALLING THE PUMP-RESERVOIR UNIT 22

WHAT IS ENCLOSED 22

INSTALLING THE PUMPRESERVOIR UNIT ON THE CHASSIS BOTTOM 23

CONNECTING THE TUBING 25

CONNECTING THE PUMPRESERVOIR UNIT 27

ELECTRICAL CONNECTIONS 27

RECOMMENDED FILLING AND LEAK TESTING PROCEDURE 28

CONNECTING THE FANS, PUMP, AND CPU DRGB LIGHTS 29

FILLING THE SYSTEM FOR THE FIRST TIME 30

DRAINING OF THE LOOP 32

POSSIBILITIES OF THE SYSTEM EXPANSION 33

MAINTENANCE 34

FREQUENTLY ASKED QUESTIONS 35

TROUBLESHOOTING 36

IN CASE OF CPU OVERHEATING 36

THE COOLER IS TOO LOUD 37

GENERAL LIQUID COOLING PARTS CLEANING GUIDE 38

PREVENTIVE STEPS 39

SUPPORT AND SERVICE 42

SOCIAL MEDIA 42

SCOPE OF DELIVERY 3

REQUIRED TOOLS 4

TABLE OF CONTENT

/ 3 /

SCOPE OF DELIVERY

AMD Mounting Kit

Classic (1x)

D-RGB splitter Cable (1x) Angled Fitting (2x) Soft Tube Cutter (1x)

Radiator with Screws Coolant – concentrate

100mL

Tube ATX Bridging Plug

CPU Water Block

with Accessories

Compression Fittings

Pump-Reservoir Combo

with Accessories

D-RGB Fans

/ 4 /

REQUIRED TOOLS

Pair of Scissors

1L Bottle of distilled Water

H20

Fan Cable Y-splitter Installation Manual

Phillips-head Screwdriver Mixing Bottle

EK-RES X3 Holder (1x) Multi Allen Key (1x) Filling bottle 500ml (1x) Pump Cable Extension

500mm (1x)

UNI Bracket EK-Cable Pump testing

adapter (1x)

/ 5 /

RADIATOR SPACE CONSTRAINT REQUIREMENTS

400 mm (15,75 in)

280 mm (11,02 in)

130 mm (5,12 in)

130 mm (5,12 in) 46 mm (1,8 in) 28 mm (1,10 in)

400 mm (15,75 in)

280 mm (11,02 in)

130 mm (5,12 in)

46 mm (1,8 in) 28 mm (1,10 in)

P240 P360 S240 S360

/ 6 /

DOZEN GOOD ADVICES FOR THE NEWCOMERS

1. In order to lower shipping costs, we have decided to enclose only

the coolant concentrate for liquid cooling. Therefore you need

to provide 1 liter (1L) of distilled water. You can get it at every gas

station or supermarket.

2. Never run this system on tap water and always use the

enclosed cooling concentrate in the correct ratio.

3. Never use alcohol, alcohol derivatives or alcohol based solvents

in the system. Using alcohol might result in permanent damage

to water cooling KIT components, especially acrylic parts of

the system.

4. The Reservoir must be positioned above the height level of the

water pump in order for the liquid to ﬂood the pump which is

crucial for the ﬁrst start-up.

5. Generally, for optimal performance, the Reservoir must be

positioned before the pump in the water loop.

6. It is best practice to do a proper leak test before using your computer.

7. If you spot any leaks, turn off the power immediately!

8. Optimize tubing length in order to prevent excessive bending

and kinking of the tubing.

9. Never let your pump run dry. If this is happening for a prolonged

period of time you may risk destroying the water pump’s bearing,

rendering the pump useless.

10. You are encouraged to periodically clean the radiator assembly

as it will collect dust over time. This is best done with a soft

wide tip brush and vacuum cleaner. See chapter ‘General liquid

cooling parts cleaning guide.’

LIQUID COOLING SYSTEM

CPU Water Block

Radiator with Fans

COLD AIR

HOT AIR

Reservoir-Water Pump

Combo

/ 7 /

GENERAL INFORMATION ON WATER BLOCK COMPATIBILITY

This CPU liquid cooling unit is pre-assembled for use with modern

Intel desktop socket type motherboards. By default (out of the box)

this water block supports the following CPU sockets:

- Intel® Socket LGA-115x / LGA-1200

- Intel® Socket LGA-2066/LGA-2011(-3)

- AMD® Socket AM4*

*requires replacing Intel® mounting plate with AMD® one.

This product is also fully compatible with AMD® AMx/FMx

sockets but requires a user to replace factory installed Intel

mounting plate with AMD® one. The following sockets are

then compatible:

- AMD® Socket AMx

- AMD® Socket FMx

AMD Mounting kit with mounting plate is already enclosed inside

this Kit!

/ 8 /

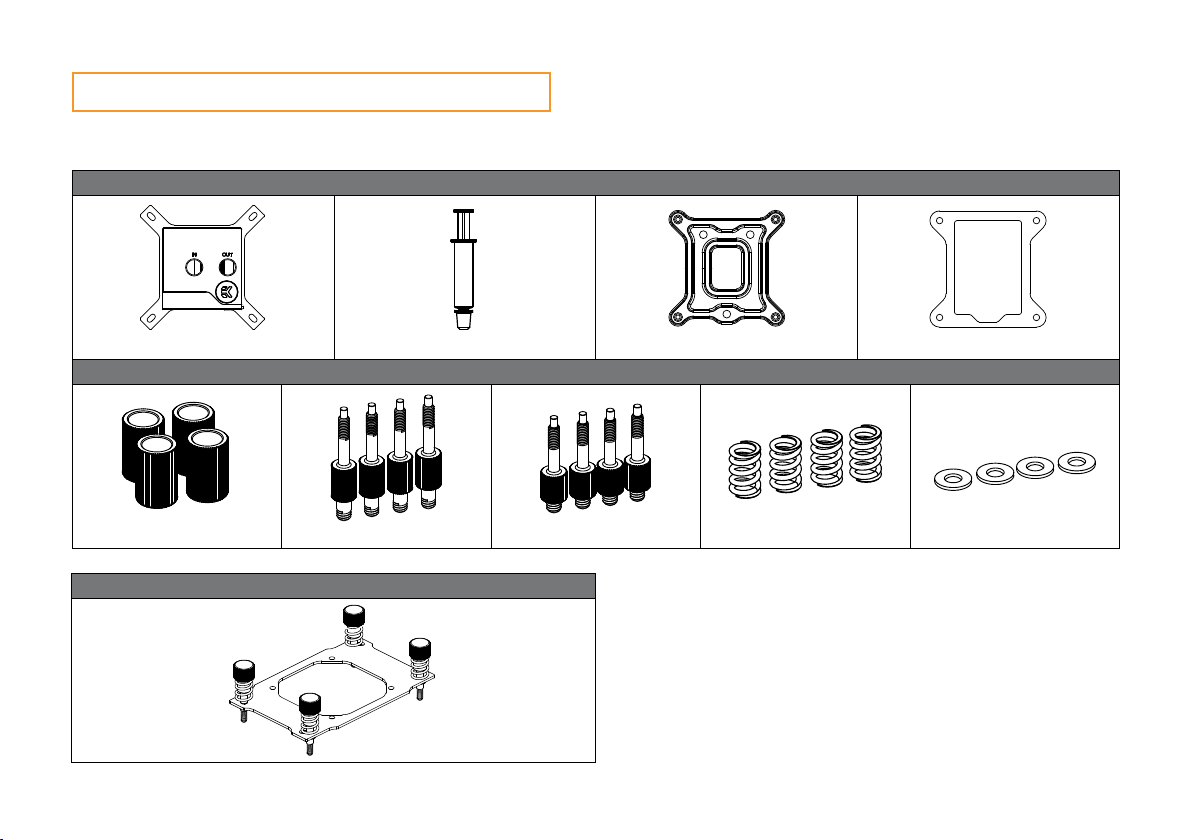

INSTALLING THE WATER BLOCK

CPU Water Block Thermal Grease Steel Backplate - LGA 115x

Rubber Backplate Distancer - LGA 115x

CPU WATER BLOCK WITH ACCESSORIES

MOUNTING KIT FOR INTEL SOCKET MOTHERBOARDS

Thumb Nut

Mounting Screw - LGA 115x Mounting Screw - LGA 20xx

Mounting Spring - Intel Washer M4 x 0.8 mm

WHAT IS ENCLOSED

MOUNTING KIT FOR AMD SOCKET MOTHERBOARDS
