Edimax ES-5816PHG Manual de usuario



User Manual



ES-5816PHG

Gigabit 16-Port 802.3at PoE Web Smart Switch

FCC Warning

This Equipment has been tested and found to comply with the limits for a Class-A

digital device, pursuant to Part 15 of the FCC rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy. It may

cause harmful interference to radio communications if the equipment is not installed

and used in accordance with the instructions. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

¾Reorient or relocate the receiving antenna.

¾Increase the separation between the equipment and receiver.

¾Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

¾Consult the dealer or an experienced radio/TV technician for help.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures.



I



Content

Content………………………………………………………………………………….I

Introduction……………………………………………………………………………..1

Product Overview……………………………………………………………………………….1

General Feature…………………………………………………………………….1

L2 switching………………………………………………………………………………………..1

Quality of Service………………………………………………………………………………… 2

Security…………………………………………………………………………………………… .2

Specification……………………………………………………………………………………..3

Mechanical……………………………………………………………………………………....3

Package Contents……………………………………………………………………………...4

Hardware Description………………………………………………………………….5

Physical Dimensions / Weight………………………………………………………………...5

Front Panel……………………………………………………………………………………...5

LEDs Indicators…………………………………………………………………………………..5

Rear Panel………………………………………………………………………………………6

Hardware Installation…………………………………………………………………………..6

Software Description…………………………………………………………………..7

Configuration……………………………………………………………………………………8

System ..…………………………………………………………………….…………….....8

Ports ………….…………………………………………………..…………………………..10

Vlan…………………………………….……………………….…………………………...11

Aggregation…………………………………………………………………………….….12

LACP……………………………………………………………………………….……….13

RSTP………………………………………………………………………………………..14

802.1x ………………………………………………………………………………………16

Snopping………………………………………………………………………….17

Mirrioring…………………………………………………………………………………18

QoS……………………………………………………………………………………….19

Filter..……………………………………………………………………………….…22

Power over Ethernet ………………………………………………………………………...23

Rate Limit…………………………………………………………………………………….24

Storm Control……………………………………………………………………………24

Monitoring…………………………………………………………………………………...26

Statistic Overview……………………………………………………………………… 26

II



Detailed Statistic………………………………………………………………………..26

LACP Status……………………………………………………………………………. 27

RSTP Status……………………………………………………………………………..28

IGMP Status……………………………………………………………………………..30

VeriPHY…………………………………………………………………………………..30

Ping……………………………………………………………………………………....31

Maintenance………………………………………………………………………………...34

Warm Restart…………………………………………………………………………....34

Factory Default………………………………………………………………………….34

Software Upload………………………………………………………………………..34

Configuration File Transfer…………………………………………………………....34

Logout……………………………………………………………………………………35

1



Introduction

Product Overview

This switch is a Web Management Switch equipped with 16-ports

10/100/1000BaseT(X) with 4-port gigabit SFP open slots. It was designed for

easy installation and high performance in an environment where traffic is on

the network and the number of users increases continuously. The compact

rigid desktop size was specifically designed for small to medium workgroups.

It can be installed where space is limited; moreover, it provides smooth

network migration and easy upgrade to network capacity.

In addition, the switch features comprehensive and useful function such as

QoS (Quality of Service), Spanning Tree, VLAN, Port Trunking, Bandwidth

Control, Port Security, SNMP/RMON, IGMP Snooping capability via the

intelligent software. It is suitable for both metro-LAN and office application.

General Features

- 16 Gigabit Ethernet ports with non-blocking wire-speed performance

- 16 tri-speed 10/100/1000 Mbps Gigabit Ethernet Media Access Controllers

(MACs)

- Eight tri-speed ( 10/100/1000 Mbps ) integrated copper transceivers

( PHY’s)

- Sixteen integrated SGMII ports

- Buffer Memory 500K Bytes

- 8,192 IP multicast groups supported

- Jumbo frame support at all speed ( 10/100/1000 Mbps) of up to 9.6K bytes

- Wire-speed automatic learning and CPU-based learning configurable per

port

- Support up to 24 trunks with up to 16 ports in a trunk

Layer-2 Switching

- 16 Giga Ethernet ports with non-blocking wire-speed performance

- 8,192 MAC addresses with wire-speed automatic learning and

CPU-based learning configurable per port

- Rapid Spanning Tree Protocol support ( IEEE std 802.1w)

2



- Multiple Spanning Tree support ( IEEE std 802.1s )

- IGMP, GARP, GMRP, and GVRP support

Quality of Service

- Programmable multi-layer classifier with four QoS classes per port

- Strict priority or weighted round-robin forwarding with guaranteed

bandwidth allocation

- Traffic class assignment based on port

- DSCP ( IPv4 & IPv6) and 802.1p support

- DSCP remarking for both IPv4 & IPv6 packets

- Provide Bridge support with multiple VLAN tags ( Q-in Q)

- Broadcast and multicast storm control

- Full-duplex flow control ( IEEE 802.3x ) and half-duplex back pressure

- Traffic shaping and policing per port in sites

- Link aggregation support based on layer 2-4 information ( IEEE Std

802.3ad)

Security

- Port-based access control support

- 4,096 VLAN support

- VLAN awareness on a per port basis

- Independent and share VLAN learning

- VLAN Q-in Q support (VLAN stacking )

- Source IP filter per port to block unwanted access

- Extensive snooping : BPDU, GARP, ARP, IPMC, IGMP, TCP/UDP

- TCP/UDP filter for CPU copy/redirect, frame snooping and frame

eradication

- DHCP filter to block unwanted DHCP servers on a per-port basis

- Multiple ARP filters for detection of ARP intrusion scans

- Extensive storm control: broadcast, multicast, uni-cast, ICMP and CPU

( ARP, BPDU) traffic control

- Per port CPU based learning option

- CPU mirroring per port and per VLAN

3



Specifications

¾Standard

IEEE 802.3 10BaseT

IEEE 802.3u 100BaseTX

IEEE 802.ab 1000BaseT

IEEE 802.3z 1000BaseSX/LX

IEEE 802.3x Flow Control

IEEE 802.3 Auto Negotiation

IEEE 802.3 Auto-MDI/MDI-X

IEEE 802.1ad Provider Bridge ( Q in Q )

IEEE 802.1x Port-based Network Access Control

IEEE 802.1Q VLAN Tagging

IEEE 802.3ad Link Aggregation

IEEE 802.1d Spanning tree protocol

IEEE 802.1w Rapid Spanning tree protocol

IEEE 802.1p Class of service, Priority Protocols

IEEE 802.3af- 2003 Power over Ethernet

IEEE 802.3at- 2009 Power over Ethernet

¾Number of Port

16-port 10/100/1000BaseT(X) + 4 Gigabit SFP Open Slots

¾LEDs Indicator

Per Port: Link/ Act, 1000M

Per Unit: Power

¾Power Consumption: 130 Watts (Max)

¾Power Input: 100~240V/AC, 50~60HZ

¾Product Dimensions/ Weight

45 × 330 × 440 mm (H × W ×D) / 4.4kg

4



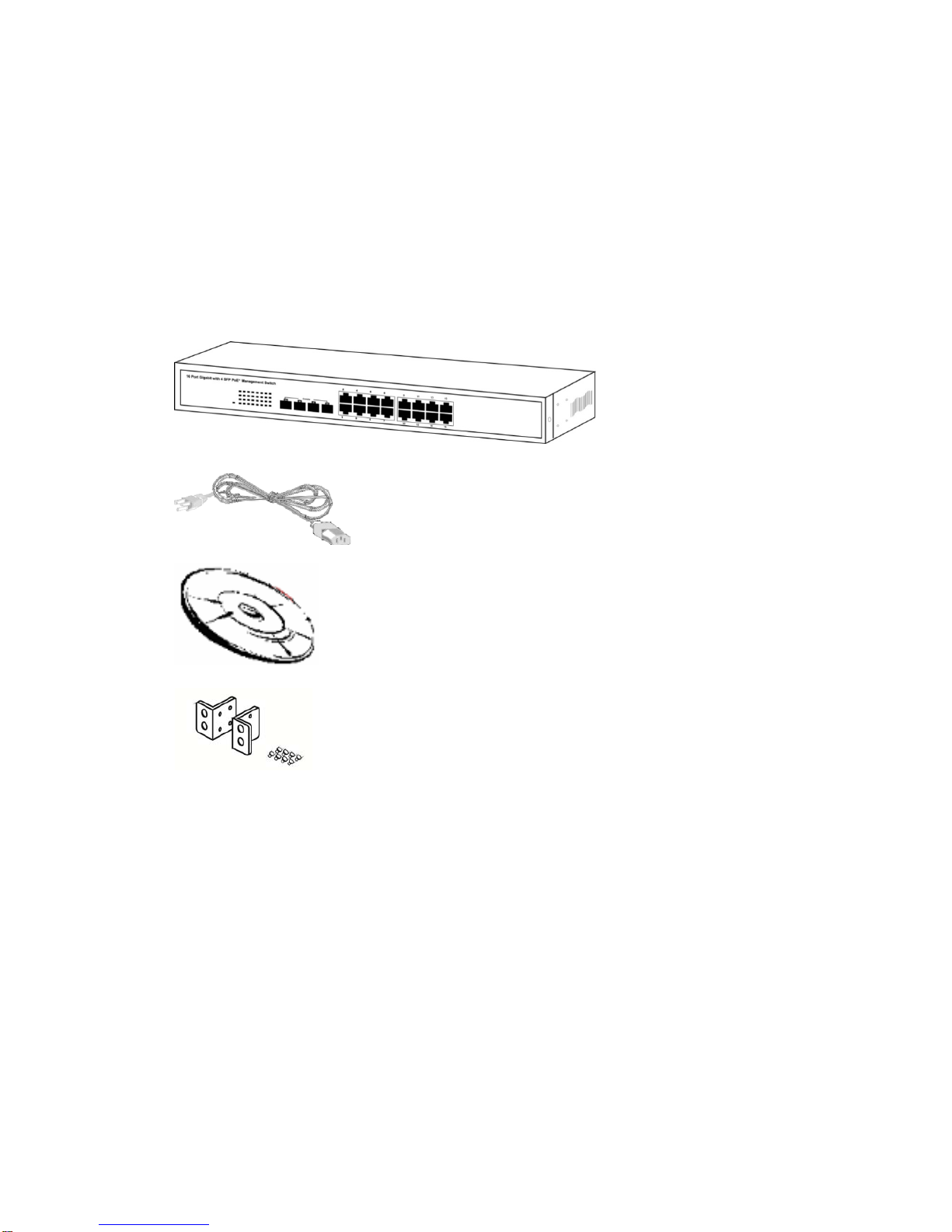

Package Contents

Before you start to install this switch, please verify your package that

contains the following items:

zOne Switch

zOne Power Cord

zOne User Manual

zOne pair Rack-mount kit + 8 Screws

5



Hardware Description

This part primarily presents hardware of the web-smart switch, physical

dimensions and functional overview would be described.

Physical Dimensions/ Weight

45 × 440 × 330 mm (H × W × D) / 4.4KG

Front Panel

The front Panel of the web-smart Switch consists of 16 gigabit RJ-45 ports + 4

gigabit SFP open slot. The LED Indicators are also located on the front panel.

LED Indicators

The LED Indicators present real-time information of systematic operation

status. This table provides description of LED status and the meaning.

Table 1-1 LED Indicators

LED Status Description

Power

On Power on

Off Disconnect from Power Source

Blink Reset button for 3 seconds

Link/ ACT On Link

Flashing Data activating

Off No device is attached

PoE On Port is linked to Power Device

Off No Power Device is connected



Note: The SFP ports are shared with normal RJ-45 ports 1,2,3 and 4. The

RJ-45 can not be used when SFP port link up.

LED Display RJ-45 Port

SFP ports for

optical transceivers

6



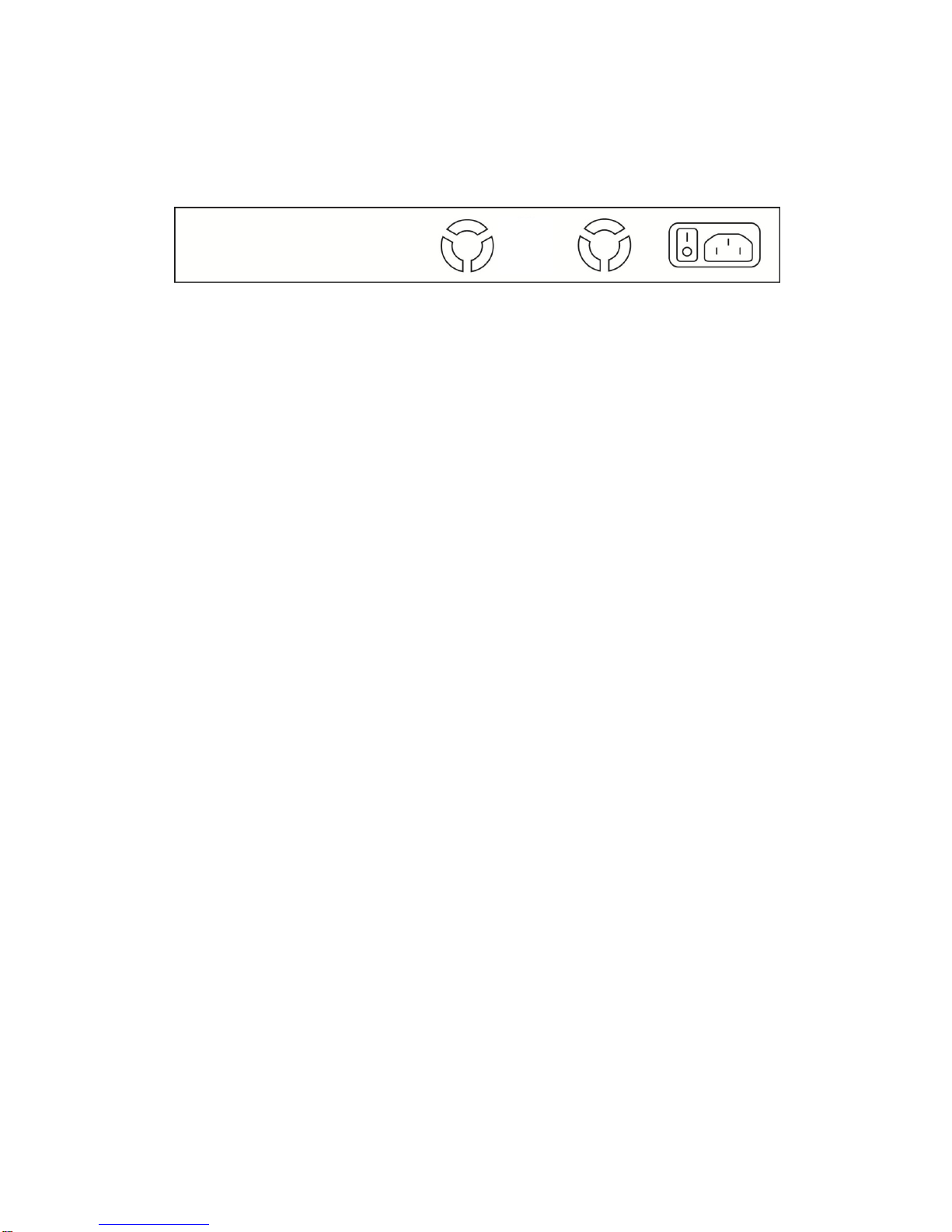

Rear Panel

The 3-pronged power plug is placed at the rear panel of the switch right side

shown as below.

Hardware Installation

Set the switch on a large flat space with a power socket close by. The flat

space should be clean, smooth, level and sturdy. Make sure there is enough

clearance around the switch to allow attachment of cables, power cord and

allow air circulation. The last, use twisted pair cable to connect this switch to

your PC then user could start to operate the switch.
