Edimax ER-5398S Manual de usuario

DIMAX

Ethernet Hub

ER-5398S

18-Port Rackmount

Ethernet Hub

User’s Manual

This equipment generates and uses radio frequency energy and if not installed

and used properly, that is, in strict accordance with the instructions provided with

the equipment, may cause interference to radio and TV reception. The

equipment has been tested and found to comply with the limits for a Class A

computing device in accordance with the specifications in Subpart B of Part 15

of FCC rules, which are designed to provide reasonable protection against such

interference in a commercial environment. However, there is no guarantee that

interference will not occur in a particular installation.

If you suspect this equipment is causing interference, turn your hub on and off

while your radio or TV is showing interference to determine the source of the

interference.

You can try to correct the interference by one or more of the following measures:

1. Reorient the receiving radio or TV antenna where this may be done safely.

2. To the extent possible, relocate the radio, TV or the other receiver away

from the equipment.

3. Plug the computer which has the equipment installed into a different power

outlet so that equipment and the receiver are on different branch circuits.

If necessary, you should consult the place of purchase or an experienced radio/

television technician for additional suggestion.

CAUTION : The phone jack cannot be connected to telephone system.

FCC COMPLIANCE STATEMENT

Chapter 1 Introduction ....................................1

Chapter 2 Features & Specifications ..............2

Chapter 3 Package Contents ...........................3

Chapter 4 Physical Description .......................4

Chapter 5 Installation ......................................6

Chapter 6 Trouble-shooting ............................9

Contents

1Introduction

Congratulations on your purchase of Edimax’s 18-port rackmount Ethernet 10Base-T

hub - ER-5398S. Designed to meet small and large 10Base-T network requirements,

ER-5398S is built with 16 RJ-45 ports and two extra auto-detect AUI /BNC coaxial

ports for cascading other 10Base-T hubs, mixing with thin or thick coaxial segments,

or connecting to fiber backbone through fiber transceivers.

ER-5398S is rackmount size, 1U (1.75 inches) height, it can be installed on an

industry standard 19 inches rack.

An uplink port located right next to the 16th RJ-45 port allows easy connection to

other hubs or switches using regular straight-through cables as illustrated in Figure

1-2.

To accommodate various cabling requirements, ER-5398S can be easily integrated

with other 10Base-T hubs in a central 19-inch wiring rack or be placed separately as

stand-alone or distributed workgroup wiring center.

Figure 1-2 Uplink to another hub

Figure 1-1 ER-5398S Topology

1X 2X 3X 4X 5X 6X 7X 8X 13X 14X 15X 16MDI-X9X 10X 11X 12X 16MDI

18PORT/10 Mbps ER-5398

10 BaseTEthernet

1 3 5 7 9

Link/Rx

Partition

CollisionJabber

Power 2 4 6 8 10 12 14 1611 13 15

DIMAX

LEO

MHz H.D.D.

POWERA B C D

LEO

LEO PREDATOR

RESET

TURBO

1X 2X 3X 4X 5X 6X 7X 8X 13X 14X 15X 16MDI-X9X 10X 11X 12X 16MDI

18PORT/10 Mbps ER-5398

10BaseT Ethernet

1 3 5 7 9

Link/Rx

Partition

CollisionJabber

Power 24 6810 12 14 1611 13 15

DIMAX

Uplink Port

1X 2X 3X 4X 5X 6X 7X 8X 13X 14X 15X 16MDI-X9X 10X 11X 12X 16MDI

18 PORT/10 Mbps ER-5398

10BaseT Ethernet

1 3579

Link/Rx

Partition

CollisionJabber

Power 2 4 6 8 10 12 14 1611 13 15

DIMAX

1X 2X 3X 4X 5X 6X 7X 8X 13X 14X 15X 16MDI-X9X 10X 11X 12X 16MDI

18 PORT/10 Mbps ER-5398

10BaseT Ethernet

1 3579

Link/Rx

Partition

CollisionJabber

Power 2 4 6 8 10 12 14 1611 13 15

DIMAX

2Features & Specifications

(1) Features

nComply with IEEE 802.3 10Base-T, 10Base-2 and 10Base-5 Ethernet Standards.

nSupport sixteen RJ-45 connectors for 10Base-T connection and two auto-detect

10Base-2 BNC/10Base-5 AUI ports for mixed media network environment.

nBuilt-in uplink port for easy connection to another hub using regular straight-

through cable.

nComplete sets of LEDs provide an easy diagnostic on the hub’s and individual

port’s status.

nStandard 19" rackmount

nTwo-year warranty

(2) Specification

nStandards : IEEE 802.3

n10Mbps Ports : RJ-45 x 16 & AUI /BNC x 2

nHub LEDs : Power, Collision, Jabber

nPort LEDs : RJ-45 - Link/Receive, Partition

nDimensions : 17.4 x 5.55 x 1.75 inches/442 x 141 x 44 mm

nWeight : 4.04 lb./1.833kg

nPower : external full-range, 110-240V AC, 50-60Hz

nOperating Temperature : 32-1310F (0-550C)

nOperating Humidity : 10-95% (Noncondensing)

nEmission : FCC Class A & CE Mark

3Package Contents

n18-port rackmount Ethernet Hub

nOne power cord

nTwo T-Connectors

nRackmount accessories

nUser’s manual

Figure 3-1 Package contents

1X 2X 3X 4X 5X 6X 7X 8X 13X 14X 15X 16MDI-X9X 10X 11X 12X 16MDI

18 PORT/10 Mbps ER-5398

10BaseT Ethernet

1 3579

Link/Rx

Partition

CollisionJabber

Power 2 4 6 8 10 12 14 1611 13 15

DIMAX

18 PORT/10 Mbps ER-5398

10BaseT Ethernet

1 3 5 7 9

Link/Rx

Partition

CollisionJabber

Power 2 4 6 8 10 12 14 1611 13 15

1X 2X 3X 4X 5X 6X 7X 8X 13X 14X 15X 16MDI-X9X 10X 11X 12X 16MDI

DIMAX

1 2 3 4

BNC 1BNC 2 AUI 1AUI 2 Power100-240VAC 1A

18 PORT/10 Mbps ER-5398

10BaseT Ethernet

13579

Link/Rx

Partition

CollisionJabber

Power 246810 12 14 1611 13 15

DIMAX

4Physical Description

(1) Panel

Figure 4-1 Panel description

LED Panel RJ-45 Connectors

Link/Receive LED

BNC Port

Uplink Port

Partition LED

Jabber

LED

Collision LED

Power LED

BNC

Ports AUI

Ports

(2) LED

LED Color Status Description

Power

Partition

Link/Rx

(Link/Receive)

Collision

Green

Red

Yellow

Lit

Off

Lit

Off

Lit

Off

Flash

Lit

Off

Power is supplied

No power

A valid link is established

Data packets received

No link is established

This port is patitioned

This port is working normally

Collision detected in this segment

No Collision

Table 4-1 LED description

Jabber Red Lit

Off

Jabber detected in this segment

No Jabber

5Installation

1. Operating Environment

ER-5398S must be installed and operated within the limits of specified operating

temperature and humidity (see previous section under Specifications). Do not place

objects on top of the unit. Do not obstruct any vents at the sides of the unit. Do not

position the hub near any heating source such as heater, radiator, or direct exposure

to sun. Prevent entering of water and moisture into the unit. If necessary, use

dehumidifier to reduce humidity.

2. Connecting to network devices with UTP cable

Connect one end of the network cable to any of the RJ-45 ports on the front panel of

ER-5398S, and connect the other end of the network cable to the RJ-45 port of the

network device. The network cables must comply with EIA/TIA 568 specifications

and minimum Category 3 standard for 10Mbps data transmission. Maximum length

between the hub and workstation is 100 meters (300ft). Once the network cable is

connected on both ends and the attached network devices are powered on, the green

LNK/Rx (Link Status) LED should be lit.

3. Uplink to Another Hub with UTP cable

Use uplink port to connect to another hub as illustrated in Figure 1-2. Connect one

end of the network cable to the uplink port and connect the other end to any of the

regular port in the other hub (except the uplink port). Connecting cable must comply

with EIA/TIA 568 specifications and Category 3 standards to connect the hubs.

Once the network cable is connected and both hubs are powered on, the green

LNK/Rx (Link Status) LED should be lit. The maximum length of the uplink cable

shall not exceed 100 meters (300 feet).

NOTE: Do not use the uplink port and 16th port at the same time.

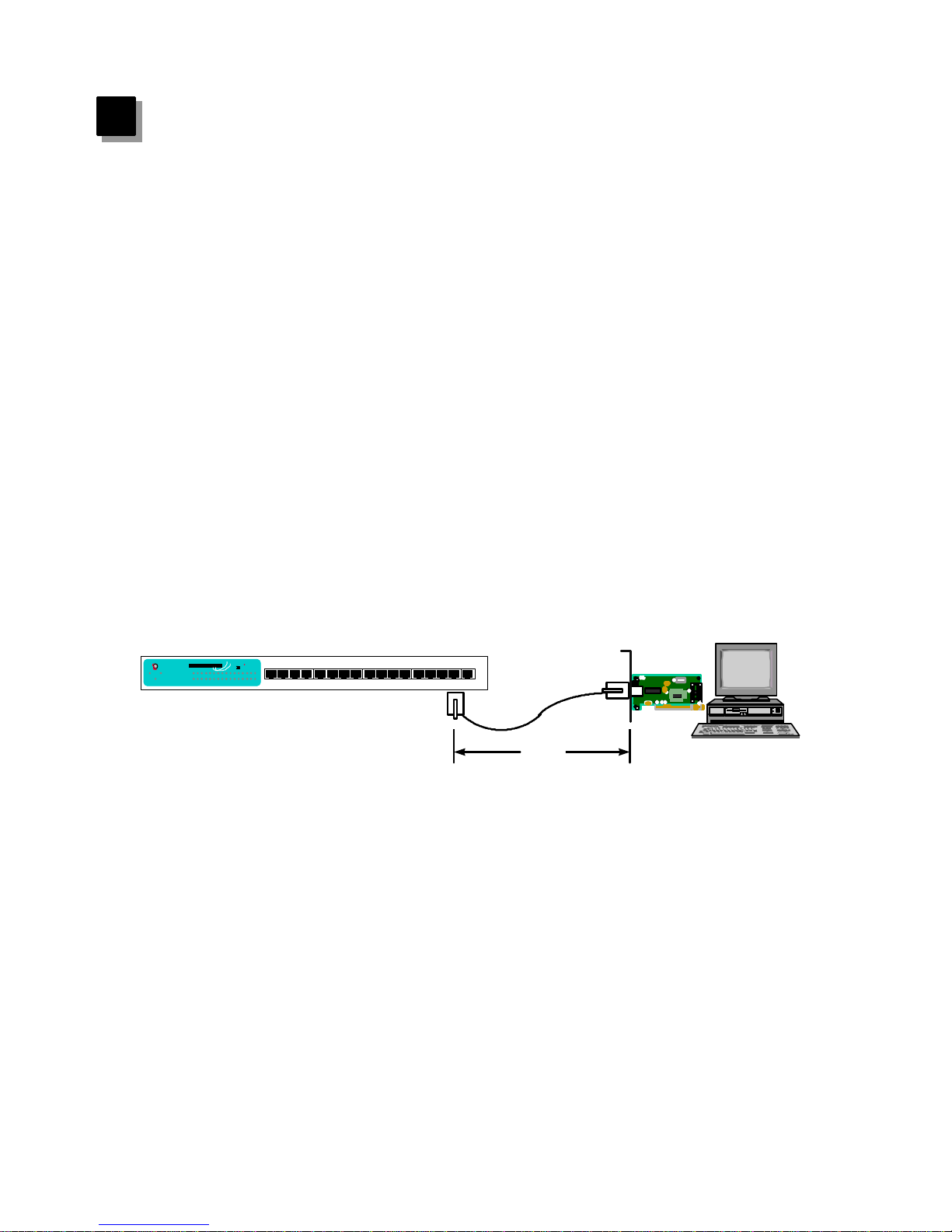

Figure 5-1 Connect the hub and network device

100m

10/100 FAST ETHERNET CARD

FCC ID :

RTL8139

Category 3

EIA/TIA 568

UTP Cable

Network

Adapter

18 PORT/10 Mbps ER-5398

10 BaseT Ethernet

13579

Link/Rx

Partition

CollisionJabber

Power 246810 12 14 1611 13 15

1X 2X 3X 4X 5X 6X 7X 8X 13X 14X 15X 16MDI-X9X 10X 11X 12X 16MDI

DIMAX

4. Connecting network devices with coaxial cables

ER-5398S provides two auto-detect

BNC/AUI coaxial ports, each can

function as either BNC or as AUI but

can be used at the same time. A set

of configuration DIP switches are

located between port 1 and port 2,

they can be used to configure the

coaxial port as auto-detect, BNC only

or AUI only as illustrated in Figure 5-2

and Table 5-1.

NOTE : The default setting is auto-

detect mode.

When using the BNC port, attach the T-connector to the BNC port on the rear panel

and connect the coaxial cables to the both open ends of the T-connector as illustrated

in Figure 5-3. If the ER-5398S is at either end of the coaxial segment, make sure

terminate the open end of T-connector with a 50-ohm terminator. When using the

AUI port, firmly attach the AUI transceiver to the AUI port and secure the

transceiver into the socket. The AUI transceiver’s SQE (Heart Beat) should be set

off.

Note : Do not connect coaxial cable directly to the BNC port without using T-

connector.

1 2 3 4

Port 1

Auto

AUI

BNC

AUI

Port 2

Auto

BNC

AUI

OFF

Figure 5-2 DIP Switch for

AUI/BNC port

Table 5-1 DIP Switch configuration for

AUI/BNC port

1234

BNC 1BNC 2 AUI 1AUI 2 Power100-240VAC 1A

Figure 5-3 Connect the coaxial cables

1234

BNC 1BNC 2 AUI 1AUI 2 Power100-240VAC 1A

Push to the righthand

side to fix

Figure 5-4 Connect the AUI transceiver
