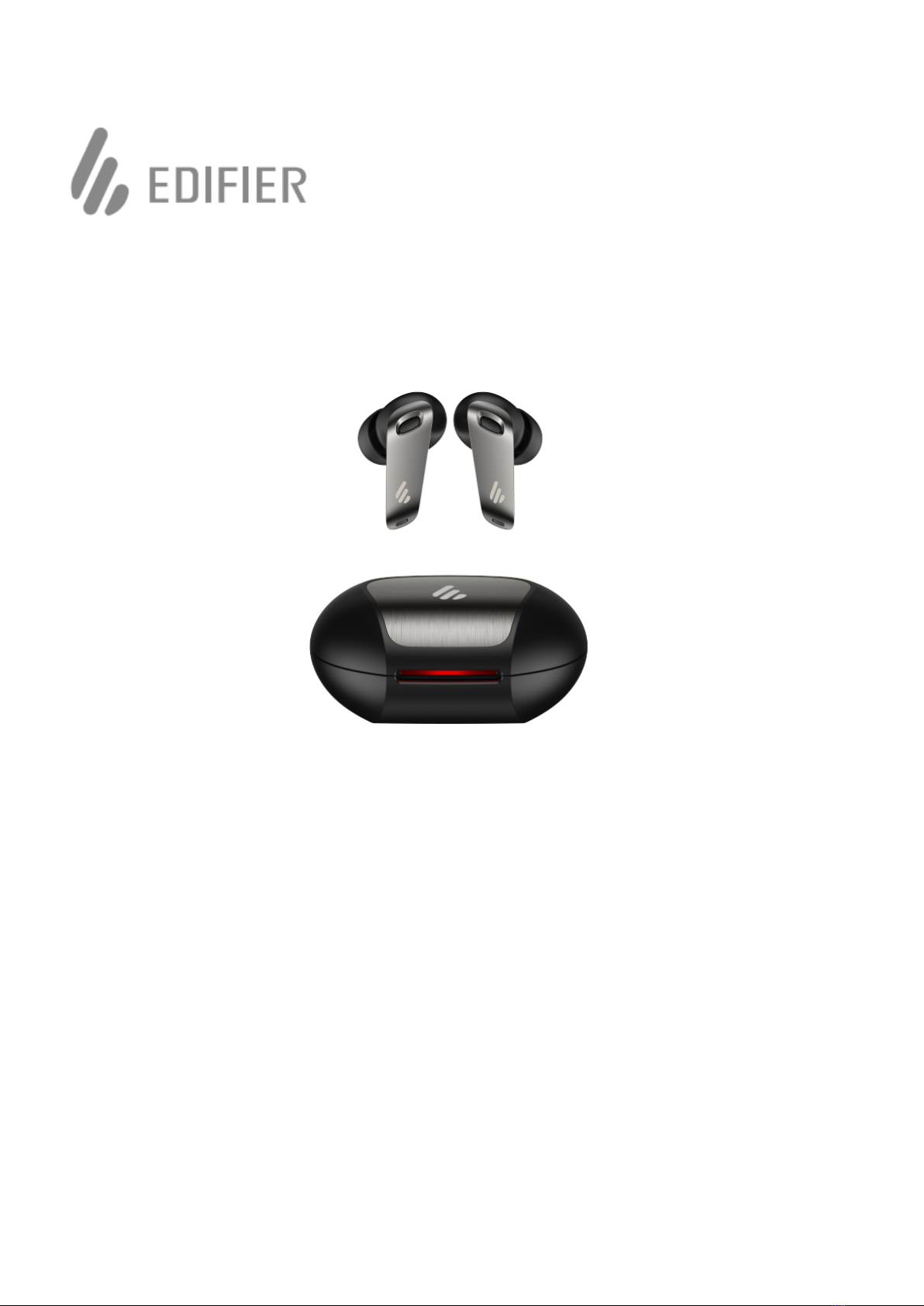

NeoBuds Pro
True Wireless Stereo Earbuds with Active Noise Cancellation
Download EDIFIER CONNECT APP from the APP store/Google Play Store
For user safety and compliances, also for the optimum performance,
please carefully read safety instructions and use the product in accordance with them.
Product description and accessories
Accessories: Ear tips x 7 paris, Storage bag x1, Charging cable x1
Note:
•There are different size of ear tips attached in the package, please select the suitable ones to wear.
•Images are for illustrative purposes only and may differ from the actual product.
Button on the charging case
Tap zone
Power on/off
Indicator
•The earbuds will power on when the case
is opened.
•The earbuds will power off when placed
in the case and the case is closed.
Charge
Charge the earbuds
•Place the earbuds in the case and close the case for charging.
Charge the charging case
•Connect the case to power source with the included charging cable for charging.
•When the earbuds are being charged, the indicators will be lit one by one from the center to both sides, and
then turn off one by one from both sides to the center in a breathing pattern; after the earbuds arefully charged,
the indicators turn off.
Battery level indicator on the charging case
•Open/close the charging case to show the case’s battery level:
•The red LED indicators are lit from the center to both sides, then extends from the center to both sides. The
light strip indicates battery level, and will turn off in 3 seconds.
Warning: The rechargeable batteries that provide power for this product must be disposed properly for recycling.
Do not dispose of batteries in fire to prevent an explosion.
Input:
5V 200mA (earbuds)
5V 1A (charging case)
User guide
Bluetooth connection
TWS pairing of the left and right earbuds & clear pairing records
Place the earbuds in the case, triple click the button on the case to enter the TWS pairing of the left and right
earbuds and to clear pairing records, and the indicators on the case will be lit one by one from both sides to the
center in a circulating pattern; After the TWS pairing is done, the earbuds will auto-enter Bluetooth pairing state,
and the indicators on the case will be lit one by one from left to right in a circulating pattern until the pairing is
successful.
Note:
For initial use, set mobile phone to search for and connect to the corresponding Bluetooth pairing name when the
indicators flash from left to right; For subsequent use, the earbuds will automatically connect to the mobile phone
used last time.
Indicator
•Place the earbuds in the case, press and hold the button on the case for around 3 seconds to enter
Bluetooth pairing, and the indicators on the case will be lit one by one from left to right in a circulating
pattern;
•Set mobile phone to search for and connect to "EDIFIER NeoBuds Pro", after pairing is successful, all
the indicators will simultaneously flash red twice and then turn off.
User guide
Functional operation
Note:
•Mode switch: It is the high noise cancellation mode & ambient sound mode by default when both earbuds are
used. The users can select the low noise cancellation mode & ambient sound mode or the standard mode &
ambient sound mode through the EDIFIER CONNECT APP; It will auto-enable the standard mode &
ambient sound mode when only one earbud is used.
•The users can customize buttons function through the EDIFIER CONNECT APP.
•For the need of technical improvement and system upgrade, information contained herein may be subject to
change from time to time without prior notice.
Accept/end a call: double click the left or right earbud
Mode switch: double click the left earbud
Game mode on/off: triple click the left earbud
Pause/play: double click the right earbud
Next track: triple click the right earbud
User guide
Tapping
Operating method: Tap! Tap! Tap!
The right method to tap: The users cannot "touch" but can "tap" the earbuds!
Please tap within the effective tapping area with fingertip as shown in the picture below.
The users can also adjust the tapping sensitivity through the EDIFIER CONNECT APP.
Tap
Effective tapping area: within the red dotted line
Double click the left earbud:
Triple click the left earbud:
Double click the right earbud:
Triple click the right earbud:
accept/end a call
mode switch
accept/end a call
pause/play
game mode
next track
FAQs
When charging the charging case, the indicator is off.
•Please ensure the charging case is correctly connected with power source.
No sound
•Check if the earbuds are operating.
•Check if the earbuds volume are at an appropriate level.
•Check if the earbuds are correctly connected with mobile phone.
•Check if the earbuds are operating within a normal working range.
The call quality of the earbuds are not good.
•Check if mobile phone is in an area with strong signal.
•Please ensure the earbuds are within effective distance (10m) and no obstacle between the earbuds and mobile
phone.
When playing music, cannot control pause/play/next track via the earbuds.
•Please ensure the paired device support AVRCP (Audio/Video Remote Control Profile) profile.
The tapping function is too sensitive or not sensitive.
•Please ensure you are tapping within the effective area with a moderate intensity or at an appropriate angle.
You can also adjust to a desired tapping sensitivity through the EDIFIER CONNECT APP.
After one earbud alone is connected to another mobile phone, there is no sound from the other earbud
when used again.
•When one earbud alone is connected to another mobile phone, the interconnection between the left and right
earbuds may have been disconnected. To restore the two earbuds mode, double click the button on the case to
resume interconnection between the left and right earbuds. Then try again.
There is a delay problem when playing game.
•Please triple click the left earbud to switch to game mode and then start playing game.
Maintenance
•If it is not used for long periods of time, please charge the product with lithium battery every three months.
•Keep the product away from humid places to avoid affecting internal circuit. Do not use the product during
intense exercise or with much sweat to prevent sweat from dropping into the product to make damage.
•Do not put the product in places exposed to sun or with high temperature. High temperature will shorten
service life of electronic components, damage battery and make plastic components deformed.
•Do not put the product in cold places to avoid damaging internal circuit board.
•Do not dismantle the product. Non-professional personnel may damage the product.
•Do not drop, strongly vibrate, strike the product with hard object to avoid damaging internal circuit.
•Do not use drastic chemicals or cleaner to clean the product.
•Do not use sharp objects to scratch product surface to avoid damaging shell and affecting facade.
FCC statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
IC statement: CAN ICES-3(B)/NMB-3(B).
FCC ID: Z9G-EDF143
IC: 10004A-EDF143
Declaration for EU
Frequency Band: 2.402GHz ~ 2.480GHz
RF Power Output: ≤20 dBm (EIRP)
There is no restriction of use.
Model: EDF200051
Edifier International Limited
P.O. Box 6264
General Post Office
Hong Kong
www.edifier.com
2021 Edifier International Limited. All rights reserved.
Printed in China
NOTICE:
For the need of technical improvement and system upgrade, information contained herein may be
subject to change from time to time without prior notice.
Products of EDIFIER will be customized for different applications. Pictures and illustrations shown on
this manual may be slightly different from actual product. If any difference is found, the actual product
prevails.
