INSTRUCTION MANUAL

Metal Housed Alarm Tone and Voice

Annunciation Sounder/Sounder Beacon Range.

European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH

[email protected] Tel: +44 (0)208 743 8880

www.e2s.com Fax: +44 (0)208 740 4200

Document No. D172-00-051-IS_Issue_B 16-11-22

Sheet 1 of 9

1) Introduction

The Appello tone and speech annunciation

sounder has three different styles in DC.

•D105AX Sounder

•DL105AXX Sounder Beacon (Xenon)

•DL105AXH Sounder Beacon (LED)

These Sounder units share a common set of

functions:-

•4 stages, each stage can record up to 30

seconds of CD quality audio.

•Facility to record via an on board microphone

or a line in input.

•The recorded message can be played back

proceeded either with or without the choice

of one of forty five tones.

The Beacon functions are either:-

•Xenon Strobe:

o1Hz flash rate

o1.5Hz flash rate

oDouble strike flash pattern

•LED:

oSteady

o2Hz flash rate

2) Operating and Marking

All units have the following operating

requirements and limitations.

Sounder only outputs

Unit Type No. Voltage Range Current

D105AX 24Vdc 10-30Vdc 256mA

Max Current 256mA @ 30Vdc

DL105AXX & DL105AXH sounder beacon units -

Add selected sounder & beacon currents to

calculate total current required.

Beacon only outputs

Unit Type No. Voltage Range Current

Xenon Beacon 12Vdc 10-14Vdc 500mA

24Vdc 20-28Vdc 250mA

LED Beacon 24Vdc 10-30Vdc 157mA

Max Current 166mA @ 30Vdc

Operating Temp: -25 to +55C

IP Rating: Type 4 / 4X / 3R / 13 , IP66

Marking:

3) Installation & Wiring Requirements

D105AX

DL105AXX & DL105AXH

Always de-energize unit before removing cover.

The installation of the units must be in accordance

with any local codes that may apply and should

only be carried out by a competent trained

electrical engineer.

The power terminals on the control unit are clearly

marked and will accept up to 1.5mm2cable.

DC Terminals

On main PCB.

++ = Positive

- - = Negative

The DL105AXX & DL105AXH units will have the

beacon already prewired to the unit so no extra

wiring is required.

European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH

[email protected] Tel: +44 (0)208 743 8880

www.e2s.com Fax: +44 (0)208 740 4200

Document No. D172-00-051-IS_Issue_B 16-11-22

Sheet 2 of 9

4) Beacon Set-up

The beacon unit may need to be configured

dependant on the type of flash required.

The xenon beacon is set as standard to 1Hz flash

rate mode but it can be set to either 1.5Hz flash

rate or double Strike flash pattern modes also. To

alter the settings, change the position of the

header pin as shown:

•Keep header on pins deignated ‘A’ for

1Hz flash rate mode

•Place header on pins designated ‘B’ for

1.5Hz flash rate mode

•Place header on pins designated ‘C’ for

double strike flash pattern mode

The LED beacon is set as standard to the 2Hz

flash mode but it can be set to a steady on mode

also. To alter the settings, change the position of

the header pin as shown.

•Remove header for steady mode.

•Keep header in standard position for

2Hz flashing mode

5) Unit Set-up and Recording

The unit will need to be configured to suit the end

user.

If recording either via the onboard microphone or

the in-line connector the unit will need to be

supplied with power.

DC units can be powered when completing

recording and set-up.

See section 7) Appello Setup Guide overleaf for

Set-up instructions and functions.

6) Tone Selection Table

The Appello unit has 45 different tones (See

Table 1) that can be selected for the first stage

alarm. The systems can then be switched to

sound second, third and fourth stage alarm tones.

The tones are selected by operation of a DIP

switch S4 on the main PCB.

The tone table (Table 1) shows the switch

positions for the 45 tones and which tones are

available for the second third and fourth stages.

Example

S4 Dip Switch -

Shown Set for Tone 1

(All switches OFF)

To sound stage one simply connect the supply

voltage (+ve and –ve), to the supply input

terminals on the correct PCB shown.

Second, Third and Fourth Stage Selection

The Appello unit uses –ve switching to change the

tone to the second, third and fourth stages.

Warning! : The negative supply must remain

connected to the -(ve) terminal and a link

made from this to the appropriate stage (S2)

terminal otherwise the unit will be damaged.

To change to the second, third or fourth stage

tone, link the -ve supply line to terminal relevant

stage terminal. I.e. for Stage 2 link the -ve supply

to the S2 terminal, for Stage 3 link the -ve supply

to the S3 terminal etc.

European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH

[email protected] Tel: +44 (0)208 743 8880

www.e2s.com Fax: +44 (0)208 740 4200

Document No. D172-00-051-IS_Issue_B 16-11-22

Sheet 3 of 9

S2 - Set-up S4 - Tones Power & Alarm Stage Terminal

Function L.E.D 's

Peak level L.E.D

On board microphone

Audio Line-in

Jumper Alarm Tone & (Voice) Recorded Content

Volume Controls

7) Appello Setup Guide

The following guide is designed to get the user quickly interfacing with the Appello unit.

•The Appello unit can be set-up to either play an attention seeking tone and then a recorded

message or just play the recorded message.

•The user can:

oRecord on each of the 4 stages using either the Line In or Microphone inputs

oSelect the required alarm tone

oDelete unwanted messages.

•To re-record a message on a particular stage, the previous message on that stage must be

deleted first.

•Once the user has configured the unit, it must be put into it's Playback Mode and S2 switches

set to stage 1, as shown in Quick Ref - Playback Mode (Stage 1 illustrated) guide below.

•The “Mass Erase”function will erase all the recorded stages.

•The "Mass Erase" can also be used to reset the unit if any functionality is

lost.

European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH

[email protected] Tel: +44 (0)208 743 8880

www.e2s.com Fax: +44 (0)208 740 4200

Document No. D172-00-051-IS_Issue_B 16-11-22

Sheet 4 of 9

Quick ref - Switch ‘S2’Dip Switch Function Settings

Switch

No.

OFF Position

Function

ON Position Function

Record Mode

Playback Mode

Stage selection switch

Switch 2 On & Switch 3 On = Alarm Stage 1

Switch 2 Off & Switch 3 On = Alarm Stage 2

Switch 2 On & Switch 3 Off = Alarm Stage 3

Switch 2 Off & Switch 3 Off = Alarm Stage 4

Stage selection switch

Line-In selected

On board Microphone selected

Program –Record &

Erase Mode ON

Playback –Record & Erase Mode OFF

Message & Tone

Playback

Message only Playback

Single Message or

Mass Erase Mode OFF

Single Message or Mass Erase Mode ON

Quick Ref - Playback Mode (Stage 1 illustrated)

For Stage 1:

Set Switch ‘S2’positions

1,2,3 & 5 to 'ON'

Alternatively for :

For Stage 2:

Set Switch ‘S2’positions

1,3 & 5 to 'ON’

For Stage 3:

Set Switch ‘S2’positions

1,2 & 5 to 'ON'

For Stage 4:

Set Switch ‘S2’positions

1 & 5 to 'ON'

Switch on power or

Press reset button

Unit will sound alarm tone

and then recorded

content repeatedly

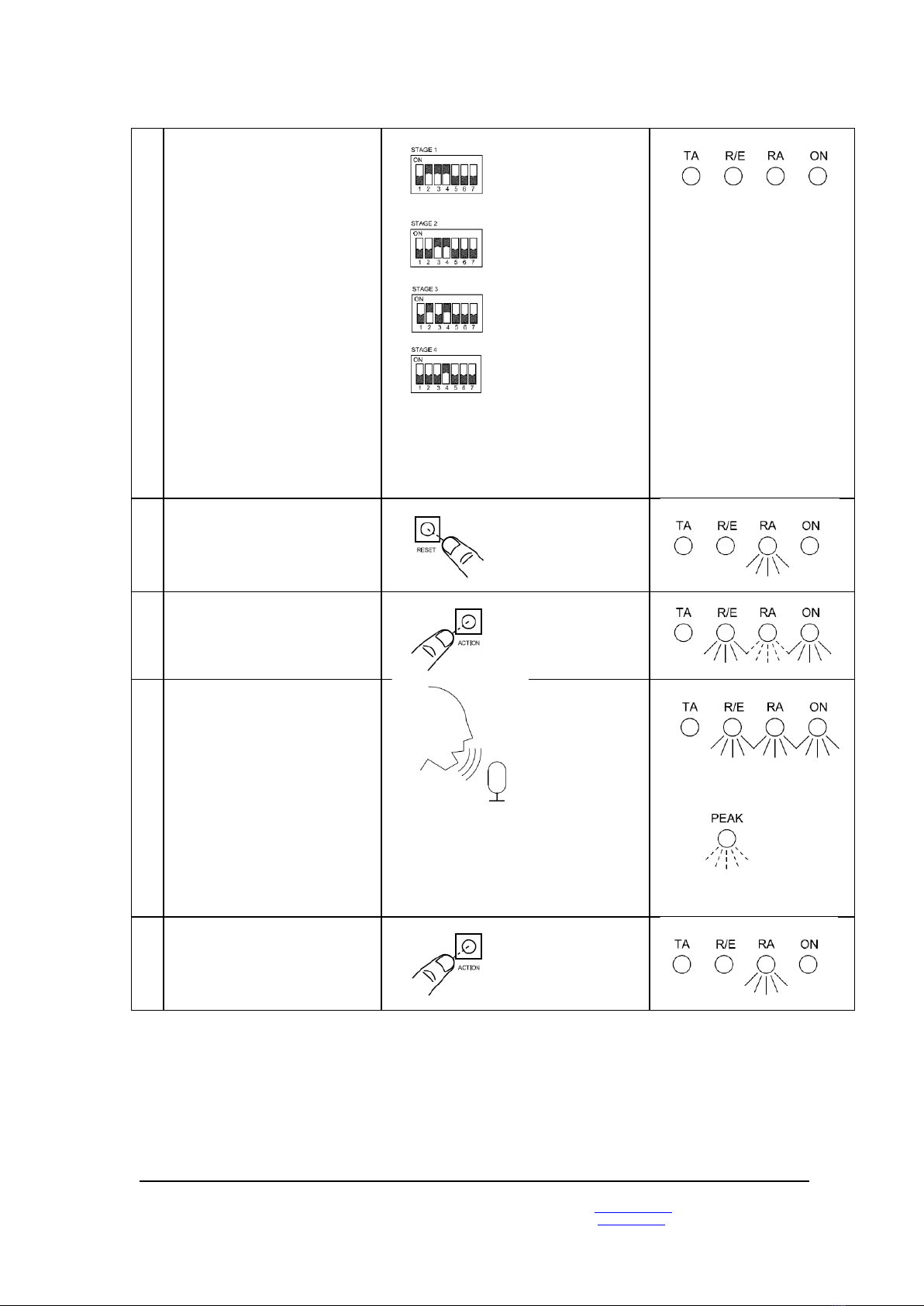

Quick Ref - Recording Mode (Stage 1 illustrated)

European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH

[email protected] Tel: +44 (0)208 743 8880

www.e2s.com Fax: +44 (0)208 740 4200

Document No. D172-00-051-IS_Issue_B 16-11-22

Sheet 5 of 9

For Stage 1:

Set Switch ‘S2’positions

2,3 & 4 to 'ON'

Alternatively for :

For Stage 2:

Set Switch ‘S2’positions 3

& 4 to 'ON'

For Stage 3:

Set Switch ‘S2’positions 2

& 4 to 'ON'

For Stage 4:

Set Switch ‘S2’position 4 to

'ON'

To record from Line-in

instead of the on board

microphone follow above

step 1 but set Switch ‘S2’

position 4 to OFF

Switch on power or

Press reset button

Press action button:

Start recording

Speak into microphone or

plug line-in.

It is suggested that a 5cm

gap is maintained to the

microphone.

The peak detector L.E.D

should flash regularly to

maintain a good recording

level.

However, if it stays on for

most of the time, the

recording may be distorted.

Press action button:

Stop recording

European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH

[email protected] Tel: +44 (0)208 743 8880

www.e2s.com Fax: +44 (0)208 740 4200

Document No. D172-00-051-IS_Issue_B 16-11-22

Sheet 6 of 9

Quick Ref - Erase Single stage Mode (Stage 1 illustrated)

For Stage 1:

Set Switch ‘S2’positions

2,3 & 7 to 'ON'

Alternatively for :

For Stage 2:

Set Switch ‘S2’positions

3 & 7 to 'ON'

For Stage 3:

Set Switch ‘S2’positions

2 & 7 to 'ON'

For Stage 4:

Set Switch ‘S2’position 7

to 'ON'

Switch on power or

Press reset button

Press action button:

Erase will begin

- - - - erase complete

European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH

[email protected] Tel: +44 (0)208 743 8880

www.e2s.com Fax: +44 (0)208 740 4200

Document No. D172-00-051-IS_Issue_B 16-11-22

Sheet 7 of 9

Quick Ref - Mass Erase Mode (Erases All Stages)

Set Switch ‘S2’position

7 to 'ON'

Set jumper J4

‘ME’to ON position

(centre and right pin

connected)

Switch on power or

Press reset button

Press action button:

Erase will begin

- - - - erase complete

Reset Jumper J4

‘ME’to OFF position

Quick Ref - Synchronising Two Sounders (All stages)

European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH

[email protected] Tel: +44 (0)208 743 8880

www.e2s.com Fax: +44 (0)208 740 4200

Document No. D172-00-051-IS_Issue_B 16-11-22

Sheet 8 of 9

Connect Synch cable to

Master and Slave PCB

Set 1 off Units as Master

and 1 off Unit as Slave

Set jumper J6 to Sync on

Set jumper J5 S/M on

Master unit to master

position (on)

Set jumper J5 S/M on

Slave unit to slave

position (off)

Position of S2 switch

does not affect synch

operation.

Switch on power onto the

Master unit first

Then switch power onto

the Slave unit

Master Unit

Slave Unit

Press action button on the

Master Unit:

Synchronisation will begin

Master Unit

Slave Unit

- - - - Synchronisation

complete

Switch off Power to units

Master Unit

Slave Unit

Reset on both units

jumper J6 to Sync off

Set jumper J5 S/M on

both units to Master

position (on)

European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH

[email protected] Tel: +44 (0)208 743 8880

www.e2s.com Fax: +44 (0)208 740 4200

Document No. D172-00-051-IS_Issue_B 16-11-22

Sheet 9 of 9

Table 1: Tone selection table

Switch

Stage 2

Stage 3

Stage 4

Stage 1

Frequency Description

(S2)

(S3)

(S4)

Tone 1

340 Hz Continuous

Tone 2

Tone 5

Tone 29

Tone 2

800/1000Hz @ 0.25 sec Alternating

Tone 17

Tone 5

Tone 29

Tone 3

500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop

Tone 2

Tone 5

Tone 29

Tone 4

800/1000Hz @ 1Hz Sweeping

Tone 6

Tone 5

Tone 29

Tone 5

2400Hz Continuous

Tone 3

Tone 20

Tone 29

Tone 6

2400/2900Hz @ 7Hz Sweeping

Tone 7

Tone 5

Tone 29

Tone 7

2400/2900Hz @ 1Hz Sweeping

Tone 10

Tone 5

Tone 29

Tone 8

500/1200/500Hz @ 0.3Hz Sweeping

Tone 2

Tone 5

Tone 29

Tone 9

1200/500Hz @ 1Hz - DIN / PFEER P.T.A.P.

Tone 15

Tone 2

Tone 29

Tone 10

2400/2900Hz @ 2Hz Alternating

Tone 7

Tone 5

Tone 29

Tone 11

1000Hz @ 1Hz Intermittent

Tone 2

Tone 5

Tone 29

Tone 12

800/1000Hz @ 0.875Hz Alternating

Tone 4

Tone 5

Tone 29

Tone 13

2400Hz @ 1Hz Intermittent

Tone 15

Tone 5

Tone 29

Tone 14

800Hz 0.25sec on, 1 sec off Intermittent

Tone 4

Tone 5

Tone 29

Tone 15

800Hz Continuous

Tone 2

Tone 5

Tone 29

Tone 16

660Hz 150mS on, 150mS off Intermittent

Tone 18

Tone 5

Tone 29

Tone 17

544Hz (100mS)/440Hz (400mS) - NF S 32-001

Tone 2

Tone 27

Tone 29

Tone 18

660Hz 1.8sec on, 1.8sec off Intermittent

Tone 2

Tone 5

Tone 29

Tone 19

1.4KHz-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s -NFC48-265

Tone 2

Tone 5

Tone 29

Tone 20

660Hz Continuous

Tone 2

Tone 5

Tone 29

Tone 21

554Hz/440Hz @ 1Hz Alternating

Tone 2

Tone 5

Tone 29

Tone 22

544Hz @ 0.875 sec. Intermittent

Tone 2

Tone 5

Tone 29

Tone 23

800Hz @ 2Hz Intermittent

Tone 6

Tone 5

Tone 29

Tone 24

800/1000Hz @ 50Hz Sweeping

Tone 29

Tone 5

Tone 29

Tone 25

2400/2900Hz @ 50Hz Sweeping

Tone 29

Tone 5

Tone 29

Tone 26

Bell

Tone 2

Tone 15

Tone 29

Tone 27

554Hz Continuous

Tone 26

Tone 5

Tone 29

Tone 28

440Hz Continuous

Tone 2

Tone 5

Tone 29

800/1000Hz @ 7Hz Sweeping

Tone 7

Tone 5

Tone 29

Tone 30

300Hz Continuous

Tone 2

Tone 5

Tone 29

Tone 31

660/1200Hz @ 1Hz Sweeping

Tone 26

Tone 5

Tone 29

Tone 32

Two tone chime.

Tone 26

Tone 15

Tone 29

Tone 33

745Hz @ 1Hz Intermittent

Tone 2

Tone 5

Tone 29

Tone 34

1000 & 2000Hz @ 0.5 sec Alternating - Singapore

Tone 38

Tone 45

Tone 29

Tone 35

420Hz @ 0.625 sec Australian Alert

Tone 36

Tone 5

Tone 29

Tone 36

500-1200Hz 3.75sec /0.25sec. Australian Evac.

Tone 35

Tone 5

Tone 29

Tone 37

1000Hz Continuous - PFEER Toxic Gas

Tone 9

Tone 45

Tone 29

Tone 38

2000Hz Continuous

Tone 34

Tone 45

Tone 29

Tone 39

800Hz 0.25sec on, 1 sec off Intermittent

Tone 23

Tone 17

Tone 29

Tone 40

544Hz (100mS)/440Hz (400mS) - NF S 32-001

Tone 31

Tone 27

Tone 29

Tone 41

Motor Siren - slow rise to 1200 Hz

Tone 2

Tone 5

Tone 29

Tone 42

Motor Siren - slow rise to 800 Hz

Tone 2

Tone 5

Tone 29

Tone 43

1200 Hz Continuous

Tone 2

Tone 5

Tone 29

Tone 44

Motor Siren - slow rise to 2400 Hz

Tone 2

Tone 5

Tone 29

Tone 45

1KHz 1s on, 1s off Intermittent - PFEER Gen. Alarm

Tone 38

Tone 34

Tone 29

Este manual sirve para los siguientes modelos

Otros manuales de Sistema de seguridad de E2S

E2S

E2S SONFL1H-HO Series Manual de usuario

E2S

E2S D2xB1XH1 Manual de usuario

E2S

E2S BexCS11005D24DC-RD Manual de usuario

E2S

E2S D2xB1LD2DC024 Manual de usuario

E2S

E2S BExBG10D-P Manual de usuario

E2S

E2S BExBG05 Series Manual de usuario

E2S

E2S STExB2X05DC012 Manual de usuario

E2S

E2S BExCTS110-05D-P Manual de usuario

E2S

E2S STExCP8-BG-D Manual de usuario

E2S

E2S Appello A121APPX Manual de usuario

E2S

E2S D1xC3 Manual de usuario

E2S

E2S GNExS1FDC024-S Manual de usuario

E2S

E2S BExCBGL2-05D-P Manual de usuario

E2S

E2S STExB2LD2 Manual de usuario

E2S

E2S GNExB2X05-S Series Manual de usuario

E2S

E2S D1xB2X05-S Manual de usuario

E2S

E2S D2xB1X05 Series Manual de usuario

E2S

E2S E2xC1LD2R Manual de usuario

E2S

E2S D2xC1 Guía de solución de problemas

E2S

E2S BExCS110-L2 Manual de usuario

E2S

E2S STExS2 Manual de usuario

E2S

E2S BExS120D Manual de usuario

E2S

E2S GNExCP6B-PB Manual de usuario

E2S

E2S SONFL1XDC012 Manual de usuario

Manuales populares de Sistema de seguridad de otras marcas

Inner Range

Inner Range Concept 2000 Manual de usuario

Climax

Climax Mobile Lite R32 Instrucciones de montaje

CADDX

CADDX NX-6 Manual de usuario

FBII

FBII XL-31 Series Manual de usuario

Johnson Controls

Johnson Controls PENN Connected PC10 Manual de usuario

Aeotec

Aeotec Siren Gen5 Manual de usuario

Blaupunkt

Blaupunkt SA 2700 Manual de usuario

IDEAL

IDEAL Accenta Manual del propietario

AJAX

AJAX DoubleButton Manual de usuario

Swann

Swann SW-P-MC2 Manual de usuario

Ecolink

Ecolink Siren+Chime Manual de usuario

Digital Monitoring Products

Digital Monitoring Products XR150 Manual de usuario

EDM

EDM Solution 6+6 Wireless-AE Manual de usuario

Highway Safety Group

Highway Safety Group EA401 Manual de usuario

Siren

Siren LED GSM Manual de usuario

Detection Systems

Detection Systems 7090i Instrucciones de montaje

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manual de usuario

Siemens

Siemens FDM273 Manual de usuario
