Dymo M1011 Manual de usuario

User Guide

www.dymo.com

ATape cassette door HCharacter selection window

BTape rollers ICutting handle

CTape advance knob JEmbossing adjustment screw

DStart line KCable tie slot punch

ETape pawl LHole punch

FEmbossing handle MCutting assembly

GEmbossing wheel NLeader/trailer length guide

About Your New Labelmaker

With your new DYMO M1011 labelmaker, you can create a wide

variety of plastic and metal labels. The labelmaker uses DYMO

12 mm (1/2") label tape. DYMO plastic tapes are available in a wide

variety of colors. Metal tapes are available as follows:

• Aluminium with adhesive (35800)

• Aluminium without adhesive (31000)

• Stainless Steel (32500)

You can also use a Reverse Image Wheel with the DYMO M1011

labelmaker. This wheel allows you to print mirror script labels that

meet special requirements in the industry. Mirror labels are used on

moulds or casts for metal or rubber injection, silicon casting, fiber

glass applications, and so on.

Visit www.dymo.com for information on obtaining tapes and

accessories for your labelmaker.

Loading the Label Tape

The DYMO M1011 is set to emboss non-adhesive aluminium or

plastic tape.

To load the tape roll

1. Hold the labelmaker in your left hand.

2. Open tape door (A).

3. Insert roll of tape allowing the end to extend about 5 cm (2")

through the tape slot.

4. Close the tape door.

5. Feed the tape between the two rollers (B).

6. Squeeze the embossing handle (F) half-way (one click) several

times to ensure the tape is inserted all the way.

Cutting the Tape

To cut the tape

1. Squeeze the embossing handle half-way, several times until the

tape extends from the front of the cutting assembly (M) by at least

1 cm (1").

Before cutting the tape, make sure the end of the tape

extends beyond the edge of the cutting assembly so you can easily

pull the label out. Otherwise, a tape jam may occur.

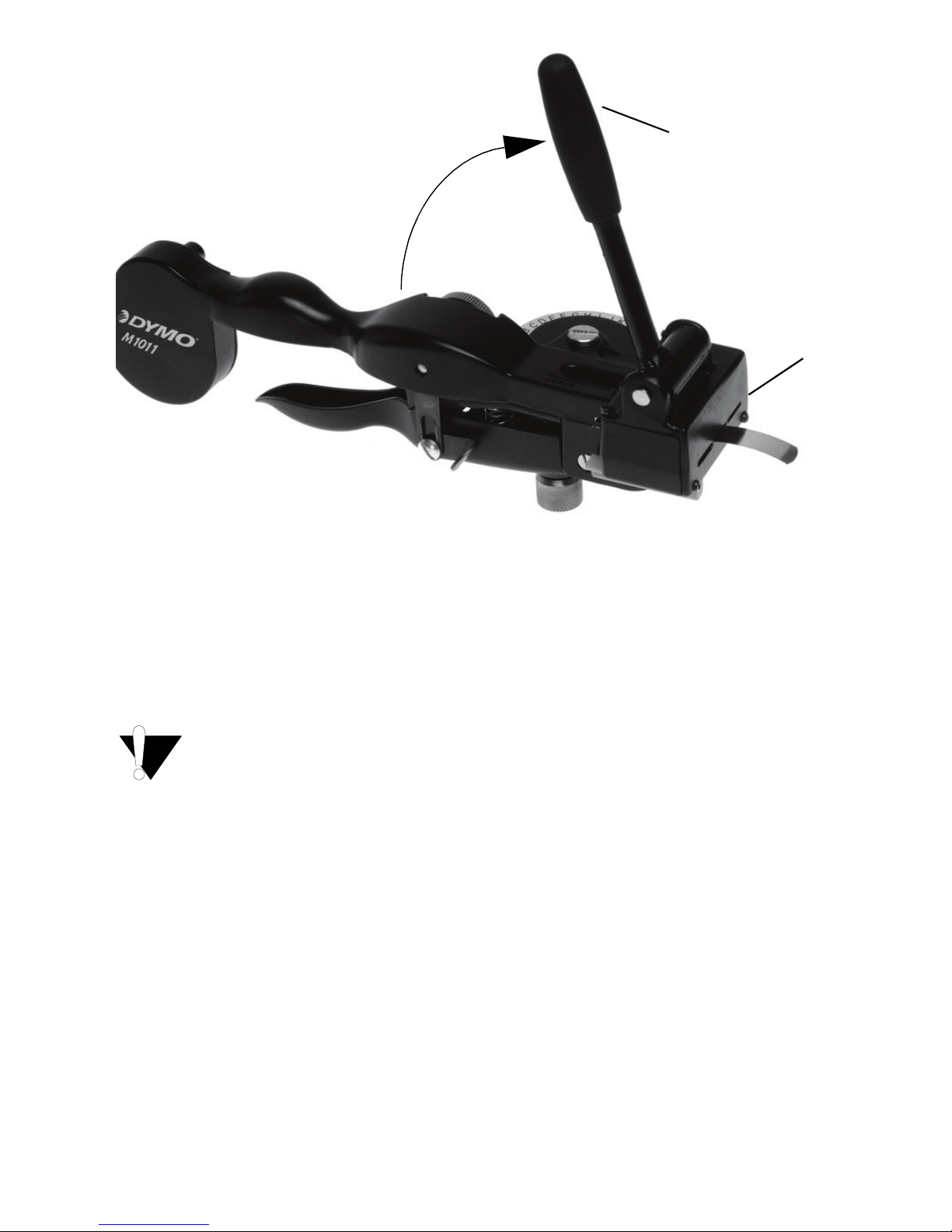

2. Lift the cutting handle (I) gently until it is vertical to cut the tape.

Embossing the Label

Avoid turning the embossing wheel at the same time you are

squeezing the embossing handle. This can damage the character

blades.

To emboss a label

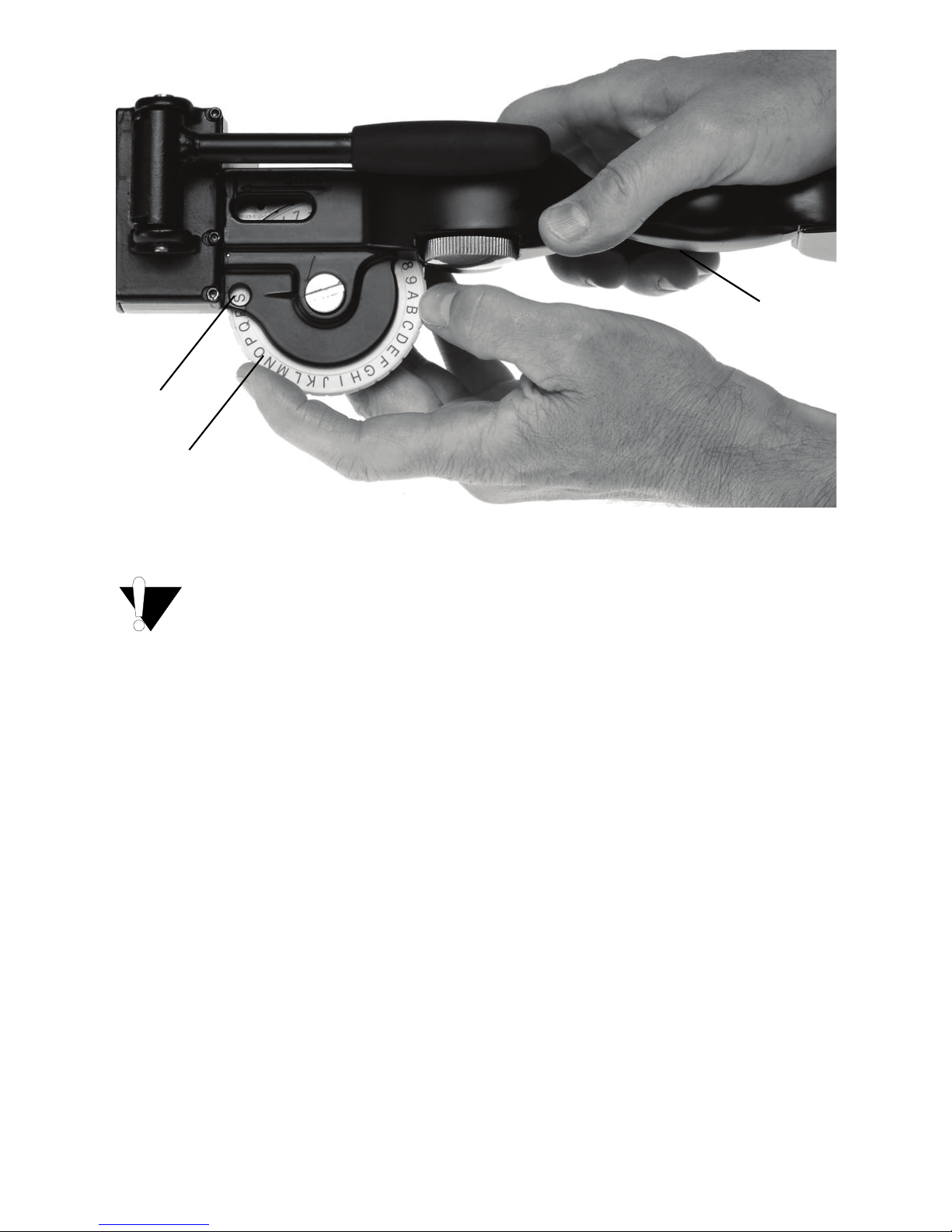

1. Turn the character selection wheel (G) until the desired letter is

centered in the window (H).

2. Squeeze the embossing handle (F) firmly.

3. Release the embossing handle fully before selecting the next

character.

To add space between words

Squeeze embossing handle (F) half-way (one click) or turn the

tape advance knob clockwise (one click per space).

Embossing on Stainless Steel Tape

You may need to adjust the labelmaker to emboss properly when

using stainless steel tape.

To adjust for stainless steel tape

1. Turn the adjustment screw (J) clockwise 1/2 to 3/4 turn.

2. Emboss the text as described in “Embossing the Label” on

page 6.

When you return to using plastic or aluminum tape, you may need to

reverse this adjustment.

Retracting the Tape

You may want to retract the tape, for example, if the tape advanced

too far or to center the text on the label.

To retract the tape

1. Pull back the pawl (E).

2. Turn the tape advance knob (C) counter-clockwise.

Removing the Tape

To remove the tape

1. Retract the tape as described in “Retracting the Tape” on page 8.

2. Open the tape cassette door (A) and remove the tape.

Use caution when removing stainless steel tape that may

have sharp edges.

3. Reload the tape as described in “Loading the Label Tape” on

page 4.

Centering the Text on the Label

The leader/trailer length guide (N) has positioning marks for a short

(S) or long label (L). Use the marks on the guide to center the text on

your label.

To center the text on a long label

1. After cutting the previous label, emboss the text on a new label.

2. Pull the leader/trailer length guide (N) to the forward position.

3. Advance the tape until the last embossed letter is opposite the L

on the guide. The label has a leader/trailer of approximately 5 cm

(2") and the text is centered.

4. Lift the cutting handle (I) to the vertical position to cut the tape.

To center the text on a short label

1. Retract the tape until the tape edge is at start line (D).

2. Emboss the text on your label.

3. Advance the tape until the last embossed letter is opposite the S

on the guide. The label has a leader/trailer of approximately 3 cm

(1.5") and the text is centered.

4. Lift the cutting handle (I) to the vertical position to cut the tape.
