Dwyer Instruments APM-100 Manual de usuario

Bulletin: L-APM

DWYER INSTRUMENTS, INC.

PO Box 373 • Michigan City IN 46360 USA

Phone: (800) 872-9141

Fax: (219) 872-9057

www.dwyer-inst.com

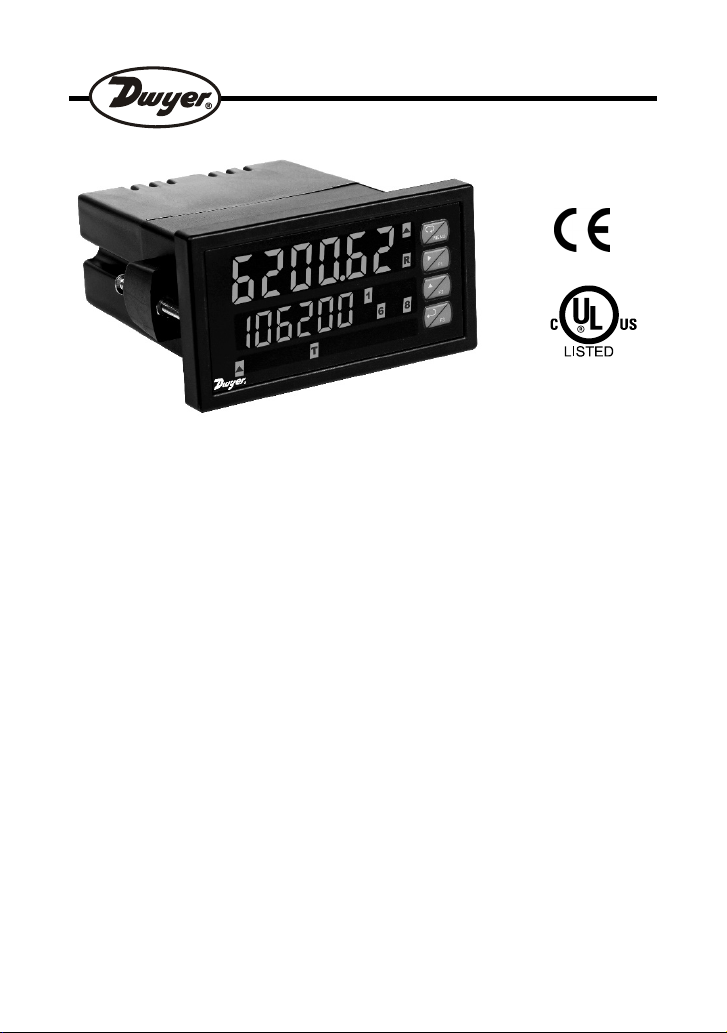

Series APM Analog Panel Meter

Instruction Manual

•0-20 mA, 4-20 mA, 0-5 V, 1-5 V, ±10 V Inputs

•NEMA 4X, IP65 Front

•Input Power Options Include 85-265 VAC or 12-24 VDC

•Large Dual-Line 6-Digit Display, 0.60" & 0.46"

•Sunlight Readable Display Models

•Isolated 24 VDC Transmitter Power Supply

•Signal Input Conditioning for Flow

•Programmable Displays & Function Keys

•Rate Displayed as Units per Second, Minute, Hour, or Day

•Total, Grand Total or Non-Resettable Grand Total

•9-Digit Totalizer with Total Overflow Feature

•32-Point Linearization, Square Root or Exponential Linearization

•Multi-Pump Alternation Control

•2 or 4 Relays + Isolated 4-20 mA Output for Rate/Total/Grand Total

•External 4-Relay & Digital I/O Expansion Modules

•RS-232 & RS-485 Serial Communication Options

•Modbus®RTU Communication Protocol Standard

•Free USB Programming Software & Cable

Analog Panel Meter Instruction Manual

Disclaimer

The information contained in this document is subject to change

without notice. Dwyer Instruments, Inc. makes no representations or

warranties with respect to the contents hereof; and specifically

disclaims any implied warranties of merchantability or fitness for a

particular purpose.

CAUTION: Read complete

instructions prior to

installation and operation

of the meter.

WARNING: Risk of

electric shock or

personal injury.

Warning

This product is not recommended for life support

applications or applications where malfunctioning could

result in personal injury or property loss. Anyone using this

product for such applications does so at his/her own risk.

Dwyer Instruments, Inc. shall not be held liable for damages

resulting from such improper use.

Limited Warranty

Dwyer Instruments, Inc. warrants this product against defects in

material or workmanship for the specified period under

“Specifications” from the date of shipment from the factory. Dwyer

Instruments, Inc.’s liability under this limited warranty shall not

exceed the purchase value, repair, or replacement of the defective

unit.

Registered Trademarks

All trademarks mentioned in this document are the property of their

respective owners.

www.dwyer-inst.com

Analog Panel Meter Instruction Manual

Table of Contents

INTRODUCTION ------------------------------------------------------------ 7

ORDERING INFORMATION --------------------------------------------- 7

SPECIFICATIONS ---------------------------------------------------------- 8

General------------------------------------------------------------------------------- 8

Process Input -------------------------------------------------------------------- 10

Rate/Totalizer -------------------------------------------------------------------- 11

Relays ------------------------------------------------------------------------------ 12

Isolated 4-20 mA Transmitter Output ------------------------------------ 13

Modbus®RTU Serial Communications---------------------------------- 13

PMA-12 Digital Input & Output Expansion Module------------------ 14

Panel Meter Pro Software---------------------------------------------------- 14

COMPLIANCE INFORMATION ----------------------------------------15

Safety ------------------------------------------------------------------------------- 15

Electromagnetic Compatibility--------------------------------------------- 15

SAFETY INFORMATION ------------------------------------------------16

INSTALLATION ------------------------------------------------------------17

Unpacking------------------------------------------------------------------------- 17

Panel Mounting Instructions------------------------------------------------ 17

Mounting Dimensions ------------------------------------------------------- 18

Transmitter Supply Voltage Selection (P+, P-) ----------------------- 19

Connections---------------------------------------------------------------------- 19

Connectors Labeling--------------------------------------------------------- 20

Power Connections ---------------------------------------------------------- 20

Signal Connections ---------------------------------------------------------- 21

Modbus RTU Serial Communications ----------------------------------- 22

Relay Connections ----------------------------------------------------------- 22

Switching Inductive Loads-------------------------------------------------- 23

RC Networks Available from Dwyer Instruments, Inc.----------- 23

F4 Digital Input Connections----------------------------------------------- 24

4-20 mA Output Connections---------------------------------------------- 24

Analog Output Transmitter Power Supply------------------------------ 24

External Relay & Digital I/O Connections ------------------------------ 25

Interlock Relay Feature ----------------------------------------------------- 26

SETUP AND PROGRAMMING ----------------------------------------27

Panel Meter Pro Software---------------------------------------------------- 28

Panel Meter Pro Installation ----------------------------------------------- 28

Front Panel Buttons and Status LED Indicators --------------------- 30

Display Functions and Messages----------------------------------------- 31

Analog Panel Meter Instruction Manual

Main Menu ------------------------------------------------------------------------ 35

Setting Numeric Values ------------------------------------------------------ 36

Setting Up the Rate/Totalizer Meter (setup) --------------------------- 37

Setting the Input Signal (Input) ------------------------------------------ 38

Setting the Totalizer Features (total) ---------------------------------- 38

Setting the Input Units or Custom Tags (units)---------------------- 39

Setting the Decimal Point (dEc pt) -------------------------------------- 40

Programming the Rate/Totalizer (prog) -------------------------------- 40

Multi-Point Calibration & Scaling-------------------------------------- 41

Input Calibration Method (InCAL) ------------------------------------- 41

Scaling the Meter (SCALE) ---------------------------------------------- 42

Calibrating the Meter with External Source (Cal)----------------- 43

Time Base, Total Conversion Factor & Total Reset-------------- 44

Setting the Display Parameter & Intensity (dsplay) ----------------- 45

Display Setup Menu --------------------------------------------------------- 46

Setting the Relay Operation (relay) ------------------------------------ 47

Relay Assignment (Assign) ----------------------------------------------- 48

Setting the Relay Action ---------------------------------------------------- 49

Programming Set and Reset Points ------------------------------------- 50

Setting Fail-Safe Operation ------------------------------------------------ 50

Programming Time Delay -------------------------------------------------- 50

Relay Action for Loss of 4-20 mA Input (Loop Break)--------------- 50

Relay and Alarm Operation Diagrams----------------------------------- 51

High Alarm Operation (Set > Reset)------------------------------------- 51

Low Alarm Operation (Set < Reset)-------------------------------------- 52

High Alarm with Fail-Safe Operation (Set > Reset) ------------------ 53

Low Alarm with Fail-Safe Operation (Set < Reset)------------------- 54

Pump Alternation Control Operation------------------------------------- 55

Rate Relay Sampling Operation ------------------------------------------ 56

Total Relay Sampling Operation------------------------------------------ 56

Signal Loss or Loop Break Relay Operation--------------------------- 57

Time Delay Operation ------------------------------------------------------- 58

Relay Operation Details ------------------------------------------------------ 59

Overview------------------------------------------------------------------------ 59

Relays Auto Initialization---------------------------------------------------- 59

Fail-Safe Operation ---------------------------------------------------------- 59

Front Panel LEDs------------------------------------------------------------- 60

Latching and Non-Latching Relay Operation -------------------------- 60

Non-Latching Relay (Auto)------------------------------------------------- 61

Non-Latching Relay (A-nman) --------------------------------------------- 61

Latching Relay (LatcH) ----------------------------------------------------- 61

Latching Relay (Lt-Clr)---------------------------------------------------- 62

Acknowledging Relays ------------------------------------------------------ 62

Analog Panel Meter Instruction Manual

Pump Alternation Control Applications (Altern) --------------------- 63

Setting Up the Interlock Relay (Force On) Feature ------------------ 66

Scaling the 4-20 mA Analog Output (Aout) ---------------------------- 67

Reset Menu (reset) ------------------------------------------------------------ 68

Control Menu (Contrl)-------------------------------------------------------- 68

Setting Up the Password (pass) ------------------------------------------- 68

Protecting or Locking the Meter------------------------------------------- 69

Total Reset Password & Non-Resettable Total ----------------------- 69

Making Changes to a Password Protected Meter-------------------- 70

Disabling Password Protection-------------------------------------------- 70

Advanced Features Menu---------------------------------------------------- 71

Advanced Features Menu & Display Messages ---------------------- 71

Noise Filter (filter) -------------------------------------------------------- 74

Noise Filter Bypass (bypass)---------------------------------------------- 74

Rounding Feature (round) ------------------------------------------------- 74

Modbus RTU Serial Communications (serial) ---------------------- 75

Select Menu (SElEct) ------------------------------------------------------- 76

Signal Input Conditioning (Functn) -------------------------------------- 76

Low-Flow Cutoff (CutofF) -------------------------------------------------- 78

Totalizer Count Up/Down (Count)---------------------------------------- 78

Analog Output Programming (AoutPr)---------------------------------- 79

Programmable Function Keys User Menu (user)-------------------- 80

Internal Source Calibration (ICAL) --------------------------------------- 81

METER OPERATION -----------------------------------------------------84

Front Panel Buttons Operation -------------------------------------------- 84

Function Keys Operation ---------------------------------------------------- 84

F4 Operation --------------------------------------------------------------------- 85

Maximum/Minimum Readings---------------------------------------------- 85

TROUBLESHOOTING----------------------------------------------------86

Diagnostics Menu (diag)----------------------------------------------------- 86

Determining Software Version -------------------------------------------- 86

Reset Meter to Factory Defaults ------------------------------------------- 87

Factory Defaults & User Settings----------------------------------------- 88

Troubleshooting Tips --------------------------------------------------------- 91

Analog Panel Meter Instruction Manual

Table of Figures

Figure 1: 1/8 DIN Panel Cutout and Mounting................................... 17

Figure 2: Meter Dimensions - Side View............................................ 18

Figure 3: Meter Dimensions - Top View............................................. 18

Figure 4: Transmitter Supply Voltage Selection............................... 19

Figure 5: Connector Labeling for Fully Loaded APM....................... 20

Figure 6: Power Connections............................................................. 20

Figure 7: Transmitter Powered by Internal Supply........................... 21

Figure 8: Transmitter Powered by Ext. Supply or Self-Powered..... 21

Figure 9: Voltage Input Connections................................................. 22

Figure 10: Relay Connections ............................................................ 22

Figure 11: AC and DC Loads Protection ........................................... 23

Figure 12: Low Voltage DC Loads Protection................................... 23

Figure 13: F4 Digital Input Connections............................................ 24

Figure 14: 4-20 mA Output Connections........................................... 24

Figure 15: Expansion Modules & DIN Rail Mounting Kit.................. 25

Figure 16: External Relays Module Connections ............................. 25

Figure 17: Digital I/O Module Connections ....................................... 26

Figure 18. Interlock Connection......................................................... 26

Figure 19: Acknowledge Relays w/Function Key or Digital Input ... 62

Analog Panel Meter Instruction Manual

INTRODUCTION

The APM is a multi-purpose, easy to use rate/totalizer ideal for flow rate, total, and

control applications. It accepts current and voltage signals (e.g. 4-20 mA, 0-10 V).

Three of the front panel buttons can be custom-programmed for specific operation.

The basic model includes an isolated 24 VDC transmitter power supply that can be

used to power the input transmitter or other devices. An additional isolated 24 VDC

power supply is included with the 4-20 mA output option. A digital input, F4, is

standard.

A fully loaded APM rate/totalizer meter has the following: four SPDT relays, 4-20 mA

output, and two 24 VDC power supplies. The APM capabilities may be enhanced by

adding the following external expansion modules: four SPST relays (creating an eight-

relay rate/totalizer), two digital I/O modules with four inputs and four outputs each, and

RS-232 or RS-485 communication adapters.

The eight relays can be used for alarm indication or process control applications. The

4-20 mA isolated output, Modbus RTU serial communications, and digital I/O options

make the APM an excellent addition to any system.

ORDERING INFORMATION

85-265 VAC

Model

12-24 VDC

Model Options Installed

APM-100

APM-200

No options

APM-101

APM-201

4-20 mA output

APM-120

APM-220

2 relays

APM-121

APM-221

2 relays & 4-20 mA output

APM-140

APM-240

4 relays

APM-141

APM-241

4 relays & 4-20 mA output

Accessories

Model

Description

PMA-01

RS-232 serial adapter

PMA-03

RS-422/485 serial adapter

PMA-04

RS-232 to RS-422/485 isolated converter

PMA-05

RS-232 to RS-422/485 non-isolated converter

PMA-06

USB to RS-232 non-isolated converter

PMA-07

USB to RS-422/485 isolated converter

PMA-08

USB to RS-422/485 non-isolated converter

PMA-10

DIN rail mounting kit for two expansion modules

PMA-11

4 SPST (Form A) relays

PMA-12

4 digital inputs & 4 digital outputs (2 may be connected)

PMA-13

Suppressor (snubber): 0.01 µF/470 Ω, 250 VAC

Analog Panel Meter Instruction Manual

SPECIFICATIONS

Except where noted all specifications apply to operation at +25°C.

General

DISPLAY Upper display: 0.6" (15 mm) high, red LEDs

Second display: 0.46" (12 mm) high, red LEDs

6 digits: each (-99999 to 999999), with lead zero blanking.

DISPLAY

INTENSITY

Eight user selectable intensity levels

DISPLAY

UPDATE RATE

5/second (200 ms)

OVERRANGE Display flashes 999999

UNDERRANGE Display flashes -99999

DISPLAY

ASSIGNMENT

Display lines 1 & 2 may be assigned to rate, total, grand

total, alternate (rate/total, rate/grand total, rate/units,

total/units, and grand total/units), set points, max/min, units

(line 2 only), and Modbus input. Additional displays are

available if parameter total is off, and parameter d-SCAL

is on: gross, alternating gross/net, PV1, PV2, and PCT

(refer to MPM instruction manual found on www.dwyer-

inst.com).

PROGRAMMING

METHODS

Four front panel buttons, digital inputs, or PC and Panel

Meter Pro software.

NOISE FILTER Programmable from 2 to 199 (0 will disable filter)

FILTER BYPASS Programmable from 0.1 to 99.9% of calibrated span

RECALIBRATION All ranges are calibrated at the factory. Recalibration is

recommended at least every 12 months.

MAX/MIN

DISPLAY

Max/min readings reached by the process are stored until

reset by the user or until power to the meter is turned off.

PASSWORD

Three programmable passwords restrict modification of

programmed settings and two prevent resetting the totals.

Pass 1: Allows use of function keys and digital inputs

Pass 2: Allows use of function keys, digital inputs and editing set/reset points

Pass 3: Restricts all programming, function keys, and digital inputs.

Total: Prevents resetting the total manually

Gtotal: Prevents resetting the grand total manually

NON-VOLATILE

MEMORY

All programmed settings are stored in non-volatile memory

for a minimum of ten years if power is lost.

POWER

OPTIONS

85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max or 12-24

VDC ± 10%, 15 W max

Powered over USB for configuration only.

Analog Panel Meter Instruction Manual

FUSE Required external fuse: UL Recognized, 5 A max, slow

blow; up to 6 meters may share one 5 A fuse

ISOLATED

TRANSMITTER

POWER SUPPLY

Terminals P+ & P-: 24 VDC ±10%. 12-24 VDC powered models

selectable for 24, 10, or 5 VDC supply (internal jumper J4).

85-265 VAC models rated @ 200 mA max, 12-24 VDC powered

models rated @ 100 mA max, @ 50 mA max for 5 or 10 VDC

supply.

NORMAL MODE

REJECTION

Greater than 60 dB at 50/60 Hz

ISOLATION 4 kV input/output-to-power line

500 V input-to-output or output-to-P+ supply

OVERVOLTAGE
