Draytek Vigor3910 Series Manual de usuario
i
ii
Vigor3910 Series
Multi-WAN Security Router
Quick Start Guide
Version:1.0
Firmware Version: V3.9.1.2
(For future update, please visit DrayTek web site)
Date: December 18, 2019
iii
Intellectual Property Rights (IPR) Information
Copyrights © All rights reserved. This publication contains information that is protected
by copyright. No part may be reproduced, transmitted, transcribed, stored in
a retrieval system, or translated into any language without written permission
from the copyright holders.
Trademarks The following trademarks are used in this document:
Microsoft is a registered trademark of Microsoft Corp.
Windows, Windows 95, 98, Me, NT, 2000, XP, Vista, 7, 8 and Explorer are
trademarks of Microsoft Corp.
Apple and Mac OS are registered trademarks of Apple Inc.
Other products may be trademarks or registered trademarks of their
respective manufacturers.
Safety Instructions and Approval
Safety
Instructions
Read the installation guide thoroughly before you set up the router.
The router is a complicated electronic unit that may be repaired only be
authorized and qualified personnel. Do not try to open or repair the
router yourself.
Do not place the router in a damp or humid place, e.g. a bathroom.
Do not stack the routers.
The router should be used in a sheltered area, within a temperature
range of +5 to +40 Celsius.
Do not expose the router to direct sunlight or other heat sources. The
housing and electronic components may be damaged by direct sunlight or
heat sources.
Do not deploy the cable for LAN connection outdoor to prevent electronic
shock hazards.
Keep the package out of reach of children.
When you want to dispose of the router, please follow local regulations on
conservation of the environment.
Warranty
We warrant to the original end user (purchaser) that the router will be free
from any defects in workmanship or materials for a period of two (2) years
from the date of purchase from the dealer. Please keep your purchase receipt
in a safe place as it serves as proof of date of purchase. During the warranty
period, and upon proof of purchase, should the product have indications of
failure due to faulty workmanship and/or materials, we will, at our discretion,
repair or replace the defective products or components, without charge for
either parts or labor, to whatever extent we deem necessary tore-store the
product to proper operating condition. Any replacement will consist of a new
or re-manufactured functionally equivalent product of equal value, and will
be offered solely at our discretion. This warranty will not apply if the product
is modified, misused, tampered with, damaged by an act of God, or subjected
to abnormal working conditions. The warranty does not cover the bundled or
licensed software of other vendors. Defects which do not significantly affect
the usability of the product will not be covered by the warranty. We reserve
the right to revise the manual and online documentation and to make changes
from time to time in the contents hereof without obligation to notify any
person of such revision or changes.
iv
EU Declaration of Conformity
We DrayTek Corp. , office at No.26, Fu Shing Road, HuKou County, Hsin-Chu Industry Park, Hsinchu
300, Taiwan , R.O.C., declare under our sole responsibility that the product
Product name: Multi-WAN Security Appliance
Model number: Vigor3910
Manufacturer: DrayTek Corp.
Address: No.26, Fu Shing Road, HuKou County, Hsin-Chu Industry Park, Hsinchu
300, Taiwan , R.O.C.
is in conformity with the relevant Union harmonisation legislation:
EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU and RoHS 2011/65/EU with
reference to the following standards
Standard Version / Issue date
EN 55032 2012+AC:2013 class A
EN 61000-3-2 2014 Class A
EN 61000-3-3 2013
EN 55024 2010+A1:2015
EN 62368 2014+A11:2017
EC No. 1275/2008 2008
Hsinchu 22nd June, 2019 Calvin Ma / President .
(place) (date) (Legal Signature)
v
Regulatory Information
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device may accept any interference received, including interference that may cause
undesired operation.
More update, please visit www.draytek.com.
Company name ABP International Inc.
Address 13988 Diplomat Drive Suite 180 Dallas TX 75234
ZIP Code 75234 E-mail rmesser@abptech.com
USA Local
Representative Contact Person Mr. Robert
Messer Tel. 19728311600
vi
T
Ta
ab
bl
le
e
o
of
f
C
Co
on
nt
te
en
nt
ts
s
1. Introduction........................................................................................................... 1
2. Package Content .................................................................................................. 2
3. Panel Explanation................................................................................................. 3
3.1 LED ............................................................................................................................................ 3
3.2 Connectors................................................................................................................................. 4
4. Hardware Installation ........................................................................................... 5
4.1 Connecting Device..................................................................................................................... 5
4.2 Rack-Mounted Installation.......................................................................................................... 6
5. Software Configuration........................................................................................ 7
6. Customer Service............................................................................................... 13
1
1
1.
.
I
In
nt
tr
ro
od
du
uc
ct
ti
io
on
n
Vigor3910 series router is a Multi-WAN Security Appliance which allows the
connection to multiple ISPs and provides multiple VPN tunnels for connecting
different devices.
In addition, the router increases the performance of data transmission with
highest speed which is more than 10Gbps.
2
2
2.
.
P
Pa
ac
ck
ka
ag
ge
e
C
Co
on
nt
te
en
nt
t

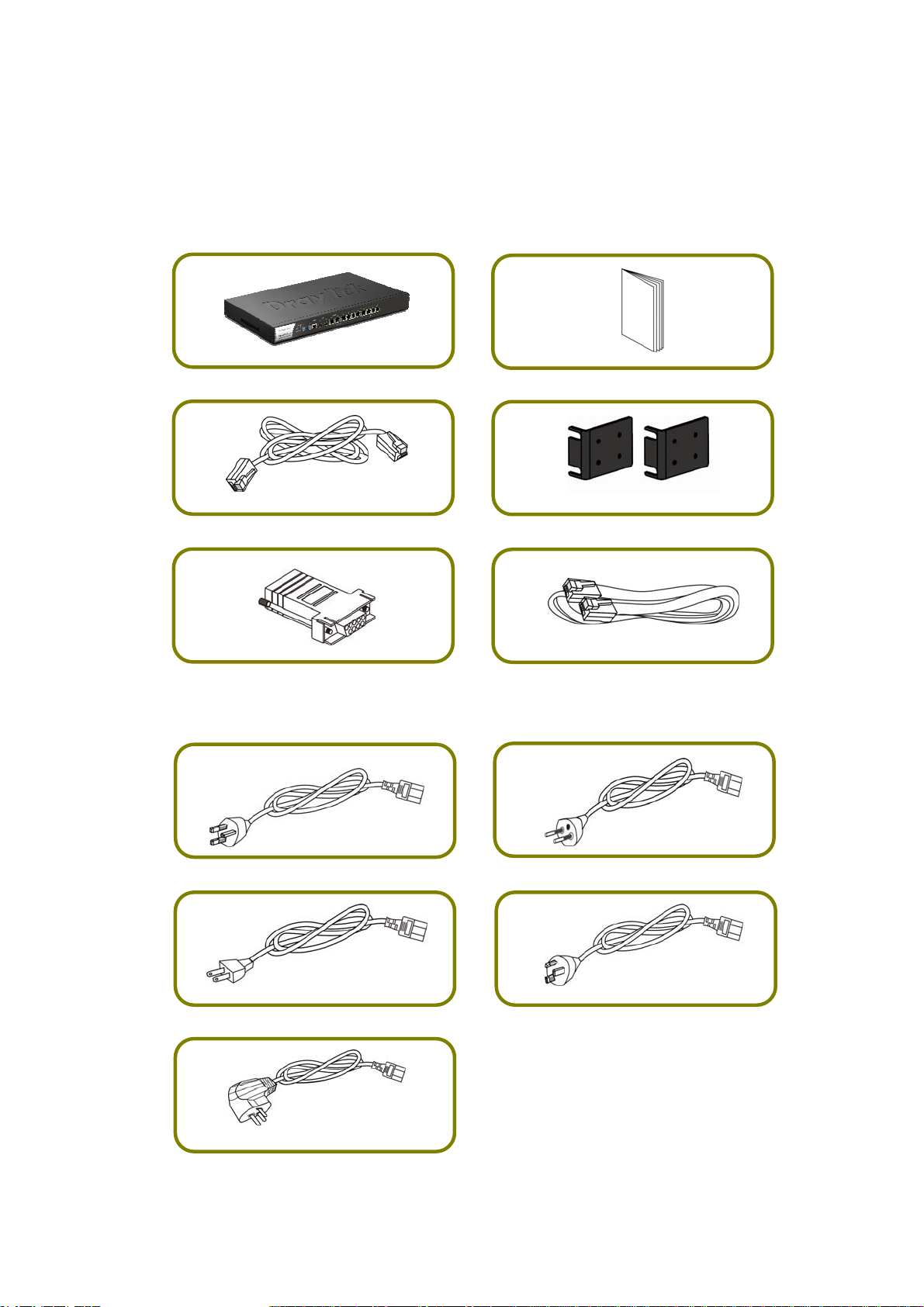

Take a look at the package content. If there is anything missed or damaged,
please contact DrayTek or dealer immediately.
Vigor router
Quick Start Guide
RJ-45 Cable (Ethernet)
Rack mount kit (brackets)
Console Connector
Console Flat Cable
The type of the power cord depends on the country that the router will be
installed.
UK-type Power Cord
EU-type Power Cord
USA/Taiwan-type Power Cord
AU/NZ-type Power Cord
China-type Power Cord
3
3
3.
.
P
Pa
an
ne
el
l
E
Ex
xp
pl
la
an
na
at
ti
io
on
n
3
3.
.1
1
L
LE
ED
D
LED Status Explanation
On The router is powered on.PWR Off The router is powered off.
Blinking The system is active.ACT Off The system is hanged.
On The USB device is installed and ready.USB Off No USB device is installed.
On The fiber connection is established.
Blinking The data is transmitting.
SFP+
Off No fiber connection is established or the
system is hanged.
On The Ethernet link is established on
corresponding port.
Off No Ethernet link is established.
Left
Blinking The data is transmitting.
On The Ethernet link is established on
corresponding port with 1G Mbps or above.
P3 ~P12
Right Off The Ethernet link is established on
corresponding port with less than 1G Mbps.
4
3
3.
.2
2
C
Co
on
nn
ne
ec
ct
to
or
rs
s
Interface Description
USB1 / USB2 Connecter for the USB device.
Console Provided for technician use.
SFP+
(P1~P2) Connecter for SFP module with the rate of 10G/1G bps.
2.5GBase-T
(P3~P4) Connector for remote network devices or local network
devices (WAN/LAN) with the rate of
2.5G/1G/100M/10M bps.
GbE P5~P8 Connectors for remote network devices or local
network devices (WAN/LAN) with the rate of
1G/100M/10M bps.
GbE P9~P12 Connecter for local network devices (LAN) with the rate
of 1G/100M/10M bps.
The Factory Reset button is used to restore the default
settings. Turn on the router (ACT LED is blinking). Press
the hole and keep for more than 5 seconds. When you
see the ACT LED begins to blink rapidly than usual,
release the button. Then the router will restart with
the factory default configuration.
Connecter for a power cord.
ON/OFF - Power switch.
