Draytek Vigor2762 series Manual de usuario

Vigor2762

ADSL2/2+ & VDSL2 Router

Quick Start Guide

Version: 1.3

Firmware Version: V3.9.2

(For future update, please visit DrayTek web site)

Date: January 9, 2020

iii

Intellectual Property Rights (IPR) Information

by copyright. No part may be reproduced, transmitted, transcribed, stored in

a retrieval system, or translated into any language without written permission

from the copyright holders.

Trademarks The following trademarks are used in this document:

Microsoft is a registered trademark of Microsoft Corp.

Windows, Windows 95, 98, Me, NT, 2000, XP, Vista, 7, 8 and Explorer are

trademarks of Microsoft Corp.

Apple and Mac OS are registered trademarks of Apple Inc.

Other products may be trademarks or registered trademarks of their

respective manufacturers.

Safety Instructions and Approval

Safety

Instructions

Read the installation guide thoroughly before you set up the router.

The router is a complicated electronic unit that may be repaired only be

authorized and qualified personnel. Do not try to open or repair the

router yourself.

Do not place the router in a damp or humid place, e.g. a bathroom.

Do not stack the routers.

The router should be used in a sheltered area, within a temperature

range of 0 to +40 Celsius.

Do not expose the router to direct sunlight or other heat sources. The

housing and electronic components may be damaged by direct sunlight

or heat sources.

Do not deploy the cable for LAN connection outdoor to prevent

electronic shock hazards.

Keep the package out of reach of children.

When you want to dispose of the router, please follow local regulations

on conservation of the environment.

Warranty

We warrant to the original end user (purchaser) that the router will be free

from any defects in workmanship or materials for a period of two (2) years

from the date of purchase from the dealer. Please keep your purchase receipt

in a safe place as it serves as proof of date of purchase. During the warranty

period, and upon proof of purchase, should the product have indications of

failure due to faulty workmanship and/or materials, we will, at our discretion,

repair or replace the defective products or components, without charge for

either parts or labor, to whatever extent we deem necessary tore-store the

product to proper operating condition. Any replacement will consist of a new

or re-manufactured functionally equivalent product of equal value, and will

be offered solely at our discretion. This warranty will not apply if the product

is modified, misused, tampered with, damaged by an act of God, or subjected

to abnormal working conditions. The warranty does not cover the bundled or

licensed software of other vendors. Defects which do not significantly affect

the usability of the product will not be covered by the warranty. We reserve

the right to revise the manual and online documentation and to make changes

from time to time in the contents hereof without obligation to notify any

person of such revision or changes.

EU Declaration of Conformity

We DrayTek Corp. , office at No.26, Fu Shing Road, HuKou County, Hsin-Chu Industry Park, Hsinchu

300, Taiwan , R.O.C., declare under our sole responsibility that the product

Product name: ADSL2/2+ & VDSL2 Router

Model number: Vigor2762

Manufacturer: DrayTek Corp.

Address: No.26, Fu Shing Road, HuKou County, Hsin-Chu Industry Park, Hsinchu

300, Taiwan , R.O.C.

is in conformity with the relevant Union harmonisation legislation:

EMC Directive 2014/30/EU , Low Voltage Directive 2014/35/EU , ErP 2009/125/EC and RoHS

2011/65/EU with reference to the following standards

Standard Version / Issue date

EN 55032 2012+AC:2013 class B

EN 61000-3-2 2014 Class A

EN 61000-3-3 2013

EN 55024 2010+A1:2015

EN 60950-1 2006 +A11:2009

+A1:2010 +A12:2011+

A2:2013

EC No. 1275/2008 2008

Hsinchu 22nd June, 2017 Calvin Ma / President .

(place) (date) (Legal Signature)

Regulatory Information

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

(1) This device may not cause harmful interference, and

(2) This device may accept any interference received, including interference that may cause

undesired operation.

Caution

Any changes or modifications not expressly approved by the grantee of this device could void the

user's authority to operate the equipment.

More update, please visit www.draytek.com.

1. Introduction........................................................................................................... 1

2. Package Content .................................................................................................. 2

3. Panel Explanation................................................................................................. 3

4. Hardware Installation ........................................................................................... 5

4.1 Network Connection................................................................................................................... 5

4.2 Wall-Mounted Installation........................................................................................................... 6

5. Software Configuration........................................................................................ 7

6. Customer Service............................................................................................... 13

Be a Registered Owner.................................................................................................................. 13

Firmware & Tools Updates............................................................................................................. 13

DrayTek launches Vigor2762 – High speed router, perfectly complied with VDSL2

environment for speed-wanted customers. With high throughput performance

and secured broadband connectivity provided by Vigor2762, you can

simultaneously engage these bandwidth-intensive applications, such as

high-definition video streaming, online gaming, and Internet telephony / access.

Vigor2762 supports VPN tunnel(s) using advanced protocols such as IPSec/PPTP

(for remote dial-in only) with AES/3DES for encryption and MD5/SHA-1 for

authentication.

Through the central management for multiple access points, Vigor router can set

wireless profile in advance and apply to the access point managed easily and

conveniently.

In addition, Vigor2762 supports two USB interfaces for connecting USB printer to

share the printer or USB storage device for sharing files and 3G/4G backup

services.

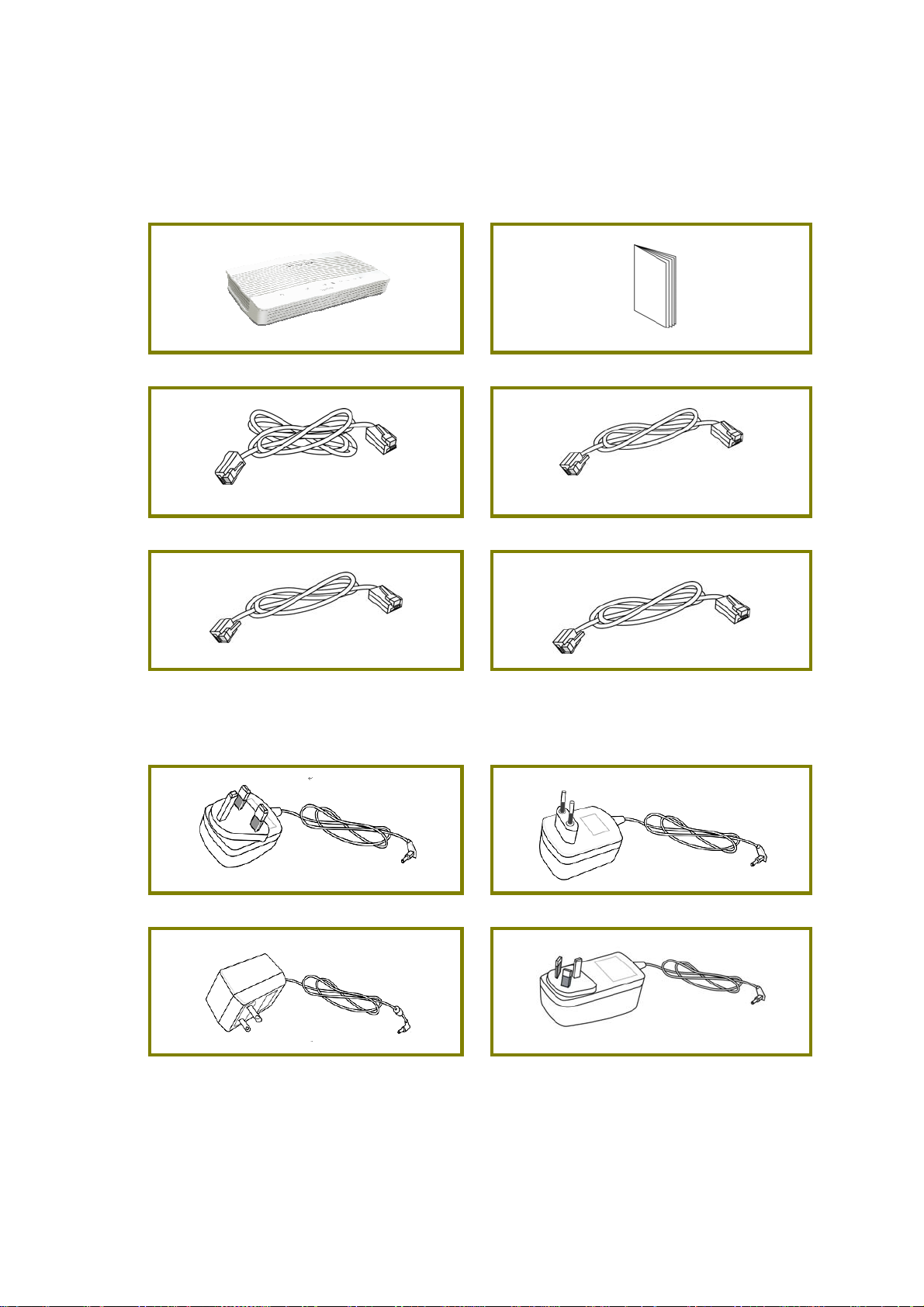

Take a look at the package content. If there is anything missed or damaged,

please contact DrayTek or dealer immediately.

Vigor router Quick Start Guide

RJ-45 Cable (Ethernet) RJ-11 to RJ-11 Cable (Annex A)

RJ-11 to RJ-45 Cable (Annex B) RJ-45 to RJ-45 Cable (Annex B)

The type of the power adapter depends on the country that the router will be

installed. * The maximum power consumption is 17-23 Watt.

UK-type Power Adapter EU-type Power Adapter

USA/Taiwan-type Power Adapter AU/NZ-type Power Adapter

LED Status Explanation

Blinking The router is powered on and running normally.

(Activity) Off The router is powered off.

On A USB device is connected and active.

(USB) Blinking The data is transmitting.

On The DSL port is connected.

Blinking

(Slowly) The router is ready.

(DSL)

Blinking

(Quickly) The router is trying to connect to Internet.

On The LAN port is connected.

Blinking The data is transmitting.

(LAN1/2/3/4) Off The LAN port is disconnected.

Interface Description

Factory Reset

Restore the default settings.

Usage: Turn on the router (ACT LED is blinking). Press the hole

and keep for more than 5 seconds. When you see the ACT LED

begins to blink rapidly than usual, release the button. Then

the router will restart with the factory default configuration.

USB1~USB2 Connector for a USB device (for 3G/4G USB Modem or printer).

GigaLAN1~LA

N4 Connectors for local networked devices.

DSL Connector for accessing the Internet.

I / O Power Switch.

PWR Connector for a power adapter.
