Dometic DTD01A Manual de usuario

Tank Discharge Control

with Seacock Monitor

Instruction manual

Tankentsorgungssteuerung

with Seacock Relay

Einbauanleitung.................... 13

Commande d'évacuation du réservoir

with Seacock Relay

Mode d'emploi .....................19

Control de descarga del depósito

with Seacock Relay

Manual de instrucciones..............26

Tank-afvoerregeling

with Seacock Relay

Gebruiksaanwijzing..................33

Comando di scarico del serbatoio

with Seacock Relay

Manuale di istruzioni .................39

Säiliön tyhjennysohjaus

with Seacock Relay

Ohjekirja...........................45

Styrning för tanktömning

with Seacock Relay

Bruksanvisning .....................51

Tankudledningsstyring

with Seacock Relay

Instruktionsvejledning ................57

Styreanordning for tømming av tank

with Seacock Relay

Brukerhåndbok .....................63

DTD02A

DTD01A/02A

Tank Discharge

Control

with Seacock Monitor

Dometic Tank Discharge Control

DTD02A

DTD01A

Dometic Tank Discharge Control

B D E

Dometic Tank Discharge Control Installation template

Dometic Tank Discharge ControlInstallation template

Table of contents

1 Notes on using the manual .................................................7

2 General safety instructions .................................................7

3 Intended use .........................................................7 - 8

4 Specications ........................................................8 - 9

5 Components ............................................................9

6 Installation ..........................................................9 - 10

7 Operation..............................................................11

8 Warranty ..........................................................12 - 13

9 Customer service........................................................13

Dometic Tank Discharge Control Notes on using the manual

1 Notes on using the manual

Caution!

Safety Instruction: Failure to observe this instruction can cause material damage and impair

the function of the device.

Note

Supplementary information for operating the device.

g. 12, page 2 : This refers to an element in an illustration. In this example, item 2 in gure

1 on page 2.

2 General safety instructions

The manufacturer will not be held liable for claims for damage resulting from the following:

• Faulty installation or connection

• Damage to the unit from mechanical inuences, misuse or abuse

• Alterations to the unit without express written permission from the manufacturer

• Use for purposes other than those described in this manual

3 Intended use

3.1 Model DTD01A discharge control (g. 4, page 3)

DTD01A Tank Discharge Control panel provides a key-operated switch to activate a discharge pump.

When the key is in the automatic power position and the panel is used with a Dometic DTM04 Tank

Monitor System, the discharge control panel activates the discharge pump automatically. The DTD

control panel can be used with virtually any electric discharge pump that operates on the same rated

voltage (12 V DC or 24 V DC) and a maximum circuit breaker or fuse rating of 20 amps.

3.2 Model DTD02A discharge control with seacock interlock monitor

(g. 5, page 3)

When integrated with the Dometic DTM04 Tank Monitor System, the DTD02A Tank Discharge Control

panel automatically activates and shuts off the discharge pump in the same manner as described for the

DTD01A panel.

Dometic Tank Discharge ControlIntended use

Because attempting to pump-out a holding tank can be harmful if the seacock to the overboard

discharge tting is closed, the DTD02A panel also includes a yellow warning light that indicates

when the seacock is closed. The DTD02A panel connects to two Dometic seacock switches

(available separately):

• 385310675 - seacock interlock switch and relay for Conbraco 7014701

• 385310705 - seacock interlock switch and relay for Groco BV1500

Caution!

Operator must know local regulations for emptying a holding tank.

Note

The US Coast Guard allows a key-operated switch as a means to secure an overboard

discharge pump system. Turn off DTD system and remove key from switch when boating in

“No Discharge” waters.

3.3 Features

Secure discharge pump control. Key-operated switch provides convenient means to secure

discharge pump operation without use of padlocks or other mechanical fasteners.

Helps prevent pump burn-out. Activated panel light indicates when discharge pump is operating.

Reminds operator to shut off pump when tank discharge is complete.

Prevents potential damage (DTD02A system). Activating a discharge pump while seacock is

closed can cause pressure build-up in discharge hose which may damage pump or boat and result

in costly repairs.The seacock interlock switch (available separately) greatly reduces this possibility.

Automatic discharge pump operation with DTM04 tank monitor system. Discharge pump begins

when “mid” level oat is activated, and turns off when tank level drops below “low/empty” level

probe (g. 5, page 3).

Simpliﬁes plumbing system. Eliminates wye valves and vented loops of multi-toilet systems.

4 Speciﬁcations

4.1 Materials

Panel frame and mounting frame: ABS Circuit assembly housing: High-density polyethylene

Panel surface: Polycarbonate resin

4.2 Electrical current draw (panel only)

System Voltage Pump Off (amp) Pump On (amp)

12 V DC 0 0.16

24 V DC 0 0.095

Specications subject to change without notice. Maximum relay rating for 12 or 24 V DC discharge pump: 20 amps.

Float Switch Rating: 20 watts with resistive load (when used with DTM04 system).

4.3 Dimensions (g. 3, page 2)

Ref. Dimension

A 3.25 in. / 83 mm

B 3.25 in. / 83 mm

Ref. Dimension

C 51 mm / 2 in. clearance behind wall

D 0.38 in. / 10 mm

4.4 Approvals

ISO 8846; EMC Directive 2004/108/EC; CE approved for electromagnetic compatibility

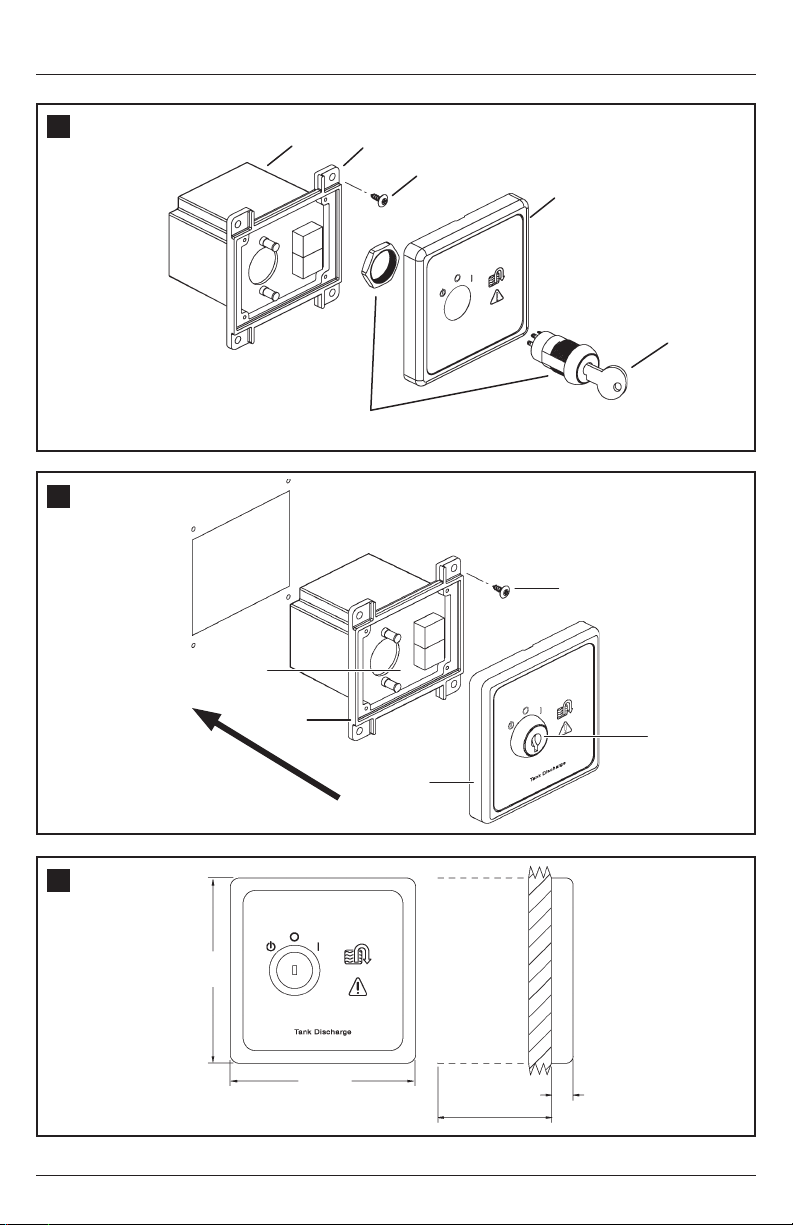

5 Components (g. 1, page 2)

Ref Description Item Number (North America / Europe)

1 Replacement key 385311036 / 860003853110362

2 Switch assembly 385311610 / 860003853116104

DTD01A panel cover, black

DTD01A panel cover, white

DTD02A panel cover, black

DTD02A panel cover, white

385311678 / 860003853116781

385311679 / 860003853116799

385311682 / 860003853116823

385311683 / 860003853116831

4 #6 fastener 385311612 / 860003853116120

5 Mounting frame 385311613 / 860003853116138

DTD01A circuit ass’y, 12 V DC

DTD01A circuit ass’y, 24 V DC

DTD02A circuit ass’y, 12 V DC

DTD02A circuit ass’y, 24 V DC

(includes item 5)

385311680 / 860003853116807

385311681 / 860003853116815

385311684 / 860003853116849

385311685 / 860003853116856

6 Installation

6.1 Tank discharge control panel (g. 2, page 2)

DTD Panel Template

Dimensions (g. 7, page 5)

Ref. Dimension

A 3.25 in. / 83 mm

B 3.25 in. / 83 mm

C 2.63 in. / 67 mm

D 2.63 in. / 67 mm

E 2.16 in. / 55 mm

F 2.69 in. / 68 mm

G 0.10 in. / 2 mm dia.

H Cut-out area.

Allow 2 in. / 51 mm

clearance behind wall.

Caution!

Do not install DTD panel in an area with potentially

ammable or explosive vapors.

1. Select panel location away from direct contact with water

and oil.

2. Conrm clearance for wire connections behind wall, hull

liner or bulkhead.

3. Using control panel template (g. 7, page 5), cut out

panel access hole (E, F) and drill fastener holes (G).

4. With electrical power off, route wire from power source,

through circuit breaker or fuse (not provided), to panel

location. Route additional wires from discharge pump,

seacock relay and tank probes according to diagram (g.

6, page 4), depending on your application, to panel loca-

tion (see Section 6.2, wiring diagram key). Make sure wires

extend through panel access hole.

Dometic Tank Discharge Control Specifications

Dometic Tank Discharge ControlInstallation

5. Make proper wiring connections to wires extending from bottom of circuit assembly (g. 24,

page 2).

6. Remove panel cover (g. 21, page 2) from mounting frame (2) by carefully pulling them apart.

Make sure wires between key switch (3) and circuit assembly (4) remain attached. (Key pin 1 –

red; pin 2 – brown; pin 7 – blue; pin 8 – red.)

7. Install mounting frame to wall with four fasteners (5).

8. Tuck key switch wires into circuit assembly housing, and push panel cover onto mounting frame

until it locks into place.

9. Turn on electrical power.

6.2 Key to DTD01A/02A and DTM04 system wiring (g. 6, page 4)

Ref. Description

A DTD01A or DTD02A control panel

B Discharge pump

C DTM04 indicator panel

D Wastewater tank

E 12 or 24 V DC

F V DC ground

G Discharge pump circuit breaker or fuse

H 12 V DC

I 24 V DC

J 1-amp circuit breaker or fuse

K Toilet system circuit breaker or fuse

L + V DC to electric toilet system

M Full level probe

Ref. Description

N Mid level probe

O Low/Empty level probe

P Red

Q Black

R Brown

S Green

TBlue

UYellow

VOrange

WWhite

XSeacock interlock switch

Y“Check seacock” indicator light

(DTD02A only)

1. Heavy lines in wiring diagram represent stranded copper wire to be sized according to ABYC recommendations.

2. Other wire can be 18 gauge stranded copper wire or larger.

3. Maximum discharge pump circuit breaker or fuse rating: 20 amps.
