Dometic PerfectView M70IP Manual de usuario

M70IP

LCD Monitor

Installation and Operating Manual . . . . . . 8

LCD-Monitor

Montage- und Bedienungsanleitung . . . 26

Ecran LCD

Instructions de montage

et de service . . . . . . . . . . . . . . . . . . . . . . . 43

Pantalla LCD

Instrucciones de montaje y de uso . . . . . 61

Monitor LCD

Instruções de montagem e manual de

instruções . . . . . . . . . . . . . . . . . . . . . . . . . 79

Monitor LCD

Istruzioni di montaggio e d’uso . . . . . . . . 96

LCD-monitor

Montagehandleiding en

gebruiksaanwijzing. . . . . . . . . . . . . . . . . 113

LCD-monitor

Monterings- og betjeningsvejledning. . 130

LCD-monitor

Monterings- och bruksanvisning . . . . . . 147

LCD-monitor

Monterings- og bruksanvisning . . . . . . . 164

LCD-monitori

Asennus- ja käyttöohje. . . . . . . . . . . . . . .181

ЖК-монитор

Инструкция по монтажу

и эксплуатации. . . . . . . . . . . . . . . . . . . . 198

Monitor LCD

Instrukcja montażu i obsługi . . . . . . . . . 215

LCD monitor

Návod na montáž a uvedenie

do prevádzky . . . . . . . . . . . . . . . . . . . . . 232

Monitor LCD

Návod k montáži a obsluze . . . . . . . . . . 249

LCD-monitor

Szerelési és használati útmutató . . . . . . 266

DRIVING SUPPORT

PERFECTVIEW

M70IP-B-16s.book Seite 1 Dienstag, 12. Juli 2016 6:01 18

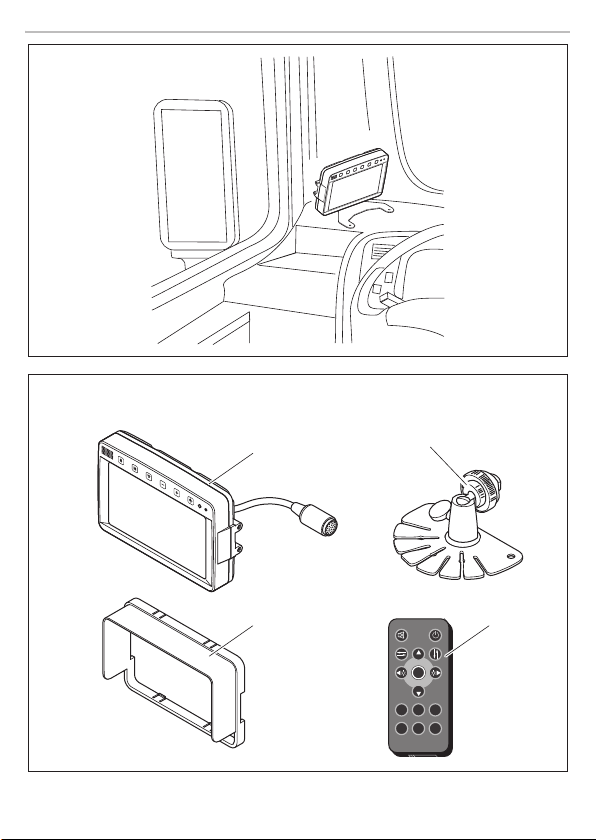

PerfectView M70IP

12 13 14

911

56 7

M70IP-B-16s.book Seite 2 Dienstag, 12. Juli 2016 6:01 18

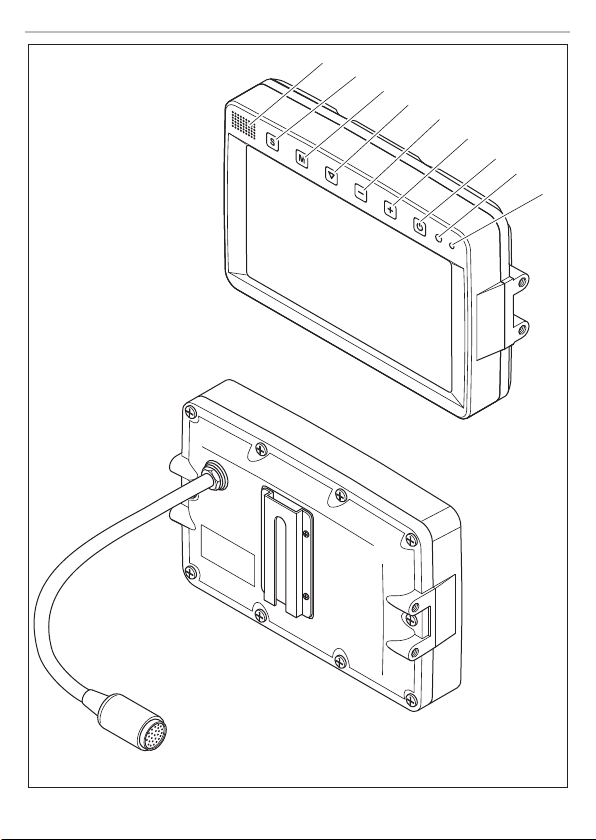

PerfectView M70IP

2 3

4 5

6 7

M70IP-B-16s.book Seite 3 Dienstag, 12. Juli 2016 6:01 18

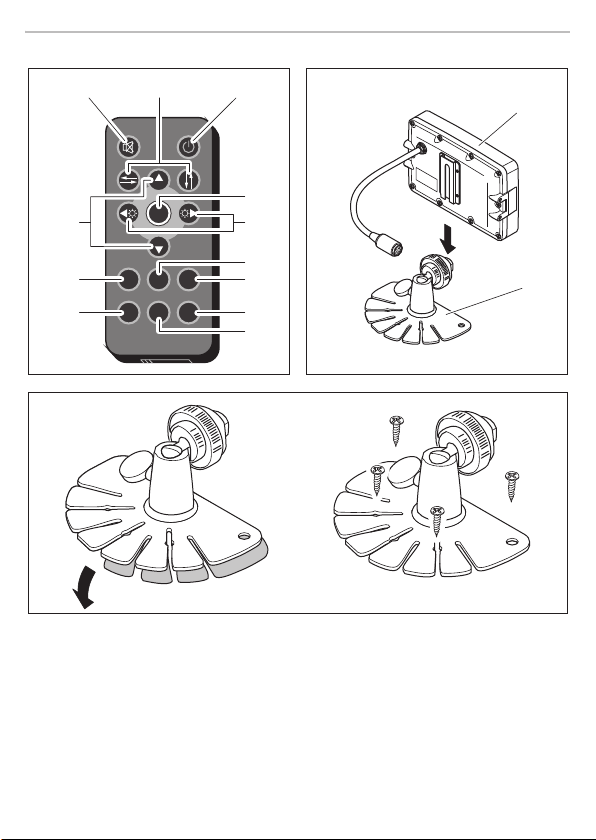

PerfectView M70IP

3 4

CHCH

MODEMODE CALLCALL TIMERTIMER

LANGLANG SYSSYS SELSEL

MENUMENU

MUTEMUTE POWERPOWER

M70IP-B-16s.book Seite 4 Dienstag, 12. Juli 2016 6:01 18

PerfectView M70IP

M70IP-B-16s.book Seite 5 Dienstag, 12. Juli 2016 6:01 18

PerfectView M70IP

MODEMODE CALLCALL TIMERTIMER

LANGLANG SYSSYS SELSEL

MENUMENU

MUTEMUTE POWERPOWER

123

12 5

11 7

10 8

M70IP-B-16s.book Seite 6 Dienstag, 12. Juli 2016 6:01 18

PerfectView M70IP

132

M70IP-B-16s.book Seite 7 Dienstag, 12. Juli 2016 6:01 18

Explanation of symbols PerfectView M70IP

Please read this instruction manual carefully before installation and first use, and store

it in a safe place. If you pass on the product to another person, hand over this instruc-

tion manual along with it.

Table of contents

1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2 Safety and installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

7 Installing the LCD monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

8 Using the LCD monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

9 Cleaning and caring for the LCD monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

10 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

11 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

12 Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

1 Explanation of symbols

WARNING!

Safety instruction: Failure to observe this instruction cancause fatal or serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair the function

of the product.

NOTE

Supplementary information for operating the product.

M70IP-B-16s.book Seite 8 Dienstag, 12. Juli 2016 6:01 18

PerfectView M70IP Safety and installation instructions

2 Safety and installation instructions

The manufacturer accepts no liability for damage in the following cases:

•Faulty assembly or connection

•Damage to the product resulting from mechanical influences and excess voltage

•Alterations to the product without express permission from the manufacturer

•Use for purposes other than those described in the operating manual

Please observe the prescribed safety instructions and stipulations from the vehicle

manufacturer and service workshops.

!WARNING!

Inadequate supply cable connections could result in short circuits, which could have as

a consequence that:

•Cable fires occur

•The airbag is triggered

•Electronic control devices are damaged

•Electric functions fail (indicators, brake light, horn, ignition, lights)

ANOTICE!

To prevent the risk of short circuits, always disconnect the negative terminal of the vehi-

cle's electrical system before working on it.

If the vehicle has an additional battery, its negative terminal should also be discon-

nected.

Please observe the following instructions:

•When working on the following cables, only use insulated cable lugs, plugs and flat push-on

receptacles:

– 30 (direct supply from positive battery terminal)

– 15 (connected positive terminal, behind the battery)

– 31 (return line from the battery, earth)

– L (indicator lights left)

– R (indicator lights right)

Do not use terminal strips.

•Use a crimping tool to connect the cables.

•When connecting to cable 31 (earth), screw the cable

– to the vehicle's earth bolt with a cable lug and a gear disc or

– to the sheet-metal bodywork with a cable lug and a self-tapping screw.

Ensure that there is a good earth connection.

M70IP-B-16s.book Seite 9 Dienstag, 12. Juli 2016 6:01 18

Safety and installation instructions PerfectView M70IP

If you disconnect the negative terminal of the battery, all data stored in the volatile memories will

be lost.

•The following data must be set again, depending on the vehicle equipment options:

–Radiocode

– Vehicle clock

–Timer

– On-board computer

– Seat position

You can find instructions for making these settings in the appropriate operating instructions.

Observe the following installation instructions:

!CAUTION!

•Secure the parts installed in the vehicle in such a way that they cannot become loose

under any circumstances (sudden braking, accidents) and cause injuries to the

occupants of the vehicle.

•Secure any parts of the system covered by the bodywork in such a manner that they

cannot be come loose or damage other parts and cables or impair vehicle functions

(steering, pedals, etc).

•Always follow the safety instructions of the vehicle manufacturer.

Some work (e.g. on retention systems such as the AIRBAG etc.) may only be per-

formed by qualified specialists.

ANOTICE!

•To prevent damage when drilling, make sure there is sufficient space on the other

side for the drill head to come out.

•Deburr all drill holes and treat them with a rust-protection agent.

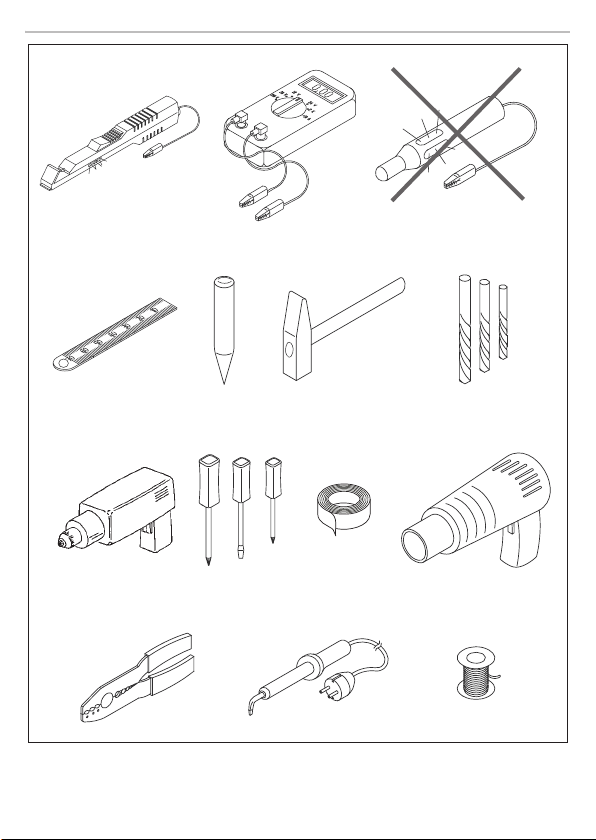

Observe the following instructions when working with electrical parts:

ANOTICE!

•When testing the voltage in electrical cables, only use a diode test lamp or a voltme-

ter.

Test lamps with an illuminant take up voltages which are too high and which can dam-

age the vehicle's electronic system.

•When making electrical connections, ensure that:

– they are not kinked or twisted

– they do not rub on edges

– they are not laid in sharp edged ducts without protection.

•Insulate all connections.

•Secure the cables against mechanical wear with cable binders or insulating tape,

for example to existing cables.

M70IP-B-16s.book Seite 10 Dienstag, 12. Juli 2016 6:01 18
